Old 11-30-2015, 02:53 PM   #21
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Reverant View Post
Well, I'm looking at 500rwhp and 450rwtq, so I better find something a little more reliable.
There are places that make custom beefier aftermarket stuff. Pretty pricy though last time I checked.
bbundy is offline   Reply With Quote
Old 11-30-2015, 02:54 PM   #22
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

A complete 8.8 rear with DSS axles will only set me back $4K plus shipping and taxes. Yeah, right.
Reverant is offline   Reply With Quote
Old 11-30-2015, 08:19 PM   #23
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

I run Mickey Thompson drag radials on my car with MSM diff/axles, launch at 5,100 RPMs on a prepped track with a very hot supercharged setup making about 300wtq. Have wheel hopped the car a few times, cut 1.7 60' times on it. Haven't broke a diff or axle yet.
patsmx5 is offline   Reply With Quote
Old 11-30-2015, 10:08 PM   #24
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Some info you may have already seen:

Quote:
Originally Posted by bobbiemartin View Post
The axles do not fit into the diff, the CV does. The axles fit into the (inner) CV joint. I can't say if the axles are different, but the splined end of the CV joint is larger where it fits into the diff.



That is a standard Miata inner CV joint & axle on the top, MSM on the bottom. On the CV joint, the seal area is the same, everything past there to the splined end is a larger diameter on the MSM CV joint. As I recall, 28mm vs 30mm.
midpack is offline   Reply With Quote
Old 11-30-2015, 10:15 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

What about the s2000 diff?
aidandj is offline   Reply With Quote
Old 12-01-2015, 01:11 AM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

the same torsen as the miata's have? yeah, k
18psi is offline   Reply With Quote
Old 12-01-2015, 01:14 AM   #27
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Bigger axles. More aftermarket support. There are a lot more high power s2ks than miatas. And there are a lot aftermarket parts for it.
aidandj is offline   Reply With Quote
Old 12-01-2015, 01:16 AM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

such optimism. much ideas

too bad that's all been explored and nothing new.

there is almost nothing new under the sun.

(I sound like a grumpy old man. cause i am. get off my lawn)
18psi is offline   Reply With Quote
Old 12-01-2015, 01:21 AM   #29
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

I know I found references on m.net. but some people are better at exploring things than others

And reverant might have better access to an s2k diff than a Ford diff. And if you can bolt the carrier into a Miata case and stick some thicker axles in. Profit?
aidandj is offline   Reply With Quote
Old 12-01-2015, 04:47 AM   #30
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yup, lots and lots of S2K parts going around, but no Ford 8.8s. All the Fords over here are of the small, FWD variety.
Reverant is offline   Reply With Quote
Old 12-02-2015, 03:43 PM   #31
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

The S2k diff is the same as the MSM diff.
Savington is offline   Reply With Quote
Old 12-02-2015, 03:45 PM   #32
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by 18psi View Post
the same torsen as the miata's have? yeah, k
Quote:
Originally Posted by Savington View Post
The S2k diff is the same as the MSM diff.
18psi is offline   Reply With Quote
Old 12-03-2015, 05:27 PM   #33
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Ya'll are missing my point. I'm not saying that the S2k diff may be any better than the MSM diff, but it is another option. And built s2k diffs are a lot more common than built miata diffs. Just something to explore. Especially if s2k diffs are more common in Greece than MSM diffs.

2 years of MSM, 10 years of s2k.

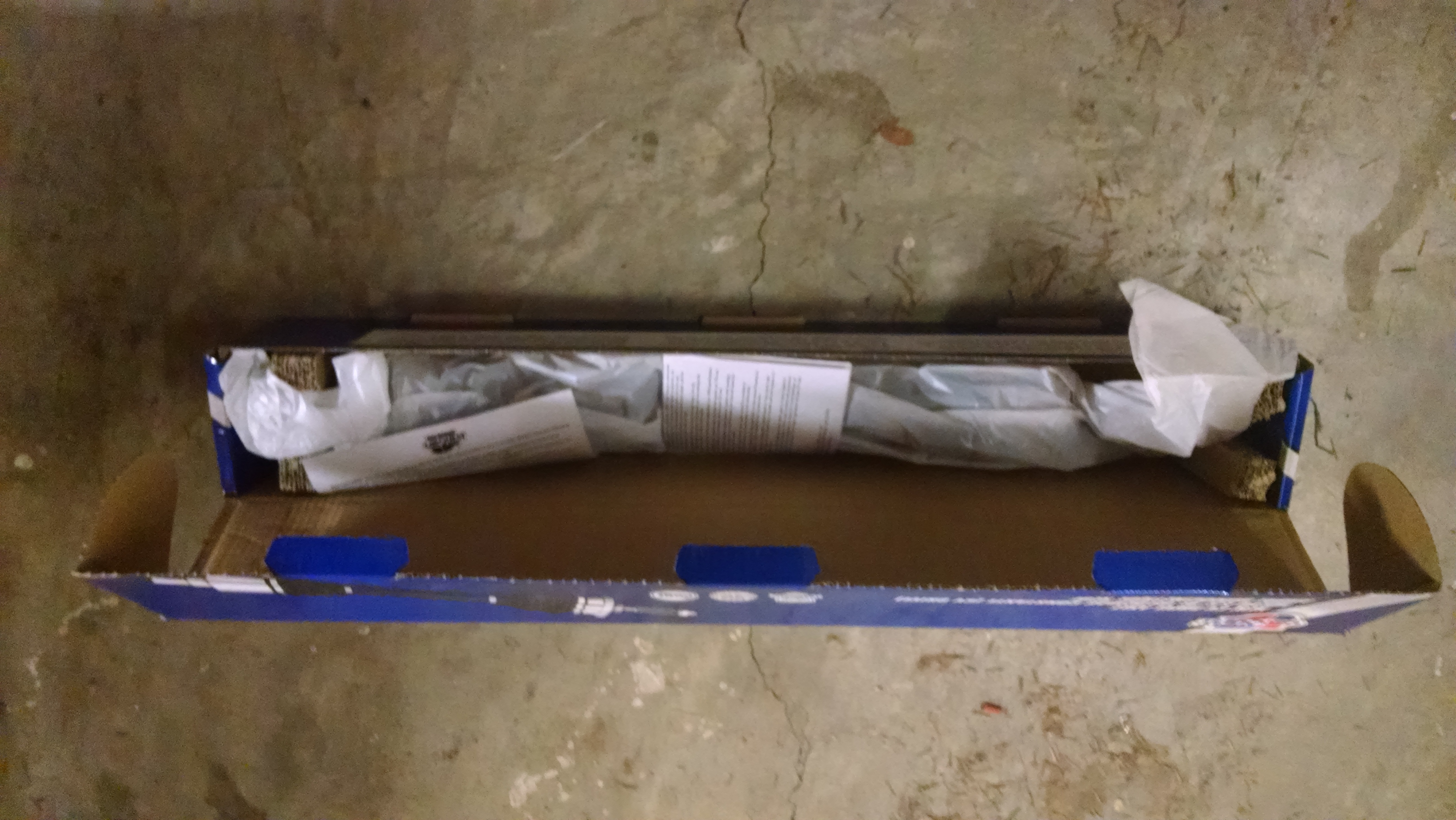

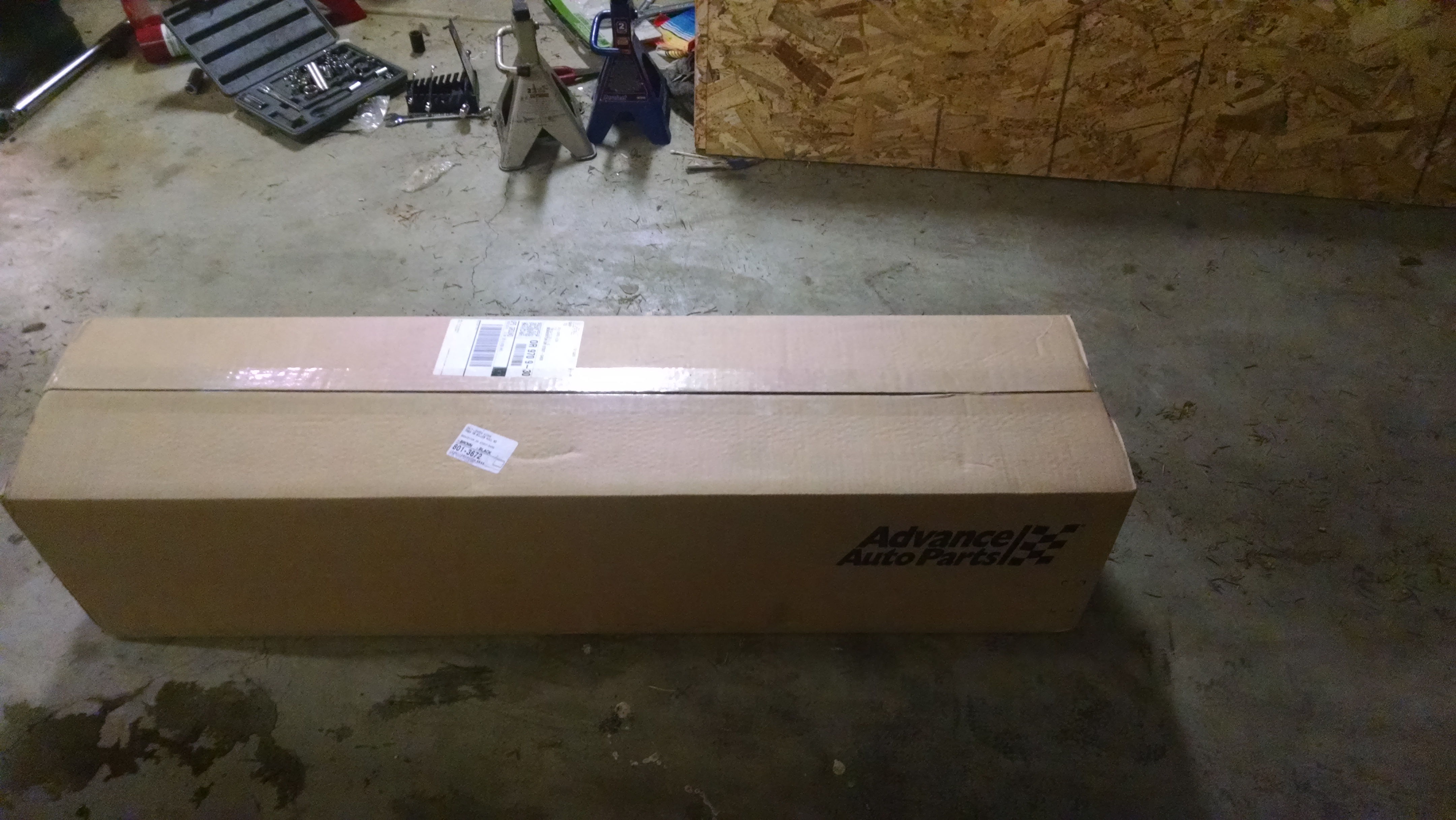

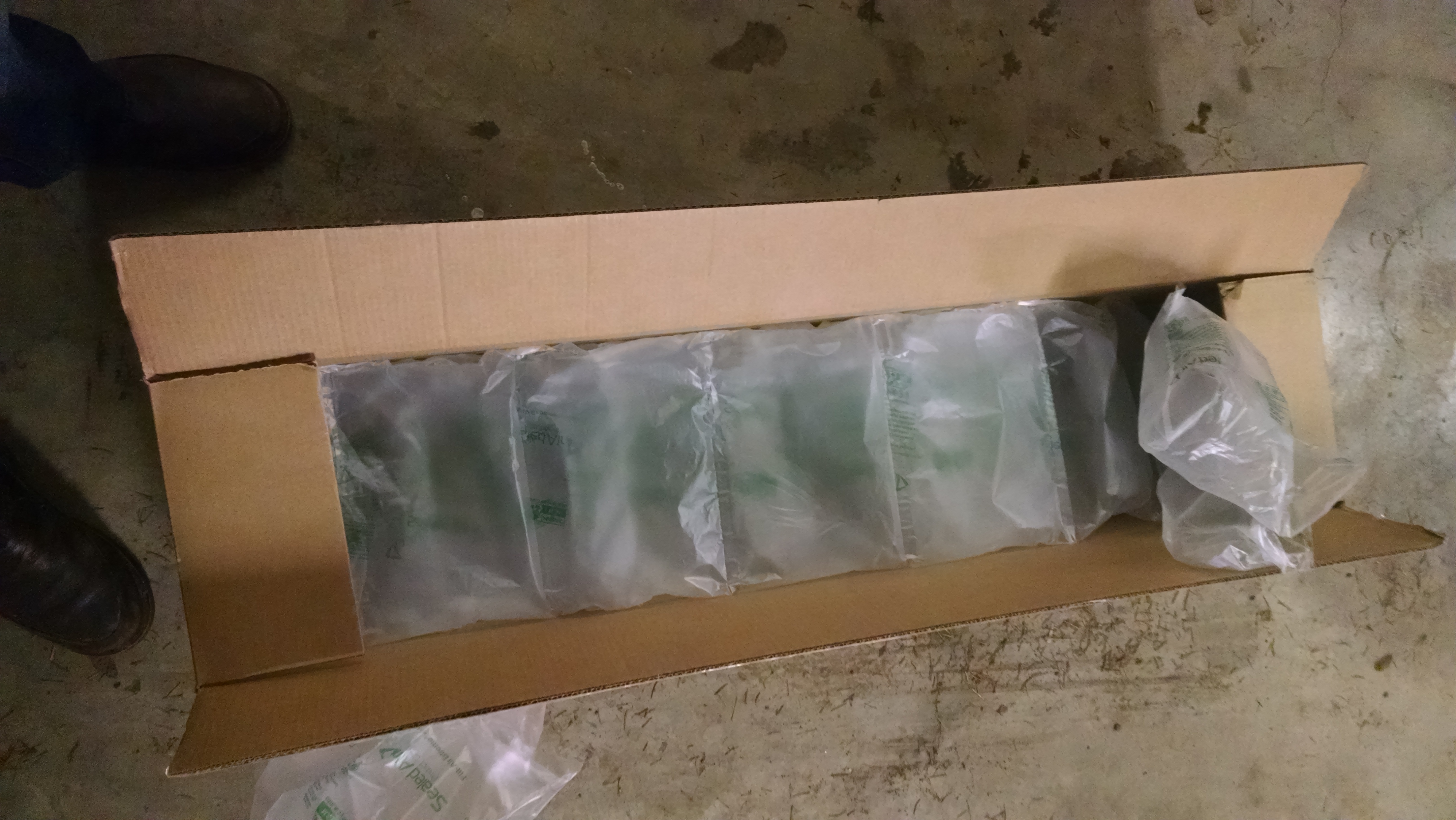

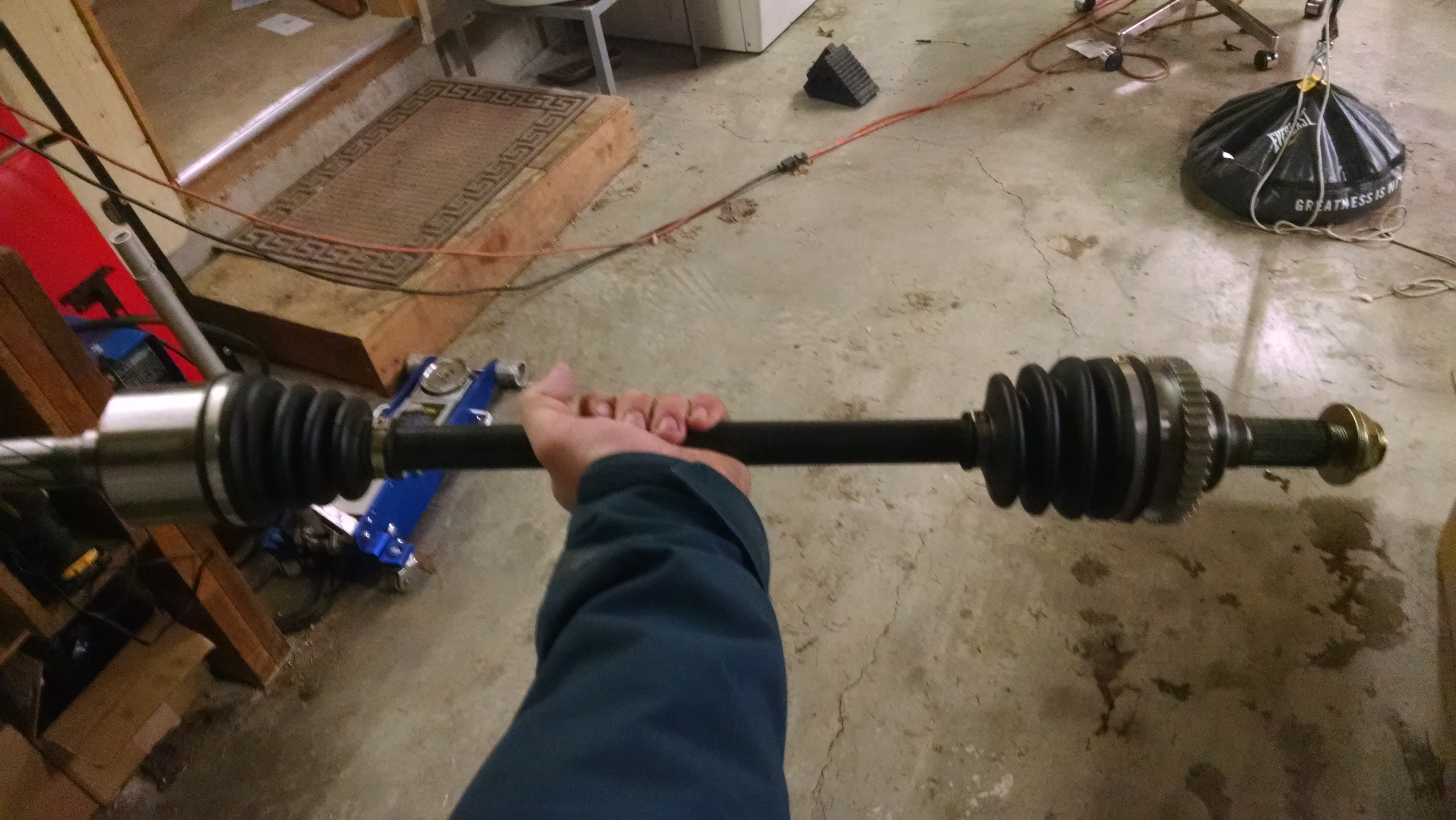

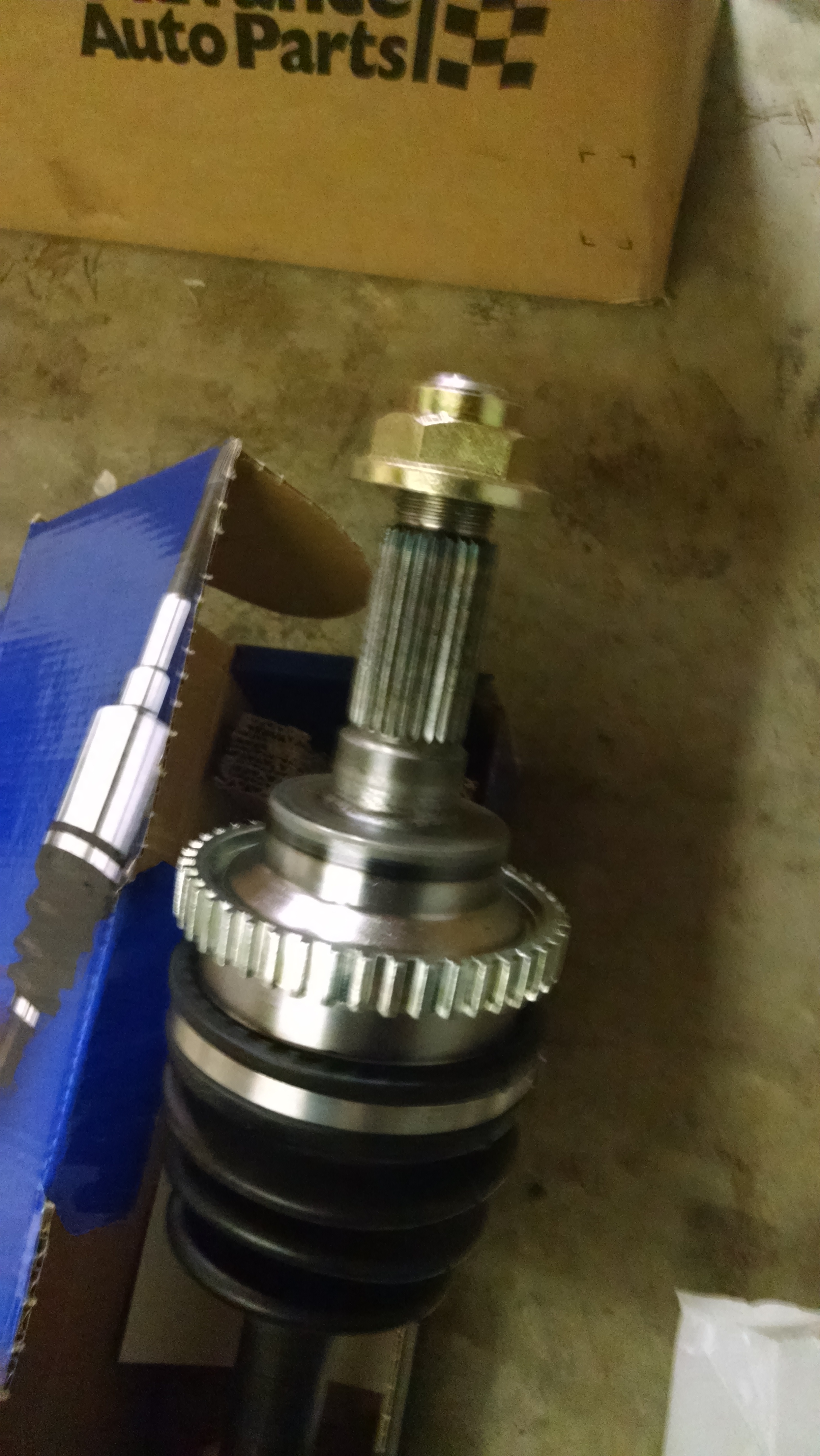

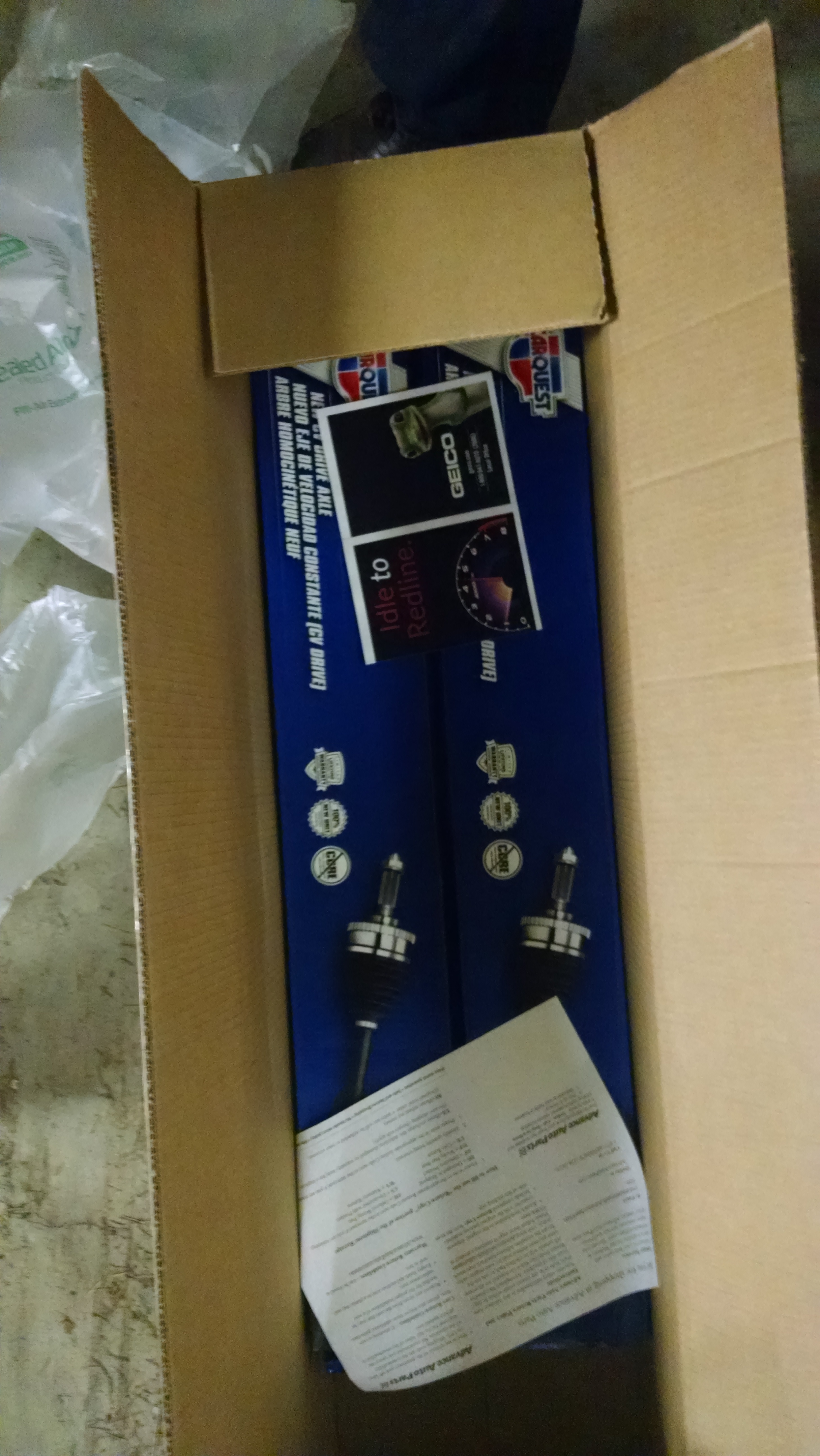

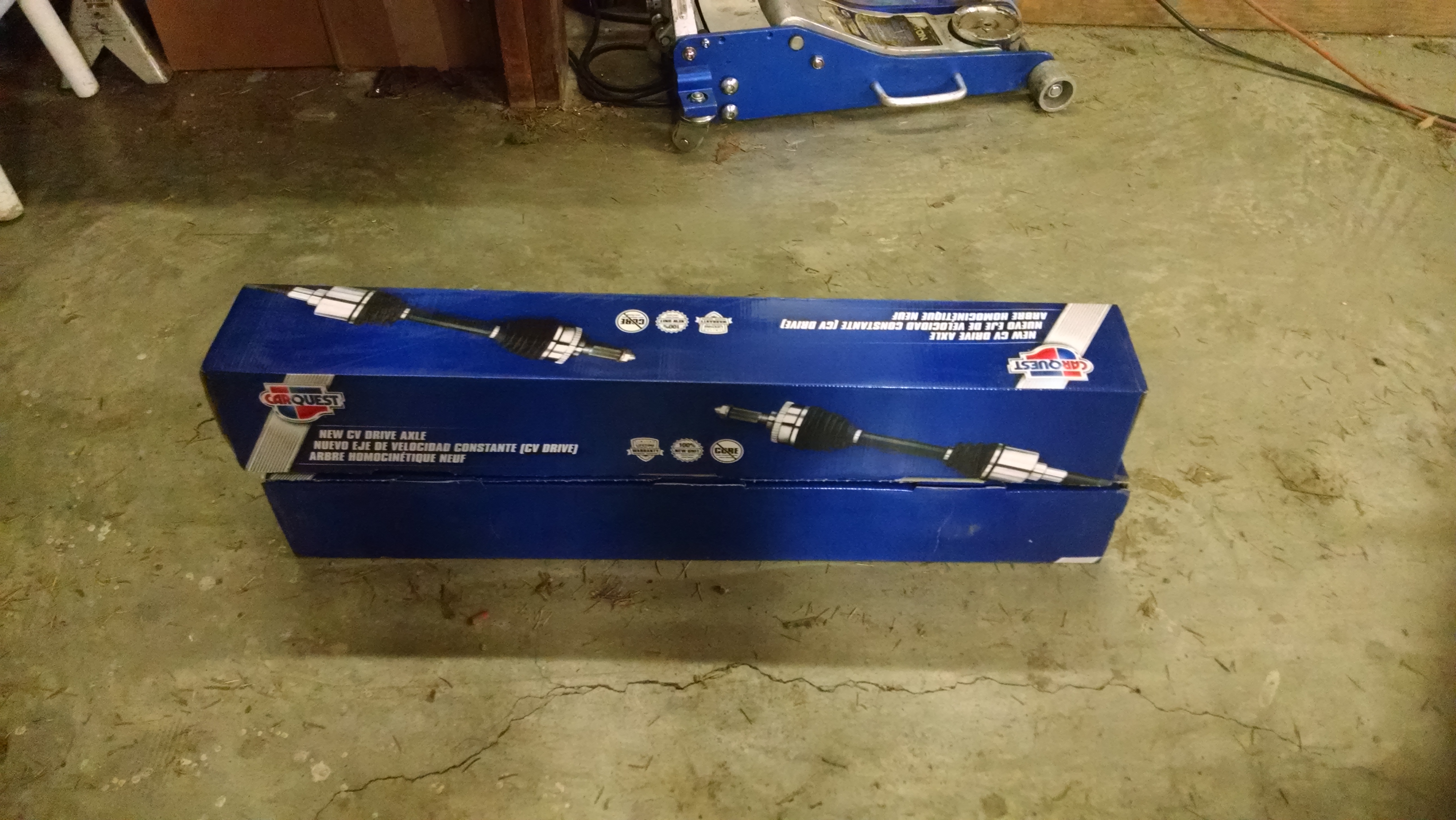

FYI, got these from advanced auto. Brand new, includes ABS ring and axle nut.







Attached Thumbnails
Standard vs MSM axles-y8cyb76.jpg   Standard vs MSM axles-llecb9d.jpg   Standard vs MSM axles-eao8gnu.jpg   Standard vs MSM axles-mcefaph.jpg   Standard vs MSM axles-dzcwzxa.jpg

Standard vs MSM axles-1dxvb8q.jpg   Standard vs MSM axles-nwuz6gn.jpg
aidandj is offline   Reply With Quote
Old 12-03-2015, 07:11 PM   #34
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The MSM was never available in Europe.
Reverant is offline   Reply With Quote
Old 12-03-2015, 07:12 PM   #35
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

So the s2k might actually be useful to you.

Sounds like an s2k carrier will bolt right in. Getting axles might be a little harder.
aidandj is offline   Reply With Quote
Old 12-03-2015, 07:58 PM   #36
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Or any aftermarket S2K LSD will drop right into any 1.8 carrier too. So you'd just order your Mfactory LSD or whatever brand that isnt staffed by morons who dont understand basic physics, like how sway bars work (******* John Ludgod at OSG I'm glaring at you), in s2k fitment and run MSM axles that you'll probably have to order from mazda.
Leafy is offline   Reply With Quote
Old 12-03-2015, 08:01 PM   #37
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by bobbiemartin View Post
The axles do not fit into the diff, the CV does. The axles fit into the (inner) CV joint. I can't say if the axles are different, but the splined end of the CV joint is larger where it fits into the diff.



That is a standard Miata inner CV joint & axle on the top, MSM on the bottom. On the CV joint, the seal area is the same, everything past there to the splined end is a larger diameter on the MSM CV joint. As I recall, 28mm vs 30mm.
Would an S2k inner CV joint mesh up with an NB axle?
aidandj is offline   Reply With Quote
Old 12-03-2015, 08:03 PM   #38
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I doubt it, and even if it did, why? The big part of using the MSM axles is all the stuff that isnt the splined part of the inner, its the inner joint itself being a totally different style and the larger diameter shaft.
Leafy is offline   Reply With Quote
