Old 04-24-2009, 12:22 PM   #21
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

actually, i never have any glare issues with it. it just came out like that in the pic for some reason
leatherface24 is offline   Reply With Quote
Old 04-24-2009, 10:54 PM   #22
Newb

Join Date: Apr 2009
Location: Braselton, Ga
Posts: 40
Total Cats: 0
Default

I know this will sound really redneck...but I took a piece of 2" PVC pipe and cut it about 3-4" long with one end cut at a 50 degree angle and will try and put them on each side of the dash beside the instrumen cluster surround. The 2" autometer gauges fit inside the pipe tight, I just gotta figure out how to mount them to the dash and paint them black.

Don't mind the tape, I'm just getting ideas for a place to mount them, but this is sorta what I had in mind...

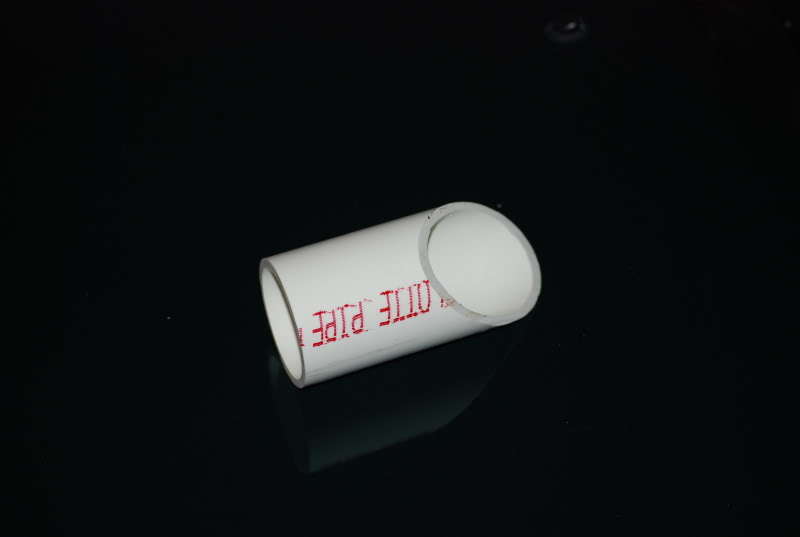

Name:  diygaugepod001.jpg
Views: 27
Size:  38.6 KB

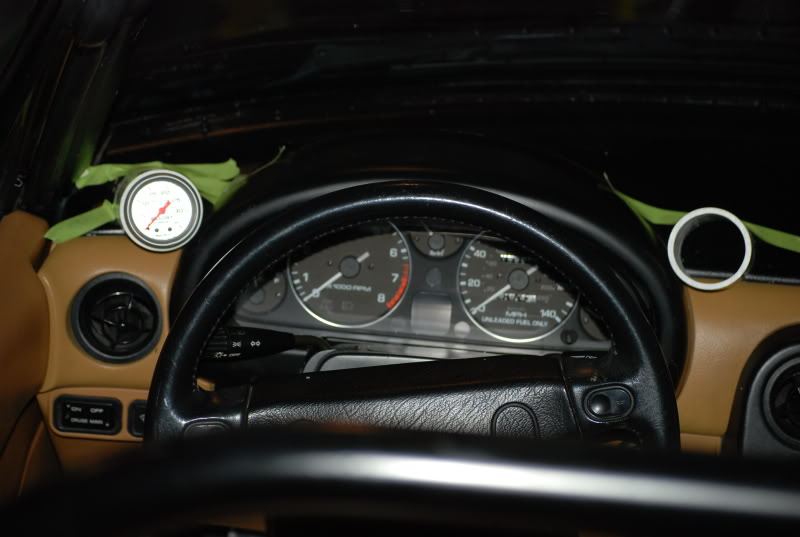

Name:  diygaugepod009.jpg
Views: 28
Size:  75.2 KB

Last edited by Pitt; 04-24-2009 at 11:24 PM. Reason: added photos
Pitt is offline   Reply With Quote
Old 04-24-2009, 11:32 PM   #23
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Hmm, I think you're on to something there. Keep us updated.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-25-2009, 05:21 AM   #24
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

That is not half as ghetto as we tend to see around here. Go on.
Also like the quote in your signature. Where is it from?
Laur3ns is offline   Reply With Quote
Old 04-25-2009, 02:14 PM   #25
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by Pitt View Post
The 2" autometer gauges fit inside the pipe tight, I just gotta figure out how to mount them to the dash and paint them black.
Not half bad. If the gauges are too tight, you could use a boring bar to increase the inside bore a few thousandths...if you have any access to a milling machine.....as for attaching them, epoxy FTW, theres just no turning back tho.
Cspence is offline   Reply With Quote
Old 04-25-2009, 10:21 PM   #26
Newb

Join Date: Apr 2009
Location: Braselton, Ga
Posts: 40
Total Cats: 0
Default

Quote:
Originally Posted by Cspence View Post
Not half bad. If the gauges are too tight, you could use a boring bar to increase the inside bore a few thousandths...if you have any access to a milling machine.....as for attaching them, epoxy FTW, theres just no turning back tho.

I was thinking of epoxy for attaching a bracket to the bottom inside, so you could screw it down with a long screw driver.

I think my next step is gonna be to remove the instrument cluster hood/surround and see how much I can resess these pipes into the sides of the hood and possibly find a better attachment point instead of screwing into the dash pad.
Pitt is offline   Reply With Quote
Old 04-25-2009, 10:47 PM   #27
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

you should be able to drill a hole in the PVC pipe and use a 1/4" or so allen screw. If the allen wrench doesn't fit, buy a cheapo set at the hardware store and cut some of the short side off.
curly is offline   Reply With Quote
Old 03-29-2012, 10:32 AM   #28
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Time to reawaken an old thread. I will be installing an ATI epod gauge with a dual monitor boost/wideband gauge soon and was wondering how hard it is going to be to wire the gauge through the steering column for a noob with no wiring experience doing his first gauge install.
Ryan_G is offline   Reply With Quote
Old 03-30-2012, 09:46 AM   #29
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

Steering column should be pretty easy. It comes completely apart with three screws.

I want to know what ever happened with those PVC pipes!
skidude is offline   Reply With Quote
