Old 05-20-2015, 03:31 PM   #81
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

My car trapped 96 MPH in the 1/8th just like I auto cross it. I didn't touch the shocks or change the AOA on the large dual element wing.

Converting that alone to 1/4 miles stats would have it trapping in the low 120's....on stiff as hell A6's. If I removed the wing, took some rebound out of the front and messed with tire pressures....there is no doubt I could trap in the mid to high 120's.

And I don't spin through first and second. Odd.
TNTUBA is offline   Reply With Quote
Old 05-20-2015, 03:35 PM   #82
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

When I bench race, my car never spins. Runs 9's like a boss.

When I actually hit the quarter mile, I wheel hop like a basketball.

Odd

18psi is offline   Reply With Quote
Old 05-20-2015, 03:37 PM   #83
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

There are hundreds of videos on YouTube showing how my car doesn't wheel hop and cuts 1.8 second 60's on UNPREPARED concrete. At the drag strip it's gone 1.6 short times.

LOL at you calling me a bench racer.

It's amazing what a little chasis work is worth
TNTUBA is offline   Reply With Quote
Old 05-20-2015, 05:48 PM   #84
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

I found this sweet site for supercharged miatas

http://miatacharged.net
ScottyP3821 is offline   Reply With Quote
Old 05-20-2015, 11:40 PM   #85
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,803
Total Cats: 494
Default

Thread starting to go the exact direction I anticipated.
Monk is offline   Reply With Quote
Old 05-21-2015, 12:01 AM   #86
Newb
Thread Starter

Join Date: Nov 2014
Location: Australia
Posts: 21
Total Cats: 3
Default

Wow this thread has had a lot of responses since I was last on here, awesome discussion though guys.

I want a linear powerband my decision to go cams w/74 is purely based on the face that the power band would stay completely linear rather than with a 94 building full boost at say, 4k rpm, then tapering off till redline (hence acting similar to a turbo, which is not what i want, for this car. It's not that I don't like turbo's, I do like them a lot, but I have driven Turbo mx5's before and they seem to just ruin it *for me*. Yet to drive a supercharged mx5 so I am yet to see if this opinion of preferring a supercharger holds true. Also who doesn't want a lumpy idle.. sounds awesome :P

It's not about power for me, I like the N/A powerband of this car I just want to increase it but I feel ITB's wouldn't increase it enough so the next best is going charged.

Please tell me if I am wrong about the 74w/cams vs 94 comparison!!
guss_bruss is offline   Reply With Quote
Old 05-21-2015, 12:16 AM   #87
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Quote:
Originally Posted by ScottyP3821 View Post
I found this sweet site for supercharged miatas

http://miatacharged.net
you got the link wrong, here you go

http://miatacharged.net

You're welcome.
18psi is offline   Reply With Quote
Old 05-21-2015, 12:29 AM   #88
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

Quote:
Originally Posted by guss_bruss View Post
Wow this thread has had a lot of responses since I was last on here, awesome discussion though guys.

I want a linear powerband my decision to go cams w/74 is purely based on the face that the power band would stay completely linear rather than with a 94 building full boost at say, 4k rpm, then tapering off till redline (hence acting similar to a turbo, which is not what i want, for this car. It's not that I don't like turbo's, I do like them a lot, but I have driven Turbo mx5's before and they seem to just ruin it *for me*. Yet to drive a supercharged mx5 so I am yet to see if this opinion of preferring a supercharger holds true. Also who doesn't want a lumpy idle.. sounds awesome :P

It's not about power for me, I like the N/A powerband of this car I just want to increase it but I feel ITB's wouldn't increase it enough so the next best is going charged.

Please tell me if I am wrong about the 74w/cams vs 94 comparison!!
A -94 is bigger than a -74. The power curve will look similar, but the 94 will be steeper. At all RPM. It is attached to the engine with a belt and is centrifugal. The -94 will make more power everywhere, period.
Chilicharger665 is offline   Reply With Quote
Old 05-21-2015, 01:13 AM   #89
Junior Member
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

Yeah I think some confusion is being had between centrifugal blowers and roots-type here.
codingparadox is offline   Reply With Quote
Old 05-21-2015, 01:44 AM   #90
Newb
Thread Starter

Join Date: Nov 2014
Location: Australia
Posts: 21
Total Cats: 3
Default

Quote:
Originally Posted by codingparadox View Post
Yeah I think some confusion is being had between centrifugal blowers and roots-type here.
No sorry I should have explained myself better, the confusion isn't coming from the roots style blower.

With the 94 I would have to bleed boost via a BOV or wastegate as it would blow my stock bottom end up if I ran it at full boost. whereas the 74 maxes out at about 200hp (before it reaches it's maximum rpm limit, depending on pulley's i'd have to run). This means I would effectively be using 100% of the charger to get my power, causing a linear power band, rather than getting a 94, building full boost (which would be about 10psi on a stock bottom end) at ~4k RPM and then bleeding the excess boost off, this would cause a huge increase in power till 4kRPM then little increase till redline.

Please correct me if i'm wrong! this is my interpretation on how the 74 vs 94 would work. I am trying to avoid spikes in power and have it as linear as possible.
guss_bruss is offline   Reply With Quote
Old 05-21-2015, 03:16 AM   #91
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Its torque not hp that breaks stuff (ie the 'limit' is in torque not hp.)

Im flat out so I dont have time to exlpain more but im sure you can google it.
nitrodann is online now   Reply With Quote
Old 05-21-2015, 05:03 AM   #92
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

I am not aware of any person breaking a stock BP bottom end with a -94. No one has ever posted about surpassing 220 wtq with a -94 on a stock bottom end either. Everyone that runs a Rotrex on here isn't even getting the psi out of the -74 that they should be in the first place. I reaaally doubt you will break things with the -94. I suggest you call Jackson Racing and get them to first tell you all about their kit and then lie about the release date.
Chilicharger665 is offline   Reply With Quote
Old 05-21-2015, 10:28 AM   #93
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by 18psi View Post
you got the link wrong, here you go

http://miatacharged.net

You're welcome.
haha nice I like what you did there
ScottyP3821 is offline   Reply With Quote
Old 05-24-2015, 07:09 PM   #94
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Quote:
Originally Posted by nitrodann View Post
Its torque not hp that breaks stuff (ie the 'limit' is in torque not hp.)

Im flat out so I dont have time to exlpain more but im sure you can google it.
Not really, torque and HP are the same number............................................ .....at 5250 rpm.
wannafbody is offline   Reply With Quote
Old 05-24-2015, 07:33 PM   #95
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by wannafbody View Post
Not really, torque and HP are the same number............................................ .....at 5250 rpm.
I can't tell if you're joking or serious, but Dann is 100% correct. Torque and HP are Not the same thing.

Torque is twisting force. It's what twist things and breaks them.

HP is power, which the equation for includes Torque and RPM. (force, distance, time)
patsmx5 is offline   Reply With Quote
Old 05-25-2015, 12:42 PM   #96
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Quote:
Originally Posted by guss_bruss View Post
No sorry I should have explained myself better, the confusion isn't coming from the roots style blower.

With the 94 I would have to bleed boost via a BOV or wastegate as it would blow my stock bottom end up if I ran it at full boost. whereas the 74 maxes out at about 200hp (before it reaches it's maximum rpm limit, depending on pulley's i'd have to run). This means I would effectively be using 100% of the charger to get my power, causing a linear power band, rather than getting a 94, building full boost (which would be about 10psi on a stock bottom end) at ~4k RPM and then bleeding the excess boost off, this would cause a huge increase in power till 4kRPM then little increase till redline.

Please correct me if i'm wrong! this is my interpretation on how the 74 vs 94 would work. I am trying to avoid spikes in power and have it as linear as possible.

Just run a bigger pulley on the 94, then, so that the torque ramp looks like the 74.

But I'm not understanding why you think building boost to a plateau, and holding it there, is inferior to slowly building boost all the way to redline to the same boost pressure.
Mobius is offline   Reply With Quote
Old 05-25-2015, 01:48 PM   #97
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by Chilicharger665 View Post
Everyone that runs a Rotrex on here isn't even getting the psi out of the -74 that they should be in the first place.

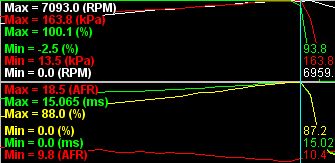

I must be doing something wrong then...85mm pulley on a C30-74 and I'm seeing almost 9.5psi @7100RPM.
Attached Thumbnails
Supercharger Discussion Forum-18060743326_026b74fdf9_o.jpg

Last edited by Lincoln Logs; 05-25-2015 at 07:13 PM.
Lincoln Logs is offline   Reply With Quote
Old 05-25-2015, 02:04 PM   #98
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

isn't 9.5psi what everyone is seeing? and expecting 10-11?
18psi is offline   Reply With Quote
Old 05-25-2015, 02:10 PM   #99
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by 18psi View Post
isn't 9.5psi what everyone is seeing? and expecting 10-11?
A lot of the dyno sheets I've seen floating around report less PSI than I'm recording. Mobius comes to mind here, I believe he has the same sized pulley as me and is barely hitting 8psi.

My understanding has always been the stock 88mm pulley most of the kits ship with is ~8psi. 85mm is 9.5-10psi depending on redline and the 75mm pulley will hit 12psi peak while redlining the blower at 7200rpm.
Lincoln Logs is offline   Reply With Quote
Old 05-25-2015, 06:07 PM   #100
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Sean one thing to keep in mind here is you are running the -74 on a 1.6, so you will see higher PSI for a given compressor speed than a 1.8.

With the 80mm, on the stock engine I saw about 8psi, 191whp/156wtq.

With the built engine / CNC head, 6.5psi / 217whp / 166 wtq.

On the built engine, because the ATI superdamper is 145mm compared to the stock crank pulley's 135mm, I ran the 88mm pulley. 145/88 yields a slightly lower drive ratio than 135/80, meaning at any given rpm on the built engine the compressor was slightly slower than it was on the stock engine.

It seems none of us can replicate early power measurements with the C30-74.
Bellwilliams track car: "We made 230whp with the same set up at 7000rpm, 110krpm and a 1.6" restrictor (blower inlet ID is 2.375")." I don't recall which dyno they were using for that car.

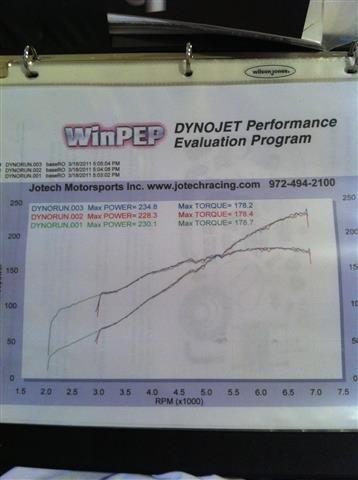

LukeH's 99: " Running it with a 150mm crank pulley which spins it to 116k rpm(120k is max). It shows just over 12 psi at redline" Dyno was 234whp/178 tq.

LukeH's dyno was a dynojet, so expected to read higher than the Dyno Dynamics I use locally. But even taking out 10-15%, that's still closer to my number than I would expect given the cnc head.

Attached Thumbnails
Supercharger Discussion Forum-lukehdyno-small-.jpg
Mobius is offline   Reply With Quote
