Default Transmission tunnel heat shield (liner?)

What transmission tunnel heat shield/sound deadner would you all recommend? I'm thinking about something that would go under the car above the transmission.
Faeflora is offline   Reply With Quote
Old 12-21-2009, 04:36 PM   #2
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

I used this in my tranny tunnel. Have to replace it every few years though.
BEGi

Stephanie
Stephanie Turner is offline   Reply With Quote
Old 12-21-2009, 04:54 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Does that block any sound? My enthuza makes me deaf.
Faeflora is offline   Reply With Quote
Old 12-21-2009, 06:34 PM   #4
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

I don't know what your exhaust sounds like but try driving with a SD spec miata exhaust for an hour on the highway without 5th great at 70mph. Thats loud. Try it you will be rethinking what you just said. Lol.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 12-21-2009, 06:47 PM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

How will any tranny tunnel material quiet a loud muffler?

Perhaps a quieter or just an additional muffler would be more useful for that purpose.
sixshooter is offline   Reply With Quote
Old 12-21-2009, 07:22 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Heat shield above the tranny would be totally worthless. If you want to block actual heat, it all comes in through the left side of the tranny tunnel, from the downpipe. On a track car with a turbo and no carpets, it will burn your right foot if you aren't careful.

All the noise from your exhaust is coming in through the paper-thin sheetmetal in the trunk, passing through the two huge holes next to the gas tank, and right into the cabin. If you don't believe me, take off your fuel bulkhead cover and see how much louder the car gets.

If the Enthuza is too loud, you should either make it quieter (resonated test pipe, larger muffler) or make your perception of it quieter (earplugs). I used foam-bud headphones for highway drives on a regular basis when I had my catless Enthuza.
Savington is online now   Reply With Quote
Old 12-21-2009, 09:41 PM   #7
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Savington View Post
Heat shield above the tranny would be totally worthless. If you want to block actual heat, it all comes in through the left side of the tranny tunnel, from the downpipe. On a track car with a turbo and no carpets, it will burn your right foot if you aren't careful.

All the noise from your exhaust is coming in through the paper-thin sheetmetal in the trunk, passing through the two huge holes next to the gas tank, and right into the cabin. If you don't believe me, take off your fuel bulkhead cover and see how much louder the car gets.

If the Enthuza is too loud, you should either make it quieter (resonated test pipe, larger muffler) or make your perception of it quieter (earplugs). I used foam-bud headphones for highway drives on a regular basis when I had my catless Enthuza.
I actually do use earplugs and I have a catless enthuza.

So you recommend heat shielding the area where the downpipe is?

OK
Faeflora is offline   Reply With Quote
Old 12-21-2009, 11:12 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

It'll block heat, but it's only a problem on track cars. It won't do anything for your loud exhaust.
Savington is online now   Reply With Quote
Old 12-24-2009, 04:35 PM   #9
Junior Member
iTrader: (10)

Join Date: Jul 2009
Location: Davie,Fl
Posts: 102
Total Cats: 0
Default

clean the tunnel really well by the dp. Cut
thermal blanket to fit. use the best 3M adhesive on the well and the thermal blanket. Stick the blanket on the well wall. Your done. You only get one shot at though. I've done this on two miata's SC and Turbo. Worked great.
Spins is offline   Reply With Quote
Old 12-24-2009, 04:43 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

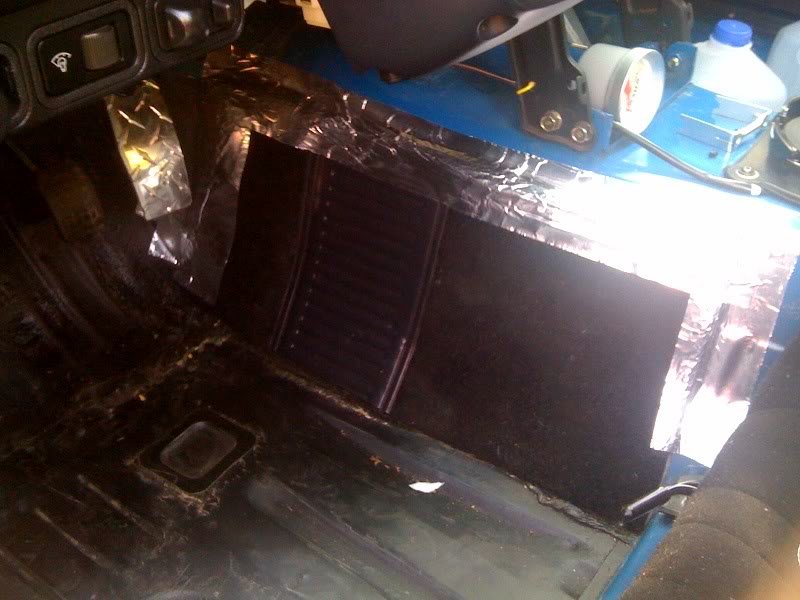

Not that it helps you much, but this made my feet on a 105* track day feel like my usual 70-80* track days.
Name:  photo5.jpg
Views: 193
Size:  67.7 KB

Coupled with some NACA ducts, I stayed surprisingly cool in 105* weather and the heat on full blast. No bueno for street cars of course. I shove a spray can top in the NACA ducts for normal driving and they leak. They're currently blowing 30* air in my face.
curly is offline   Reply With Quote
Old 12-24-2009, 05:24 PM   #11
Junior Member
iTrader: (10)

Join Date: Jul 2009
Location: Davie,Fl
Posts: 102
Total Cats: 0
Default

I tryed the in car application didn't do too much for me. For the best results you need to block the heat before it soaks into the floor board.
Spins is offline   Reply With Quote
Old 12-24-2009, 05:51 PM   #12
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Like Sav says, lot's of noise comes through the trunk. The Mnet solution is stuff some fiberglass insulation in some plastic bags. Stuff those in the openings behind the fuel tank bulk head cover on either side.
cueball1 is offline   Reply With Quote
Old 12-24-2009, 06:28 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Ooooh I like how cheap and ghetto that is...

This might help:
http://www.targamiata.com/diary.php?UID=519
Keith eventually installed the insulation with some ridiculous waterproof tape (I think he said can even be applied underwater). But I can't find that entry.
curly is offline   Reply With Quote
Old 12-25-2009, 12:14 PM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

instead of using fiberglass, you can just go to a fabric / craft store and pick up pre-assembled bags of pillow stuffing and shove those in there. wont get itchy.
y8s is offline   Reply With Quote
Old 12-25-2009, 07:15 PM   #15
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by y8s View Post
instead of using fiberglass, you can just go to a fabric / craft store and pick up pre-assembled bags of pillow stuffing and shove those in there. wont get itchy.

Good idea. And I'll have high frequency absorption while I'm at it. Do you think I should just stuff it in the midpipe and exhaust or should I stuff the downpipe as well? I'm thinking that since I'm increasing the range of the resonant frequencies that my turbo should spool faster throughout the range of the compressor map and be more responsive.
Faeflora is offline   Reply With Quote
Old 12-25-2009, 07:36 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You're joking, correct? If not, stay away from cars.

Since post #12, we've been talking about stuffing bags of stuff behind the seats. There's a spot on either side of the gas tank and chassis that you can stuff something in. There's only a thin piece of sheet metal blocking the cabin from the trunk via those two tunnels, and there's a lot of noise in the trunk from the exhaust.
curly is offline   Reply With Quote
Old 12-25-2009, 08:38 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by curly View Post
You're joking, correct? If not, stay away from cars.

Since post #12, we've been talking about stuffing bags of stuff behind the seats. There's a spot on either side of the gas tank and chassis that you can stuff something in. There's only a thin piece of sheet metal blocking the cabin from the trunk via those two tunnels, and there's a lot of noise in the trunk from the exhaust.
i think that was sarcasm cuz we hijacked his thread about heat from the tranny tunnel.
y8s is offline   Reply With Quote
Old 12-25-2009, 09:12 PM   #18
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by curly View Post
You're joking, correct? If not, stay away from cars.

Since post #12, we've been talking about stuffing bags of stuff behind the seats. There's a spot on either side of the gas tank and chassis that you can stuff something in. There's only a thin piece of sheet metal blocking the cabin from the trunk via those two tunnels, and there's a lot of noise in the trunk from the exhaust.

I think that's ridiculous. If you did that, they would definetly catch fire. I mean, the fuel tank is right there and what do you think the purpose of fuel is? To burn, dumbass.

Since, it's Chistmas, this is for you:

Faeflora is offline   Reply With Quote
Old 05-25-2013, 03:37 PM   #19
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I'm reviving this thread because I'm having issues with heat coming from the transmission tunnel. I came across something that I'm interested in trying

1993 Mazda Miata

Using just the reflectix from home depot

Reflectix 4 ft. x 25 ft. Double Reflective Insulation-BP48025 at The Home Depot

The other question is: what holes from the trunk by the gas tank?
buffon01 is offline   Reply With Quote
Old 05-26-2013, 12:10 AM   #20
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

If you just want coolness, just buy the cheaper version of that stuff and stick it under the carpet. Or if you want to knock some sound down to, you can do the entire drivers half of the floor pan with 2-3 pounds worth of cool mat.
