Old 03-17-2009, 01:21 PM   #41
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

The lotus diffuser is around $300 new at a dealer. (suprisingly cheap for a Lotus factory part) Used they seem to run from $50 to $200 depending on condition, greed, need to sell. I paid $100 each for the diffuser and the mid/rear undertray. The undertray has several naca ducts to direct air up. Lotus does this as it's rear engined. I like the idea to help with cooling the rear diff/exhaust.

Parts haven't arrived yet. Should be hear in the next day or two. As lazy as I am it' likely to take me 6 months to actually install them.

You want a thread with lots of info? Here's one to add to your favorites...

MX-5 Miata Forum - wings and splitters?

Massive thread at m.net that's been running for a couple years. Lot's of good info from Emilio and others out there running the tracks hard.
cueball1 is offline   Reply With Quote
Old 03-17-2009, 01:32 PM   #42
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Can be found here:

Elise SC Rear spoiler (Elise S2) [ESCspl] - €280.00 : Elise Shop, Performance parts for your Lotus Elise


Edit: nvm saw cueball's post, much cheaper at the dealer.
rccote is offline   Reply With Quote
Old 03-17-2009, 04:53 PM   #43
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by rccote View Post

Edit: nvm saw cueball's post, much cheaper at the dealer.

They seem to pop up used fairly regulary on the lotus forums. I just missed a $60 one with minor damage. Ended up buying a $100 unit in good shape. The two parts arrived this morning. Here they are...



cueball1 is offline   Reply With Quote
Old 03-17-2009, 06:08 PM   #44
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

why didnt you just use this as an undertray?

Miata BeatRush Aluminum Under Panel 1990-1997
Sam Amporful is offline   Reply With Quote
Old 03-17-2009, 06:40 PM   #45
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Holy god damn sonofabitch! I have been waiting years for someone to find a relatively affordable rear diffuser of high quality, i.e. an oem part, that translates over to the miata fairly well. IT HAS BEEN FOUND! I would never have thought to check prices on the Elise's unit as I would have assumed it would be $1k.
That is the ****.

Let's get some clear info on how mounting was dealt with, what was fabricated to mount these parts, how that center section covers the rear underside of the miata etc. etc. etc!

-Ryan
ThePass is offline   Reply With Quote
Old 03-17-2009, 07:41 PM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Who wants pics of my "undercarriage?"
hustler is offline   Reply With Quote
Old 03-17-2009, 08:03 PM   #47
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by Sam Amporful View Post
why didnt you just use this as an undertray?

Miata BeatRush Aluminum Under Panel 1990-1997
The beatrush part is a front undertray. I'm DIYing an ABS splitter/ front undertray. The lotus parts I bought are a rear diffuser and mid body undertray. The undertray pictured goes just ahead of the rear diffuser. In fact the 5 holes at the front of the diffuser mate with teh 5 at the rear of the undertray. Those cutouts on the sides are for the rear wheels. Didn't know if I could make it work on the Miata but thought it was worth a try. About the same price as just buying aluminum sheet and this included 3 naca ducts.
cueball1 is offline   Reply With Quote
Old 03-17-2009, 11:36 PM   #48
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

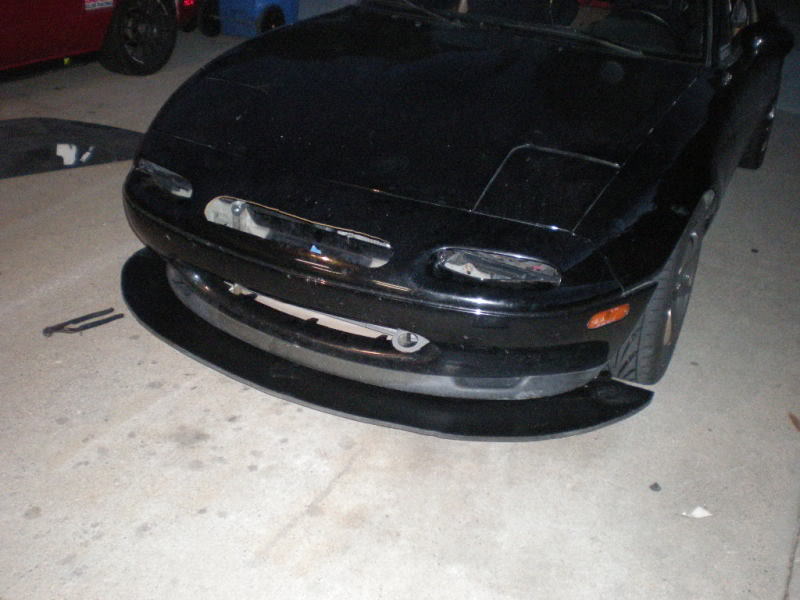

Name:  DSCN1341.jpg
Views: 32
Size:  57.7 KB

fabbing up some little blocker plates on the sides to shroud the front tires. 5.5" or so out from the bumper.
Savington is offline   Reply With Quote
Old 03-17-2009, 11:37 PM   #49
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Sav - do you have a decent source for ABS?
ThePass is offline   Reply With Quote
Old 03-17-2009, 11:50 PM   #50
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I've always wondered if propping the trunk open a bit would create the same effect as a rear wing, is that what that red miata with the diffuser did? I would be worried the drag created by letting the air in the trunk would negate any gain from the upwards angle.
curly is offline   Reply With Quote
Old 03-18-2009, 12:02 AM   #51
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by ThePass View Post
Sav - do you have a decent source for ABS?
No, that's 12mm birchwood. $36 for a 4x8 sheet at Home Depot. TAP Plastics wanted like $130 for a 4x8 sheet of 1/4" ABS (the thinnest I would consider using).

Quote:
Originally Posted by curly View Post
I've always wondered if propping the trunk open a bit would create the same effect as a rear wing
no.
Savington is offline   Reply With Quote
Old 03-18-2009, 12:11 AM   #52
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
No, that's 12mm birchwood. $36 for a 4x8 sheet at Home Depot. TAP Plastics wanted like $130 for a 4x8 sheet of 1/4" ABS (the thinnest I would consider using).



no.
How did you attach it?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-18-2009, 12:55 AM   #53
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

I can't bring myself to use wood on the car...

I think I can get an ABS sheet for $100...
ThePass is offline   Reply With Quote
Old 03-18-2009, 01:36 AM   #54
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by levnubhin View Post
How did you attach it?

Ripped out the front bumper crash structure and attachment points, then took 1" square aluminum and went down to the R-package lip, then a stretch across the front and back at 45 degree angles to the edges of the lip. Two small supports from the edges up to the frame rails as well. It attaches to the stock plastic undertray location in the back (couldn't reach all the way to the crossbar)

Ryan, you'd be stunned at the number of professional racecars using wood splitters.
Savington is offline   Reply With Quote
Old 03-18-2009, 01:45 AM   #55
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

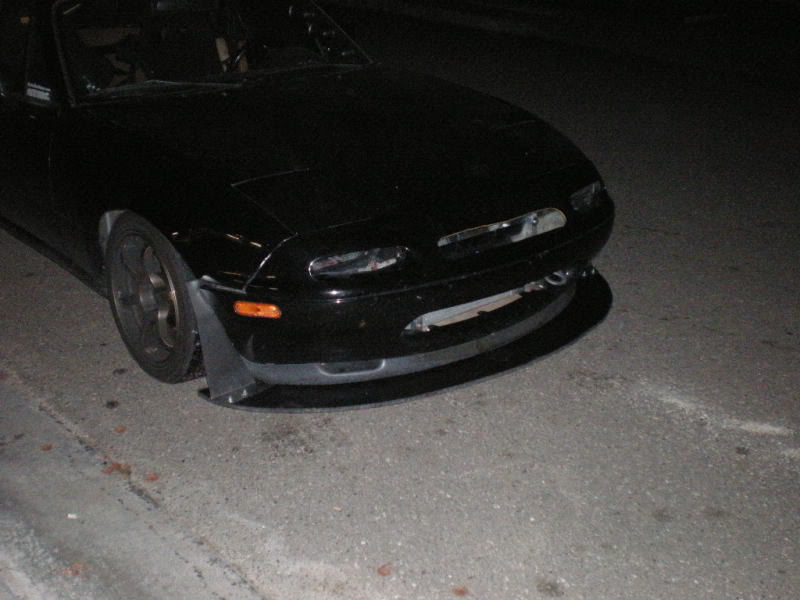

side spats:

Name:  DSCN1347.jpg
Views: 32
Size:  56.6 KB

Savington is offline   Reply With Quote
Old 03-18-2009, 02:00 AM   #56
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Sam Amporful is offline   Reply With Quote
Old 03-18-2009, 02:22 AM   #57
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by Savington View Post
Ryan, you'd be stunned at the number of professional racecars using wood splitters.
I know... I kicked the **** around with a guy with a VERY fast civic at the Superstreet Time Attack down at Buttonwillow for a while and his car had a plywood front splitter... I just... it's wood... now I get the cost factor - this guy was sponsoring himself hence the plywood... but then walking over to theTwins Turbo supra that was sitting next to it and chatting with the twins... you got a feel for the difference in quality in the cars, even though the two were almost the same in times. But yes, wood is the poor man's splitter material, and it is plenty effective.
-Ryan
ThePass is offline   Reply With Quote
Old 03-18-2009, 05:40 AM   #58
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by Sam Amporful View Post
Have you shipped a 4x8 sheet of .250" ABS across the country recently? :2 cents:
Savington is offline   Reply With Quote
Old 03-18-2009, 09:30 AM   #59
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

now its a track car.
hustler is offline   Reply With Quote
Old 03-18-2009, 11:52 AM   #60
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by Savington View Post
Have you shipped a 4x8 sheet of .250" ABS across the country recently? :2 cents:
it's real easy to get free composites when you go to an engineering school. just call the big companies and ask for their reject lots. you'll have a 30 yard roll of carbon at your house in a week.
y8s is offline   Reply With Quote
