Default VDO Oil Pressure Sender -- Questions

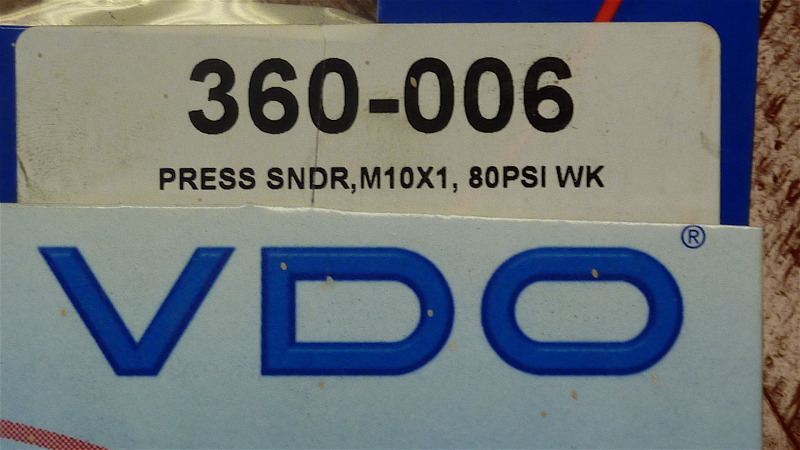

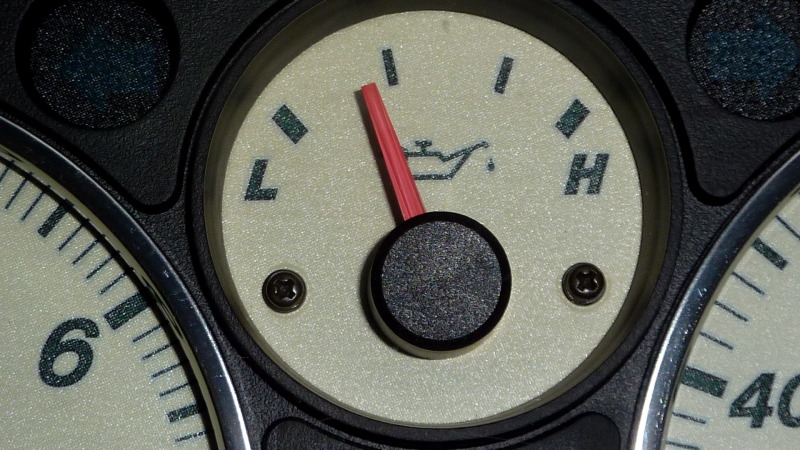

So I did the oil press sender from stock to the VDO 360-006 80 psi sender. The good news is the gauge actually moves now. Just the range isn't much. Would it help to put a resistor in line, if so what would you reccomend? I havene't checked to check if they have another sender that would give the gauge a greater sweep. Thoughts?


Attached Thumbnails
VDO Oil Pressure Sender -- Questions-p1020175.jpg   VDO Oil Pressure Sender -- Questions-p1020160.jpg
2manyhobyz is offline   Reply With Quote
Old 02-18-2012, 09:57 PM   #2
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Search might be your friend....

http://www.miata.net/garage/opg2/index.html

Or if you're really ambitious

http://www.mazda-speed.com/faq/opg/
BarbyCar is offline   Reply With Quote
Old 02-19-2012, 12:23 AM   #3
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Thanks Gary, yeah I ran across those when I was thinking of doing this a couple of months ago. I suppose I was in denial about what it was going to take to do it right. Maybe there's something like a 0 to 40 or 0 to 60 psi sender that would be an alternative.
This place has a ton of choices.

http://www.wellsve.com/custom_search...hp?showall=yes

I'll try talking to their technical assistance to see if they can suggest one.

Last edited by 2manyhobyz; 02-19-2012 at 12:52 AM. Reason: more info
2manyhobyz is offline   Reply With Quote
Old 02-19-2012, 09:47 AM   #4
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

I went the same route.

Buy a sender - check (the same 80 psi VDO)
Move needle for more sweep - check
Do the resister change for better response - check
Finally surrender and dismantle, removed damping grease and rewind - check

It's a bunch of fiddly work but in a couple of hours you'll have a full range fully responsive gauge.
