Old 07-29-2015, 03:38 PM   #41
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>I want one of those.</p><p>Is your gauge grounded to the block?</p>
aidandj is offline   Reply With Quote
Old 07-29-2015, 03:41 PM   #42
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Yep, gauges grounded to the block with a dedicated ground wire. I had it grounded to the intake manifold but moved it to the block just to see what happened. Nothing happened.
EO2K is offline   Reply With Quote
Old 07-29-2015, 04:09 PM   #43
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by huesmann View Post
Controller, sensor, whatever.


Don't you need the power source to be (ignition) switched, though? Or are gauges that insignificant a current draw?
Yes, you should have it switched via the ignition switch. Source should be the battery however. A relay can easily be used to switch the power via the ignition switch.

Question: Are your temp sensors really 1 wire?
patsmx5 is offline   Reply With Quote
Old 07-29-2015, 04:24 PM   #44
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

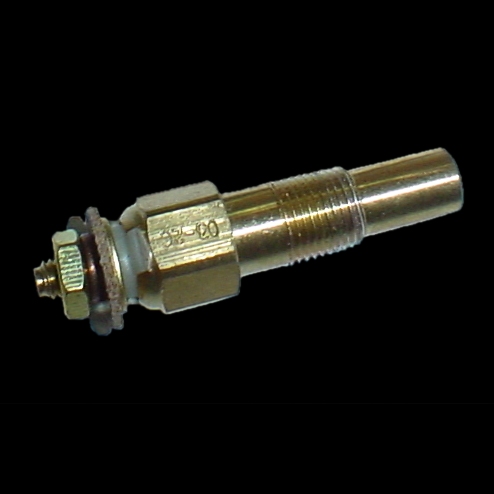

Yes

Attached Thumbnails
VEI Gauge weirdness-s689572963557007764_p309_i1_w494.jpeg
EO2K is offline   Reply With Quote
Old 07-29-2015, 04:32 PM   #45
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Oh, well, forget what I posted about the wiring then. That sensor grounds to whatever it's installed into it appears. Thus you can't control ground loops when you install more than 1 sensor since they will ground into different places.

EDIT: To the OP, just disconnect the sensor that's working, and drive the car. See if the other sensor all of a sudden works fine. If so, that confirms you have a ground loop that you can't remove by having the sensors installed on 2 different ground planes.
patsmx5 is offline   Reply With Quote
Old 09-15-2015, 01:16 PM   #46
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

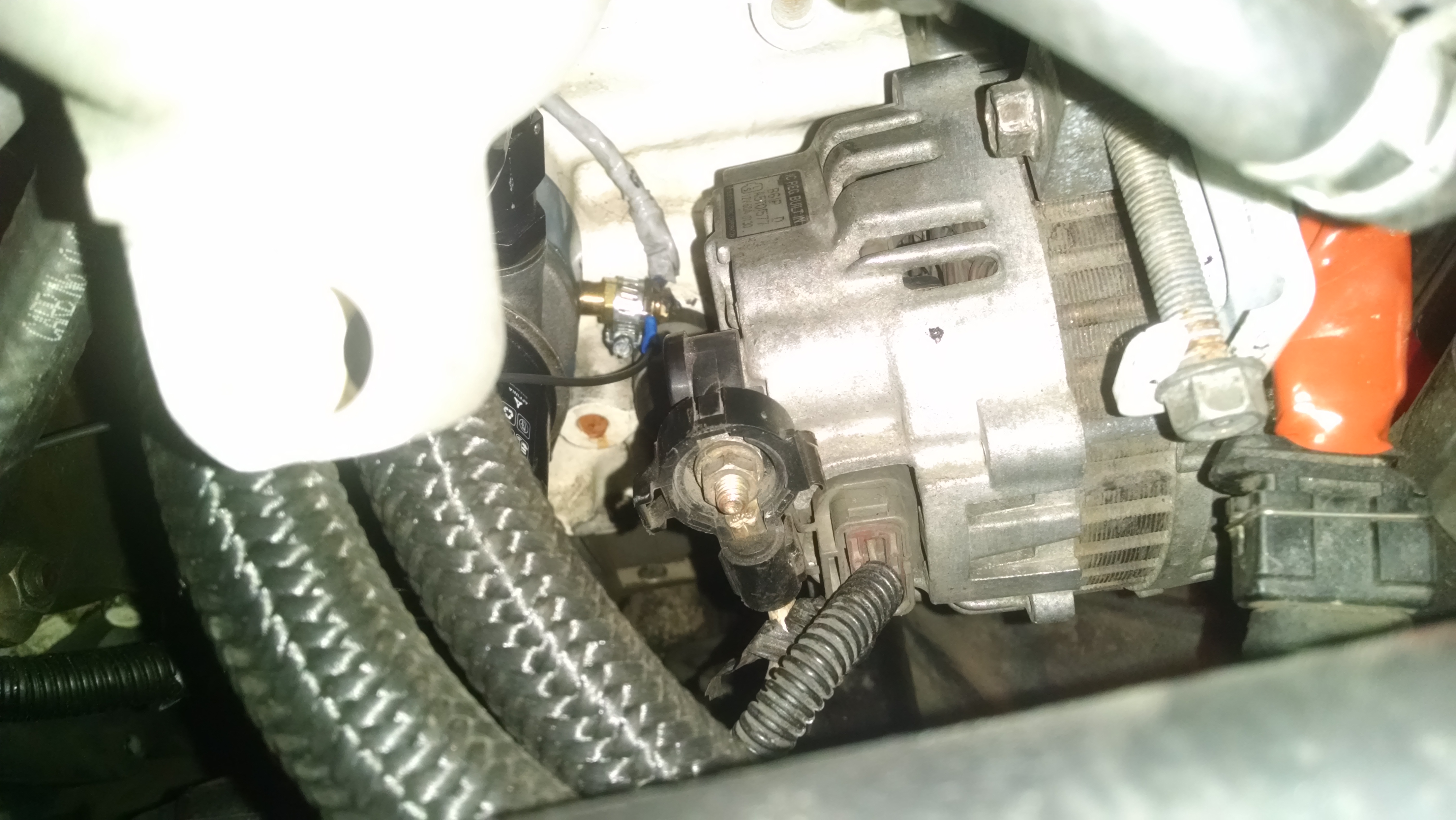

<p>Small update. Grounded the Oil Temp Sensor like this:</p><p></p><p>And it kinda worked. It works great for a while, but on long drives, or the end of sessions sometimes the gauges go crazy like this:</p><p>
</p>
Attached Thumbnails
VEI Gauge weirdness-6eajq2w.jpg
aidandj is offline   Reply With Quote
Old 09-17-2015, 02:49 PM   #47
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>VEI is having me wire resistors into the gauge instead of temp senders. Then run it for a while. This will tell me if there is an issue with the gauge or the sensors.</p><p>I wish they would just send me another one, but oh well.</p>
aidandj is offline   Reply With Quote
Old 09-17-2015, 03:19 PM   #48
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Gesso pumped up my OPG sender with a bike pump to about 70psi and then we watched the ohm meter while it slowly leaked down via an 'engineered leak' in the test rig. Many & were had by all involved.

We may or may not have accidentally spun the contact stud in the sender before this happened, but the display behavior has not changed. Lolwut?
EO2K is offline   Reply With Quote
Old 09-17-2015, 03:20 PM   #49
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>Did it work? The sender I mean.</p>
aidandj is offline   Reply With Quote
Old 09-17-2015, 04:30 PM   #50
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Kinda. We should have taken a video, there is a huge section of the range where the signal was all over the place. There must be some pretty massive damping on the input channel for it to display any kind of consistently.
EO2K is offline   Reply With Quote
Old 09-17-2015, 04:43 PM   #51
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>You mean like in the video above &nbsp;Maybe that is the real signal.</p>
aidandj is offline   Reply With Quote
Old 09-17-2015, 05:32 PM   #52
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by aidandj View Post
<p>VEI is having me wire resistors into the gauge instead of temp senders. Then run it for a while. This will tell me if there is an issue with the gauge or the sensors.</p><p>I wish they would just send me another one, but oh well.</p>
Well plus side to that is it's actually testing something to isolate the problem.

You could also try my test of unplugging one to see if a ground loop is the problem. Again this will help isolate what's causing this. You know you have a problem, but you don't know what is causing it.
patsmx5 is offline   Reply With Quote
Old 09-17-2015, 05:34 PM   #53
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>They are being helpful and working through the problem with me. Before I try that though I am going to put the gauge ground on the head where the other senders ground just in case thats the issue. Mostly because it is easier to do than rewiring all the sensors.</p>
aidandj is offline   Reply With Quote
