Default What is this for??

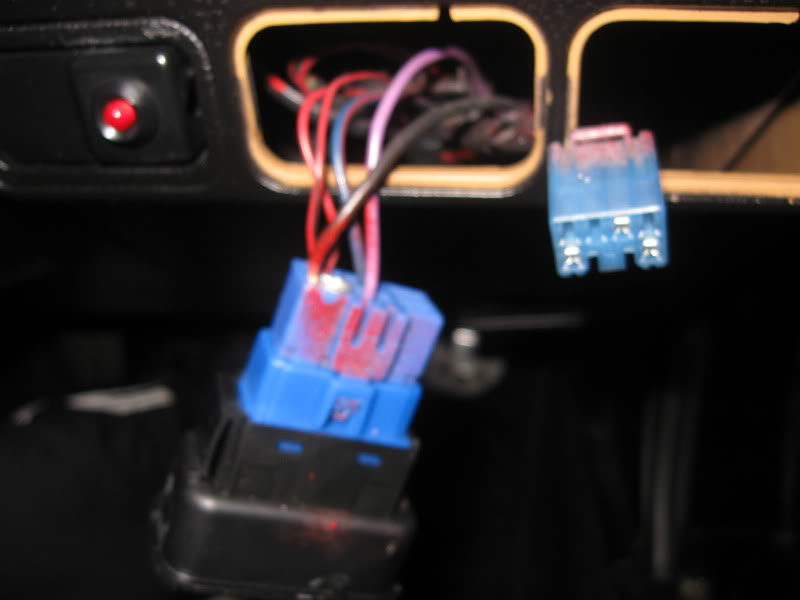

The small blue connector in the pic below...

Name:  IMG_0302.jpg
Views: 1
Size:  44.0 KB

The larger blue connector has a Heated Rear Window switch attached, what's the smaller blue connector for though? foglight? instrument dimmer?

Car is a 92' Eunos Roadster 1.6 manual.

Yeah, a JDM car, in the UK, and I'm asking for advice on a US forum
jim-NA is offline   Reply With Quote
Old 11-25-2009, 06:16 AM   #2
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

Could be power mirrors, foglights.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 11-25-2009, 07:48 AM   #3
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

If it's you instrument dimmer you won't have dash lights AT ALL when it's not plugged in.
gospeed81 is offline   Reply With Quote
Old 11-25-2009, 08:03 AM   #4
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

so I guess that's the instrument dimmer idea out the window then....

My rear fog light is located in the rear light cluster, with a non-standard switch on the steering cowl.... it works, and looks better than the stuck-on foglights I often see on imports over here.

maybe it's for front fogs?
jim-NA is offline   Reply With Quote
Old 11-25-2009, 08:33 AM   #5
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Cruise control?
miataspeed2005 is offline   Reply With Quote
Old 11-25-2009, 10:05 AM   #6
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by miataspeed2005 View Post
Cruise control?
I can check mine during lunch...I thought it had more than 3 wired terminals, but I guess it's really just a switch since most of the cruise controls are on the stalk.
gospeed81 is offline   Reply With Quote
Old 11-25-2009, 10:16 AM   #7
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I would guess fog lights, since it has 3 wires. At least I assume the factory fog light switch has illumination.
NA6C-Guy is offline   Reply With Quote
Old 11-25-2009, 12:41 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

It would be helpful if we knew what the wire colors were.

It sure looks like the dimmer switch. Three wires in a keyed six-position housing. Wire colors would be Black (gnd), Red/Blue (power in from TNS relay) and Red (switched ground for lamps).

It's not fog lights or cruise control. Fog lights would be four wires in a non-keyed six position plug, cruise uses a similar plug to dimmer, but with six wires.
Joe Perez is offline   Reply With Quote
Old 12-01-2009, 07:08 AM   #9
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

Thanks for the replies.

I just checked the wire colours, there is a Red, a (thinner guage) Black, and a Red with black stripe.
