What guages should i have in my turbo miata? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 06-09-2008, 08:41 PM   #1
Newb
Thread Starter

Join Date: Dec 2007
Location: Vancouver BC Canada
Posts: 37
Total Cats: 0
Default What guages should i have in my turbo miata?

Hey everyone

I am thinking of buying a DDM works silver panel with 3 guage holes under the cd slot. I already have a boost guage on my far left driver side heater vent. So with the new ddm works with 3 guage slots, i will need 3 more guages to fill them up. Also have a o2 band sensor guage that i am planning to put in the middle of the DDM. So that leaves 2 more slots for guages. Which 2 guages should i buy? Which are the most important gauges i should have on my turbo miata?


thanks
vVind is offline   Reply With Quote
Old 06-09-2008, 08:46 PM   #2
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

EGT and Oil Pressure the 2 I would recommend! If not Oil pressure, Oil Temp!
M-Tuned is offline   Reply With Quote
Old 06-09-2008, 08:49 PM   #3
Newb
Thread Starter

Join Date: Dec 2007
Location: Vancouver BC Canada
Posts: 37
Total Cats: 0
Default

what is EGT?
so oil pressure is one of the main ones?

oil presure + oil temp
or
oil presure + EGT
vVind is offline   Reply With Quote
Old 06-09-2008, 08:54 PM   #4
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

i have boost, my wideband gauge, and i'm either gonna get a oil temp or fuel pressure.....our cars have a factory oil pressure so its not really needed....
disturbedfan121 is offline   Reply With Quote
Old 06-09-2008, 08:55 PM   #5
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by vVind View Post
what is EGT?
so oil pressure is one of the main ones?

oil presure + oil temp
or
oil presure + EGT
EGT = Exhaust Gas Temperature.

If I were you I would change the Oil Pressure gauge that comes in the car for a real one.

I've got:

- EGT
- Water Temp
- Oil Temp

above my radio

and

- WB (that's wideband) AFRs
- Boost in the A pillar.
Rafa is offline   Reply With Quote
Old 06-09-2008, 08:56 PM   #6
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by disturbedfan121 View Post
i have boost, my wideband gauge, and i'm either gonna get a oil temp or fuel pressure.....our cars have a factory oil pressure so its not really needed....
Depends on what year is the OP's car. Mine is a 96 and it came with a dummy one.
Rafa is offline   Reply With Quote
Old 06-09-2008, 08:57 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

clock and narrow band



just run the 1.6 oil pressure gauge.

I have AFR, boost, oil temp, (factory) oil pressure or course, and EGT. All greddy because that's the way I roll, son.
hustler is offline   Reply With Quote
Old 06-09-2008, 08:58 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by vVind View Post
what is EGT?

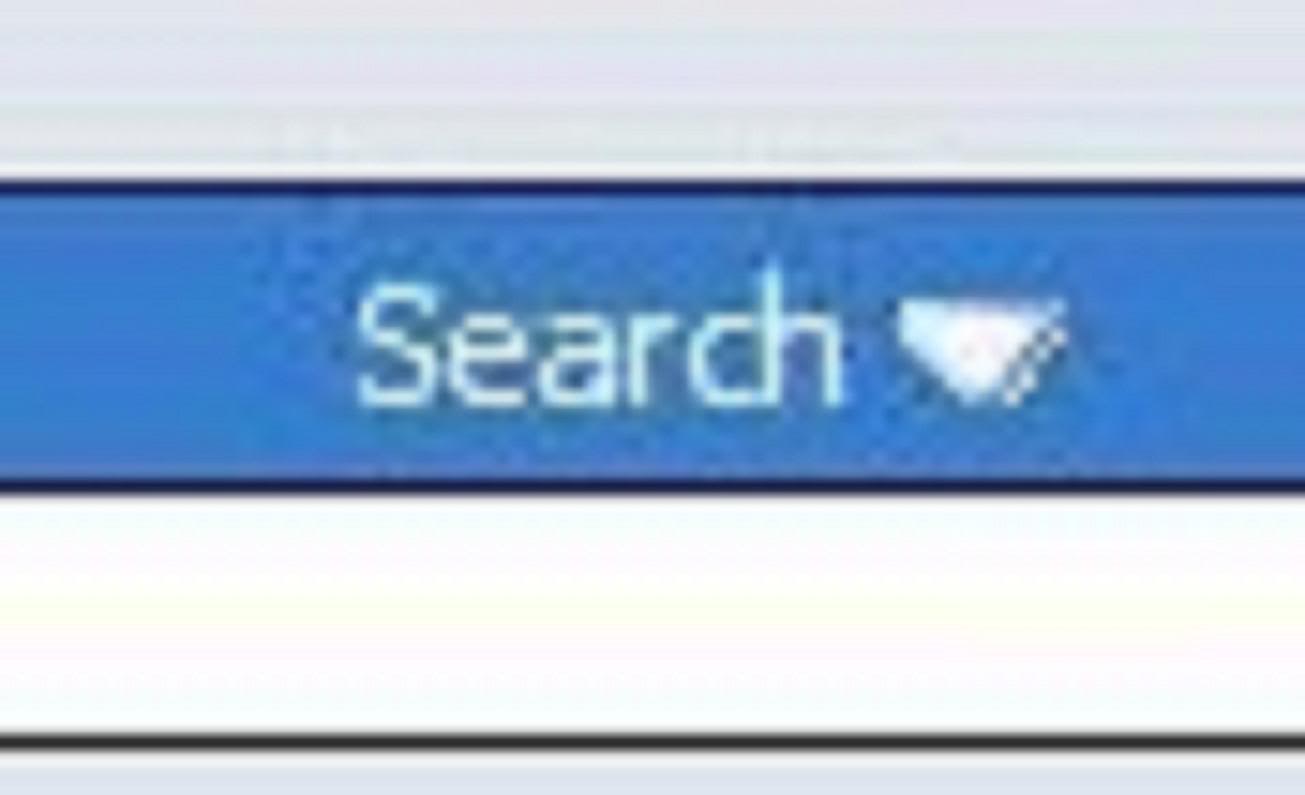

Name:  searchgoddammit.jpg
Views: 2
Size:  37.6 KB
Savington is online now   Reply With Quote
Old 06-09-2008, 08:58 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Rafa View Post
Depends on what year is the OP's car. Mine is a 96 and it came with a dummy one.
its pretty easy to tell.
hustler is offline   Reply With Quote
Old 06-09-2008, 09:01 PM   #10
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

samnavy is offline   Reply With Quote
Old 06-09-2008, 09:06 PM   #11
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
its pretty easy to tell.
Ok; I'll bite. How so?
Rafa is offline   Reply With Quote
Old 06-09-2008, 10:09 PM   #12
Newb
Thread Starter

Join Date: Dec 2007
Location: Vancouver BC Canada
Posts: 37
Total Cats: 0
Default

i have a 1990 turbo miata
and yea i think ill go with a AFR wideband, oil temp, and water temp in the DDM works 3 guage panel. Sound good? Or should i get a EGT instead of one of those? Heard the EGT is kinda hard to install?

thanks
vVind is offline   Reply With Quote
Old 06-09-2008, 10:32 PM   #13
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

EGT is very important... Probably one of the first gauges I recommend on a turbo car. My Turbo Honda has one of each runner as I my Engine Management allowed me to tune each cylinder individually and the 4 EGTs helped in that process.
M-Tuned is offline   Reply With Quote
Old 06-09-2008, 11:05 PM   #14
Newb
Thread Starter

Join Date: Dec 2007
Location: Vancouver BC Canada
Posts: 37
Total Cats: 0
Default

so i already have a boost guage on the heater vent on the far left. I am gonna get DDM work 3 guage panel, so ill buy oil temp, and EGT to go wit the AFR in the 3 slots?
Its okay to leave out the water temp then? because i dont realy have any place to put that yet.
vVind is offline   Reply With Quote
Old 06-10-2008, 12:23 AM   #15
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

the car has a water temp stock too.... the thing on the bottom right hand corner of the gauge cluster
disturbedfan121 is offline   Reply With Quote
Old 06-10-2008, 12:45 AM   #16
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by disturbedfan121 View Post
the car has a water temp stock too.... the thing on the bottom right hand corner of the gauge cluster
It makes more sense to have a gauge that actually tells you how hot the water temp is,instead of a needle pointing in the middle of the gauge.
spike is offline   Reply With Quote
Old 06-10-2008, 12:54 AM   #17
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

Quote:
Originally Posted by spike View Post
It makes more sense to have a gauge that actually tells you how hot the water temp is,instead of a needle pointing in the middle of the gauge.
thats ture but since he has a mspnp i'm gonna assume he has a laptop, and that will tell you the temp of the coolant too....so no need for that....he would have 3 gauges for the same thing then
disturbedfan121 is offline   Reply With Quote
Old 06-10-2008, 01:00 AM   #18
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by disturbedfan121 View Post
thats ture but since he has a mspnp i'm gonna assume he has a laptop, and that will tell you the temp of the coolant too....so no need for that....he would have 3 gauges for the same thing then
I know this person and he has no laptop.

Nobody drives around with a laptop plugged into their car at all times,so checking the water temp with a actual gauge makes more sense then checking it with a laptop.
spike is offline   Reply With Quote
Old 06-10-2008, 01:15 AM   #19
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

Quote:
Originally Posted by spike View Post
I know this person and he has no laptop.

Nobody drives around with a laptop plugged into their car at all times,so checking the water temp with a actual gauge makes more sense then checking it with a laptop.
he asked if it would be ok to leave out the water temp gauge....seeing as the car already has one, its not really needed. thats all i was saying. basically its not a necessity.
disturbedfan121 is offline   Reply With Quote
Old 08-28-2008, 02:19 AM   #20
Junior Member

Join Date: Mar 2008
Posts: 183
Total Cats: 0
Default

Bump from the dead... I'm going with a boost, egt, and narrow band A/f ratio... I figure I can tune with the egt and the narrow band will do just to make sure I'm away from the lean... I bought two different style sets with a radio din face. Not sure which one I'm going to keep but I definetly have to sell one set..
Bryan858 is offline   Reply With Quote
