Default What happens when cleaning the head goes horribly wrong

Some here may have read what happened to me when I tried the 'dip a vacuum hose in some water and feed it into the intake to clean the combustion chambers' trick a couple of weeks back.....

Well... the replacement of the engine is progressing well, and I will look to rebuild the old damaged motor at some point, but first - here's the damage that occurred.....

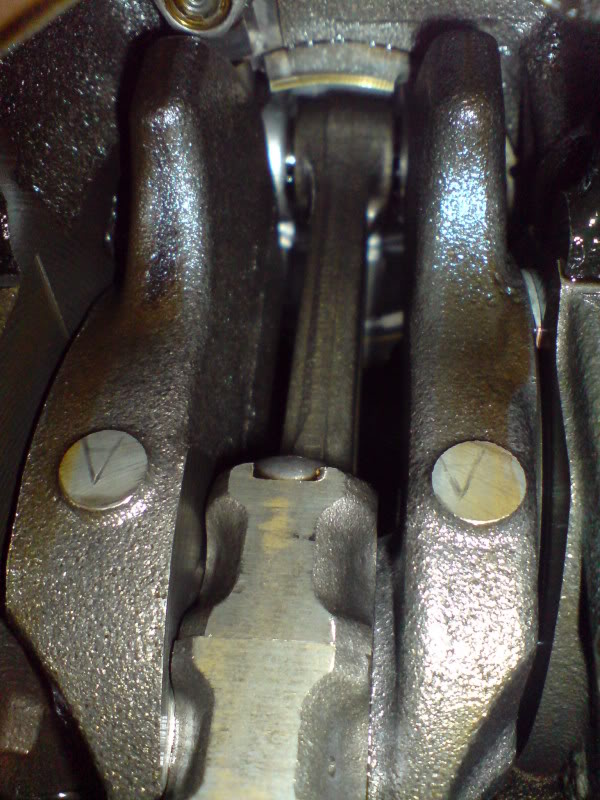

This is a straight conrod (cyl 4):
Name:  DSC00181.jpg
Views: 1
Size:  102.8 KB

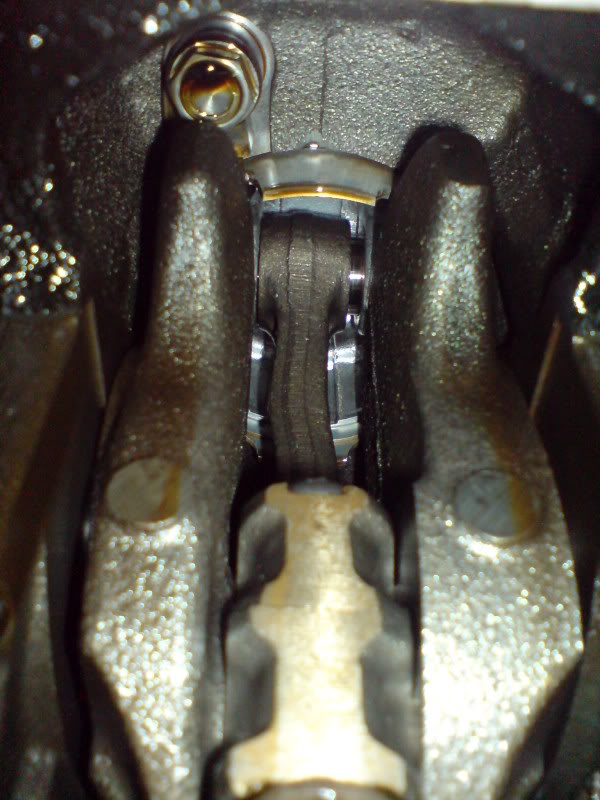

This is a bent one (cyl 1)
Name:  DSC00178.jpg
Views: 1
Size:  78.1 KB

Messy huh???

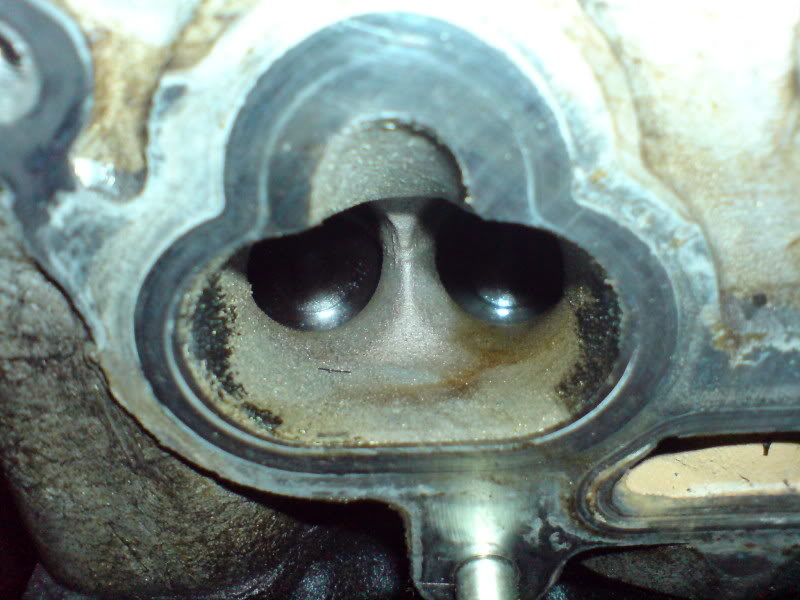

This is the intake side - you can see how it cleaned things up, but also how the little bit of residual standing water in the head around the valves is causing some surface rust:

cyl 4 -
Name:  DSC00182.jpg
Views: 1
Size:  72.7 KB

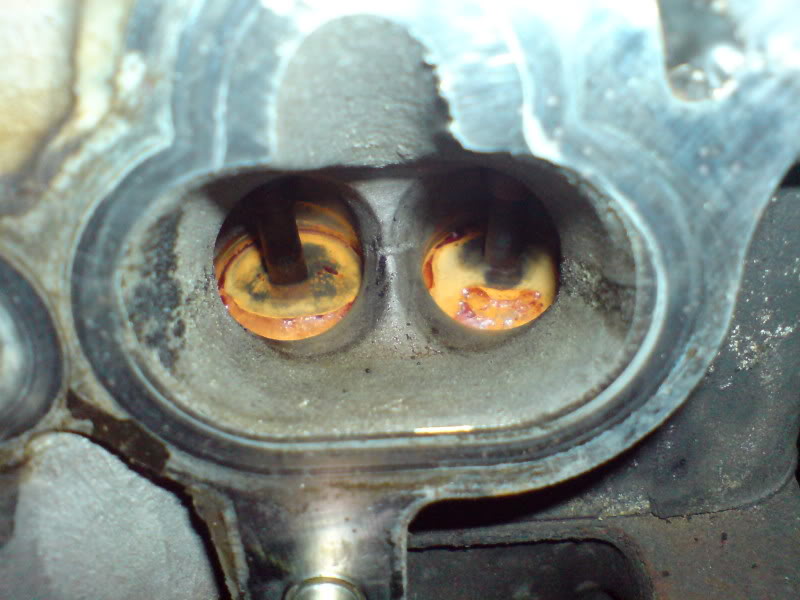

and cyl 1 -
Name:  DSC00183.jpg
Views: 1
Size:  66.6 KB

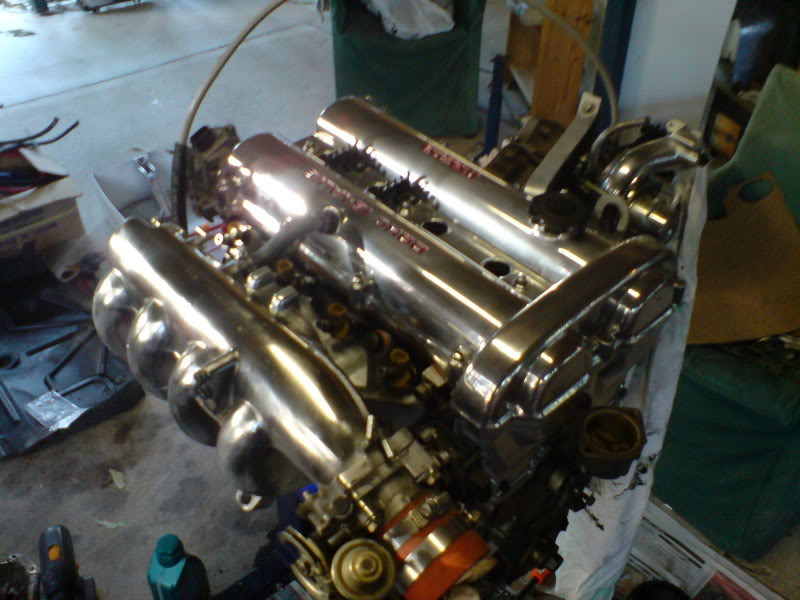

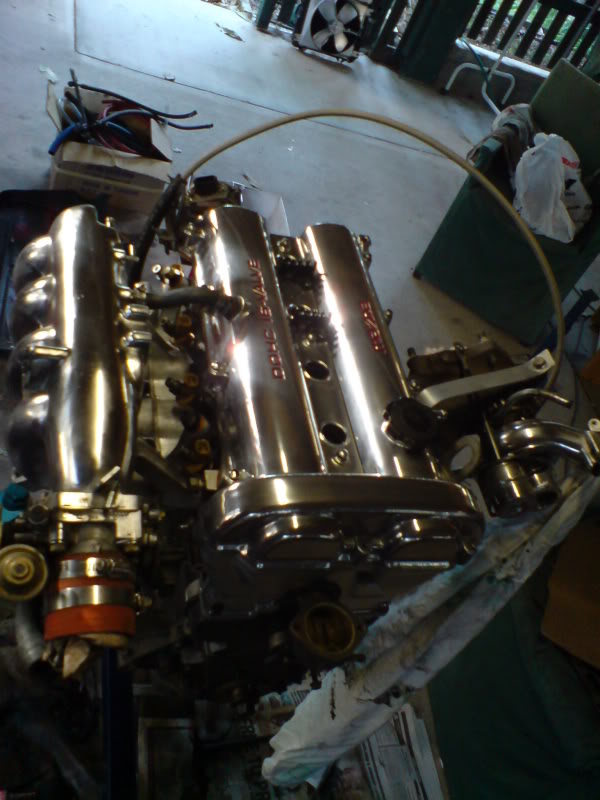

However, every dark cloud has a silver (polished?) lining. Replacing the motor gives me an opportunity to finish the job of making it all look good.....

Name:  DSC00175.jpg
Views: 1
Size:  71.3 KB
Name:  DSC00174.jpg
Views: 1
Size:  71.4 KB

More pics will follow as I progress (including the full tear down of the old engine.....
Uncle Arthur is offline   Reply With Quote
Old 07-30-2007, 11:53 PM   #2
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

ouch man. Was the car running at idle speeds when that happened? Sux dood.
SloS13 is offline   Reply With Quote
Old 07-31-2007, 12:40 AM   #3
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,048
Total Cats: 4
Default

Yah it doesn't take much water to send cylinder pressures to conrod bending levels.

I'd recommend using seafoam for this trick (sucking in cleaner through vacuum hose) in the future.

New engine looks nice.
Efini~FC3S is offline   Reply With Quote
Old 07-31-2007, 07:01 PM   #4
Senior Member

Join Date: May 2006
Posts: 884
Total Cats: 0
Default

Water does not compress as readily as sayyyyyy air. Well, it will but it takes astronomical amounts of pressure to compress it.
firedog25 is offline   Reply With Quote
Old 07-31-2007, 08:49 PM   #5
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

for anyone that wants to use water instead of seafoam i recommend getting the mazda recommended orifice (in their TSB on Top engine cleaning), they cost about $2 and will prevent the water being sucked down too fast.
Arkmage is offline   Reply With Quote
Old 08-01-2007, 02:07 AM   #6
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Wow, I thought it would be pretty hard to hydrolock through a vacuum line. How long was the line submerged?
ApexOnYou is offline   Reply With Quote
Old 08-01-2007, 03:09 AM   #7
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by ApexOnYou View Post
Wow, I thought it would be pretty hard to hydrolock through a vacuum line. How long was the line submerged?
About 3-5 seconds, if that.

I know about the laws of physics - I did when I tried this trick too.....

If you do a look through the Greddy thread for a post on 'taking the head off', you'll see how this all got so out of shape, and how a little bit iof mis-(missing) information can do lots of damage.

Mazda specialised part of not - I'm not keen on the thought of doing this myself ever again. My Mazda workshop can do it, and when/if they get it wrong, they can do the bloody rebuild instead of me.....
Uncle Arthur is offline   Reply With Quote
