Post What size bolt is this?

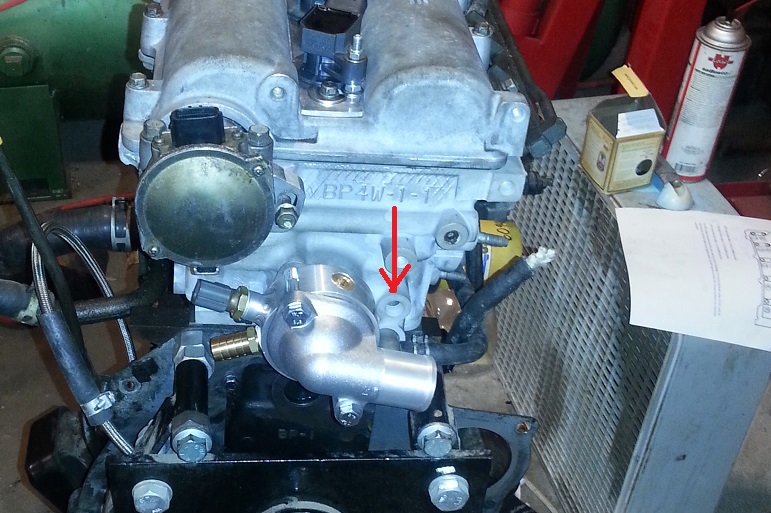

Hey guys, got a quick question. I got my head ready to go and just need to plug this hole. Anyone know what size the bolt is and what thread pitch? I don't have anything to plug it.

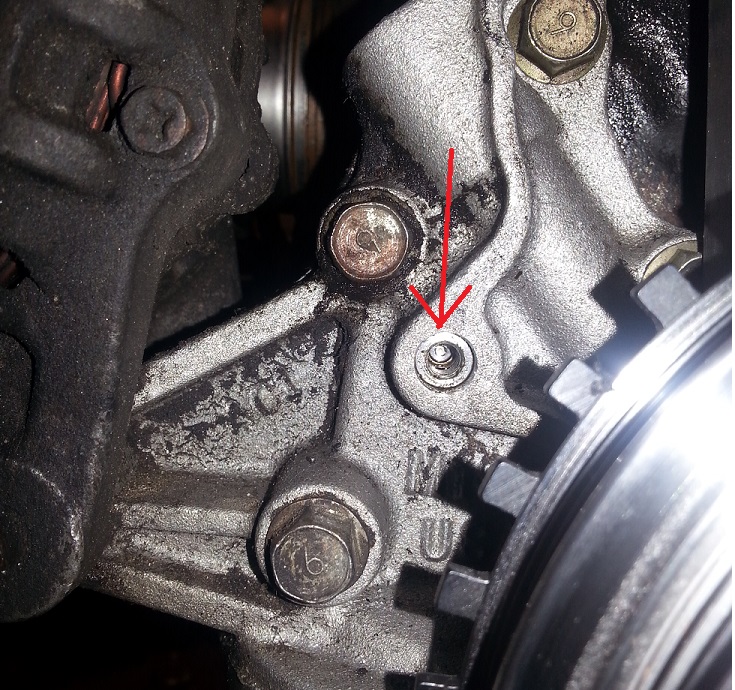

Also, should something be plugging this hole on the oil pump?

Attached Thumbnails
What size bolt is this?-whatisthisbolt.jpg   What size bolt is this?-shouldthisbeplugged.jpg
Der_Idiot is offline   Reply With Quote
Old 08-04-2013, 02:43 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

No, i believe that lower one is for your crank angle sensor, which you don't have installed, but nothing needs to plug it if you truly don't need the sensor itself.

No idea what the rear head thread size is, sorry.
curly is offline   Reply With Quote
Old 08-04-2013, 07:57 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

IIRC the rear is M14x1.50. The front hole is threaded for the timing belt covers, which you need to run if you expect to actually set the timing on the engine.
Savington is offline   Reply With Quote
Old 08-04-2013, 08:21 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

oops, wrong side for the crank sensor, so sav is right, that's a cover bolt.
curly is offline   Reply With Quote
Old 08-05-2013, 01:10 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

I figured it was something like that (I had to strong-arm my cover back on since I spaced and put the balancer on first..). I just noticed the thing at the bottom of there that looks like it's plugging something.

The bolt for the back of the head is only half an inch long too, wtf. I cut a bolt to put in there but the threads were the wrong pitch and messed up a bit of thread, but I found a proper bolt for the hole and it's plugged now.
Der_Idiot is offline   Reply With Quote
Old 08-06-2013, 09:41 AM   #6
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Savington View Post
IIRC the rear is M14x1.50. The front hole is threaded for the timing belt covers, which you need to run if you expect to actually set the timing on the engine.
Same thread as the ECU coolant sensor?
