Default Will this HD roll bar fit?

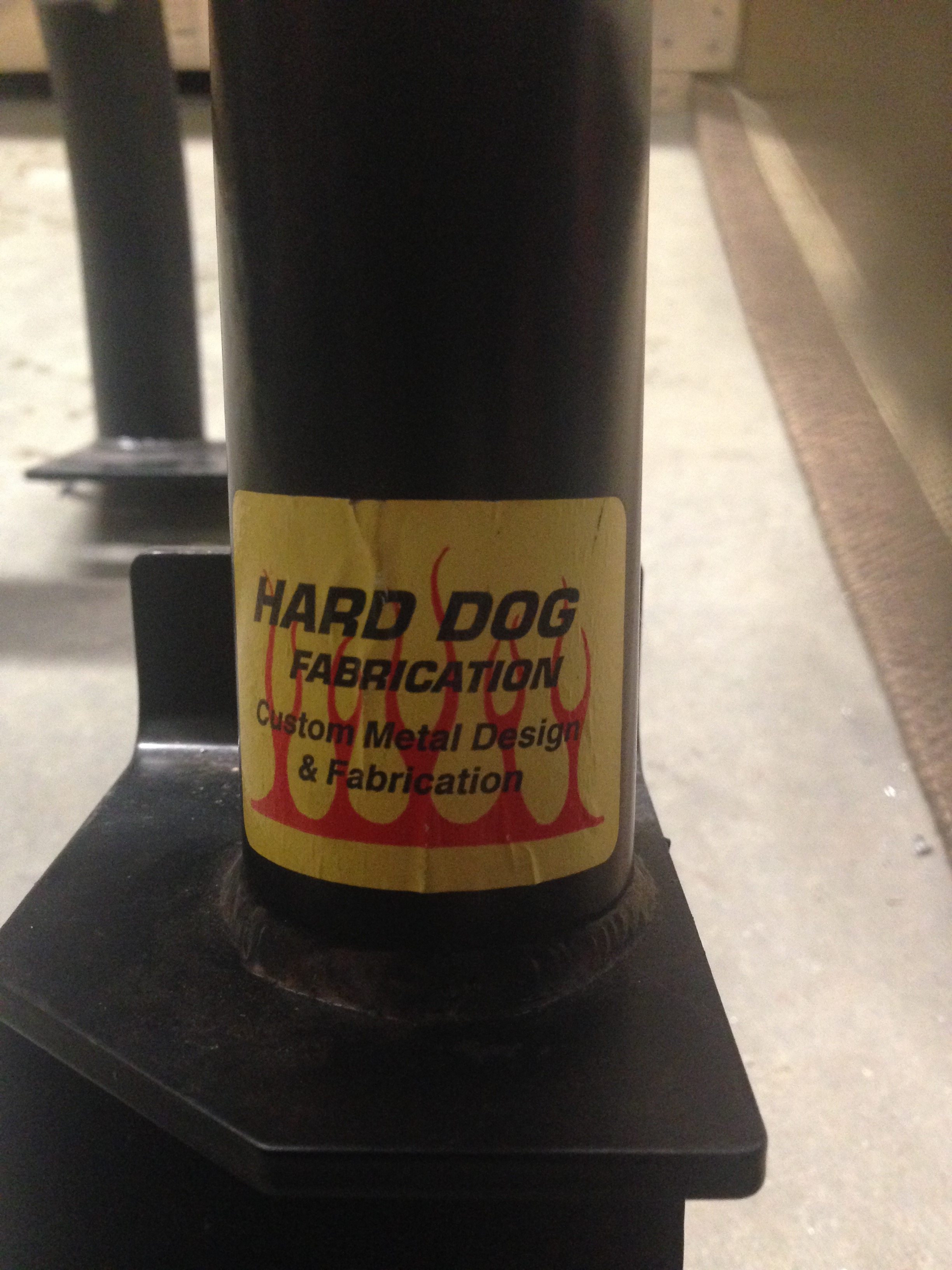

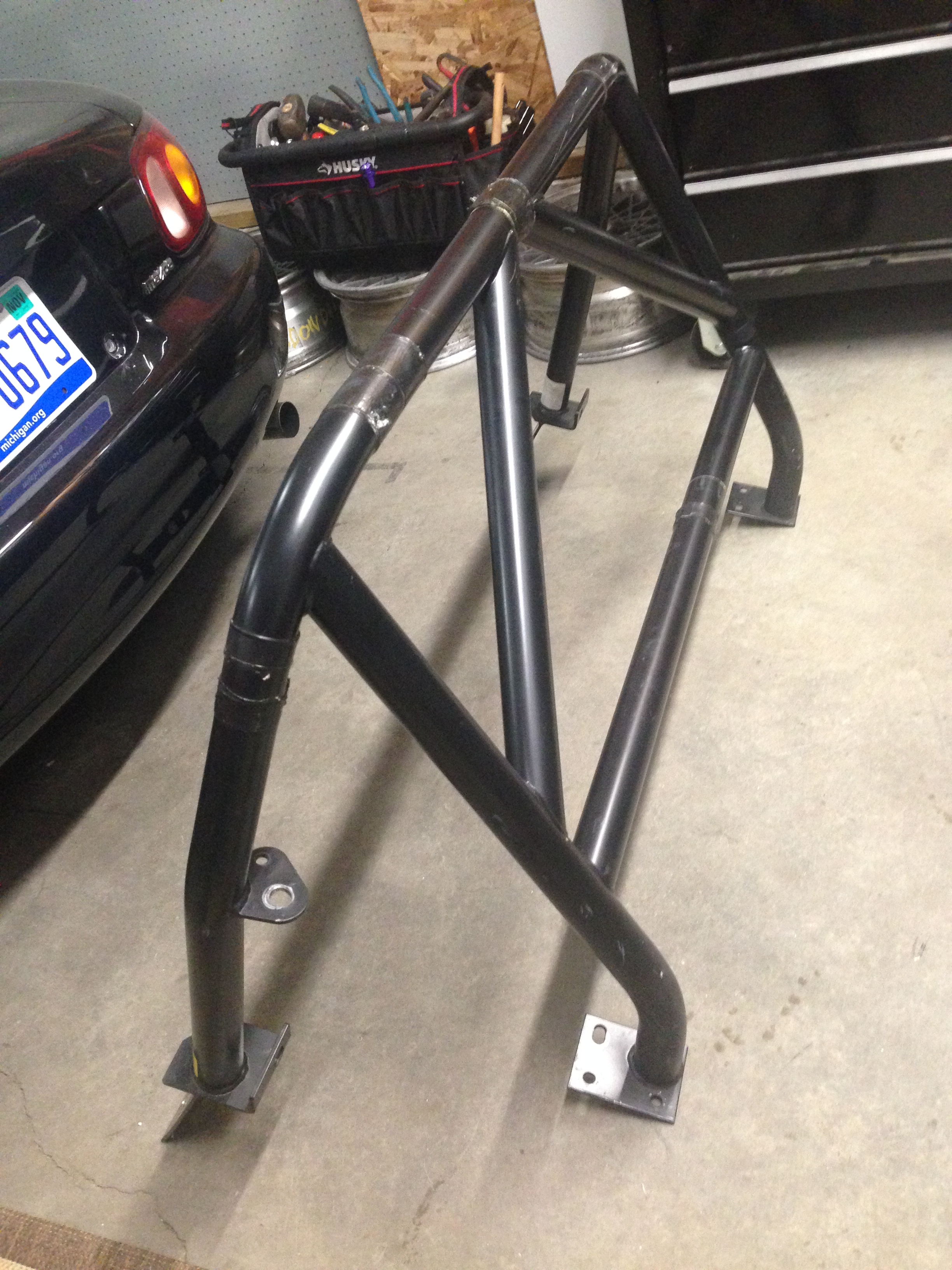

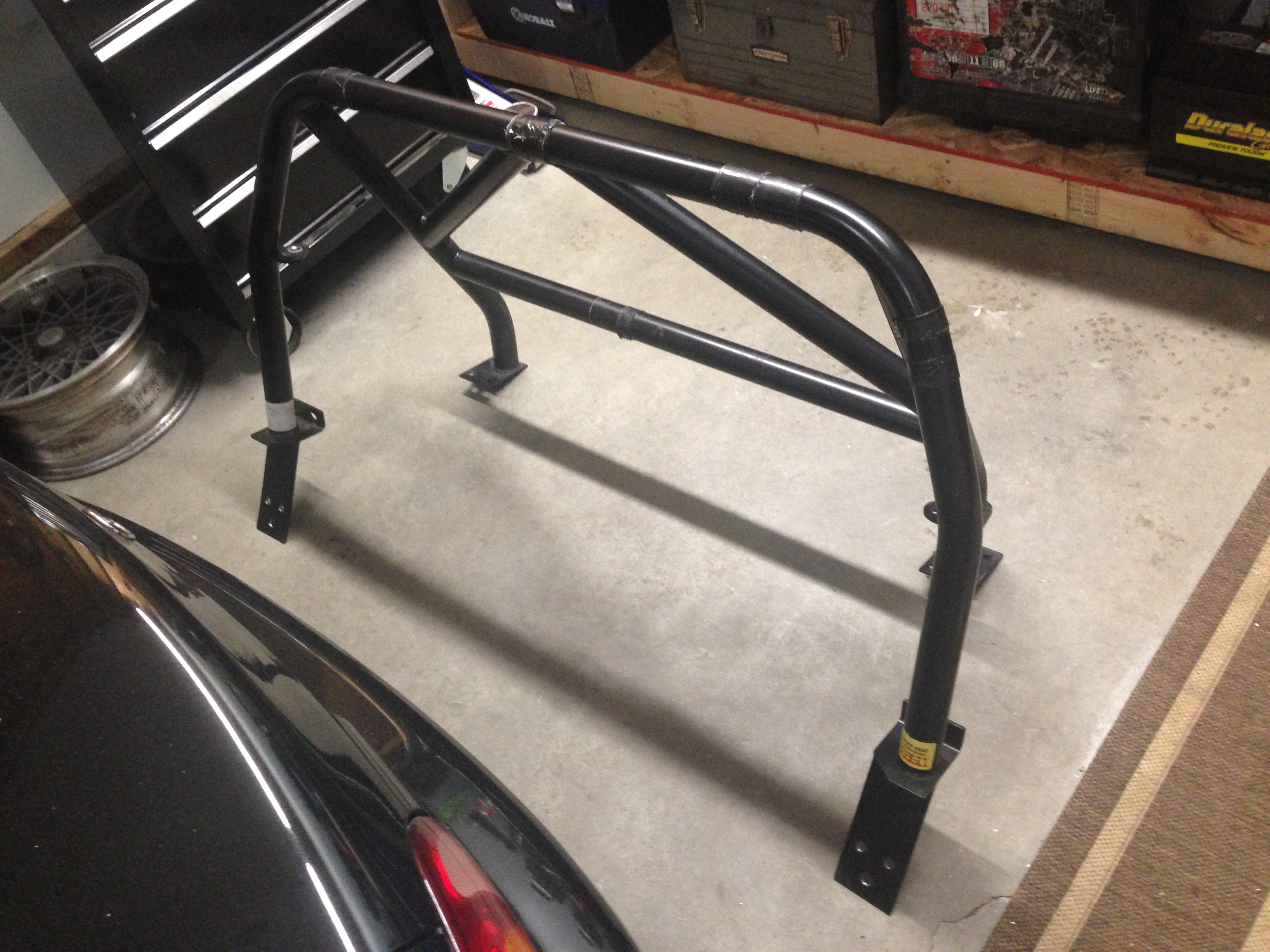

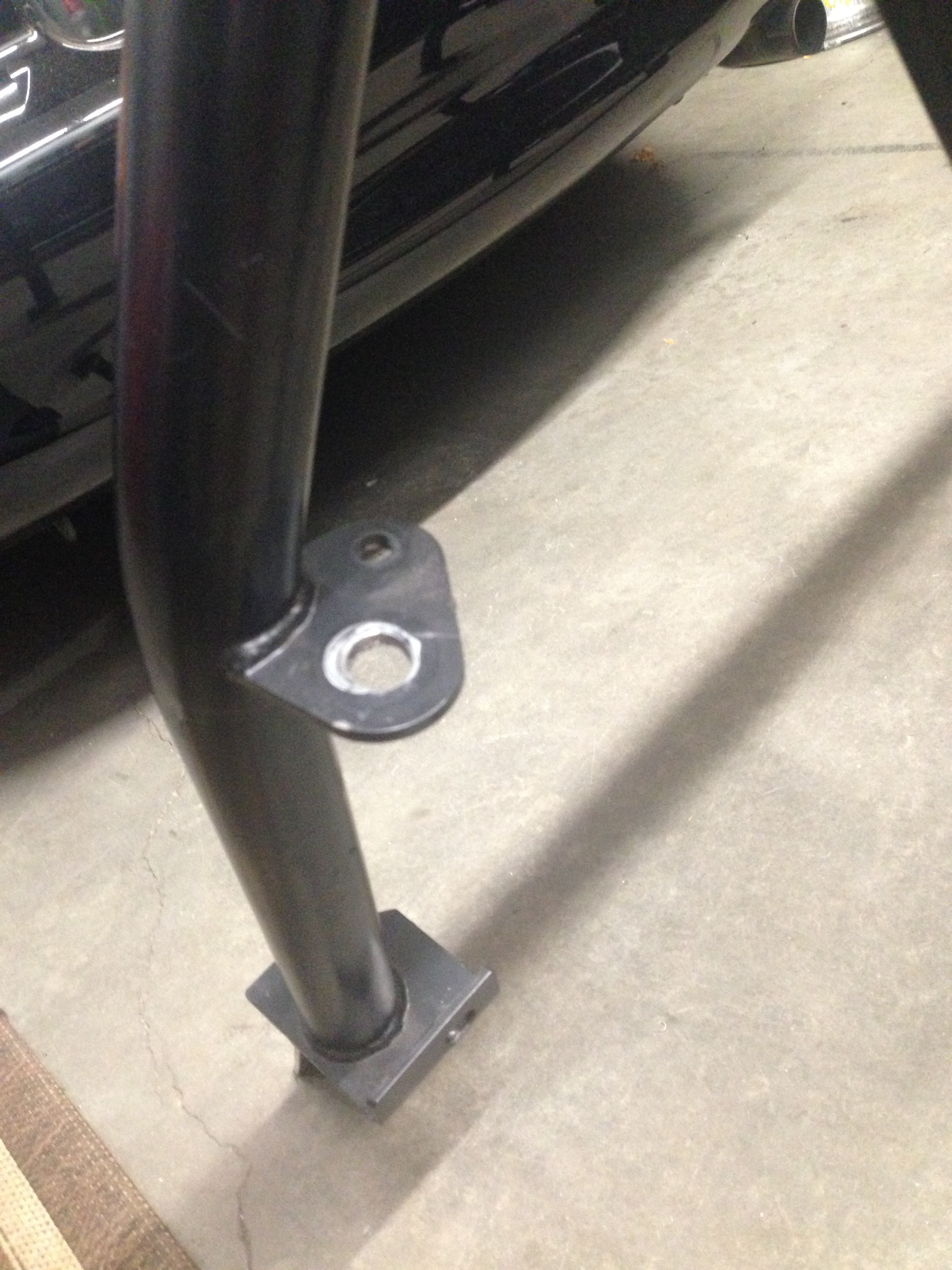

I scooped up what I think is a HD HCHTDD M1 locally. It is from a NA that had a hard top. It has 1.75" tubes and a welded harness bar. It has seatbelt tabs and curved rear bars.

I have a 2000 with an OEM glass rear window soft top. Can I cut out the harness bar to make my top clear? I have read the top will also contact the rear bars. Is this accurate? Some people say the only difference between the M1 and M2 is the harness bar.

Does anyone know how difficult it would be to use this bar? Would I be better off selling this one and buying a HD HCHTDD M2?

TIA

Keith
Attached Thumbnails
Will this HD roll bar fit?-img_4213.jpg   Will this HD roll bar fit?-img_4214.jpg   Will this HD roll bar fit?-img_4215.jpg   Will this HD roll bar fit?-img_4217.jpg
Kimmerlykg is offline   Reply With Quote
Old 01-22-2016, 05:12 PM   #2
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

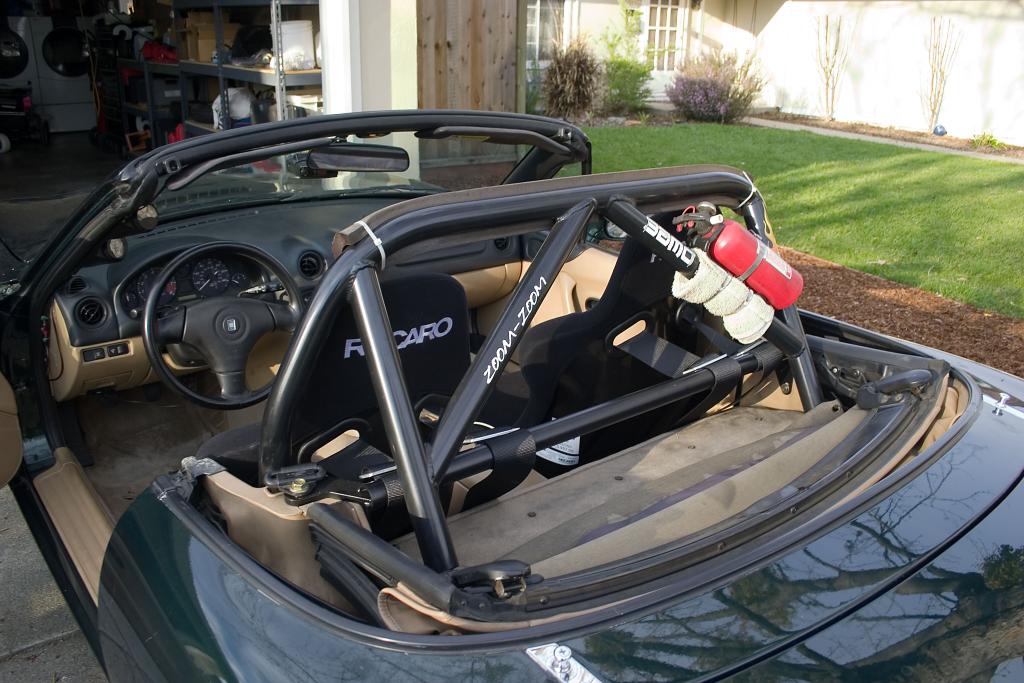

That looks like an NA HDHCHT to me. I think you're going to run into big problems with the rear legs. This is mine with an NM HDHC non-HT, which has the straight rear legs:



If you look at the edge of the top, you can see where the corners by the window are flipped up to go around the bar. That's as far back as you can put the bar if you want the window to lay flat.

I would sell it and buy a proper NB HDHC. You may or may not want the HT version -- the tradeoff is that in order to use the side latches, the main hoop needs to be further backwards, which means it can't go as high. If you're not going to use it with a HT, get the non-HT version. If you're going to have a permanently-mounted HT, you can also go with the non-HT version, because there's room to get bolt-on places in there, just not the latches.

You can also use a HT with the non-HT version if you just skip using the side latches, which is what I do. Clearly that's less desirable from a hardtop retention standpoint, but it doesn't seem to have been a problem.

--Ian
Attached Thumbnails
Will this HD roll bar fit?-recaro4.mid.jpg
codrus is offline   Reply With Quote
Old 01-22-2016, 05:32 PM   #3
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

The straight legs don't dictate which model it is. I have the M2 and it has straight legs. The design was changed sometime in the last few years.
aidandj is offline   Reply With Quote
Old 01-22-2016, 06:08 PM   #4
Newb
Thread Starter

Join Date: Jan 2016
Posts: 9
Total Cats: 0
Default

I know the bar I want is a Hardcore Hardtop Double Diagonal M2.
I believe I have the Hardcore Hardtop Double Diagonal M1. Any way to verify?

I just want to know if this one will clear if I cut out the harness bar. I would prefer to use this one since I dont want to deal with buying, selling, and shipping.
Kimmerlykg is offline   Reply With Quote
Old 01-22-2016, 08:45 PM   #5
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
The straight legs don't dictate which model it is. I have the M2 and it has straight legs. The design was changed sometime in the last few years.
AIUI, the HC bars with bent legs are all NA bars. The NB Sport bars may have bent legs, but they can be distinguished from the HC ones by the tube size.

--Ian
codrus is offline   Reply With Quote
Old 01-22-2016, 08:46 PM   #6
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by Kimmerlykg View Post
I know the bar I want is a Hardcore Hardtop Double Diagonal M2.
I believe I have the Hardcore Hardtop Double Diagonal M1. Any way to verify?

I just want to know if this one will clear if I cut out the harness bar. I would prefer to use this one since I dont want to deal with buying, selling, and shipping.
I don't think it will fit, if it did they wouldn't have bothered to make an NB-specific bar. If you really want to know, call Bethania and ask.

--Ian
codrus is offline   Reply With Quote
Old 01-22-2016, 08:48 PM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

Bent were a thing to make a glass window fit.

The current design doesnt have bent legs and glass windows still fit.
aidandj is offline   Reply With Quote
Old 01-22-2016, 09:01 PM   #8
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,798
Total Cats: 492
Default

Don't cut the bar!
Sell it to me and buy the right one.
Monk is offline   Reply With Quote
Old 01-22-2016, 09:16 PM   #9
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
Bent were a thing to make a glass window fit.

The current design doesnt have bent legs and glass windows still fit.
AFAIK the NB HC bars were never bent, only the sport. I bought my NB HDHCDD (non-HT) in 1999, and the legs are straight.

--Ian
codrus is offline   Reply With Quote
Old 01-22-2016, 11:29 PM   #10
Newb
Thread Starter

Join Date: Jan 2016
Posts: 9
Total Cats: 0
Default

Quote:
Originally Posted by Monk View Post
Don't cut the bar!
Sell it to me and buy the right one.
That could be arranged.
Kimmerlykg is offline   Reply With Quote
Old 01-23-2016, 12:11 AM   #11
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,798
Total Cats: 492
Default

PM'd
Monk is offline   Reply With Quote
