Old 08-21-2015, 11:51 AM   #21
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

<p>
Quote:
Originally Posted by codrus View Post
If it weighed -4 pounds, maybe. A standalone parking brake + wilwood caliper is going to weigh more than a factory caliper does. --Ian
I wonder what Jaguar's electrically actuated parking brake weighs.</p>
Ben is offline   Reply With Quote
Old 08-21-2015, 12:05 PM   #22
Junior Member

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Quote:
Originally Posted by Ben View Post
<p>I wonder what Jaguar's electrically actuated parking brake weighs.</p>
And if you are some other company that sells a Wilwood rear caliper set-up and add a parking brake it increases the cost by about about 41% (still want, though).

What I am psyched about is this is being worked up to keep a good F/R bias balance.
tazswing is offline   Reply With Quote
Old 08-21-2015, 12:21 PM   #23
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

No further details on products for the rear for the time being. Naturally, lots of track testing before anything gets a green light, I don't want to make any hard promises on a configuration that may change during development.

Upgrade to DynaPro 4-piston fronts!
ThePass is offline   Reply With Quote
Old 09-04-2015, 06:06 PM   #24
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

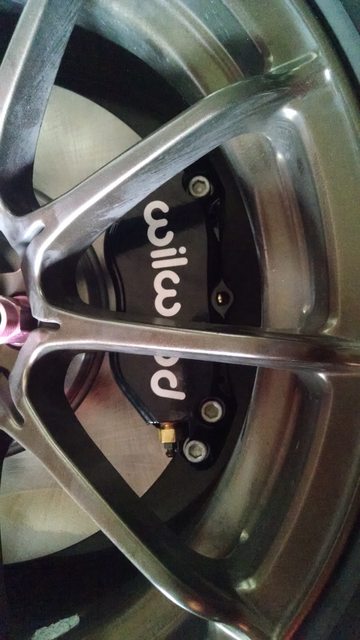

<p>So I stuck some BP-10 7112 in my dynapros last night, and the hole where you put the cotter pin is way bigger than on the dynalite, do we need a bigger cotter pin?</p><p>This picture might explain it:</p><p></p><p>See how the cotter pin like fell all the way through?</p>
Attached Thumbnails
4 Piston DynaPro caliper upgrade for almost ALL Big Brake Kits-x8hdmoml.jpg
aidandj is offline   Reply With Quote
Old 09-04-2015, 06:14 PM   #25
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

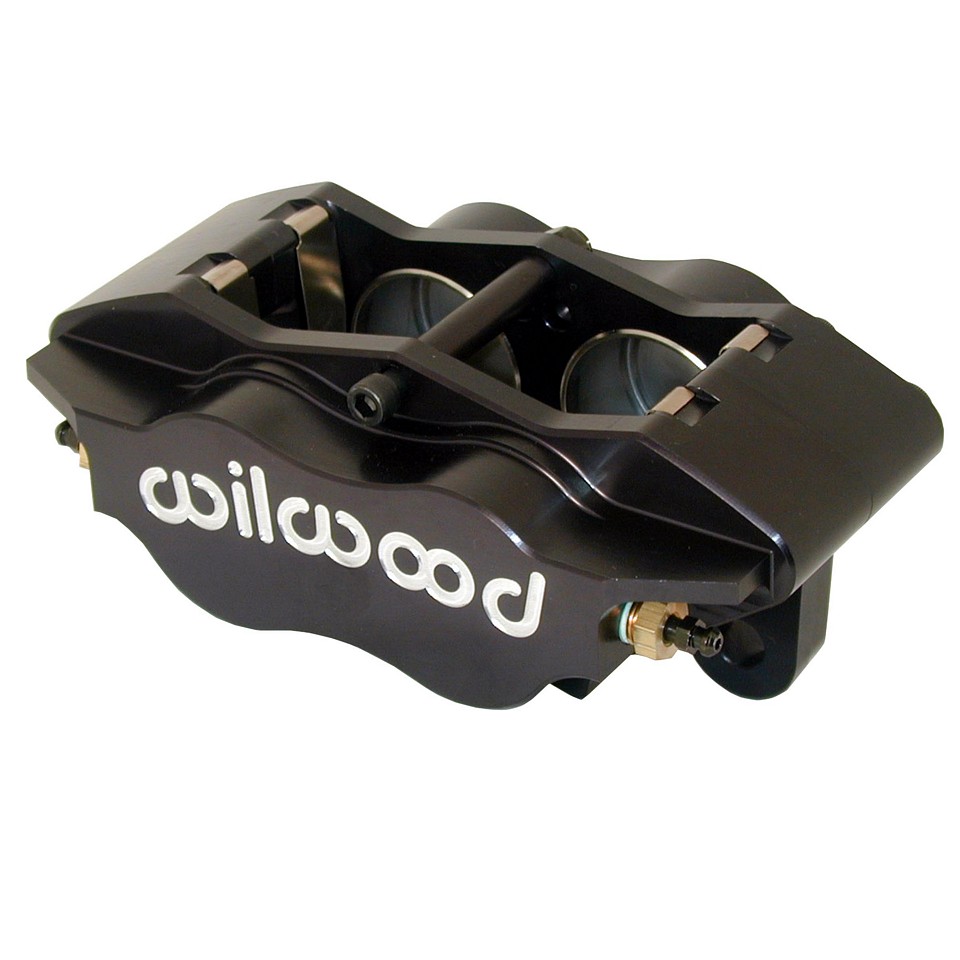

What about this?



More reusable, too.
Attached Thumbnails
4 Piston DynaPro caliper upgrade for almost ALL Big Brake Kits-0002583_wilwood-dynapro-light-inboard-caliper.jpg
deezums is offline   Reply With Quote
Old 09-04-2015, 06:19 PM   #26
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Would not fit through pad. There is a spring clip I think 949 sells.
aidandj is offline   Reply With Quote
Old 09-04-2015, 06:24 PM   #27
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Doesn't have to be that big. Looks like a 6-32 or 8-32 would fit. Drywall anchor screw size, long enough and usually pan head.

I'm going to do something like that. I don't want a bagillion cotter pins.
deezums is offline   Reply With Quote
Old 09-04-2015, 06:28 PM   #28
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

http://949racing.com/quick-release-pins-wilwood-dynalite.aspx
aidandj is offline   Reply With Quote
Old 09-05-2015, 08:20 PM   #29
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

For 7112 in the Dynapro you need 2 cotter pins per caliper, in the two outside holes, no use for the center hole as on the Dynapro that hole is for an optional bridge bolt, not a cotter pin. The Dynapro doesn't have pad keepers on the bottom, so the height of the pad in the caliper is regulated by the pins alone, thus the need for two of them.
ThePass is offline   Reply With Quote
Old 09-05-2015, 08:21 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Could I drill out 7112 center hole for a bridge bolt?
<br />Only asking because G is giving me a set of 7112 bp-10s and they don't have the 3 hole.
aidandj is offline   Reply With Quote
Old 09-05-2015, 08:34 PM   #31
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

The bridge bolt is not intended as a slider pin, so while you might be able to drill out the backing plate for a bridge bolt to fit through, that doesn't satisfy the need for locating pins for the pads to slide on.

The ability to run some 7112 pads in the Dynapro is a big deal for expensive/top-tier compounds that aren't available on 7812-specific backing plates (Dynapro uses 7812). A BP-10 is like, $35-$45, and available in both 7112 and 7812. Really no reason to try to mickey-mouse the 7112 version into working in that case.
ThePass is offline   Reply With Quote
Old 09-05-2015, 08:36 PM   #32
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Except these pads were free, and free is cheaper than $35. But point taken.
<br />What's the bridge bolt for.
aidandj is offline   Reply With Quote
Old 09-05-2015, 09:04 PM   #33
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Except these pads were free, and free is cheaper than $35.

I can't argue with that

What's the bridge bolt for

"Bridges" the gap between the two halves of the caliper. Adds rigidity. It's a bit of an afterthought on the DynaPro and not very necessary IMO. It's already significantly more rigid than say, the Dynalite.
ThePass is offline   Reply With Quote
Old 09-08-2015, 03:34 PM   #34
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Question for someone who had DTC-60 7112's in their hands.</p><p>Looking at hawk pictures for the DTC-60 in 7112 I don't see the 3 holes. Is this an error, or is the DTC-60 one of the pads that doesn't have the 3 hole backing.</p><p><img src="http://cimg3.ibsrv.net/gimg/www.miataturbo.net-vbulletin/792x792/80-hb540_d90676d618d1826fcc9da9e61c5ae50646459ee2.jpg " title="" /><br /><br />&nbsp;</p>
aidandj is offline   Reply With Quote
Old 09-28-2015, 05:18 PM   #35
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

If I run Dynapro's in front with PFC01s what pad do you recommend I run for my rear Sport brakes?

Thanks!
tomiboy is offline   Reply With Quote
Old 09-28-2015, 11:43 PM   #36
Junior Member
iTrader: (6)

Join Date: Feb 2012
Location: Phoenix, AZ
Posts: 143
Total Cats: 4
Default

Looking forward to seeing this rear kit.
300zxrb26dett is offline   Reply With Quote
Old 09-29-2015, 03:28 PM   #37
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by tomiboy View Post
If I run Dynapro's in front with PFC01s what pad do you recommend I run for my rear Sport brakes?

Thanks!
PFC01 in the rear. Get the standard 1.8 rear pads and with a little backing plate shaving they can fit the sport calipers. I don't have pics of the process since none of us run the sport rear caliper here, but lots of guys have done it.
ThePass is offline   Reply With Quote
Old 09-29-2015, 08:50 PM   #38
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by ThePass View Post
B) But, if you're a big fan of the Quick-E-Clip like me, a little notching of the backing plate will make everything clear the E-Clip's pins in the center and you're good to go.

Here's a pic with the standard 7112 PFC pad on top, and the same pad modified below it. I got a little fancy with the carbide grinder on these, but three simple straight cuts will do the job, since you don't need any of that center portion:
Is it safe grinding the backing plate down with power tools? A post in the big brake thread recommends using a hand file:

Quote:
Originally Posted by OGRacing View Post
1
it's not uncommon to have teams File the backing plates. it happens a lot with making bridge bolt calipers work with non bridge bolt pads. Do use a file to do this, and not a grinder. the vibrations from the grinder could damage the brittle nature of any race pad. if you where staying on a budget that would be the one i would choose. after that i would recommend just swapping out to a v8 roadsters front kit, and 1.8l rear caliper + sport rotor kit.
I plan to install my new Dynapro and PFC01 combo later this week and would much rather use power tools to modify the backing plate.
midpack is offline   Reply With Quote
Old 09-29-2015, 10:35 PM   #39
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Johnny (OGRacing) is our distributor for PFC pads and the one I consulted when originally looking for a PFC option for the Dynapro. Grinding the backing plate to clear was his suggestion and also got the OK from a PFC engineer.
ThePass is offline   Reply With Quote
Old 09-29-2015, 10:43 PM   #40
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Thanks. I was not looking forward to filing that much material off by hand.
midpack is offline   Reply With Quote
