Default DIY Dual Feed Rail Fittings

If anyone is interested, I did the DIY dual feed modification to the stock fuel rail a little different than most using AN fittings and stainless hard line. I figure one just wants a kit of sorts, this might help. Like all my other post, if you are interested just let me know. I should get some pictures uploaded shortly. Not sure on price yet, but it shouldn't be too bad.
The kit would include:
NPT to AN adapter
Stainless hard line with AN Nut
Required fuel line and tee

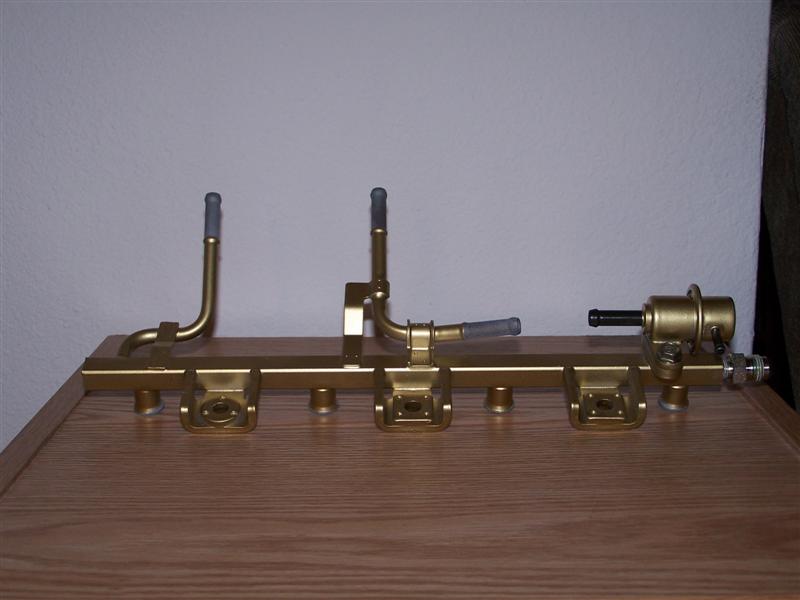

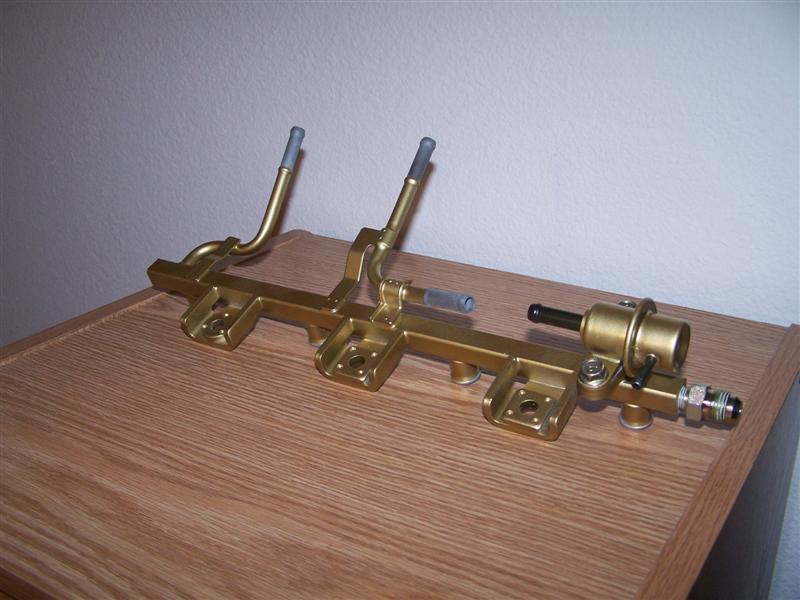

Hopefully this weekend I will get some pictures up so that it makes a bit more sense. The two pics below dont have the stainless hard line, just the adapter.
-Michael-
Attached Thumbnails DIY Dual Feed Rail Fittings-fuelrail-001-medium-.jpg   DIY Dual Feed Rail Fittings-fuelrail-002-medium-.jpg
__________________


95 Miata Backburner Project
99 Jeep Cherokee Offroad Beater
01 Miata AutoX Car
02 Bugeye Wagon Project Car
07 335i Fun Daily

Check Out Our Parts Threads and Online Store!
Coolant Reroute and EGR Block-Off Parts Thread
LSx D585 Coil Bracket Kit Pre-Order Thread

Hawley Performance Online Store
TheBandit is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 05:03 PM
  #2
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 698
Total Cats: 0
Default

looks pretty good. If it's pretty reasonable I might have to pick one up as I'm headed for boosted land and would rather have what I can done to protect before rather than later.

Fuel rail painted gold looks pretty serious, might have to do that when I take mine out.
MX_Eva is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 05:50 PM
  #3
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,274
Total Cats: 0
Default

If only you posted two weeks ago before I used a barb fitting to make mine. :( Glad to see someone offering a kit now though.
ApexOnYou is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 05:58 PM
  #4
Supporting Vendor
Thread Starter
iTrader: (8)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,171
Total Cats: 45
Default

Sorry man, I wish I would have thought about it sooner myself. Hopefully it will still benefit some. Did you ever get your fitting situation to work out?
-Michael-
__________________


95 Miata Backburner Project
99 Jeep Cherokee Offroad Beater
01 Miata AutoX Car
02 Bugeye Wagon Project Car
07 335i Fun Daily

Check Out Our Parts Threads and Online Store!
Coolant Reroute and EGR Block-Off Parts Thread
LSx D585 Coil Bracket Kit Pre-Order Thread

Hawley Performance Online Store
TheBandit is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 06:14 PM
  #5
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,274
Total Cats: 0
Default

Im sure this will help plenty, the whole time I was making mine I kept thinking how I would love the piece of mind of stainless lines. I do still have an extra rail.. Hm.. Maby if the price is right I will convert my spare using SS braided.

A member on here offered me that oil feed fitting for ten bucks, i think ill just buy that.
ApexOnYou is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 06:22 PM
  #6
Supporting Vendor
Thread Starter
iTrader: (8)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,171
Total Cats: 45
Default

Well, it won't be using stainless braid, or at least I hadn't intended too. This will utilize stainless hard line, like my water line kits use. Glad you got fitting problem cleared up.
-Michael-
__________________


95 Miata Backburner Project
99 Jeep Cherokee Offroad Beater
01 Miata AutoX Car
02 Bugeye Wagon Project Car
07 335i Fun Daily

Check Out Our Parts Threads and Online Store!
Coolant Reroute and EGR Block-Off Parts Thread
LSx D585 Coil Bracket Kit Pre-Order Thread

Hawley Performance Online Store
TheBandit is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 06:34 PM
  #7
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,274
Total Cats: 0
Default

Oh so would it still use rubber line? I was thinking it would be like FMs new fuel rail setup, with braided lines.
ApexOnYou is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 07:22 PM
  #8
Supporting Vendor
Thread Starter
iTrader: (8)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,171
Total Cats: 45
Default

Yea, it would use rubber fuel line to connect the hard line to the tee. I haven't seen FM's new stuff. Hopefully I can get a pic up soon.
-Michael-
__________________


95 Miata Backburner Project
99 Jeep Cherokee Offroad Beater
01 Miata AutoX Car
02 Bugeye Wagon Project Car
07 335i Fun Daily

Check Out Our Parts Threads and Online Store!
Coolant Reroute and EGR Block-Off Parts Thread
LSx D585 Coil Bracket Kit Pre-Order Thread

Hawley Performance Online Store
TheBandit is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 07:43 PM
  #9
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,274
Total Cats: 0
Default

Originally Posted by TheBandit View Post
Yea, it would use rubber fuel line to connect the hard line to the tee. I haven't seen FM's new stuff. Hopefully I can get a pic up soon.
-Michael-
They just put it on their site. Its purple.. eek.
ApexOnYou is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 08:09 PM
  #10
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,162
Total Cats: 38
Default

I'm definately interested, I was planning on doing this mod this weekend but can wait if there's a decent 'kit' available.
Efini~FC3S is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 08:16 PM
  #11
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,614
Total Cats: 0
Default

Originally Posted by ApexOnYou View Post
They just put it on their site. Its purple.. eek.
I don't know why they chose to use purple for their products,are they trying to copy HKS?

red,blue,black,gold even bare machined aluminum would have looked nicer than purple.
spike is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 09:04 PM
  #12
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,274
Total Cats: 0
Default

Originally Posted by spike View Post
I don't know why they chose to use purple for their products,are they trying to copy HKS?

red,blue,black,gold even bare machined aluminum would have looked nicer than purple.
+1

Not digging the "glamma 2nr!" thing, ya kno?
ApexOnYou is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 09:08 PM
  #13
Guest

Join Date: Mar 2006
Location: So Cal
Posts: 407
Total Cats: 0
Default

that looks killerrr....id take one in semi flat black. Im going for an all black theme underhood.
krayzrac3r is offline
Leave a poscat 0 Leave a negcat
Old 02-08-2007, 10:52 PM
  #14
Supporting Vendor
Thread Starter
iTrader: (8)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,171
Total Cats: 45
Default

Well, this would just be the fittings and hose required, and you would alter the stock rail yourself. I just showed my rail to give you an idea of how it looks.
-Michael-
__________________


95 Miata Backburner Project
99 Jeep Cherokee Offroad Beater
01 Miata AutoX Car
02 Bugeye Wagon Project Car
07 335i Fun Daily

Check Out Our Parts Threads and Online Store!
Coolant Reroute and EGR Block-Off Parts Thread
LSx D585 Coil Bracket Kit Pre-Order Thread

Hawley Performance Online Store
TheBandit is offline
Leave a poscat 0 Leave a negcat
Old 02-09-2007, 01:05 AM
  #15
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,274
Total Cats: 0
Default

Originally Posted by krayzrac3r View Post
that looks killerrr....id take one in semi flat black. Im going for an all black theme underhood.
Mine is matte black, looks good!
ApexOnYou is offline
Leave a poscat 0 Leave a negcat
Old 02-09-2007, 02:36 AM
  #16
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 3,086
Total Cats: 902
Default

So its just the fitting that you need to screw into the drilled and tapped rail and what hard line? I'm probably just confused but please clarify. Or a pic would be enough lol.
I can't imagine it costing much if its just a fitting and line...?
What size is the NPT to AN fitting and what diameter is the hard line?
-Ryan
ThePass is offline
Leave a poscat 0 Leave a negcat
Old 02-09-2007, 08:04 AM
  #17
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,611
Total Cats: 286
Default

Looks good!
TurboTim is offline
Leave a poscat 0 Leave a negcat
Old 02-09-2007, 10:43 AM
  #18
Supporting Vendor
Thread Starter
iTrader: (8)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,171
Total Cats: 45
Default

The kit would include:
1/8" NPT to -6 AN adapter
3/8" Stainless hard line with -6 AN Nut
Required fuel line and tee
Like I said earlier it shouldn't be very expensive, but it will be more than just a 1/8 NPT to 5/16 barb which is what is generally used. I think once I get a pic of the whole thing, you will understand a lot better. Thanks Tim!
-Michael-
__________________


95 Miata Backburner Project
99 Jeep Cherokee Offroad Beater
01 Miata AutoX Car
02 Bugeye Wagon Project Car
07 335i Fun Daily

Check Out Our Parts Threads and Online Store!
Coolant Reroute and EGR Block-Off Parts Thread
LSx D585 Coil Bracket Kit Pre-Order Thread

Hawley Performance Online Store
TheBandit is offline
Leave a poscat 0 Leave a negcat
Old 02-09-2007, 01:06 PM
  #19
Junior Member
iTrader: (1)

Join Date: May 2006
Location: Athens, GA
Posts: 247
Total Cats: 0
Default

I'd probably be interested... I guess it will work on the 1.6 and the 94-97 1.8?
GTS Miata is offline
Leave a poscat 0 Leave a negcat
Old 02-11-2007, 06:56 PM
  #20
Supporting Vendor
Thread Starter
iTrader: (8)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,171
Total Cats: 45
Default

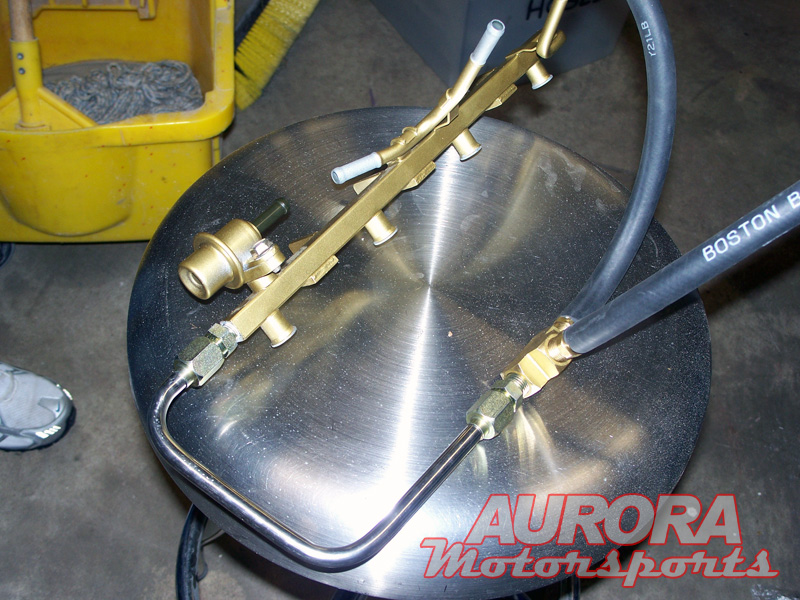

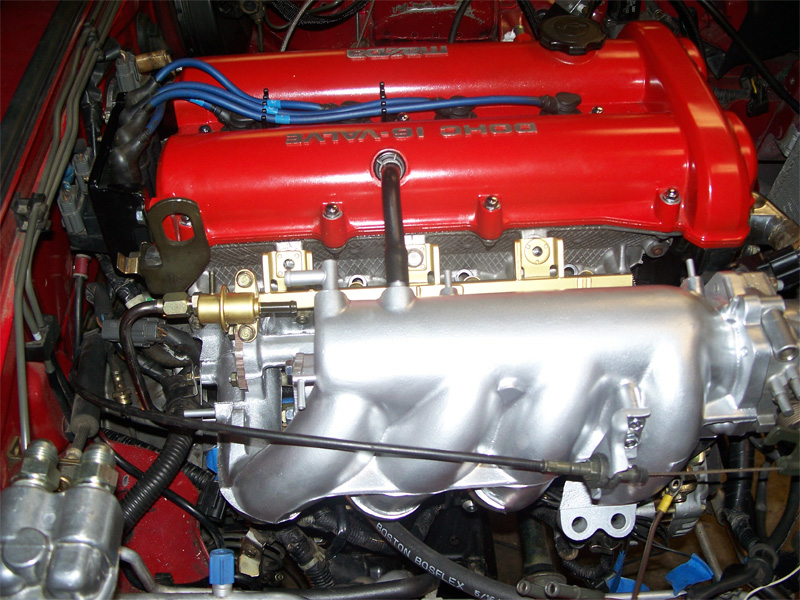

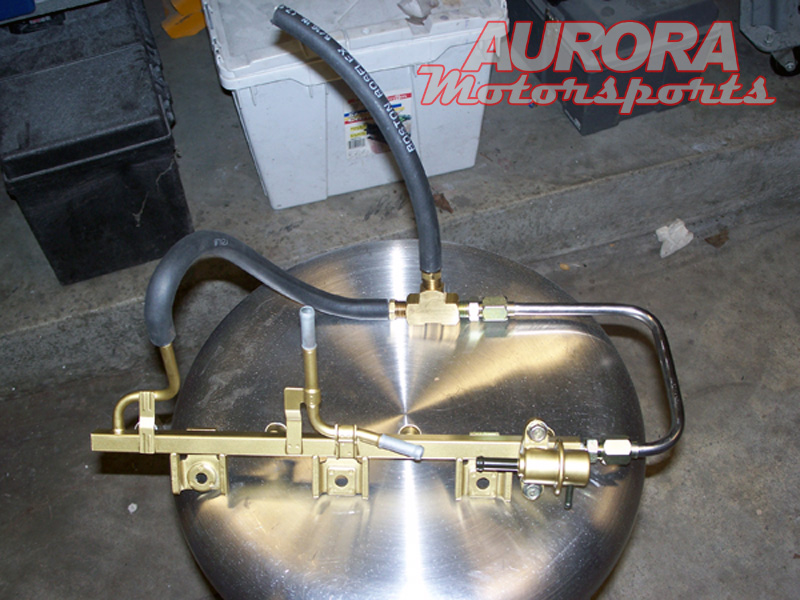

Here are a few pictures of the Dual Feed kit as it will be on my car.
