Old 10-06-2010, 11:38 PM   #21
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Awesome video fellas.
jbrown7815 is offline   Reply With Quote
Old 10-08-2010, 06:52 PM   #22
Newb

Join Date: Oct 2010
Location: North Lake Tahoe, CA
Posts: 10
Total Cats: 0
Default

Hey all, just wanted to give you an update: I'm currently hunting down parts. Turns out the connectors are becoming a bit harder to find, especially if I don't want to order minimum 1,500 of them! So that's gonna put a kink in the works for the prototypes. Rest assured I'm constantly looking!

However in the meantime I'll be getting some pushbuttons in as samples to see how well the fit, look, and feel. I'll have pictures posted of those as soon as they're in.
NeilMG is offline   Reply With Quote
Old 10-09-2010, 02:27 AM   #23
Newb

Join Date: Apr 2010
Location: Napa/Vallejo CA
Posts: 12
Total Cats: 0
Default

Hey guys first post here, i was readin this and had an idea. Someone mentioned a sort of proximity sensor to allow the use of the push start while keeping you keys in your pocket, what if somewher hiden was a reed switch and all the user had to do was place a magnet over it? The magnet is either conected to a key chain or just in the car somewhere. Just a thought i dont know if it would work
92sunburst is offline   Reply With Quote
Old 10-09-2010, 10:41 AM   #24
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I'd be in if the solution has a proximity switch. It needs to not require a key in the ignition.
miatauser884 is offline   Reply With Quote
Old 10-09-2010, 11:13 AM   #25
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I'm going to implement the idea of the proximity switch+start button, albeit a little improved:

1) It's also going to be a stop switch: Pressing it will kill the engine without turning off the ECU (handy for several cases). It's going to be VSS and RPM deactivated, so that the passenger can't switch the engine off accidentally.
2) Instead of an RFID transponder or something else that is easily duped, I'm going to go with a really advanced solution:



128bit encryption and practical too! I bought two of them to have a backup in case one of them goes bad.
Reverant is offline   Reply With Quote
Old 10-10-2010, 11:19 AM   #26
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

A watch !?!?!?!?
I want!
tyson87 is offline   Reply With Quote
Old 10-15-2010, 06:45 PM   #27
Newb

Join Date: Oct 2010
Location: North Lake Tahoe, CA
Posts: 10
Total Cats: 0
Default

Ok everyone, as promised I received a few pushbuttons in today and so I wanted to share a bit.

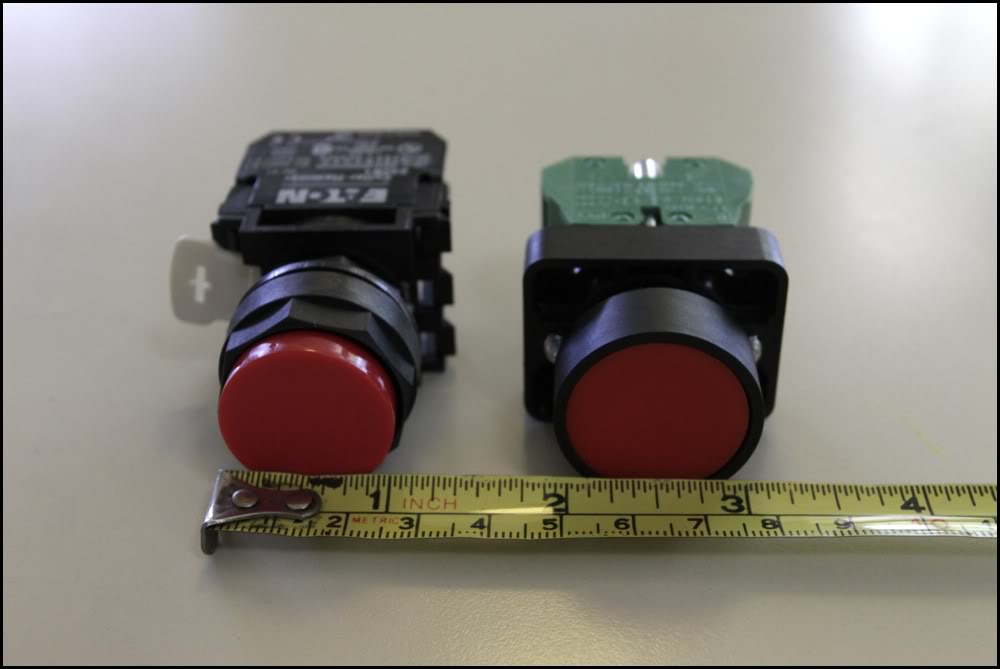

As you can see the button itself is about a inch across. Both of these are a "standard" 22.5mm button, meaning the hole you have to punch out to mount it is that size. 22.5mm is around 7/8 inch which from my quick measurements I believe is pretty darn close to a standard cigarette lighter hole.
The goal is to test fit these this weekend and go from there. I foresee that depending on where you mount it securing the contact block on the backside (the big rectangle thing) may be tricky. We shall see, more pics/information coming soon!

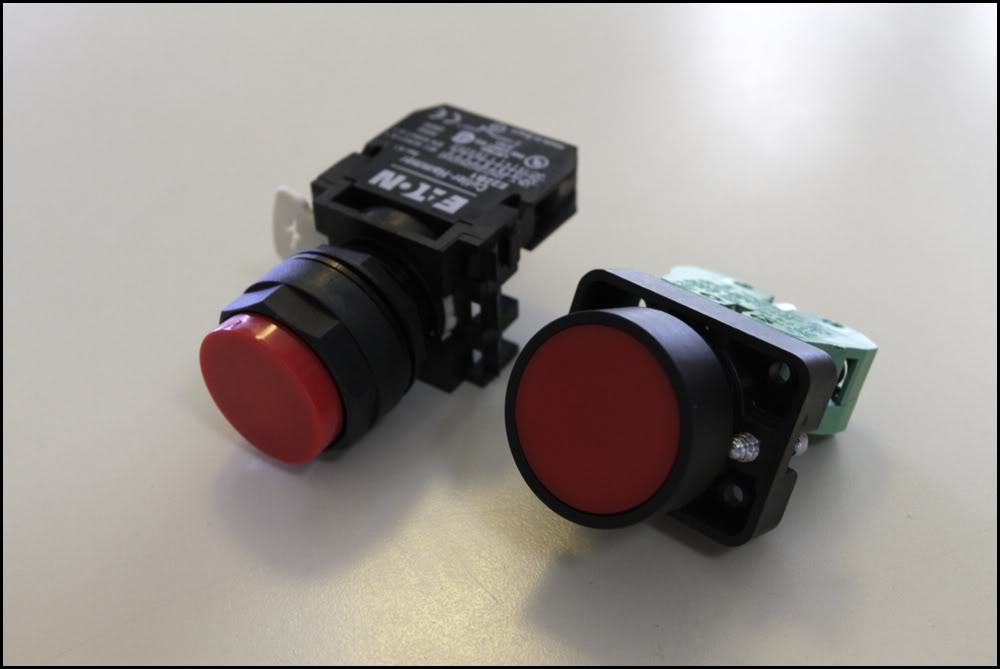

Name:  IMG_2933.jpg
Views: 21
Size:  43.4 KB

Name:  IMG_2930.jpg
Views: 21
Size:  49.8 KB

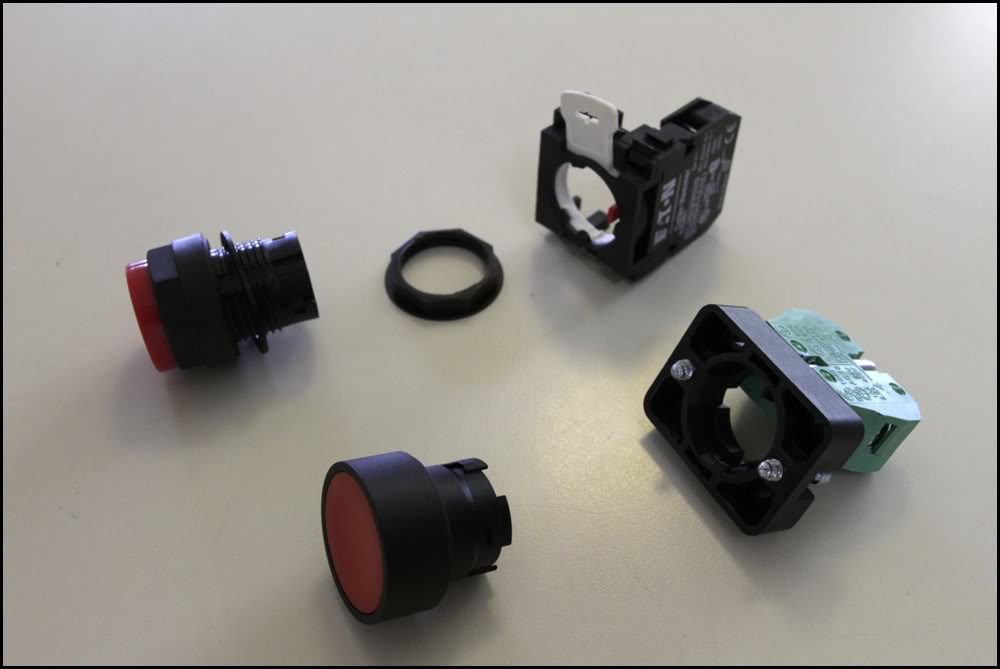

Name:  IMG_2937.jpg
Views: 21
Size:  44.7 KB

I'm kinda interested to see how the proximity systems turn out.
NeilMG is offline   Reply With Quote
Old 11-06-2010, 01:15 AM   #28
Junior Member
iTrader: (3)

Join Date: Jun 2008
Location: NJ
Posts: 429
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
I'm going to implement the idea of the proximity switch+start button, albeit a little improved:

1) It's also going to be a stop switch: Pressing it will kill the engine without turning off the ECU (handy for several cases). It's going to be VSS and RPM deactivated, so that the passenger can't switch the engine off accidentally.
2) Instead of an RFID transponder or something else that is easily duped, I'm going to go with a really advanced solution:



128bit encryption and practical too! I bought two of them to have a backup in case one of them goes bad.
I've been kicking this around. I went so far as to put together a mental shopping list.. arduino, relay, rfid kit. Cost really wasn't very high at all (< $100), but i kept getting stuck at the steering wheel lock. Either you disable it, in which case your car is THAT much easier to steel / push away /what have you, or you don't, in which case you're back to using your key again.

How do you plan to deal with the steering wheel lock?
ctxspy is offline   Reply With Quote
Old 11-06-2010, 02:05 AM   #29
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Austin, Tx
Posts: 152
Total Cats: 0
Default

Quote:
Originally Posted by djp0623 View Post
I'd be in if the solution has a proximity switch. It needs to not require a key in the ignition.
I know most of ya'll hate that forum, buuuut...

http://clubroadster.net/vb_forum/showthread.php?t=35983
chricto is offline   Reply With Quote
Old 11-06-2010, 02:35 AM   #30
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

I'd be in for some sort of keyless set up. A toggle would work for me, don't need any of that proximity stuff. Just something else to break.
dstn2bdoa is offline   Reply With Quote
Old 11-06-2010, 03:11 AM   #31
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by dstn2bdoa View Post
I'd be in for some sort of keyless set up. A toggle would work for me, don't need any of that proximity stuff. Just something else to break.
Seriously? For a track car, right?

It would be insane to do that on a street car imho.
Fireindc is offline   Reply With Quote
Old 11-06-2010, 04:52 AM   #32
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by ctxspy View Post
I've been kicking this around. I went so far as to put together a mental shopping list.. arduino, relay, rfid kit. Cost really wasn't very high at all (< $100), but i kept getting stuck at the steering wheel lock. Either you disable it, in which case your car is THAT much easier to steel / push away /what have you, or you don't, in which case you're back to using your key again.

How do you plan to deal with the steering wheel lock?
Oh I will definitely delete the steering wheel lock. If someone makes their way into the car they can defeat they steering lock REALLY easy. A simple key is no protection, do not be fooled into thinking it will deter anyone. An alarm system and a GOOD immobilizer is what you should at a minimum anyway; I would add a GPS tracking service for the kicks as well.
Reverant is offline   Reply With Quote
Old 11-06-2010, 04:34 PM   #33
Newb

Join Date: Oct 2010
Location: North Lake Tahoe, CA
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by dstn2bdoa View Post
I'd be in for some sort of keyless set up. A toggle would work for me, don't need any of that proximity stuff. Just something else to break.
Relating to the OP we could easily have a toggle switch on/pushbutton start option. The standard option would be just the start button keeping the key as the "on"/unlock feature.

As an update: I'm still working on the project, certain components have proved to be *really* hard to track down without buying a million of them. However there may be a physical prototype coming sooner than later.
NeilMG is offline   Reply With Quote
Old 11-06-2010, 04:50 PM   #34
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Where'd you find those switches Neil? My startbutton is hard to push and I need something easier to push.

I actually got an empty connector with pins that plugs right into the loom that goes to the steeringlock/ingnition switch. Wired that up to my starter panel all plug & play, nu splicing needed in the car's wiring.
Oscar is offline   Reply With Quote
Old 11-06-2010, 06:24 PM   #35
Junior Member
iTrader: (3)

Join Date: Jun 2008
Location: NJ
Posts: 429
Total Cats: 0
Default

Quote:
Originally Posted by NeilMG View Post
Relating to the OP we could easily have a toggle switch on/pushbutton start option. The standard option would be just the start button keeping the key as the "on"/unlock feature.

As an update: I'm still working on the project, certain components have proved to be *really* hard to track down without buying a million of them. However there may be a physical prototype coming sooner than later.
have you tried mouser.com (mouser electronics)? i bought 10 little cmos type batteries from them a few years back now they send me a phone-book sized catalog of every part known to man every few months. THey sell in eaches, and they answer the phone when you call!
ctxspy is offline   Reply With Quote
Old 11-08-2010, 03:03 AM   #36
Newb

Join Date: Oct 2010
Location: North Lake Tahoe, CA
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by Oscar View Post
Where'd you find those switches Neil? My startbutton is hard to push and I need something easier to push.

I actually got an empty connector with pins that plugs right into the loom that goes to the steeringlock/ingnition switch.
Having tried a few buttons, I'd recommend the one on the left, very similar action to that of an S2000 button for reference. It's an Eaton / Cutler-Hammer button, specifically E22EB2B. Be aware that you need a NO (normally open) contact block, many come with a NC. There's a few sites, http://www.automationdirect.com or http://www.alliedelec.com/ which should have them (any industrial/automation supplier.)
Out of curiosity, did you buy an empty connector outright or was it from an old harness?

Quote:
Originally Posted by ctxspy View Post
have you tried mouser.com (mouser electronics)?
I've tried all the big companies including them. They all want a 1500 or greater minimum order. (One wanted 6000!) So unless everyone on the forum wants one I'm going to need to find a smaller order. This has been the big hangup.
NeilMG is offline   Reply With Quote
Old 01-02-2011, 09:10 PM   #37
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Any updates?
dstn2bdoa is offline   Reply With Quote
Old 01-02-2011, 10:23 PM   #38
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by NeilMG View Post
Having tried a few buttons, I'd recommend the one on the left, very similar action to that of an S2000 button for reference. It's an Eaton / Cutler-Hammer button, specifically E22EB2B. Be aware that you need a NO (normally open) contact block, many come with a NC. There's a few sites, http://www.automationdirect.com or http://www.alliedelec.com/ which should have them (any industrial/automation supplier.)
Out of curiosity, did you buy an empty connector outright or was it from an old harness?


I've tried all the big companies including them. They all want a 1500 or greater minimum order. (One wanted 6000!) So unless everyone on the forum wants one I'm going to need to find a smaller order. This has been the big hangup.
I got them free with some orders at a local shop. If you want, I can check if they're willing to sell a larger quantity of these connectors (30-50 ish)
Let me know, they should be fairly cheap.
Oscar is offline   Reply With Quote
Old 01-04-2011, 07:57 PM   #39
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Subscribed
Sokool is offline   Reply With Quote
Old 01-10-2011, 04:24 AM   #40
Newb

Join Date: Oct 2010
Location: North Lake Tahoe, CA
Posts: 10
Total Cats: 0
Default

Hey all sorry about dropping off the face of earth for a bit there, climbing back over the edge is a bit harder than I expected.

As for a long-overdue update on the project:
I still fully intend to get some prototypes designed and to make this happen. However! I have been unable to source the necessary connectors. The manufacturer will have them but for whatever reason not until late March/early May.

That given the project has a realistic timeline for first prototypes to land "Spring 2011." I'm still hoping it will come together before then.

Quote:
Originally Posted by Oscar View Post
I got them free with some orders at a local shop. If you want, I can check if they're willing to sell a larger quantity of these connectors (30-50 ish)
Let me know, they should be fairly cheap.
Please do! PM'ed ya.
NeilMG is offline   Reply With Quote
