Reving high! Stuck


Old 11-17-2009, 01:16 PM
  #1
Junior Member
Thread Starter

Join Date: Apr 2009
Location: Saint Louis
Posts: 76
Total Cats: 1
Default Reving high! Stuck

So as I have ac lights wipers and radio on car started reving higher up and down around 2k now jumped up to 3500 and stuck. Tun off turn on stuck at 3500 no matter what I turn on or off
mach5 is offline
Old 11-17-2009, 01:25 PM
  #2
Junior Member
Thread Starter

Join Date: Apr 2009
Location: Saint Louis
Posts: 76
Total Cats: 1
Default

K pulled temp sensor still runs whitout a beat pullied mani pressure ocilates but stays on.
mach5 is offline
Old 11-17-2009, 02:24 PM
  #3
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

You'll need your laptop to diagnose but check your TPS readings. With the car off, make sure your TPS reading is '0' at closed and '100' at full open, cycle the pedal a few times to make sure. Then turn the car on, if the TPS window registers '1' or higher at idle (assuming the car is idling at 3500RPM), there's your problem.

If it's doing this, adjust the Throttle Closed numerical value up in the Hydra settings (until the TPS closed reading is '0') and the car should operate correctly.

From the Hydra manual:

The idea here is to increase the value in the Closed Throttle Cal box one point at a time until you get a value of 0 for the TPS reading in the main window, and then go one more point. The reason for going one more is that the first time you see a 0 it may actually be a decimal (like 0.5) and that will keep you in open loop idle control. Going one point further makes sure it is actually zero, and this is required to go into closed loop idle.
RotorNutFD3S is offline
Old 11-17-2009, 02:48 PM
  #4
Junior Member
Thread Starter

Join Date: Apr 2009
Location: Saint Louis
Posts: 76
Total Cats: 1
Default

So how do I get into these tps reading window Jeremy was telling me about this from flyin miata
mach5 is offline
Old 11-17-2009, 02:55 PM
  #5
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

You need a computer with the Hydra software loaded onto it that you will hook up to the Hydra. If you have your manual, it will walk you through all this.
RotorNutFD3S is offline
Old 11-17-2009, 03:05 PM
  #6
Junior Member
Thread Starter

Join Date: Apr 2009
Location: Saint Louis
Posts: 76
Total Cats: 1
Default

so I see it in the mode screen under the first map screen.
mach5 is offline
Old 11-17-2009, 03:24 PM
  #7
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

If by mode screen you mean the main screen you see after you upload your current map from the ECU, then yes, that is where you see the TPS window (which is at the bottom left).

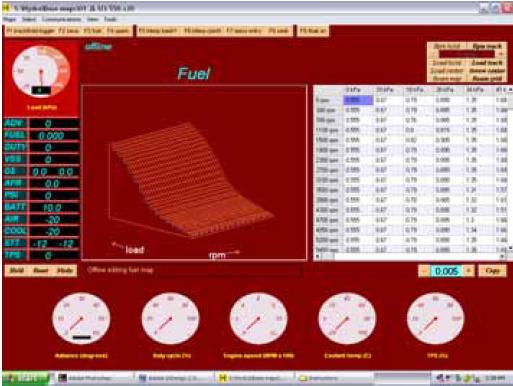

This is an old screenshot of the main screen, but you get the idea:
Attached Thumbnails Reving high! Stuck-hydrascreenshot.jpg
RotorNutFD3S is offline
Old 11-17-2009, 03:33 PM
  #8
Junior Member
Thread Starter

Join Date: Apr 2009
Location: Saint Louis
Posts: 76
Total Cats: 1
Default

reading the manual now from flyin miata
mach5 is offline
Old 11-17-2009, 03:41 PM
  #9
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,518
Total Cats: 30
Default

Good. I think pages 9 and 10 cover adjusting the Throttle Position Sensor and calibration.
RotorNutFD3S is offline
Old 11-18-2009, 02:43 AM
  #10
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,676
Total Cats: 120
Default

spek engleshe plz
Faeflora is offline
Old 11-18-2009, 09:41 AM
  #11
Junior Member
Thread Starter

Join Date: Apr 2009
Location: Saint Louis
Posts: 76
Total Cats: 1
Default

So I was told that this number can go up or down and I can adjust a number 2-3 points over what it is what and where would I do this in the throttle screen?
