Default Honda Question For The Mechanically Inclined

I'm asking here b/c there are some smart fewlz here.

How the heck is oil getting into the bellhousing?

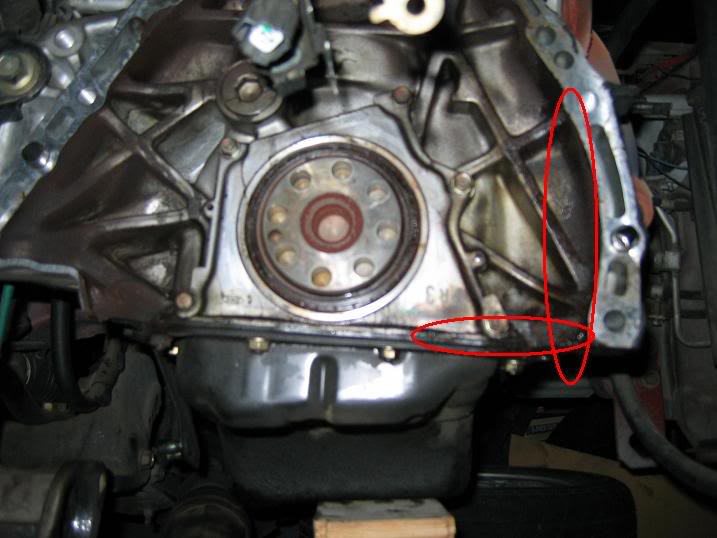

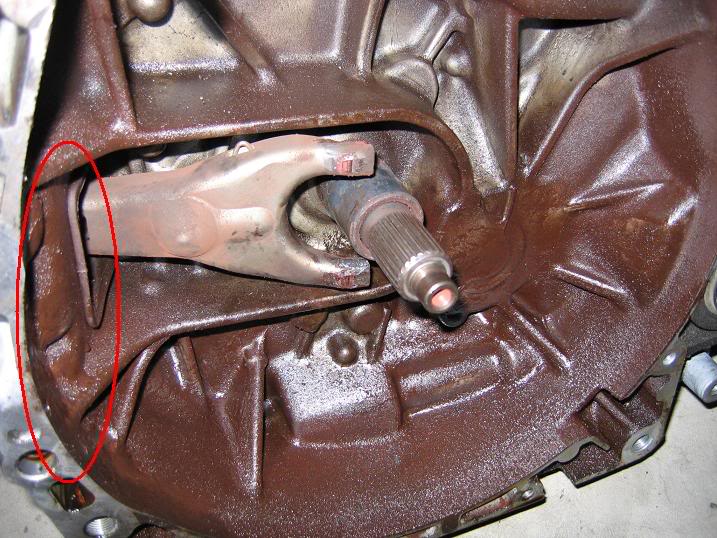

I took off the flywheel today and noticed that the inside of the bellhousing is coated w/ oil. The backside and front of the flywheel are dry. The areas in red had thick oily gunk on it.

Can oil only enter the bellhousing through the rear main seal? The mating surface of the tranny and block look clean, so I don't suspect it leaked from up above by way of leaky cam seals.

Can oil from oil pan leak somehow work its way upwards? I know my oil pan is leaking like a mothertrucker. The flywheel cover had oil both on the outside and inside.

Rear main seal looks fine. Even the dowel on the engine side had oil IN IT.

Name:  begi006.jpg
Views: 1
Size:  95.6 KB
Name:  begi005-1.jpg
Views: 1
Size:  50.8 KB
kenzo42 is offline   Reply With Quote
Old 12-19-2008, 03:06 AM   #2
Junior Member
iTrader: (2)

Join Date: Jun 2007
Location: Western N.C.
Posts: 447
Total Cats: 1
Default

My money is on the rear main seal
Milton Tucker is offline   Reply With Quote
Old 12-19-2008, 04:45 AM   #3
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

input shaft seal? can you tell if its transmission fluid or engine oil for sure?
turbobluemiata is offline   Reply With Quote
Old 12-19-2008, 05:09 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,579
Default

obviously one of the seals. whether the engine or transmission shafts depends on the oil.

sadly the rear seal on mine is going out
18psi is offline   Reply With Quote
Old 12-19-2008, 05:18 AM   #5
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

I can't tell. It looks like sludge. Smell is indistinct.
kenzo42 is offline   Reply With Quote
Old 12-19-2008, 10:03 AM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

"indistinct" sounds like engine oil, though the tranny side does seem dirtier. Unless Honda uses something different (like they do with all their other fluids) gear oil smells pretty much like a dead whale, beached upon a mountain of sulfur from an ocean comprised entirely of unprocessed sewage, burst open from the internal pressure of decomposition over a week of 95F days.

Is it possible that this fluid has seeped into the bellhousing from outside, possibly by riding the clucth fork past the boot?
Joe Perez is online now   Reply With Quote
Old 12-19-2008, 12:51 PM   #7
Junior Member
iTrader: (1)

Join Date: Jun 2007
Location: Plano
Posts: 83
Total Cats: 0
Default

Honda MTF is dino oil with some additives. I've had my share of leaky honda oil pans and the bell housing has never looked like that. The only fluid i could see getting past the clutch fork is clutch fluid. You dont have a leaky slave, correct? I would have to guess it's the input shaft seal then the rear main seal second.
tilt is offline   Reply With Quote
Old 12-19-2008, 12:58 PM   #8
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,294
Total Cats: 26
Default

Could be the throwout bearing gave up and tossed its cookies.... that combined with clutch dust can make a mess. Also confirm that the slave cylinder isn't leaking into that boot and then into trans.

It doesn't look like a rear main seal to me, just because its so clean against motor, that side spray would just be something sneaking onto flywheel and spraying.

ALSO.. check that HG on that side isn't a slow leak culprit... or the distributor isn't leaking it down, then into crack between motor/trans.
Splitime is online now   Reply With Quote
Old 12-19-2008, 04:53 PM   #9
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

This is going to sound completely dumb, but if the INPUT SHAFT SEAL were leaking, where about the input shaft would it leak from?

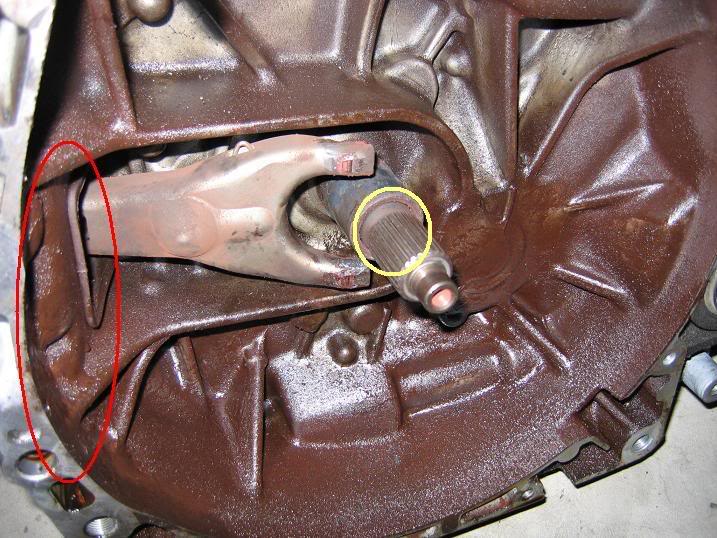

Would it be the part in yellow I circled? I don't see any fluid around there whatsoever. The area behind the yellow all appears to be casted as 1 piece w/ the bellhousing.

Name:  begi006-1.jpg
Views: 1
Size:  95.9 KB
kenzo42 is offline   Reply With Quote
Old 12-19-2008, 07:07 PM   #10
Junior Member
iTrader: (1)

Join Date: Jun 2007
Location: Plano
Posts: 83
Total Cats: 0
Default

kenzo, Yes. The yellow circle is where it would leak if it's the input shaft seal. I'm out of ideas, good luck.
tilt is offline   Reply With Quote
Old 12-20-2008, 04:09 AM   #11
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

The oil could have been flung off when the shaft spins, and then dried up around the seal before you removed the trans
turbobluemiata is offline   Reply With Quote
