Old 12-29-2008, 07:23 PM   #1
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default I maded it myself!

homemade blast cabinet.

Parts, HF bead blasting kit, media, etc about $60





befores:




afters:



SloS13 is offline   Reply With Quote
Old 12-29-2008, 07:46 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

wow, not bad
18psi is offline   Reply With Quote
Old 12-29-2008, 08:39 PM   #3
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

******* awesome!
bryantaylor is offline   Reply With Quote
Old 12-29-2008, 10:23 PM   #4
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

...were you using the turbo to roast marshmellows? Do they all get like that, or was something wrong?
icantthink4155 is offline   Reply With Quote
Old 12-29-2008, 10:36 PM   #5
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

they all get like that...eventually. MWUHAHAHAHAHAHA
SloS13 is offline   Reply With Quote
Old 01-03-2009, 05:49 PM   #6
Junior Member
iTrader: (1)

Join Date: May 2008
Location: NJ
Posts: 146
Total Cats: 0
Default

that's awesome.
ChairFaceChippendale is offline   Reply With Quote
Old 01-05-2009, 02:59 PM   #7
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i copied you!!! great idea

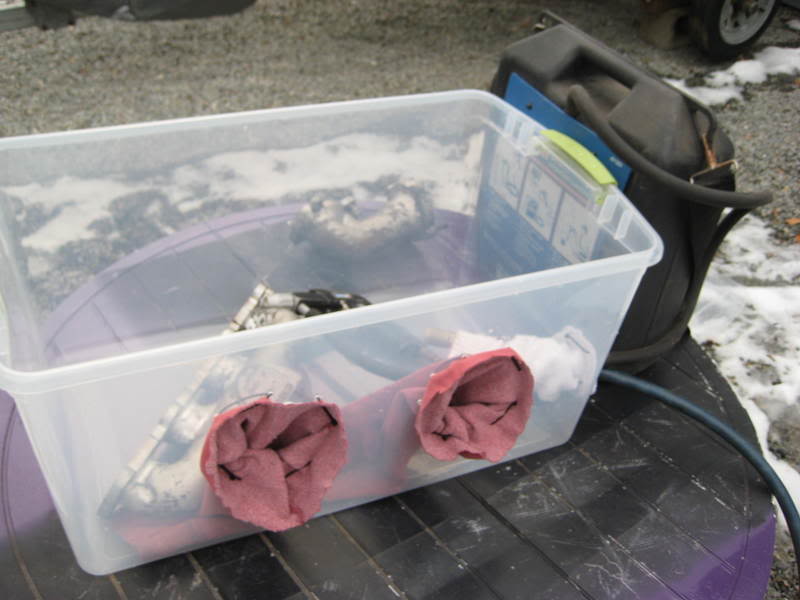

Name:  sandblast001.jpg
Views: 0
Size:  50.0 KB
BEFORE:

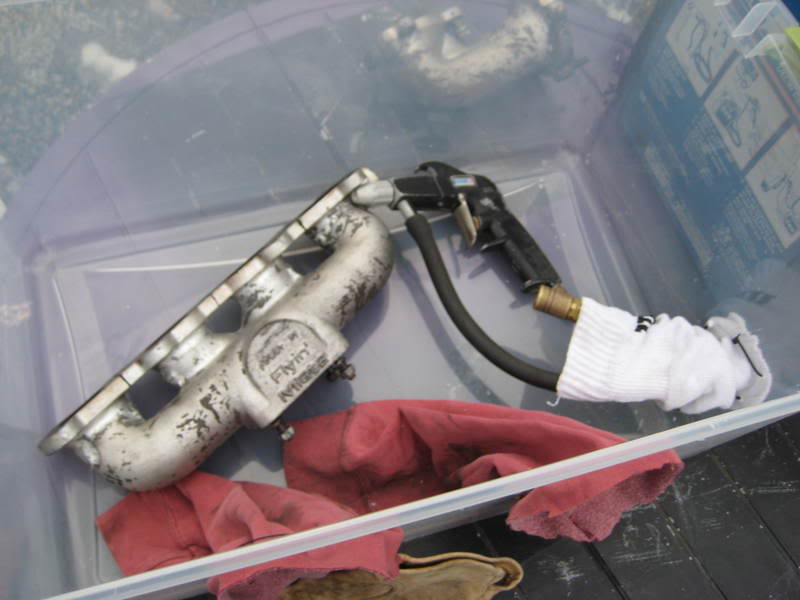

Name:  sandblast002.jpg
Views: 0
Size:  47.8 KB

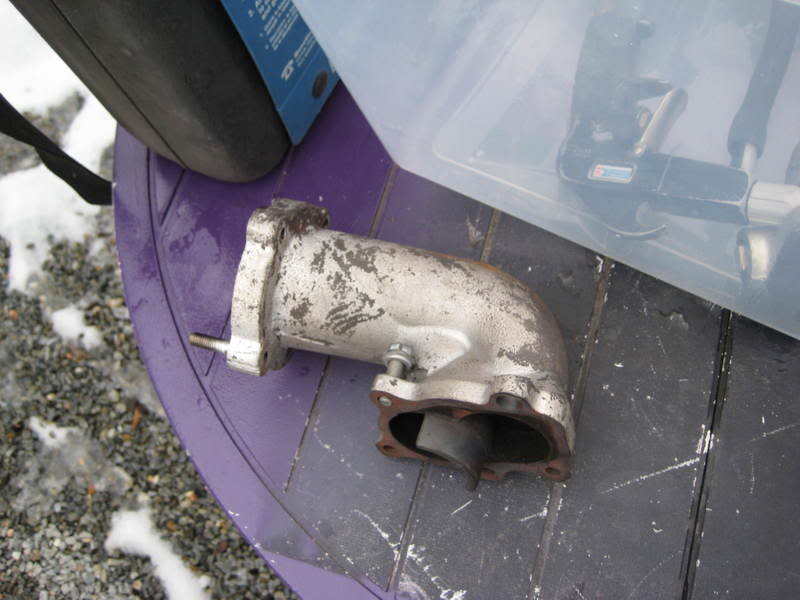

Name:  sandblast003.jpg
Views: 0
Size:  55.6 KB

AFTER:

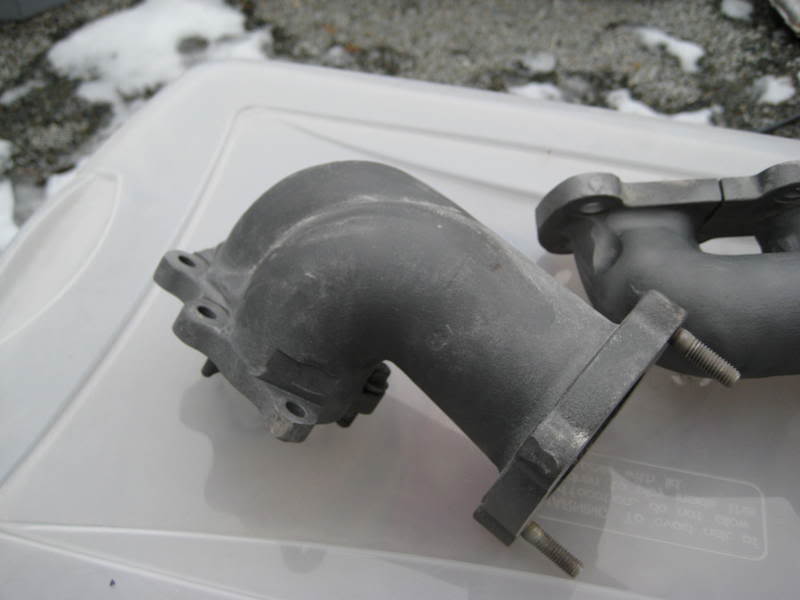

Name:  sandblast004.jpg
Views: 0
Size:  34.1 KB

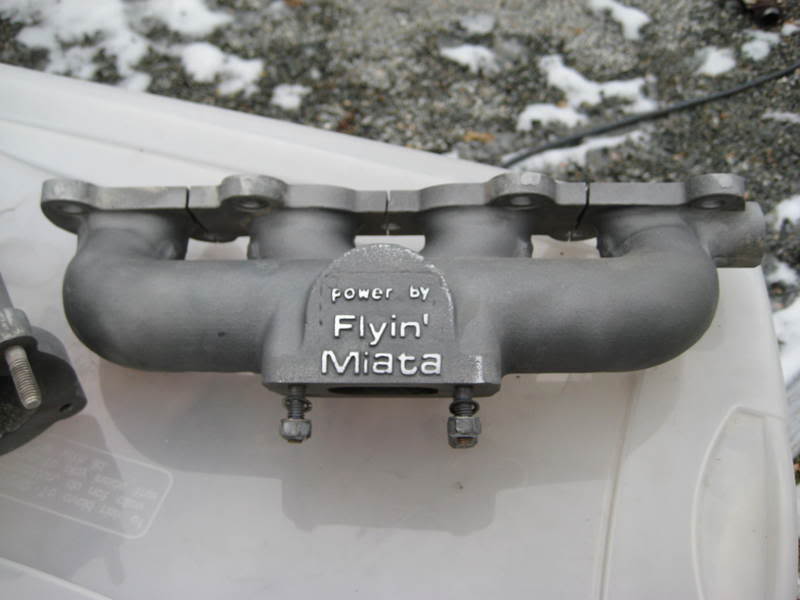

Name:  sandblast005.jpg
Views: 0
Size:  41.1 KB

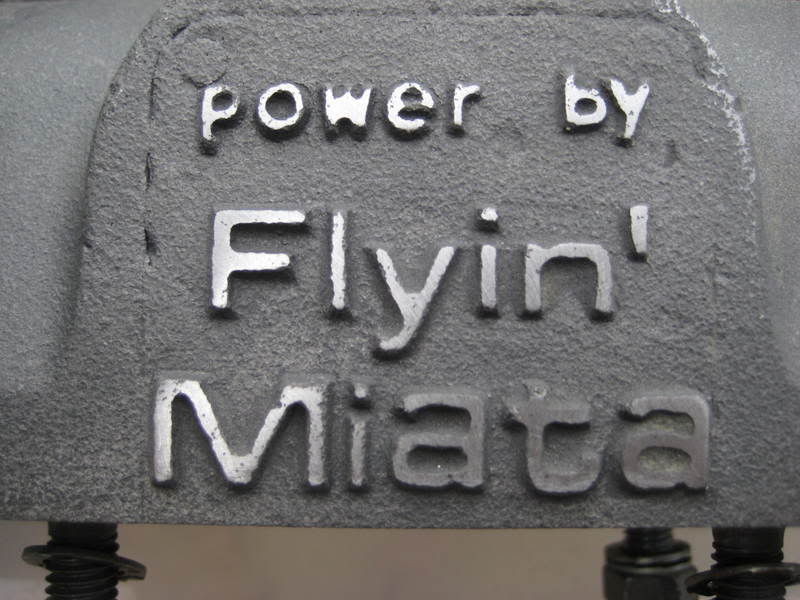

and just for ***** i sanded the flyin miata signature.

Name:  sandblast006.jpg
Views: 0
Size:  70.4 KB

Total cost was about $9.50 from walmart using a giftcard!
thanks for the idea.
240_to_miata is offline   Reply With Quote
Old 01-05-2009, 03:14 PM   #8
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Very creative.

Im guessing the sand can be reused? Thats why you are collecting it?
Saml01 is offline   Reply With Quote
Old 01-05-2009, 03:28 PM   #9
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

and it goes EVERYWHERE if you dont collect it.

if i was doing a lot of this stuff i would have made it a little bigger and put a fan on the side which blew the sand into a second chamber for collecting. About 5 seconds of spraying and you couldnt see anything in the cabinet.

i used fine sand. many people use media blast material or even nut shells ect.
240_to_miata is offline   Reply With Quote
