We are in the process of tacking the chassis, Ill have a camera after thanksgiving break to take some pictures with.
cardriverx is offline   Reply With Quote
Old 11-22-2009, 03:27 AM   #22
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Quote:
Originally Posted by coastertrav View Post
If you don't mind, what is the weight of your pedal assembly? We got an entire assembly from one of our sponsors, but I think I am going to redesign a few components to remove weight. The part was made for a full size racecar, so it is heavily overbuilt.
was jimmy (james) harkness on your build this year?
p51hellfire is offline   Reply With Quote
Old 11-22-2009, 01:55 PM   #23
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Quote:
Originally Posted by p51hellfire View Post
was jimmy (james) harkness on your build this year?
Yeah, he is currently the shop steward. A great guy, and a great worker, but unfortunately he broke his foot about a month ago and hasn't been out to the shop much since.

I see that you are from his hometown. Did you go to school with him or something?
coastertrav is offline   Reply With Quote
Old 11-22-2009, 02:57 PM   #24
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

helllzzz yeah!! jimmy's my bud high school lolol, real good friends actually. I'll pm you to not clutter this thread sorry OP
p51hellfire is offline   Reply With Quote
Old 11-22-2009, 05:50 PM   #25
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by p51hellfire View Post
helllzzz yeah!! jimmy's my bud high school lolol, real good friends actually. I'll pm you to not clutter this thread sorry OP
Its all good man.
cardriverx is offline   Reply With Quote
Old 12-06-2009, 03:05 PM   #26
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Looks like I'm getting my frame for Christmas.

coastertrav is offline   Reply With Quote
Old 12-07-2009, 07:00 AM   #27
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Looks good, I need to get some pictures asap.
cardriverx is offline   Reply With Quote
Old 12-07-2009, 04:53 PM   #28
Junior Member

Join Date: Aug 2008
Location: MD/DE/PA
Posts: 337
Total Cats: 0
Default

What size fuel cell will you run and where will it be located? I ask because I like the X-bracing behind the seat, but it takes up real estate that a lot of teams use for a fuel cell. Will you be putting it under the bottom of the "X?"
the_man is offline   Reply With Quote
Old 12-07-2009, 05:34 PM   #29
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Our seat is heavily sloped back, so the fuel cell lies in the small of the driver's back. Usually our gas tanks hold around 2 to 2.5 gallons I believe. We've always run it like this, and never really ran into any problems. This car is extra tight too, so everything is fairly cramped behind the seat. We also run the battery back behind the seat too, with all the rest of the electronics on the right side closeout panel.
coastertrav is offline   Reply With Quote
Old 12-07-2009, 08:20 PM   #30
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

I've always wanted to join USF's FSAE team but I can never find the time to stop by their shop : [ This stuff always looks like a load of fun.
rccote is offline   Reply With Quote
Old 12-11-2009, 05:57 AM   #31
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

some pictures of the chassis so far, including the before shot of the oil pickup.. all taken with the HTC hero.










cardriverx is offline   Reply With Quote
Old 12-11-2009, 09:09 AM   #32
Junior Member

Join Date: Aug 2008
Location: MD/DE/PA
Posts: 337
Total Cats: 0
Default

Quote:
Originally Posted by coastertrav View Post
Our seat is heavily sloped back, so the fuel cell lies in the small of the driver's back. Usually our gas tanks hold around 2 to 2.5 gallons I believe. We've always run it like this, and never really ran into any problems. This car is extra tight too, so everything is fairly cramped behind the seat. We also run the battery back behind the seat too, with all the rest of the electronics on the right side closeout panel.
That's basically how ours was set up. It was exciting, one time, when the battery cable was shorting TO THE GAS TANK while I was driving. Of course the guys let it go a couple laps "because they were trying to see what the problem was" before they flagged me down, fire extinguishers in hand.
the_man is offline   Reply With Quote
Old 01-20-2010, 05:19 PM   #33
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Hey guys, just so you know I re did our website, chect it out for all future updates!


University of Pittsburgh - Panther Racing
cardriverx is offline   Reply With Quote
Old 01-20-2010, 05:20 PM   #34
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

double post
cardriverx is offline   Reply With Quote
Old 01-21-2010, 10:01 PM   #35
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

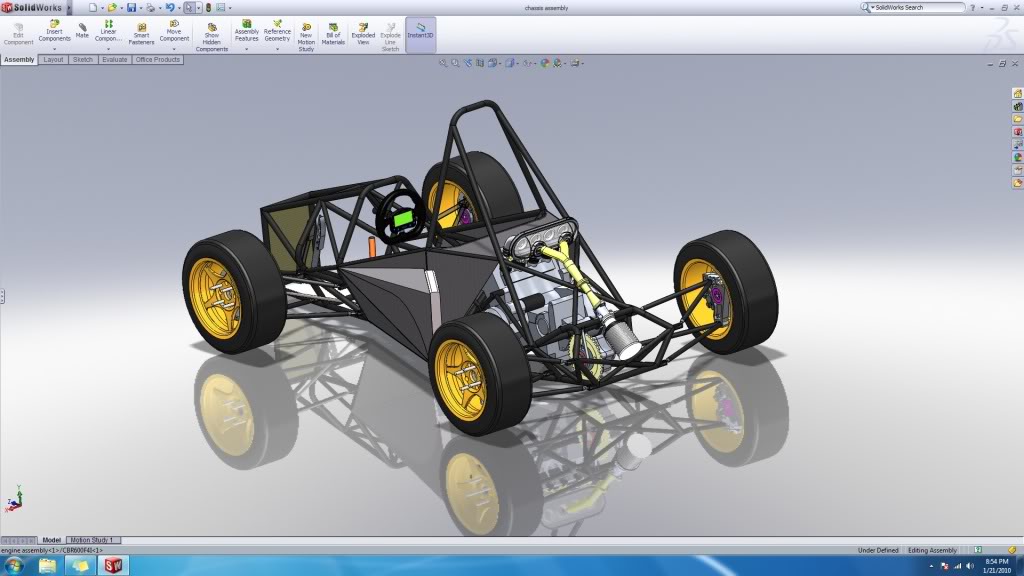

Here is our latest chassis model.

Name:  RearISO.jpg
Views: 8
Size:  78.0 KB
coastertrav is offline   Reply With Quote
Old 01-22-2010, 02:11 AM   #36
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

We got the dyno in, I cant wait to get it set up =D


cardriverx is offline   Reply With Quote
Old 01-22-2010, 11:03 AM   #37
Junior Member

Join Date: Aug 2008
Location: MD/DE/PA
Posts: 337
Total Cats: 0
Default

Bitchin' header.
the_man is offline   Reply With Quote
Old 03-05-2010, 08:48 AM   #38
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Gresham/ Corvallis, OR
Posts: 58
Total Cats: 0
Default

Nice work cool seeing someone else in FSAE, I also desiged the pedal assembly for our car this year as well as working on the rest of the brake system.

I go to Oregon state, our team did pretty well last year in LA, and Austria, should have come in 3rd or so at FSG (damn aluminum rivet failure).

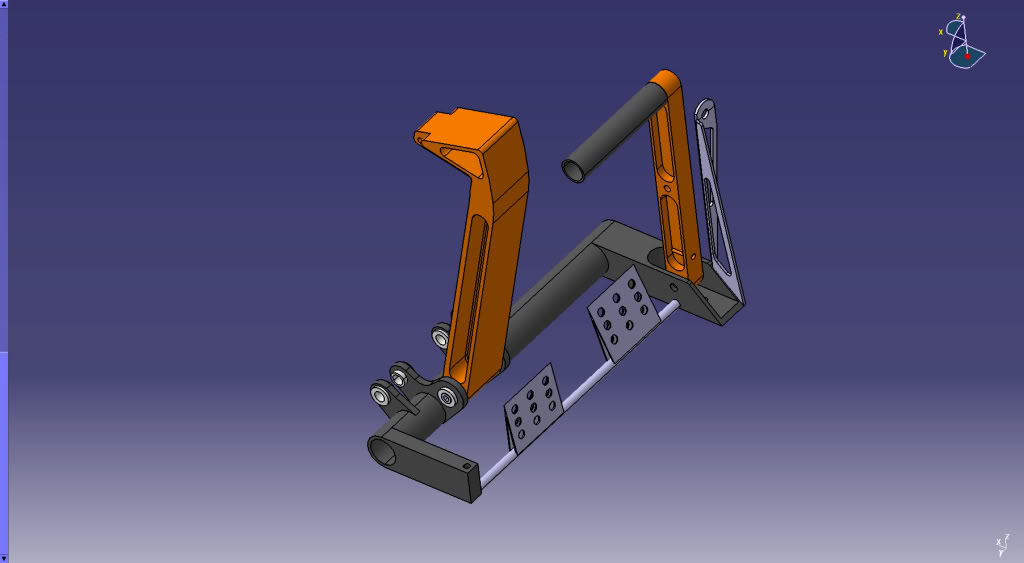

Heres an idea of what our pedal assembly looks like...its not current and has changed a bit but ts what I have on my desktop, but you get the packaging concept.
Name:  pedalassem.jpg
Views: 6
Size:  37.7 KB


We run a pneumatic shifter and have a small clutch lever by the drivers hip for launch.
One of our drivers is a german go-karting champ so we went with a throttle pedal he was more accustomed too.

Last edited by Patiofurnituregt; 03-05-2010 at 08:58 AM.
Patiofurnituregt is offline   Reply With Quote
Old 03-05-2010, 09:14 AM   #39
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Very cool design. How do you like the shifter? Do you use paddles or...?



Quote:
Originally Posted by Patiofurnituregt View Post
Nice work cool seeing someone else in FSAE, I also desiged the pedal assembly for our car this year as well as working on the rest of the brake system.

I go to Oregon state, our team did pretty well last year in LA, and Austria, should have come in 3rd or so at FSG (damn aluminum rivet failure).

Heres an idea of what our pedal assembly looks like...its not current and has changed a bit but ts what I have on my desktop, but you get the packaging concept.



We run a pneumatic shifter and have a small clutch lever by the drivers hip for launch.
One of our drivers is a german go-karting champ so we went with a throttle pedal he was more accustomed too.
cardriverx is offline   Reply With Quote
Old 03-05-2010, 09:56 AM   #40
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Gresham/ Corvallis, OR
Posts: 58
Total Cats: 0
Default

I'll get pics later today when I'm back at school...I need to pass out, I have been trying to get my cost report done..FML..LOL

We use a CF steering wheel that has an up and down shift button on the backside of the steering wheel...It works really well and we have never had any issuses and its crazy fast. Its really nice because you never have to take your hands off the wheel or change your grip like with paddles.This year we are going to try and incorporate a pressure sensor for the shifter though so that the M400 will perhaps light an LED indicating a drop in pressure. This is because shift response does slow down a tiny bit as the tank empties.

Although in 06-08 we still used only a brake and gas pedal, and have a very clever little shiter that ingages the clutch as you shift. Its really simple and has also worked very well.
Patiofurnituregt is offline   Reply With Quote
