Old 09-20-2010, 11:00 PM   #81
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

anyway can anyone lend some insight to my cars tune and why with less air going in the turbo seems more aggressive?
SneakyB757 is offline   Reply With Quote
Old 09-20-2010, 11:13 PM   #82
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Quote:
Originally Posted by SneakyB757 View Post
anyway can anyone lend some insight to my cars tune and why with less air going in the turbo seems more aggressive?
Are you saying that at higher boost level your car feels slower then lower boost level? If so it could be either shitty fuel tune at higher boost or timming is way too low at higher boost.
miataspeed2005 is offline   Reply With Quote
Old 09-20-2010, 11:26 PM   #83
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

no its been running at 20 for a while but ive moved the screw on the mass air flow from closed down to the right to more to the left. the car doesnt stall now but the boost doesnt seem as powerful. ill have to check the fuel map tomorrow and reset it back to chris's tune then set the air flow back. maybe its just me who knows.
SneakyB757 is offline   Reply With Quote
Old 09-20-2010, 11:30 PM   #84
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by SneakyB757 View Post
no its been running at 20 for a while but ive moved the screw on the mass air flow from closed down to the right to more to the left. the car doesnt stall now but the boost doesnt seem as powerful. ill have to check the fuel map tomorrow and reset it back to chris's tune then set the air flow back. maybe its just me who knows.
Get tunerstudio or megatune, set your target table, data log, drive around trying to hit as many cells as possible, ve analyze, load new fuel table, rinse and repeat. After a few hours your fuel will be dialed in pretty well. Once your fuel is set, then you can adjust your spark carefully. When your at the dyno you can dial your spark in a little better when you can see hp changes with your adjustments....Below are a few example spark tables so you compare what you have loaded now...

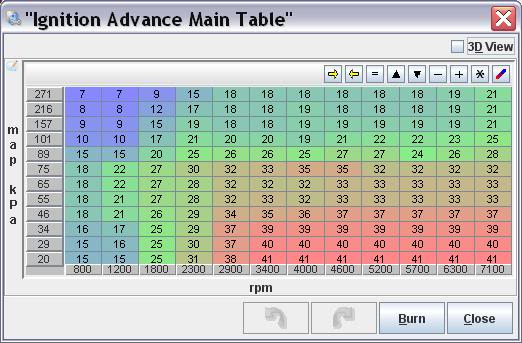

Heres Levnubins older spark table...

Name:  Sparttable.jpg
Views: 0
Size:  44.0 KB

This one will make your ******* pucker....one of hustlers spark tables.

Last edited by Cspence; 09-20-2010 at 11:51 PM.
Cspence is offline   Reply With Quote
Old 09-20-2010, 11:55 PM   #85
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

which table am i setting targets for, the afr or something else and if its the afr what should i put in ideally?
SneakyB757 is offline   Reply With Quote
Old 09-21-2010, 12:06 AM   #86
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by SneakyB757 View Post
which table am i setting targets for, the afr or something else and if its the afr what should i put in ideally?
Yea afr...this was mine back in april. If I recall, I changed it from 11.8 to 11.5 up top just to be on the safe side.....you could probably even shoot for 11.3, which seems to be what most guys (Sav, Hustler, Snowboarder...) on here shoot for from what I have read. They all have significant dyno tuning time and have found 11.3 to be ideal, but take it for what it is, a good starting point....

WTF2.jpg?t=1285038239
Cspence is offline   Reply With Quote
Old 09-21-2010, 07:46 AM   #87
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

You still have an air flow mass censor?!?
miataspeed2005 is offline   Reply With Quote
Old 09-21-2010, 08:16 AM   #88
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

i dont think its a mass air flow so i used the wrong words there. all i know is it has a flat head screw under a rubber plug and its connected to the intake manifold. now granted this makes me sound like a total noob, but ive mostly driven domestics and this is really my first time doing anything other than oil changes on an import.
SneakyB757 is offline   Reply With Quote
Old 09-21-2010, 10:07 AM   #89
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

That's just and idle control
miataspeed2005 is offline   Reply With Quote
Old 09-21-2010, 10:10 AM   #90
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

SneakyB757 is offline   Reply With Quote
Old 09-21-2010, 11:06 AM   #91
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

It's actually connected to the tb.
astroboy is offline   Reply With Quote
Old 09-21-2010, 04:49 PM   #92
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

ok i need help. my megasquirt isnt loading anymore. i restarted my computer and it will do the opening window then nothing, but the icon is still there. any ideas?
SneakyB757 is offline   Reply With Quote
Old 09-21-2010, 05:22 PM   #93
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

re install megatune. I have had it screw up before
240_to_miata is offline   Reply With Quote
Old 09-25-2010, 11:29 AM   #94
Junior Member
iTrader: (2)

Join Date: Nov 2006
Location: N/A
Posts: 360
Total Cats: 0
Default

Quote:
Originally Posted by Cspence View Post
Get tunerstudio or megatune, set your target table, data log, drive around trying to hit as many cells as possible, ve analyze, load new fuel table, rinse and repeat. After a few hours your fuel will be dialed in pretty well. Once your fuel is set, then you can adjust your spark carefully. When your at the dyno you can dial your spark in a little better when you can see hp changes with your adjustments....Below are a few example spark tables so you compare what you have loaded now...

Heres Levnubins older spark table...



This one will make your ******* pucker....one of hustlers spark tables.
Holy ****, thats a lot of advance...Is that on the stock 9.5:1 (or whatever) compression?
mikeflys1 is offline   Reply With Quote
Old 09-26-2010, 11:51 AM   #95
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

yeah i reinstalled MS twice and it still isnt working. FML.
SneakyB757 is offline   Reply With Quote
Old 10-02-2010, 11:23 AM   #96
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

We have 7 people now... 29 days to go!

1- Me
2- Aug
3- Cspence (if he grows *****)
4- Sneakyb757
5- Astroboy
6- MiataMike203
7- WHY!
miataspeed2005 is offline   Reply With Quote
Old 10-02-2010, 12:52 PM   #97
Junior Member
iTrader: (1)

Join Date: May 2010
Location: Apra Harbor, Guam
Posts: 131
Total Cats: 0
Default

i adjusted the throttle a little. it starts better but not like a stock car, which is understandable. a car with this much work done to it isnt going to be perfect.
SneakyB757 is offline   Reply With Quote
Old 10-05-2010, 09:07 PM   #98
Newb
iTrader: (1)

Join Date: Sep 2010
Posts: 27
Total Cats: 0
Default

Count me in. I will bring my friends miata, it may be supercharged or may not for the oct 30
kakarot is offline   Reply With Quote
Old 10-05-2010, 09:14 PM   #99
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

1- Me
2- Aug
3- Cspence (if he grows *****)
4- Sneakyb757
5- Astroboy
6- MiataMike203
7- WHY!
8- kakarot
miataspeed2005 is offline   Reply With Quote
Old 10-06-2010, 05:37 PM   #100
Junior Member

Join Date: Jul 2008
Location: Bergen County NJ
Posts: 103
Total Cats: 0
Default

ill be there. only an hour and a half for me.... this is for AWD cars too? my brother has an STi he may be interested as well
Slacker2223 is offline   Reply With Quote
