Default 2000 Supercharged Miata (yea..not turbo)

So here it is, My asphalt eating street machine Known as "Big Gulp"

She was built in 03-04 by RJW on Miata.net, Or Richard as most know him, as a proof of concept. The First Coldside Supercharged Miata and as far as I know, still the record holder for highest RWHP from a supercharged Miata, at 347 i think. I purchased her in Feb. 13th and drove her from Miami to Tennessee.

I intend to clean up the motor, repaint the black and have everything red powder coated this winter. Currently I have to get a good tune on it so I can run past half throttle. However, she is pretty damn fast at half throttle
Attached Thumbnails

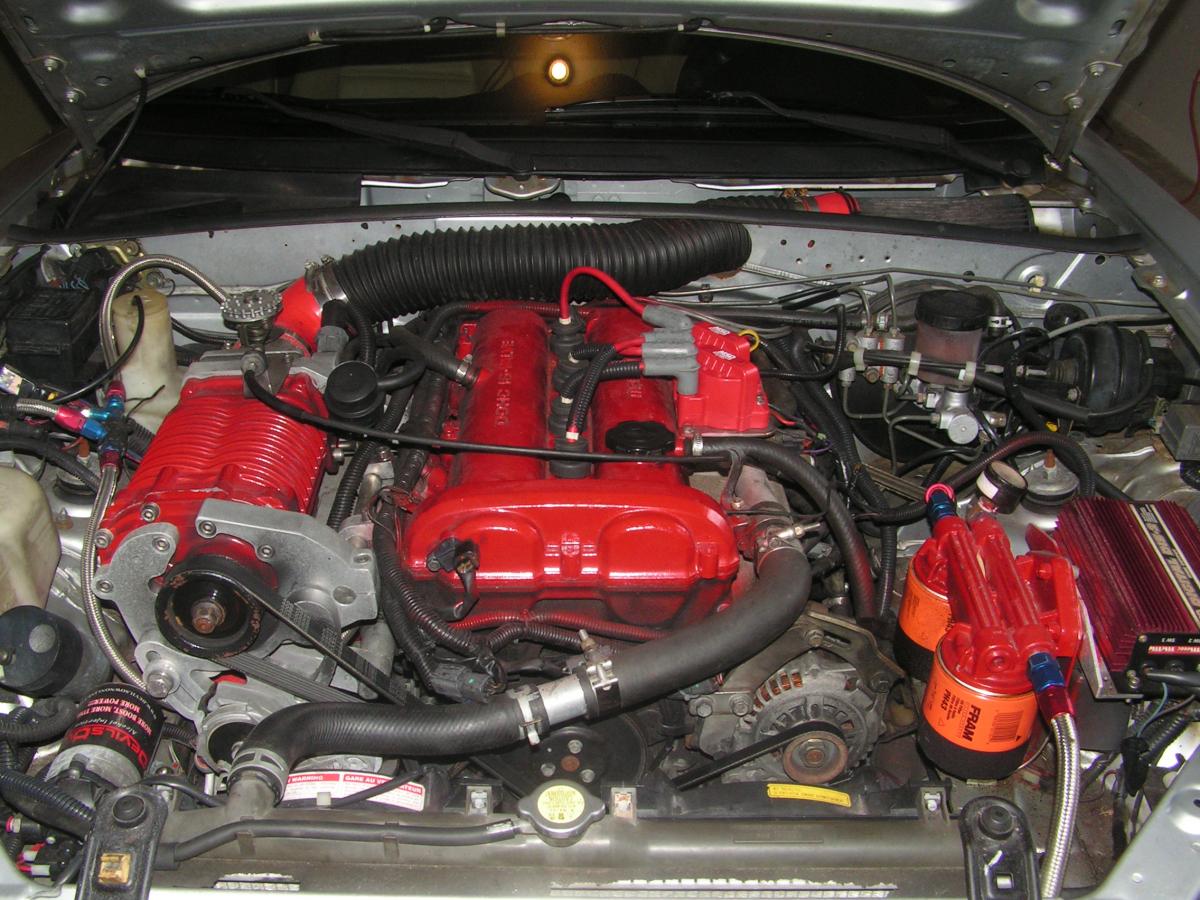

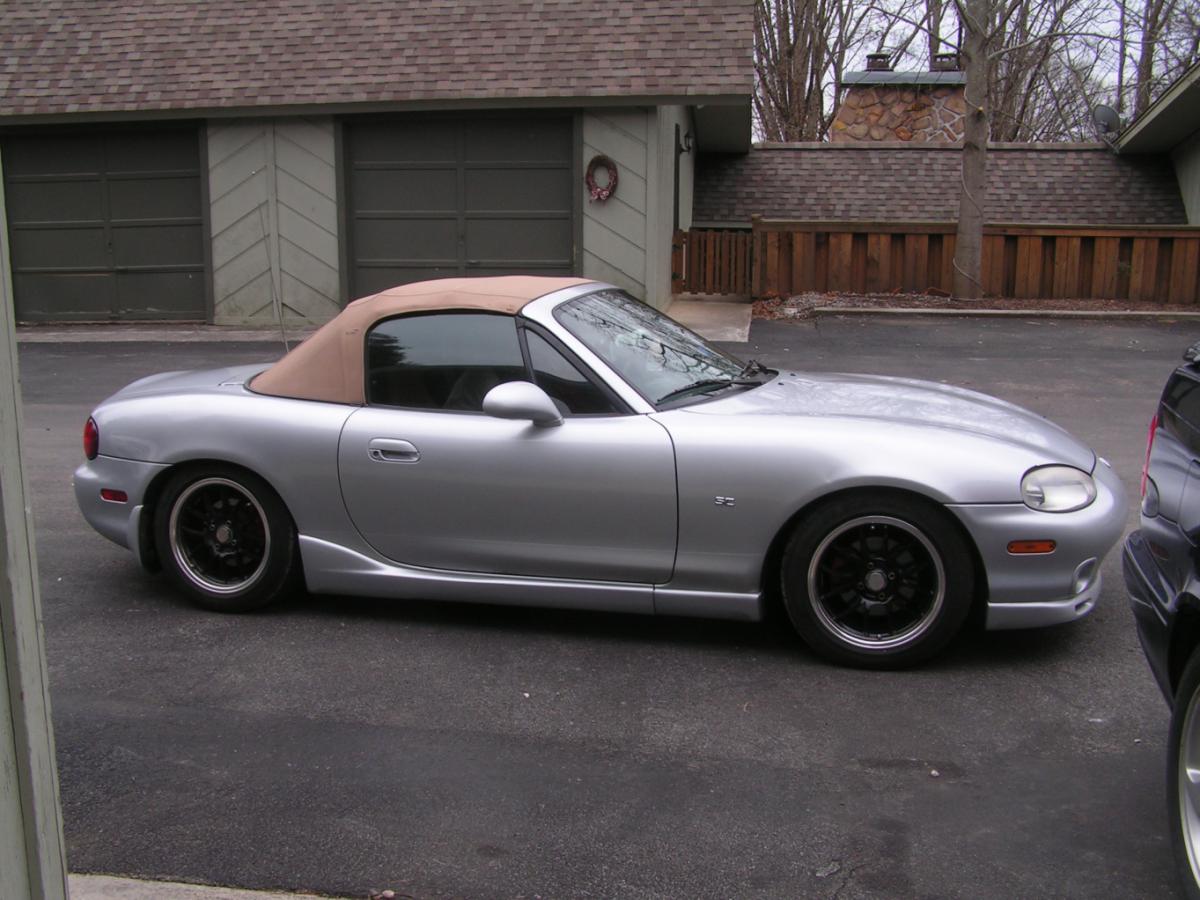

2000 Supercharged Miata (yea..not turbo)-miata.jpg   2000 Supercharged Miata (yea..not turbo)-pict0377.jpg
viriiguy is offline   Reply With Quote
Old 03-03-2010, 07:04 PM   #2
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,896
Total Cats: 109
Default

Something different......Nice.
miata2fast is offline   Reply With Quote
Old 03-03-2010, 07:06 PM   #3
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Whipple? Eaton M90?
Sparetire is offline   Reply With Quote
Old 03-03-2010, 08:09 PM   #4
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Thanks..

It is a Magnuson MP62 Supercharger mounted to a balanced and blueprinted 1.8l
The basic list of mods on the car as I got it are...

Engine Mods
Forged balanced & blueprinted
Wiseco pistons (8.7:1 cr)
Pauter rods
headwork including OS valves
Oil cooler w/dual remote filters
custom fuel rail
braided Aeroquip hoses & fittings
RC 550 injectors
MSD DIS 2 HO ignition/coils
custom billet milled intake manifold
Detuned from 340 rwhip @ 21psi to 270 rwhp @ 13psi without NOS
cold side MP62 supercharger setup
A/W IC, 3 heat exchangers & 3 gallon holding tank
Alky/meth injection
120 hp NOS shot.
Haltech E6X stand alone computer
Devil's own methalyne injection post intercooler 100% meth used, not mix…??
custom coolant re-route
redline is 7800 rpm
crankcase evac setup
Biggulp VRTL
cowl induction intake
75mm Mustang throttle body

Driveline
Centerforce clutch
torsen with 4.3 gearing

Suspension mods
Racing beat front & rear sway bars
Eibach springs
KYB shocks (adjustable)
manual steering rack
Emilio 6 UL wheels, with 205/15 Azenis


Brake mods
Hawk Hi performance brake pads

Interior Mods
custom gauges
custom switches

Exhaust
modified 2001 header
2.5" exhaust
turbo Camaro Muffler


I have a few plans for her in the future myself
viriiguy is offline   Reply With Quote
Old 03-03-2010, 08:21 PM   #5
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Looks good, +1 on cleaning up that hideous engine bay. Also be careful and make sure to get her tuned before you end up with a hole in the block!

Looks rad.
Fireindc is offline   Reply With Quote
Old 03-03-2010, 08:42 PM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Nice car, I bet it sounds sick at WOT, I love that SC whine.
pdexta is offline   Reply With Quote
Old 03-03-2010, 11:23 PM   #7
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

At WOT it sounds like an Indy car!!! And gets the attention of EVERY Single cop for a mile radius!!! 2 tickets in my first week. I wore earplugs almost the whole way back from Florida. But I did make the Drive from Miami to Knoxville in 14 hours

My wife says it sounds like a Tie FIghter as it flies by.
viriiguy is offline   Reply With Quote
Old 03-03-2010, 11:26 PM   #8
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

omg
wtf happened with the ******* red spray paint?!?!
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-03-2010, 11:52 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I'm confused, everyone with a supercharger complains about driveability issues. I had driveability issues with my turbo. Then I pressed the "autotune" button and it's smooth as silk now. What's stopping the supercharger guys from adding a MS and doing this?!?
curly is offline   Reply With Quote
Old 03-04-2010, 12:04 AM   #10
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

As I understand it the huge volume between the TB and the head is the primary cause. Thats pretty hard for a speed density system or an AFM system to deal with I guess. I and not entirely sure, but differences in temp (there would be very large ones with a cold-side SC in the intake post TB) would make for some odd behavior with so much volume and thus mass of air to deal with. AKA, a 1L plenum wont fluctute much in terms of mass-air-contained even as temps change. A 4L will.
Sparetire is offline   Reply With Quote
Old 03-04-2010, 12:05 AM   #11
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Very clean! Great job on keeping it simple.
Turbo_4 is offline   Reply With Quote
Old 03-04-2010, 12:07 AM   #12
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
omg
wtf happened with the ******* red spray paint?!?!

Full_Tilt_Boogie is offline   Reply With Quote
Old 03-04-2010, 12:22 AM   #13
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post

I didn't want to be the *** that brought it up, thank you.
rccote is offline   Reply With Quote
Old 03-04-2010, 12:24 AM   #14
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Thats what Im here for, hehe
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-04-2010, 12:32 AM   #15
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

That car made 340rwhp/310rwtq at one point....pretty damn nice numbers. I was always drooling over that site when I had s/c'ed Miatas.
Doppelgänger is offline   Reply With Quote
Old 03-04-2010, 12:29 PM   #16
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

As for the red spray paint.... yea......

As I said in my original post, this winter the black is getting repainted black, all the red is getting powercoated. The PO painted it with caliper paint while still assembled. No biggie, just not the best look in the world

Doppleganger, the basic plan now is to make 400 RWHP by the end of next summer
viriiguy is offline   Reply With Quote
Old 03-04-2010, 12:58 PM   #17
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Pull that valve cover off, spray the area around it black and then put it back on...problem solved.
Turbo_4 is offline   Reply With Quote
Old 03-04-2010, 01:25 PM   #18
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Different... Nice! That charger reminds me of the Lyscomb screw on the Millenia S I had years back.
GeneSplicer is offline   Reply With Quote
Old 03-04-2010, 01:46 PM   #19
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

so 347whp, with or without NOS ?

Gordon (Trackdayhookey), makes 330whp on his Rotrex Miata. that's on Superflow chassis dyno, if on Church's Dynojet, it is ~360whp.
bellwilliam is offline   Reply With Quote
Old 03-04-2010, 03:52 PM   #20
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

That was 347 WithOUT NOS. With.. closer to 470...

Quote:
Originally Posted by Turbo_4 View Post
Pull that valve cover off, spray the area around it black and then put it back on...problem solved.
We have a guy in our group that does powder coating. I intend to have all the red powder coated. It does not look that good in person.
viriiguy is offline   Reply With Quote
