Default 5 speed carnage

So I took apart my busted 5 speed:

Here are the guts:

Where'd 3rd gear go?

Here it is!

What sucks is the syncros in this transmission are in perfect shape and it used to shift perfectly. The new (to me) one doesn't shift quite as nicely.

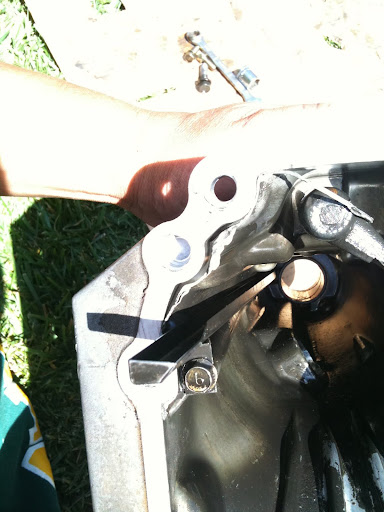

This is kinda cool:

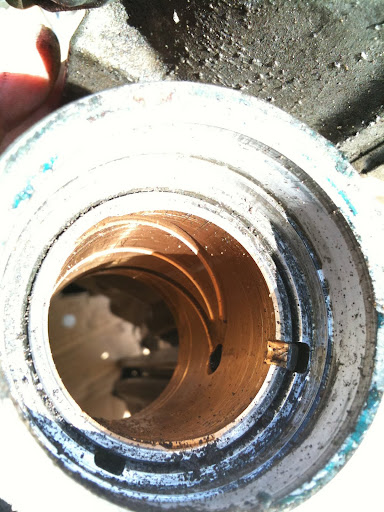

It's kind of a trough that collects oil and feeds the driveshaft bearing here:


Damnit I need a 6 speed.
bryanlow is offline   Reply With Quote
Old 09-17-2009, 04:20 AM   #2
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Wow that is brutal. I'm scared for my trans now :|
FRT_Fun is offline   Reply With Quote
Old 09-17-2009, 04:23 AM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

This is exactly why I shift my car slow like a *****
18psi is offline   Reply With Quote
Old 09-17-2009, 05:10 AM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Did it free-rev in 3rd? My tranny acted the same in 3rd as it did in neutral after I toasted it - I could put it in 3rd, let the clutch out, and get out of the car, and it wouldn't go anywhere.
Savington is offline   Reply With Quote
Old 09-17-2009, 11:42 AM   #5
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Quote:
Originally Posted by bryanlow View Post
Here are the guts:

Where'd 3rd gear go?
I know nothing about transmissions, could someone take this pic and label 1st, 2nd, 4th, 5th, and reverse?

Is it not possible to just swap the 3rd gears out?
icantthink4155 is offline   Reply With Quote
Old 09-17-2009, 11:48 AM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I'm betting my 3rd gear is going to look like that soon.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-17-2009, 01:40 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

It is possible to swap gears, and replace broken ones. But unless it's a qualfie set, it's just going to break again. It looks like Mazda used a pretty steep helix angle to get rid of noise, if I'm not mistaken that's part of the reason the gears aren't terribly strong. That amd material I'm guessing.
curly is offline   Reply With Quote
Old 09-17-2009, 02:07 PM   #8
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by levnubhin View Post
I'm betting my 3rd gear is going to look like that soon.
ur a bitch, after i pass on teh 6spd u say some **** like this...
tyson87 is offline   Reply With Quote
Old 09-17-2009, 02:07 PM   #9
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

So who here's gunna try sourcing a tougher gear set to swap in that doesn't cost 3k like Queef?
cueball1 is offline   Reply With Quote
Old 09-17-2009, 02:50 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by icantthink4155 View Post
I know nothing about transmissions, could someone take this pic and label 1st, 2nd, 4th, 5th, and reverse?
Here:



The main gear is always engaged on both the main shaft and the countershaft. The division between the input and output halves of the main shaft is just after (above) the main gear. All countergears are continuously engaged on the countershaft.

The main gear drives the countershaft, and the four countergears continuously drive their mating gears on the main shaft. To select 1, 2, 3, or 5, the appropriate output gear is locked to the main output shaft, with the other output gears freewheeling.

There is no 4'th gear per se. As 4'th is 1:1, to achieve that ratio, the input shaft and the output shaft are simply locked together, and the countershaft freewheels all of the main gears.

Reverse is similar, but with one additional gear in the lineup- the reverse countergear drives an idler gear, and then the idler gear drives the reverse main output gear.
Joe Perez is offline   Reply With Quote
Old 09-17-2009, 03:49 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I've said before, 3k for a transmission gear set from qualfie is very reasonable. Keep in mind a ring/pinion set is not terribly precise aside from a ground bore. Theyre a meshed set, meaning the more you run it, the more the pinion grinds into the ring. You can see from Joe perez's recent write up about his new gear set that the lathe grooves are still visible. Look up the price for a ring pinion gear set from a reputable gear company like qualfie, and times it by the six (I think reverse is included) gears you get with a transmission set, and add in the money to make the gears somewere near a quality class 12, and you should be somewhere near their price. Kudos to whoever prooves me wrong and makes a cheaper set, but I'd be incredibly surpised if it were possible.
curly is offline   Reply With Quote
Old 09-17-2009, 05:10 PM   #12
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: SF Bay Area
Posts: 291
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Did it free-rev in 3rd? My tranny acted the same in 3rd as it did in neutral after I toasted it - I could put it in 3rd, let the clutch out, and get out of the car, and it wouldn't go anywhere.
Yep, mine did the same.

Quote:
Originally Posted by icantthink4155 View Post
Is it not possible to just swap the 3rd gears out?
Yes it is, and until I get a 6 speed I'm keeping this gearset as a spare. Hopefully I blow up 2nd gear next time.

Quote:
Originally Posted by Joe Perez View Post
Here:



There is no 4'th gear per se. As 4'th is 1:1, to achieve that ratio, the input shaft and the output shaft are simply locked together, and the countershaft freewheels all of the main gears.

Joe, you're badass. I was wondering where 4th gear was.
bryanlow is offline   Reply With Quote
Old 09-17-2009, 07:12 PM   #13
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
. . .There is no 4'th gear per se. As 4'th is 1:1, to achieve that ratio, the input shaft and the output shaft are simply locked together, and the countershaft freewheels all of the main gears.
I'd like to add that this is why when people blow the input shaft, the only gear available to them is 4th. The power is not actually being transmitted through gear teeth because the input and output shafts are directly coupled on the main shaft.
r808 is offline   Reply With Quote
Old 09-17-2009, 07:21 PM   #14
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Additional information:
HowStuffWorks "How Manual Transmissions Work"

There is a manual transmission simulator in that article that lets you switch gears and watch what happens in the transmission.
wayne_curr is offline   Reply With Quote
Old 11-12-2011, 10:43 AM   #15
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Old thread, but does anyone still have Joe's picture of the 5speed with the labeled gears? If so, can you post it or send it to me?
orion4096 is offline   Reply With Quote
Old 11-18-2011, 01:08 AM   #16
Senior Member

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

Would it be impossible to just source some straight cut gears from another transmission that are the same size.
Opti is offline   Reply With Quote
Old 11-18-2011, 01:48 AM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

No OEM gears will either fit, be strong enough, or are straight cut. Or any combination of the three.
curly is offline   Reply With Quote
Old 11-18-2011, 04:46 PM   #18
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Has anyone ever treated some stock gears? Cryo or other wise... Or would the cost vs outcome not be worth it?
Miater is offline   Reply With Quote
Old 11-18-2011, 09:00 PM   #19
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

The cheapest answer to "How do I make my 5spd stronger" is "Buy a used 6spd."
Mobius is offline   Reply With Quote
Old 11-18-2011, 10:48 PM   #20
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

^^^ All well and good....unless you are concerned about the gearing in the 6 speed SUCKING^^^
