Default 95 ubercharged w team dynamics

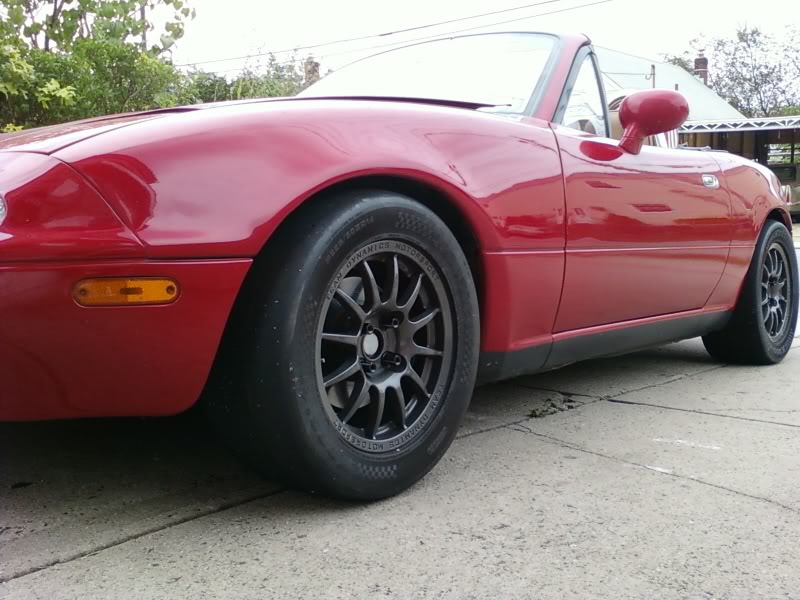

These are 225x14 hoosiers on the 14x7 team dynamics. Can't wait for spring!

Name:  81209i770046.jpg
Views: 144
Size:  85.3 KB

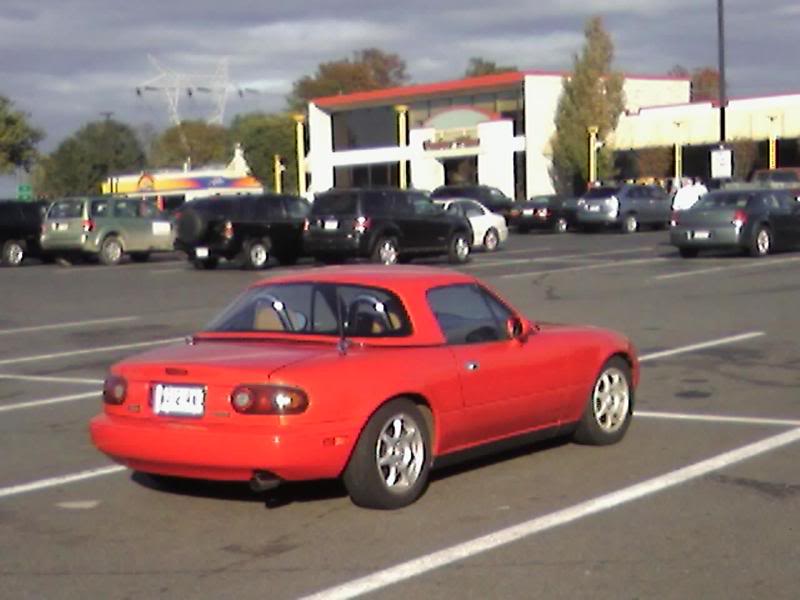

before on the stockers

Name:  1022081615a.jpg
Views: 25
Size:  50.0 KB

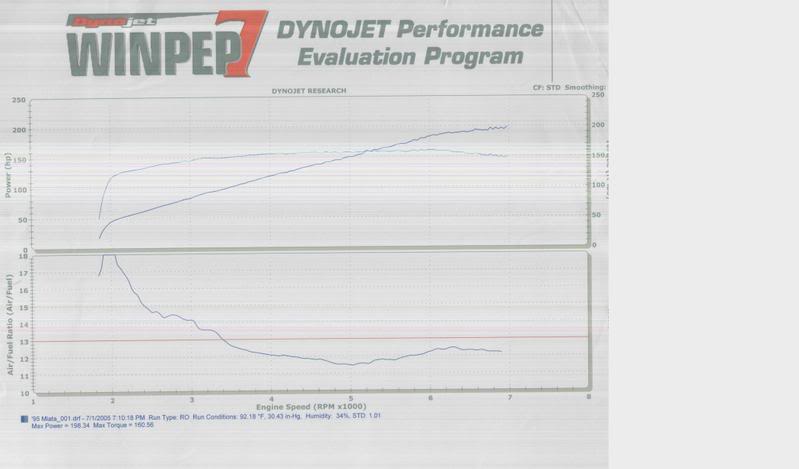

dyno sheet at 9 psi w ubercharger and link. Now running 19 psi with AEM.

Name:  dyno_testing_miata_3.jpg
Views: 28
Size:  28.5 KB
GIGAPUNK is offline   Reply With Quote
Old 02-24-2010, 05:28 PM   #2
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Those Team Dynamics look familiar
Cspence is offline   Reply With Quote
Old 02-24-2010, 05:36 PM   #3
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

They look fantastic with the red....can't wait to get my wheels on.
mgeoffriau is offline   Reply With Quote
Old 02-24-2010, 06:18 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

Thanks guys!

I wanted to get some 225/55/14 toyo RA1s mounted on there for the street, until I found out that the tires can crack and fail if they get below freezing!!!

They'll have to wait for April I guess. Besides, with the car as low as it is there's no point in attemting to fix any handling issues till I get it back up to stock ride height with some ebay coilovers.
GIGAPUNK is offline   Reply With Quote
Old 02-24-2010, 06:19 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

Chris, what's the first event around here come spring?
GIGAPUNK is offline   Reply With Quote
Old 02-24-2010, 10:53 PM   #6
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

The car looks great dude.. and those wheels and rubber

Any engine shots of the uber?
viperormiata is offline   Reply With Quote
Old 02-25-2010, 12:52 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

Name:  SDC10687.jpg
Views: 27
Size:  92.2 KB

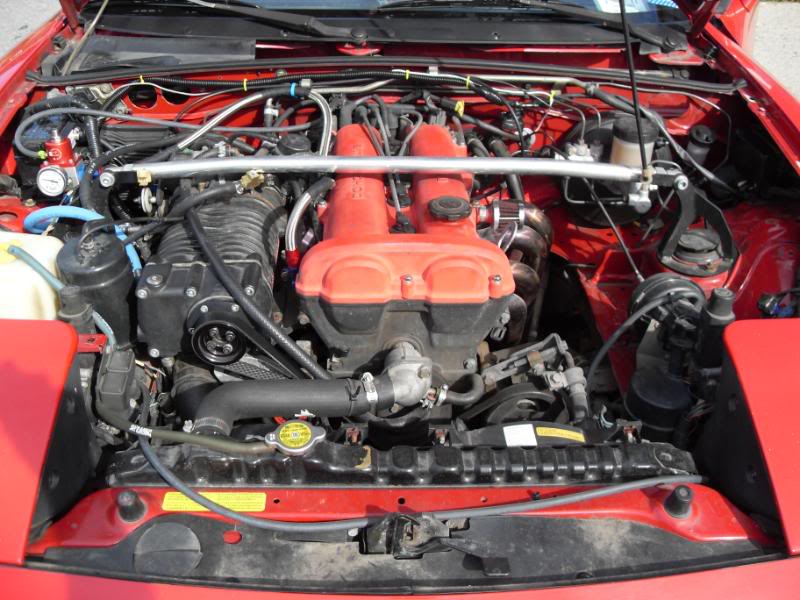

Here you can see the rediculously overpriced SARD adapter on the front of the Vishnu fuel rail I had to get to add an aftermarket fpr. The stock one is only good to about one Bar. You can also just make out the GM Map sensor that I attached at the fuse block behind the FPR. I hate the routing of all the hoses as I bought it, and my FPR job isn't exactly elegent, but It's gunna stay that way until I pop the motor.

Name:  SDC10688.jpg
Views: 22
Size:  93.0 KB

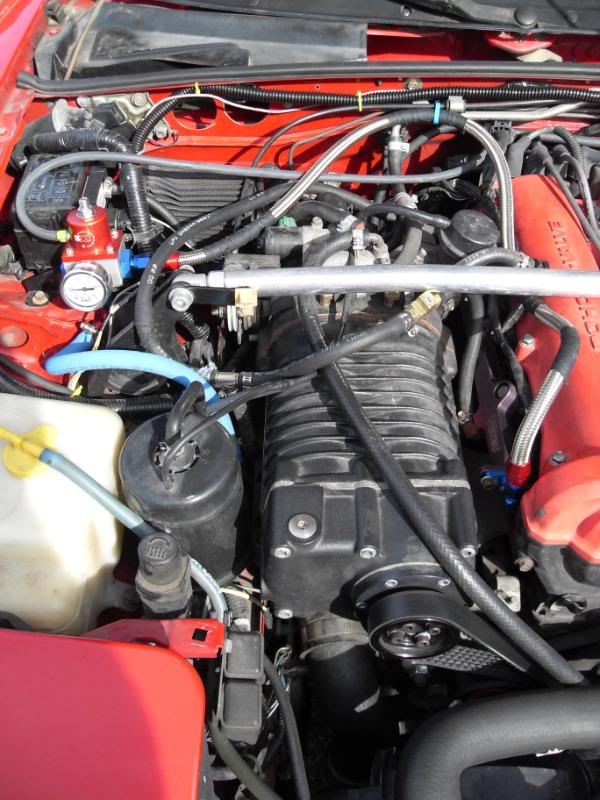

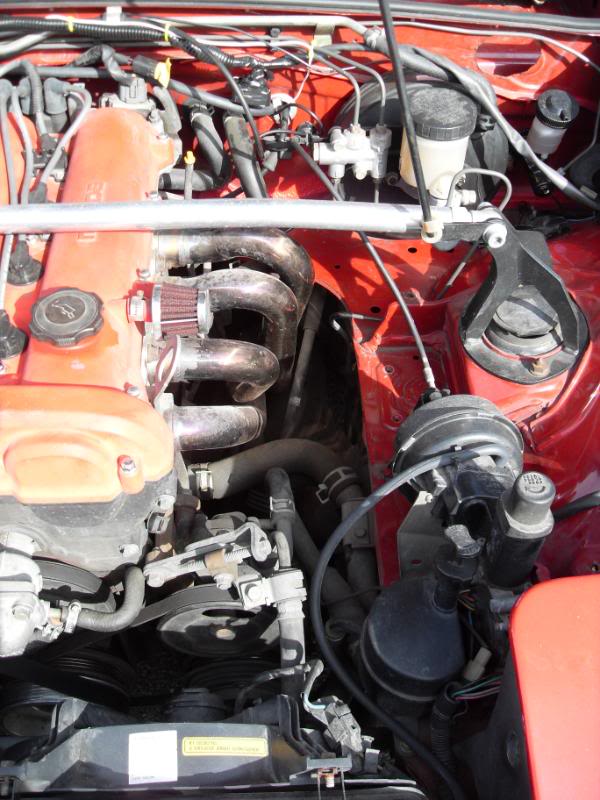

Here's the RB header, and a firewall hole that I want to rivet a piece of alumium over. I'm thinking about hacking off the collector on the RB header, and welding on a nicer merge collecto that has a 3" collector so that I can make a decent straight through exhaust. I have a longitudinal RB muffler that looks really nice, but I suspect has lost most of it's pack, it's too loud.

Name:  SDC10689.jpg
Views: 21
Size:  91.7 KB
GIGAPUNK is offline   Reply With Quote
Old 02-25-2010, 01:10 PM   #8
Junior Member
Thread Starter

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

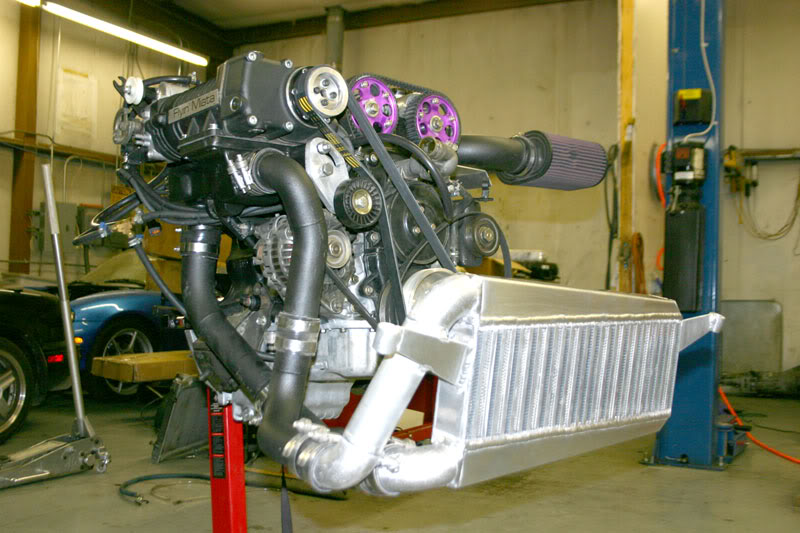

Here's a 1.6L motor with the ubercharger and the same intercooler piping that I have. I'm seeing close to 170 F IATs sometimes, and that's in the winter! Probably not too bad considering that the IATs are probably near 400 F before the intercooler, but still not good enough IMOP. Also the TB is at the supercharger entrance, which means the IAC is as well. The IAC (intake air control motor) just can't work properly with six feet of intake piping between the IAC and valves, and I get a more surging at "idle" (500-2000 rpm)then I'd like.

Name:  IMG_2317.jpg
Views: 22
Size:  84.6 KB

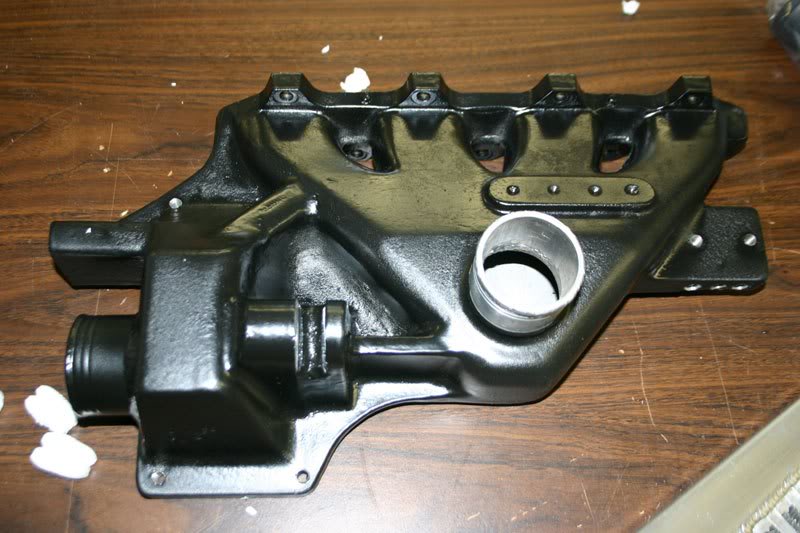

Here's a great pic of the bottom of the uber mani. I dream about welding an air-to-water intercooler directly to the manifold and getting rid of all the intercooler plumbing to help smoothe out the idle and improve throttle response. At these levels the stock TB is a restriction as well. A 90mm LS1 TB would be nice, but would be very custom.

Name:  IMG_1214.jpg
Views: 23
Size:  72.3 KB

Most of this stuff will probably not happen for a long time as the miata is my daily (other than my explorer) and when ever I'm working on it I rush it because I want to get back to my LS7 240sx that has been 3 year long project:

nissan 240sx (S14) with Modded GTO pan (tons of pics) - LS1TECH

and

LS1 powered S14 with motorplates and modded GTO pan - Zilvia.net Forums | Nissan 240SX (Silvia) and Z (Fairlady) Car Forum
GIGAPUNK is offline   Reply With Quote
Old 02-25-2010, 02:08 PM   #9
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

Thanks for the pics man.

I've always had a thing for whipple'd miatas. If I could find a 1.6 Uber for sale, I would ****** it up in a heartbeat.
viperormiata is offline   Reply With Quote
Old 02-25-2010, 02:33 PM   #10
Junior Member
Thread Starter

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

Quote:
Originally Posted by viperormiata View Post
Thanks for the pics man.

I've always had a thing for whipple'd miatas. If I could find a 1.6 Uber for sale, I would ****** it up in a heartbeat.
It really turns the miata into an impressive vehicle. INSTANT boost at ANY rpm. It'll step the rear out at low speeds like it's running a big small block.
