Default Need pic: back of engine w/ head & coils on.

Spent an hour on Google Images, went through all of SoloMiata, surfed eBay, CarDomain, no joy.

I need a clear and level picture of the back of the engine, specifically the back of the head, with the CAS and coilpack in place.

I'd also like another shot, from the side, of the engine & transmission mated together, specifically the area where the head mates to the block, and the block to the transmission.


Anyone?
Joe Perez is online now   Reply With Quote
Old 03-08-2009, 08:01 PM   #2
Junior Member
iTrader: (6)

Join Date: Aug 2007
Location: Houston, TX / Lafayette, LA
Posts: 269
Total Cats: 2
Default

not sure how helpful this is but here are some shots of my spare motor

Picasa Web Albums - colin - Motor
tann3r is offline   Reply With Quote
Old 03-08-2009, 08:03 PM   #3
I'm Miserable!
iTrader: (2)

Join Date: Apr 2008
Location: monroe CT
Posts: 463
Total Cats: 0
Default

this is all i got is from a 99 no cas but hope it helps a little
http://photos-d.ak.fbcdn.net/photos-...60331_6352.jpg
1990miata1.6 is offline   Reply With Quote
Old 03-08-2009, 08:40 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

I can verify that the exhaust-cam mounted CAS on the middle-aged cars (the one by the firewall) fits fine with the 01 temp sensor and heater outlet. I have one on mine for fun and profit.

i should take that off and sell it for cashmoney.
y8s is offline   Reply With Quote
Old 03-08-2009, 08:47 PM   #5
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Wow, I fail to believe with all of the pictures I took during my rebuild, the two you need are the only two I didnt take pictures of. I have one semi square shot of a 97 with no coils as it was coming out...


Name:  NewM6-1.jpg
Views: 1
Size:  237.1 KB
NA6C-Guy is offline   Reply With Quote
Old 03-08-2009, 11:28 PM   #6
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Any particular year that you are looking for. I have several engines sitting in my garage that I can take some pictures of. Just let me know.
JayL is offline   Reply With Quote
Old 03-08-2009, 11:40 PM   #7
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

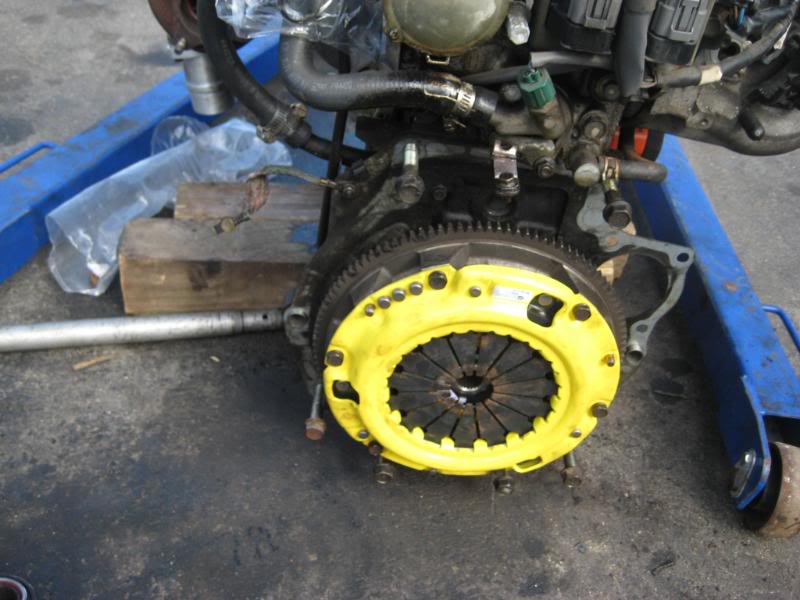

Name:  miataturboproject014.jpg
Views: 1
Size:  68.2 KB

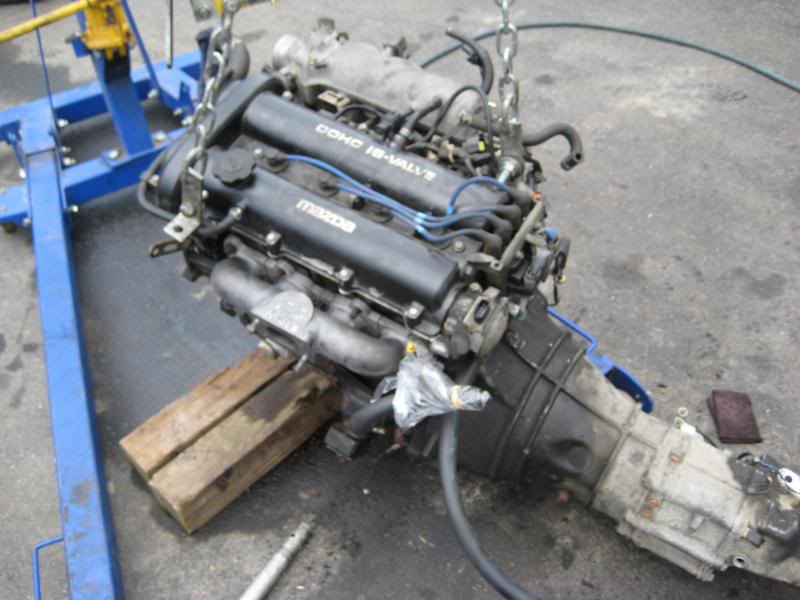

Name:  miataturboproject015.jpg
Views: 1
Size:  64.8 KB

could have helped you more about 5 hours ago if i knew u needed pics. \

its a 96 btw
240_to_miata is offline   Reply With Quote
Old 03-09-2009, 01:41 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

99 head with the bigger FM bracket for swap cars:


hustler is offline   Reply With Quote
