Old 12-23-2008, 05:22 AM   #1
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default Pics of your wideband displays/gauges

Im curious to see what some of you are running, how and where they are mounted. Im very picky with my gauges, since I like to match style and color, which really only leaves Autometer G2 green gauges, but they dont have a matching wideband for it (they do, but it looks like ***). Im guessing I will just have to bite the bullet and go for the LC-1 with XD-16. Ive installed 2 on other cars, and love the system, but was really hoping for something else. Ive actually thought about going as far as changing the rest of my gauges to match whatever wideband I get, or at least backlight color.

BTW, it doesnt just have to be wideband, Id like to also see your other gauges mounting locations and gauge style. I noticed other people asking in another topic about the posters boost gauge and water temp gauge, thought this thread might be helpful to some.
NA6C-Guy is offline   Reply With Quote
Old 12-23-2008, 07:42 AM   #2
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

I went with the Dynotune display for the LC-1 with Green backlight. Car isn't running right now but here's the gauge:

DynoTune Product, 029-WideBand Round Display for innovate Controllers - DynoTune, Nitrous systems, Purge kits, Nitrous Bottle heaters and more!

Frank
fmowry is offline   Reply With Quote
Old 12-23-2008, 11:50 AM   #3
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Miata Turbo FAQ: Cheap Wideband Gauge

Was cheap and looks fine to me.
cardriverx is offline   Reply With Quote
Old 12-23-2008, 11:52 AM   #4
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by NA6C-Guy View Post
Im guessing I will just have to bite the bullet and go for the LC-1 with XD-16.
I hear that, the XD16 gauge is damn beefy and sticks out like a sore thumb compared to my VDO's.

C
chriscar is offline   Reply With Quote
Old 12-23-2008, 09:20 PM   #5
Junior Member

Join Date: Nov 2008
Location: Asheville, NC
Posts: 104
Total Cats: 1
Default

This is how I mounted my boost gauge to my pillar












DropShots.com
MSMjohn is offline   Reply With Quote
Old 12-23-2008, 09:43 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

looks good man..i just dont like that the gauge doesnt have a vacuum readout
18psi is offline   Reply With Quote
Old 12-23-2008, 11:15 PM   #7
Junior Member

Join Date: Nov 2005
Location: Athens
Posts: 197
Total Cats: 0
Default

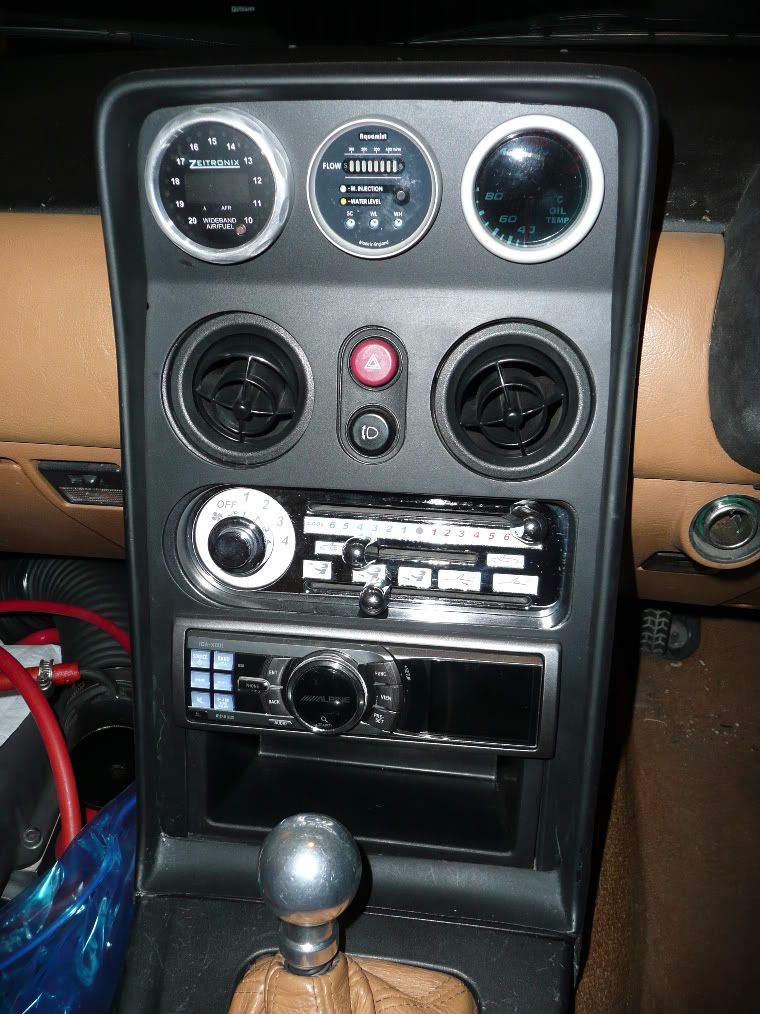

Wideband on the left (Zeitronix ZR-2) also has Boost and EGT as well.

Aquamist DDS3 in the middle and oil temp on the right.

Name:  028.jpg
Views: 4
Size:  178.6 KB



Cheers
Mark
eunos1800 is offline   Reply With Quote
Old 12-23-2008, 11:44 PM   #8
Junior Member

Join Date: Sep 2008
Location: Head Wound City, CT
Posts: 215
Total Cats: 0
Default

Cool gauge panel / surround.

The bezels not matching would drive me insane.
MattEGTR is offline   Reply With Quote
Old 12-24-2008, 12:05 AM   #9
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

That is an expensive center console/gauge panel.
johndoe is offline   Reply With Quote
Old 12-24-2008, 03:34 AM   #10
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I would like to go with a pillar pod again just for simplicity, but I hated the gauges in my Turbo II. They were LED, and blinded me at night. Maybe some standard incandescent through the gauge lighting would be better and less blinding. Anything from about my 10 oclock to my 2 oclock was hard to see because of the super bright LED's. They were Sport Comp II.
NA6C-Guy is offline   Reply With Quote
Old 12-24-2008, 09:28 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have a dual gauge pod but not using it to avoid theft. It would be nice to have oil temp easier to see.
hustler is offline   Reply With Quote
Old 12-24-2008, 01:19 PM   #12
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

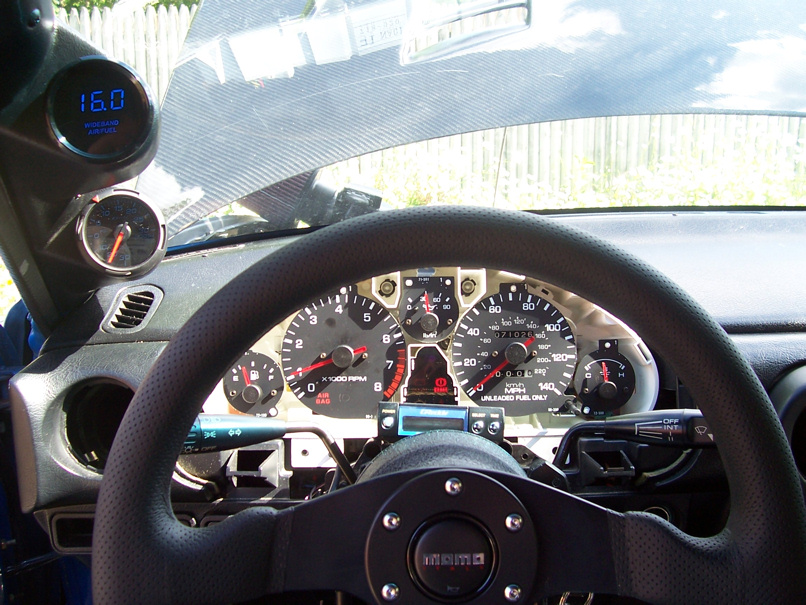

LC1 and DEFI boost gauge in a Moss A-pillar.

Vash-
Attached Thumbnails
Pics of your wideband displays/gauges-005.jpg
Vashthestampede is offline   Reply With Quote
Old 12-26-2008, 03:38 AM   #13
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I think I decided on Autometer Nexus gauges. They are expensive on a stupid level, but I really like the color selection feature, as well as an all red warning mode. Set the parameters to what you specify, and when it exceeds that parameter, the entire gauge lighting goes red. That would be helpful to avoid overboosting or overly lean conditions since I will most likely have the gauges installed under the radio, and out of easy sight. be much easier to see a bright red light that a needle 5 psi over what you want, or a slight lean condition. I figure with the control unit, wideband, boost and egt gauge, I will be about $1200 out of pocket... Im OCD and very ---- about stuff matching. Might slim it down to a 2 gauge setup though, egt isnt a big deal, probably would be better to have something like oil temp first anyway.
NA6C-Guy is offline   Reply With Quote
Old 12-27-2008, 05:45 AM   #14
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Uego in the middle left vent, Hks boost gauge over the steering column, matching Hks dash gauges. I'll get some pics in the near future.
zoomin is offline   Reply With Quote
Old 12-27-2008, 01:55 PM   #15
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

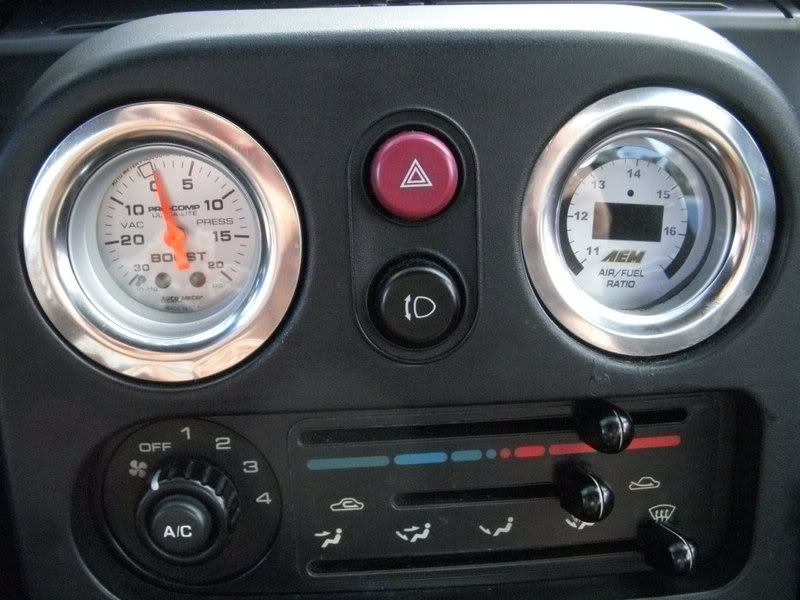

Name:  DSCN1965.jpg
Views: 4
Size:  74.6 KB
kotomile is offline   Reply With Quote
Old 12-28-2008, 04:41 AM   #16
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

I have 5 gauges mounted in the passenger crash pad,on the A-pillar,I got the boost/vacuum and tach.
spike is offline   Reply With Quote
Old 12-28-2008, 05:03 AM   #17
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

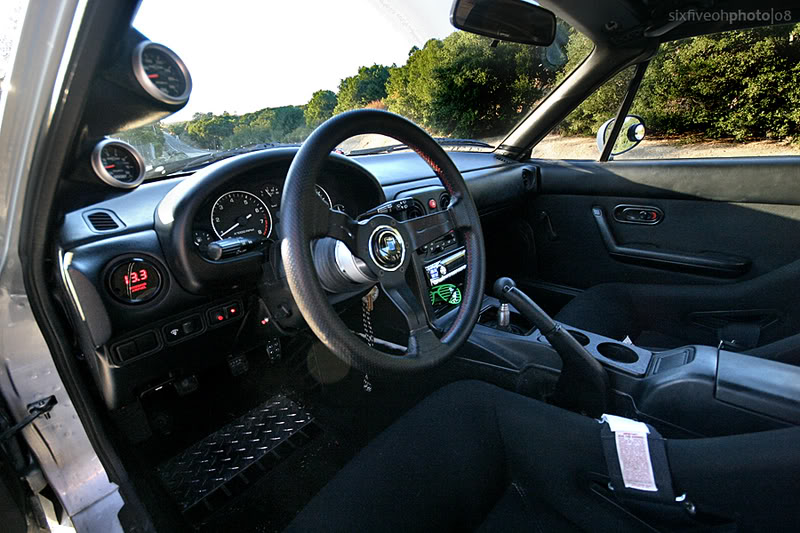

Name:  IMG_8881.jpg
Views: 9
Size:  107.9 KB

Top to bottom:
Autometer sport comp 2- 270* sweep oil temp
Autometer sport comp 2- boost gauge, from 30 inches-20psi
Lc1- in the side vent, i miss my air :(
thesnowboarder is offline   Reply With Quote
Old 12-28-2008, 05:16 AM   #18
Elite Member
Thread Starter
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Your not blinded by the SC2 gauges? Mine were terrible in my RX7. I love that wheel though, I have one on the way, just the 350mm version. Best wheel for the Miata imo.
NA6C-Guy is offline   Reply With Quote
Old 12-28-2008, 07:27 AM   #19
Junior Member
iTrader: (18)

Join Date: Aug 2006
Location: Temple City, Ca
Posts: 305
Total Cats: 0
Default

i use my profec e-01 boost controller as my 02 gauge
Hi Im Simon is offline   Reply With Quote
Old 12-28-2008, 12:13 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

how do you guys secure the gauges in the air ducts?
hustler is offline   Reply With Quote
