Old 11-09-2015, 07:20 PM   #61
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526
Default

Thy symptoms for a failing clutch and failing slave are completely different in my experience. Short oedal engagement and difficulty shifting indicates that the clutch is not properly disengaging from the flywheel. It's an issue with the actuation of the clutch, which in Miatas is typically caused by the clutch slave.

Try pumping the clutch pedal a few times. I bet it feels different after a couple pumps.

Typically they don't leak externally but internally so you can't tell it has failed from a visual inspection.
turbofan is offline   Reply With Quote
Old 11-09-2015, 07:25 PM   #62
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

Thanks for the quick replies.

Pumping the clutch after just starting it didn't seem to help, but driving it for a while made it better. When I first started it, I couldn't even have it stopped in first without it wanting to stall. Coming off the brakes, she would move on her own. I didn't note a change in performance after shifting either. She would shift smoothly and be responsive.

The car also only has 110k on it if that says anything.
G_Wheezy is offline   Reply With Quote
Old 11-09-2015, 07:55 PM   #63
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526
Default

Symptoms are still consistent with my diagnosis.
turbofan is offline   Reply With Quote
Old 11-09-2015, 07:57 PM   #64
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

I'm going to keep my fingers crossed and hope you are right. I'll keep you up to date.


G_Wheezy is offline   Reply With Quote
Old 11-09-2015, 08:40 PM   #65
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,343
Default

Slave pushrod stroke is about 15mm when the hydraulics are working correctly.
Got 15mm, its the clutch.
No gots 15mm, its the hydraulics.
emilio700 is offline   Reply With Quote
Old 11-09-2015, 09:35 PM   #66
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

What exactly do you mean? I'm assuming you mean the travel before the clutch engages. It's hard to tell but it's definitely like an inch if not less.


G_Wheezy is offline   Reply With Quote
Old 11-09-2015, 09:36 PM   #67
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

And I had to press down on it quite hard to get it into gear at first. As in, to the floor and then push a bit harder.
G_Wheezy is offline   Reply With Quote
Old 11-09-2015, 11:54 PM   #68
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

Is it possible that the slave cylinder has enough pressure to push the clutch pedal back to its normal position, but not enough to move the clutch itself? A symptom of a bad slave is the pedal sticking to the floor. Mine doesn't do that, and I can't say for certain if the clutch feels "spongy" compared to how it was. I'm used to the heavy clutch in the e30 so it always felt soft.

I also forgot to mention that when I first bought the miata I did a test of the clutch. I drove it at highway speed in fifth gear, pushed the clutch in and revved it to about 6k then dumped the clutch. The tach immediately dropped, no stuttering or hesitation.

I'm overthinking this whole thing. I'll know the problem by tomorrow I suppose hah.


G_Wheezy is offline   Reply With Quote
Old 11-10-2015, 12:03 AM   #69
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526
Default

Quote:
Originally Posted by G_Wheezy View Post
Is it possible that the slave cylinder has enough pressure to push the clutch pedal back to its normal position, but not enough to move the clutch itself? A symptom of a bad slave is the pedal sticking to the floor. Mine doesn't do that, and I can't say for certain if the clutch feels "spongy" compared to how it was. I'm used to the heavy clutch in the e30 so it always felt soft.

I also forgot to mention that when I first bought the miata I did a test of the clutch. I drove it at highway speed in fifth gear, pushed the clutch in and revved it to about 6k then dumped the clutch. The tach immediately dropped, no stuttering or hesitation.

I'm overthinking this whole thing. I'll know the problem by tomorrow I suppose hah.


I'm feeling a bit of this right now



Definitely overthinking it.
turbofan is offline   Reply With Quote
Old 11-10-2015, 12:23 AM   #70
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Clutch slave is a $40 parts and an hour job. My gf did it in 45 minutes and she had never seen a clutch slave before.
aidandj is offline   Reply With Quote
Old 11-10-2015, 01:14 AM   #71
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

I'm afraid I don't get the eggplant reference haha. I'd fix the slave myself but my tools are packed away since I'm in between moves right now.

Thanks for your help guys. Really do appreciate it.

G_Wheezy is offline   Reply With Quote
Old 11-10-2015, 01:22 AM   #72
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by G_Wheezy View Post
I'm afraid I don't get the eggplant reference haha. I'd fix the slave myself but my tools are packed away since I'm in between moves right now.

Thanks for your help guys. Really do appreciate it.

It takes a 12mm socket and a 10mm flare wrench
aidandj is offline   Reply With Quote
Old 11-10-2015, 11:24 AM   #73
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default



It's the slave! Car seems to be fine now. Thanks for everyone's input!
Attached Thumbnails
Hello All! Introducing myself and my Miata.-80-vhyfxm_e15644363ad536fdc14b94e40c2200a9c35040c3.jpg
G_Wheezy is offline   Reply With Quote
Old 11-10-2015, 12:18 PM   #74
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526
Default

Attached Thumbnails
Hello All! Introducing myself and my Miata.-80-charliebrown_lifeisfullofsurprises2_bf6cff92779894873ba12d56a39ff55493c0fdb7.jpg
turbofan is offline   Reply With Quote
Old 11-10-2015, 03:38 PM   #75
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

Time to go back to more important things. Like go-fast parts.

On a more serious note, I have a couple of leaking issues I have to address. When it storms bad there's a leak somewhere between the hardtop and window that causes the driver seat to become damp. Also realized that moisture gets into the trunk as well. I know one of the symptoms of a clogged drain tube is a wet trunk, but if I have a hard top I don't have anymore exposed drains do I?
G_Wheezy is offline   Reply With Quote
Old 11-23-2015, 07:10 PM   #76
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

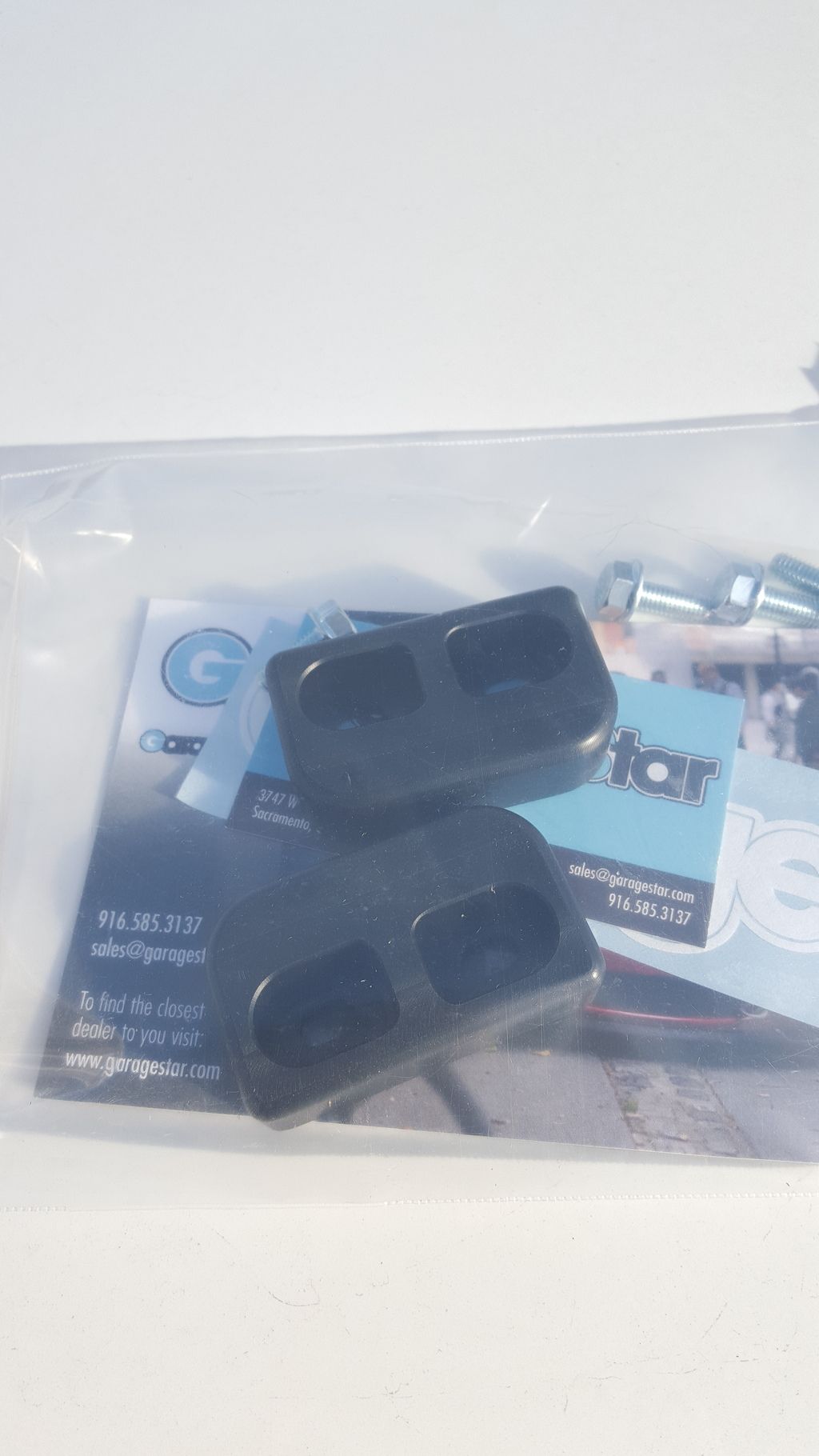

I got a little package in the mail today, my delrin door bushings from Garage Star!


They definitely stiffen the ride a bit. The only gripe I have is that the hardware they gave me was utter ****. One of the bolts sheared off in the driver side top mount and I ended up making the mounting bracket the bolt goes into break off. If you use these, use your stock hardware. Hopefully running one bolt won't cause too many problems. If it does I'll have to find a bolt that will thread into the frame itself.

Also found out that I seem to have an oil leak somewhere. Another problem I have to address.







Attached Thumbnails
Hello All! Introducing myself and my Miata.-80-20151123_152029_zpskeywvp1u_69e904a86ce482037f8abf39bf51a536a178b91d.jpg

Last edited by G_Wheezy; 11-23-2015 at 07:26 PM.
G_Wheezy is offline   Reply With Quote
Old 11-24-2015, 09:45 AM   #77
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

It's hard to tell where exactly the leak is at the moment. There's some sort of plastic guard under the engine that the oil is dripping onto, then it drips on the group. Oil looks fresh, but then again the oil that is on the dipstick is pretty clean as well.

Here's to hoping it's something simple again. As it seems to be at the rear of the engine, how many things can I rule out already?
G_Wheezy is offline   Reply With Quote
Old 11-24-2015, 09:48 AM   #78
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Bet you a dollar its coming from the CAS.
aidandj is offline   Reply With Quote
Old 11-24-2015, 09:50 AM   #79
Junior Member
Thread Starter

Join Date: Oct 2015
Location: Denton, Texas
Posts: 60
Total Cats: 0
Default

Hoping so. Not sure if the CAS was reused or if the PO got the 1.8 sensor from the donor. Can I just hand check the sensor to see if it's leaking from the top?
G_Wheezy is offline   Reply With Quote
Old 11-24-2015, 09:51 AM   #80
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Oh, its a 1.8, I take my dollar back. It would be leaking from the bottom though.
aidandj is offline   Reply With Quote
