Quote:
Originally Posted by mxkite24 View Post
Nothing insulated yet, haven't had time, anything specific you'd focus on??
Protect the brake lines, brake fluid reservoir, heater coolant lines.

Keith
Twodoor is offline   Reply With Quote
Old 04-16-2014, 01:19 PM   #22
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

You are going to need much more space around that downpipe for side to side engine movement or you are going to have big trouble. And a little more front to back space as well.

The brake reservoir will melt.
Any nearby brake lines will have the fluid boil when the turbine housing and downpipe glow red and your brakes will fail. 260 degrees F will be about all it will take on old brake fluid and around 400 on brand new stock type fluid.

Unprotected, the rubber heater hoses will fail and the throttle and speedo cables will melt, which can also be exciting.
sixshooter is online now   Reply With Quote
Old 04-22-2014, 01:54 PM   #23
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

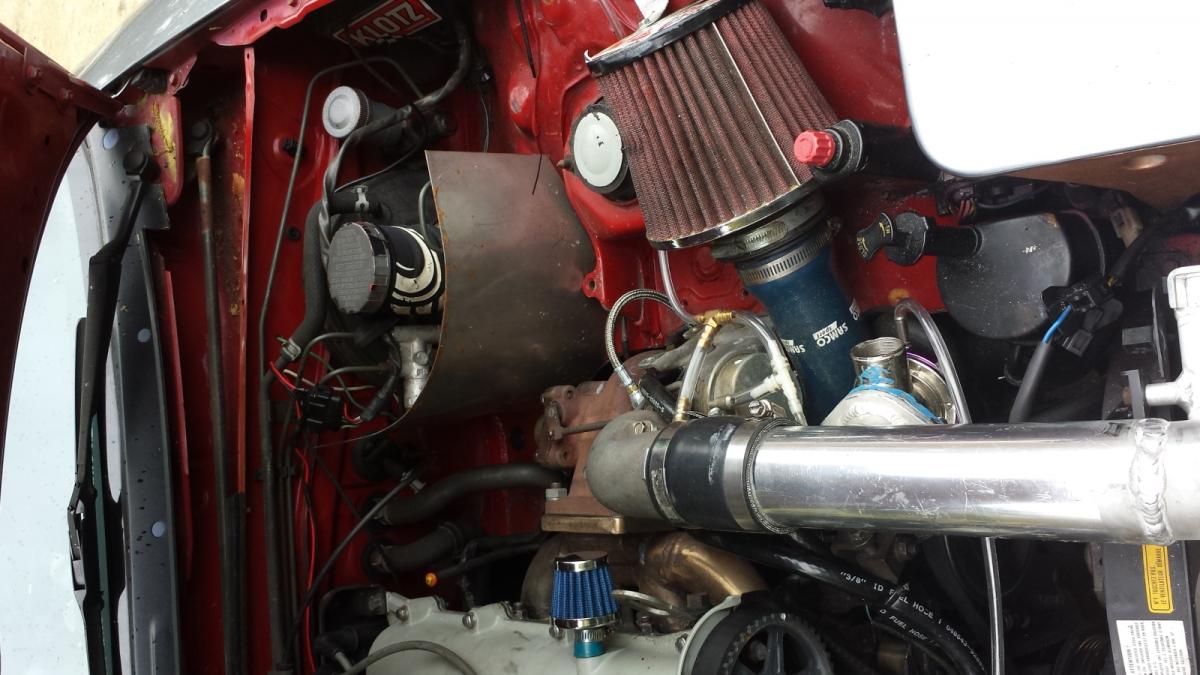

Had some time and made up a heat shield, should work quite well, justneed to clean and paint!
Attached Thumbnails
intro to my first miata turbo build!-2mie7q.jpg

Last edited by mxkite24; 04-22-2014 at 02:37 PM.
mxkite24 is offline   Reply With Quote
Old 04-23-2014, 09:18 AM   #24
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

At a minimum, loosely wrap some aluminum foil or aluminum foil tape around that left front metal brake line going between the turbo and the frame rail to create a heat barrier. It may save your life one day.
sixshooter is online now   Reply With Quote
Old 04-23-2014, 02:03 PM   #25
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by mxkite24 View Post
Had some time and made up a heat shield, should work quite well, justneed to clean and paint!
Looks OK for the brake system components, but your heater lines are going to get baked.

Keith
Twodoor is offline   Reply With Quote
Old 04-23-2014, 02:36 PM   #26
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

Quote:
Originally Posted by sixshooter
...loosely wrap some aluminum foil or aluminum foil tape around that left front metal brake line going between the turbo and the frame rail...


Quote:
Originally Posted by Twodoor View Post
...your heater lines are going to get baked.

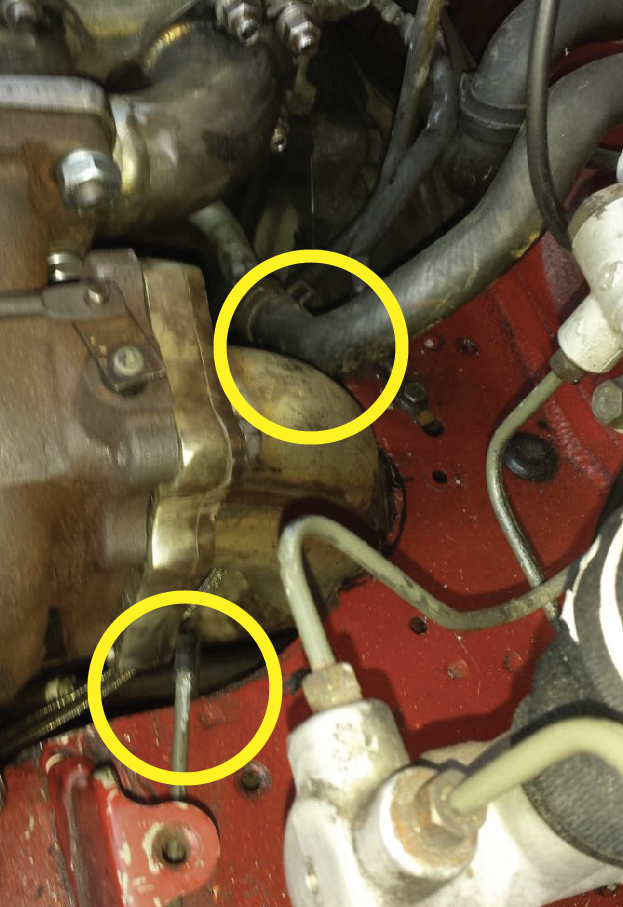

circled areas of concern

Attached Thumbnails
intro to my first miata turbo build!-hothothothot.png
m2cupcar is offline   Reply With Quote
Old 04-23-2014, 06:37 PM   #27
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

Coolant will burn when the heater hose ruptures and it spills on the red hot exhaust. Yes, glycol is flammable.
sixshooter is online now   Reply With Quote
Old 05-26-2014, 10:50 AM   #28
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

Update:
Figured out misfire!!!!!
Had a clogged injector, so tracked down another 460,
Runs great now.
Valvecover just got back from powdercoat.
Its idling great, but a little lean.
Full 2.5 inch exhaust is complete, with muffler, sounds really good!
So now im just waiting for my funds to let me get it tuned.
Or until I get ballsy enough to attempt autotune.
How risky is it??
Attached Thumbnails

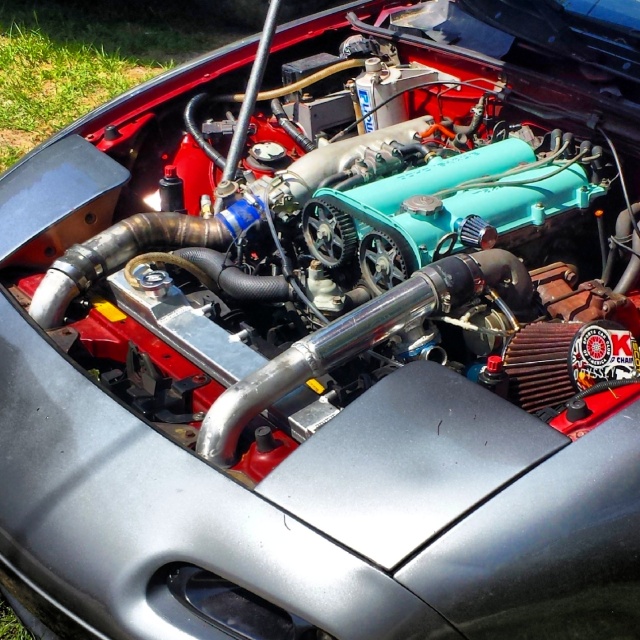

intro to my first miata turbo build!-nlptsp.jpg
mxkite24 is offline   Reply With Quote
Old 05-26-2014, 10:55 AM   #29
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Load the base map from here:

MegaSquirtPNP by DIYAutoTune.com

Enter in your req_fuel for your injectors, and don't touch the spark map. It's very conservative, but it'll be safe for auto tuning. Have TS generate a target table, and go autotune.

Once that's finished, schedule some dyno time to maximize power by tuning the spark table.
curly is offline   Reply With Quote
Old 05-26-2014, 12:08 PM   #30
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

How do you generate a target table??
I've looked around and dont see it, tried searching...
mxkite24 is offline   Reply With Quote
Old 05-26-2014, 12:42 PM   #31
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

If you want to ease into autotuning, you can use the VE Analyze function in MegaLog Viewer. Basically open up the run in MegaLog Viewer while sitting in the comfort of your desk and watch VEA do its thing. Look at the results, save the new tune, burn it into the MS. Repeat.

Autotuning is actually the above without the added steps of recording a log file and doing the stuff on the computer. It's VE Analyze Live (VEAL).

Important part is making sure your WBO2 is accurate and your spark map is conservative. Definitely DON'T go to a dyno for fuel tuning. Won't be nearly as good.

Generating a target table is a dialog in your VE Table in TunerStudio. So, Basic Settings==>VE Table 1 (or whichever you're working on)==>Tools==>VE Specific==>Generate Table. There may be differences based upon which version of TunerStudio you have and which MS you're using . . . but it will be there somewhere, just look.
hornetball is offline   Reply With Quote
Old 05-26-2014, 12:45 PM   #32
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

I figured it out!!
Made a few laps around the neighborhood before a belt wore a whole in turbo coolant line, then I got a nice old man to tow me back to the house.
mxkite24 is offline   Reply With Quote
Old 05-26-2014, 12:47 PM   #33
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Ha, nice first drive.

If you didn't figure out generating a target table, open your target table, click file, then click "generate table".

I haven't tried this method, but I think it's a new feature, so it should work for your purposes.
curly is offline   Reply With Quote
Old 05-30-2014, 01:10 AM   #34
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

Drove around town some!
Tons of fun even with my crappy tune on it.
Afr is much richer then I am right now...
Like hovering around 10.
Anyways I'm tired of fouling out plugs, so it wont be driven a whole lot until legotimate tune.
I'm trying to decide on a hood vent setup to run, but I'm not sire yet!

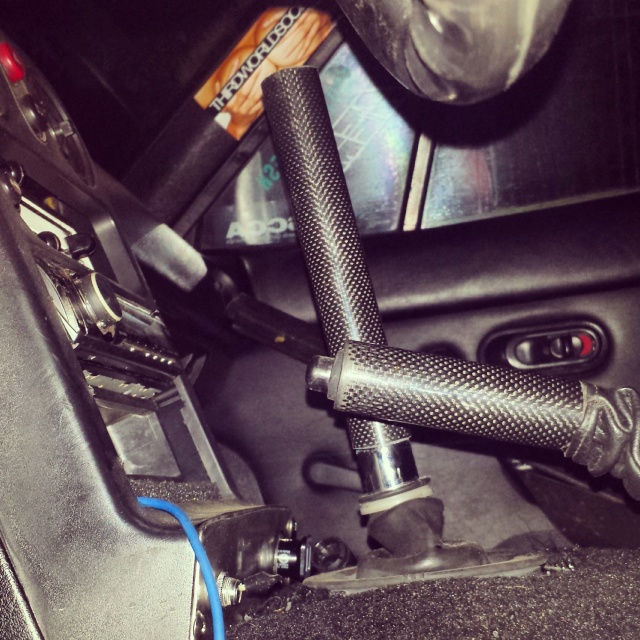

Anyways, made up a pretty cool shifter and ebrake today!
Attached Thumbnails
intro to my first miata turbo build!-15wxg0w.jpg
mxkite24 is offline   Reply With Quote
Old 06-23-2014, 04:56 PM   #35
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

alright, getting much much closer!
Had some help, and got the fuel tables pretty close. drives really well, except for sputtering around 4000 rpms.

Oh, and have heat shields all figured out!
will post pictures later
mxkite24 is offline   Reply With Quote
Old 06-23-2014, 06:35 PM   #36
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Sputtering around 4000 rpms could be your ignition, not anything to do with the tune.

What's your dwell and gap set at, and when's the last time you replaced your wires and plugs?
curly is offline   Reply With Quote
Old 07-02-2014, 02:17 AM   #37
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

replaced plugs and wires, plugs set at .04.
still doing it.
new alternator, full battery charge ( i work at a parts store )
i need to just make a cop harness. I already have the cops, just need harness!
mxkite24 is offline   Reply With Quote
Old 07-02-2014, 01:22 PM   #38
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

Quote:
Originally Posted by mxkite24 View Post
replaced plugs and wires, plugs set at .04.
still doing it.
new alternator, full battery charge ( i work at a parts store )
i need to just make a cop harness. I already have the cops, just need harness!
Plugs should be set to .028.
sixshooter is online now   Reply With Quote
Old 08-07-2014, 11:23 AM   #39
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 76
Total Cats: -1
Default

Update time!
Installed cops, fixed the before mentioned problem, tuned more with some help.
Then 2 autocrosses! Car drives great, is an absolute blast to drive, and putting down impressive times!
Thennnnnn the turbo blew...
Thats where I'm at now, already checked compression on all cylinders and they were all very close to 180, so good to go there, these turbos are a little bit famous for blowing so I'm not too surprised. but now I just have to figure out what I want to put in & how to modify everything to make that work... any dead giveaways it is a blown turbo and not valve seals??
mxkite24 is offline   Reply With Quote
Old 08-07-2014, 02:30 PM   #40
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

Oil in the outlet of the turbine but not in the inlet.
sixshooter is online now   Reply With Quote
