Default 36-1 trigger question

We've changed to a 36-1 crank and single tooth cam wheel on our 01 endurance car with fancy '99 motor. Punched out the double nubs on the cam gear on the intake side. Changed settings in tunerstudio accordingly but all I get is cranky cranky no start.

What did I overlook and need to change for sequential goodiness?

Rev built MS3, 01 chassis/wiring/sensors, built '99 motor, 36-1 protege crank wheel, single tooth cam wheel on intake side, VVT coils, oem injectors.

Attached Thumbnails

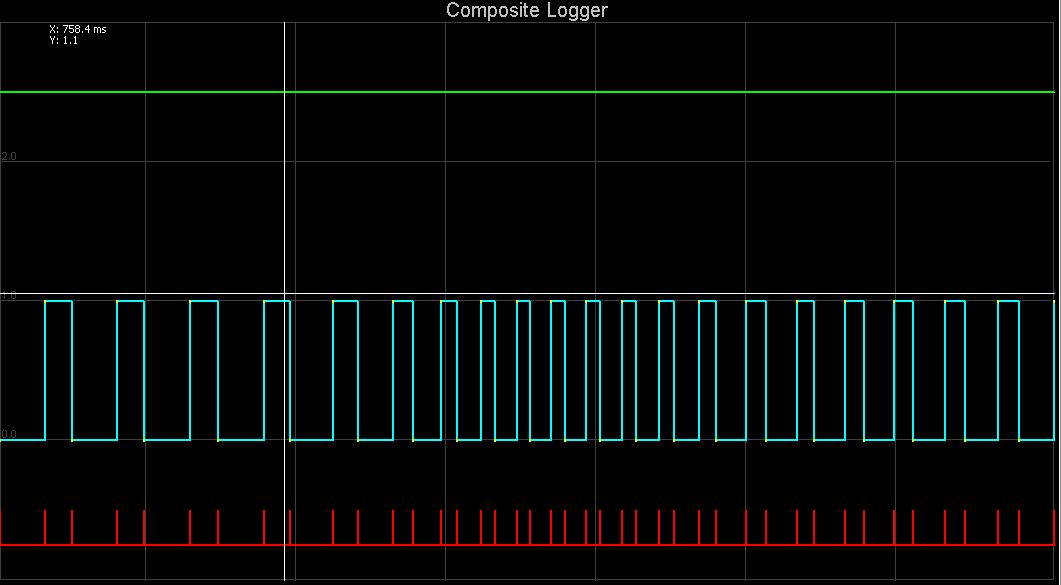

36-1 trigger question-comp-logger_1.jpg
Attached Files
File Type: csv 2014-07-22_13.05.44.csv (42.1 KB, 48 views)
File Type: msq NB_endurance_22_07_14.msq (176.2 KB, 131 views)
Oscar is offline   Reply With Quote
Old 07-24-2014, 03:21 AM   #2
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I'm a tard. No cam signal, let me figure that out first
Oscar is offline   Reply With Quote
Old 07-24-2014, 07:09 AM   #3
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Never mind....reading comprehension fails me sometimes.
TNTUBA is offline   Reply With Quote
Old 07-24-2014, 10:44 AM   #4
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Changed tooth 1 angle and cam input, all is well now
Oscar is offline   Reply With Quote
Old 07-24-2014, 03:41 PM   #5
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Just for future reference there is a modified 99-00 mode in there now that let's you use the 36-1 and the stock cam (2+1) trigger pattern!
bcrx7 is offline   Reply With Quote
Old 07-24-2014, 04:02 PM   #6
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by bcrx7 View Post
Just for future reference there is a modified 99-00 mode in there now that let's you use the 36-1 and the stock cam (2+1) trigger pattern!
Link?
soviet is offline   Reply With Quote
Old 07-24-2014, 04:11 PM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by bcrx7 View Post
Just for future reference there is a modified 99-00 mode in there now that let's you use the 36-1 and the stock cam (2+1) trigger pattern!
Its a 36-2 tooth mode, apparently.
https://www.miataturbo.net/megasquir...eth-mk2-74279/

So you would need to grind a tooth off the trigger wheel.
soviet is offline   Reply With Quote
Old 07-24-2014, 07:18 PM   #8
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Yeah, my bad. It's the Flyin Miata 36-2 wheel that I have.
bcrx7 is offline   Reply With Quote
Old 07-24-2014, 07:45 PM   #9
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

I looked at the code just now and I could probably write a decoder for 36-1 and 2-1 cam
soviet is offline   Reply With Quote
Old 07-24-2014, 08:06 PM   #10
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

The 36-1 syncs perfectly fine with the single tooth cam. I had to punch out two dowel pins. Oem gears need grinding.
Oscar is offline   Reply With Quote
Old 07-25-2014, 04:25 PM   #11
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

Quote:
Originally Posted by soviet View Post
I looked at the code just now and I could probably write a decoder for 36-1 and 2-1 cam

Yes do it for all the gays n the house! Wish to have a hard coding for supermiata damper and their 36-1.
joyrider is offline   Reply With Quote
Old 07-27-2014, 08:39 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by soviet View Post
Its a 36-2 tooth mode, apparently.
https://www.miataturbo.net/megasquir...eth-mk2-74279/

So you would need to grind a tooth off the trigger wheel.
It would be more than just grind a tooth. You would need to grind a tooth and ensure that real tooth #1 is in the same position as FM's wheel. IOW, the missing teeth would need to be in the same place.
Ben is offline   Reply With Quote
Old 07-28-2014, 07:23 AM   #13
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

FM wheel and protege wheel have missing teeth in different locations, not gonna work. Not sure about the supermiata timing wheel.
Oscar is offline   Reply With Quote
