Default Agressive spark maps wanted

I have WI and a CX racing intercooler and im still running the base map spark table. I have my AFR down to 12-11.5 in boost and like them where they sit. My car feels slow as poop for 8psi. Im looking for an agressive spark map for somone who is NOT running WI with est 250whp.

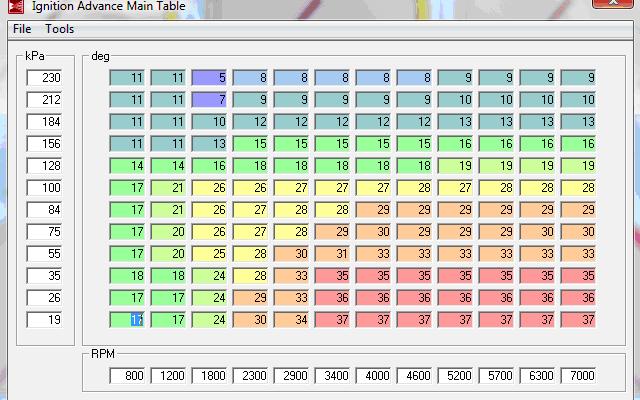

Attached Thumbnails
Agressive spark maps wanted-sparkmap1.jpg
SKMetalworks is offline   Reply With Quote
Old 08-09-2009, 05:09 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

it feels slow and probably won't take much more spark due to turbine AR and 9.0:1 compression.

Load this table up and you'll certainly blow some **** up:
I made 252wtq on a DD, then removed a 2.5" exhaust gasket restriction and the car came alive and I had to tune fuel again. Basically, this car is undoubtedly making 300WTQ+ on a gay-dude Dynojet. Each cell 2* back from MBT for safety. I can run 91-octane on this table too with no detonation heard through the cans in any cell.

Some areas went up to 6* further with no detonation. My motor is sooooooooo overbuilt that it makes me sad. Adding the new turbo bits will only flow better because I'm already at MBT with the stuffy log manifold. Too bad the drivetrain can't take too much more torque.
hustler is offline   Reply With Quote
Old 08-09-2009, 05:26 PM   #3
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

And you dont run water injection? I guess i bit off more than i can chew with you hustler
SKMetalworks is offline   Reply With Quote
Old 08-09-2009, 05:52 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

now water. Low static compression and free-flowing hot parts are neat-o.
hustler is offline   Reply With Quote
Old 08-09-2009, 07:36 PM   #5
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Damn.
miatamania is offline   Reply With Quote
Old 08-09-2009, 10:51 PM   #6
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

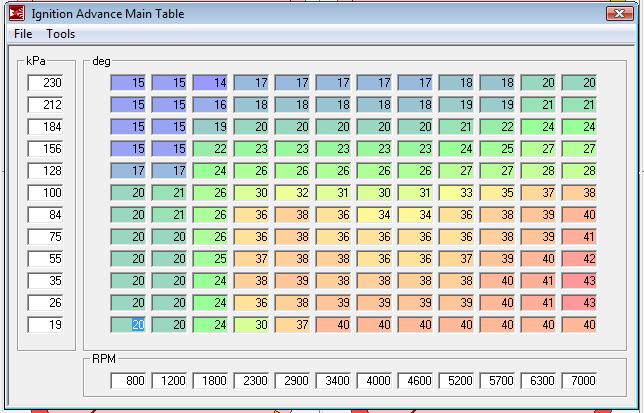

here's mine stock 1.6
Attached Thumbnails
Agressive spark maps wanted-sparkmap.jpg
Mach929 is offline   Reply With Quote
Old 08-10-2009, 09:39 AM   #7
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

my upper bins from 3000-6500 in 500 rpm increments read:
16 14 14 14.5 15.3 16.1 16.1

these bins cover 18+ psi, i ran 23psi and made 320hp/325tq. this is with 8.2:1 compression though.
therieldeal is offline   Reply With Quote
Old 08-10-2009, 12:51 PM   #8
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

have you read through samnavy's thread yet? Lots of good info in there.
wayne_curr is offline   Reply With Quote
Old 08-10-2009, 01:20 PM   #9
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

My spark map is similar to Hustlers, not as much timing down low or in the high rpm but the same in highr boost levels. I have a 2871 .63 hotside and small i/c, no water injection.
dc2696 is offline   Reply With Quote
Old 08-11-2009, 11:08 PM   #10
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Butt dyno says i gained atleast 40 hp and i upped the boost to 10psi. Thanks!
SKMetalworks is offline   Reply With Quote
Old 08-12-2009, 12:00 AM   #11
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

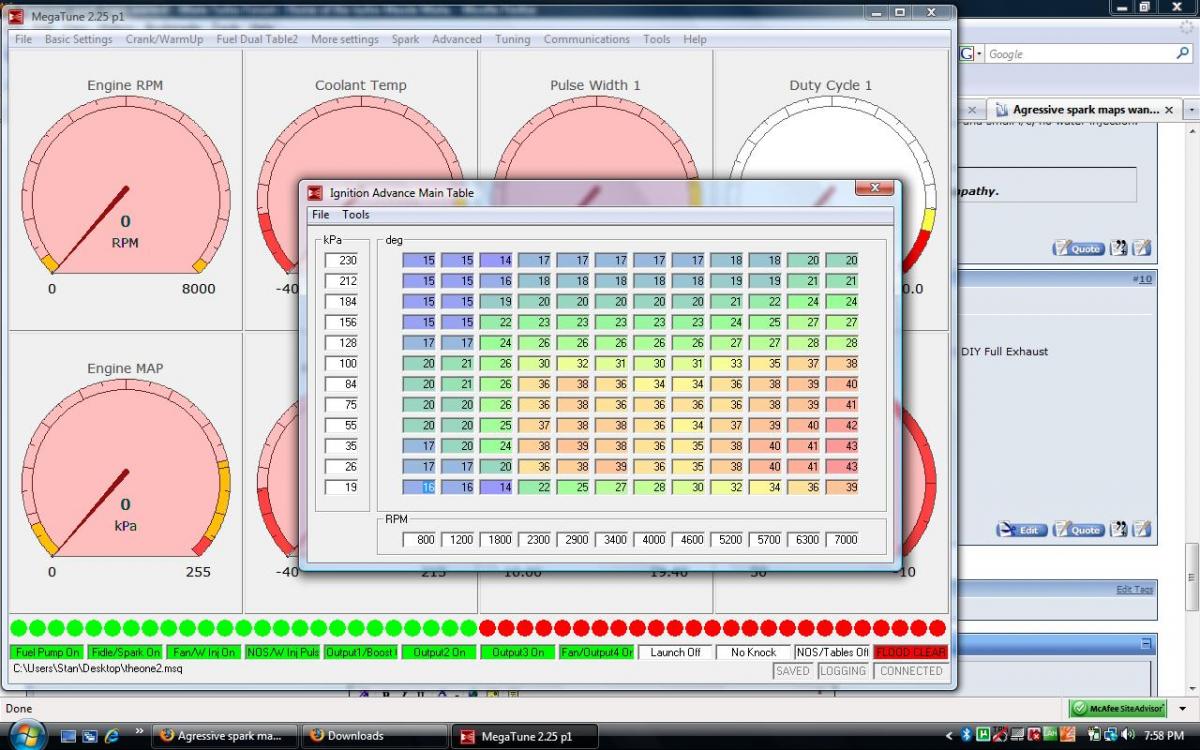

new map
Attached Thumbnails
Agressive spark maps wanted-newspark.jpg
SKMetalworks is offline   Reply With Quote
