Default Air fuel ratio target table enable?

hi, I have a MSPNP in my 1.6 eunos and I want to run autotune on tunerstudio, I did some research and figured out I have to set up my a/f ratio targets.
I have a wideband installed and its working correctly with the MS, I have set my EGO sensor to Innovate lc-1 and the car runs fine, now I try to access my targets by clicking the 'more settings' tab and I can see 'AFR targets for VE table 1' but im unable to open it and the text is greyed out.
is there something ive missed?
zammish is offline   Reply With Quote
Old 01-20-2015, 03:29 PM   #2
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

I'm using a MSPNP2 on 3.3.1 firmware. In tunerstudio I have a setting under the general settings tab called "Incorporate AFR Target". I have that set to include AFR Target. You might need to enable that to include your targets in the VE table.
konmo is offline   Reply With Quote
Old 01-20-2015, 05:30 PM   #3
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

hi thanks for the reply, I have version 2.6.12 of tuner studio, is there this setting on this version?
zammish is offline   Reply With Quote
Old 01-20-2015, 05:34 PM   #4
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default


Yes.

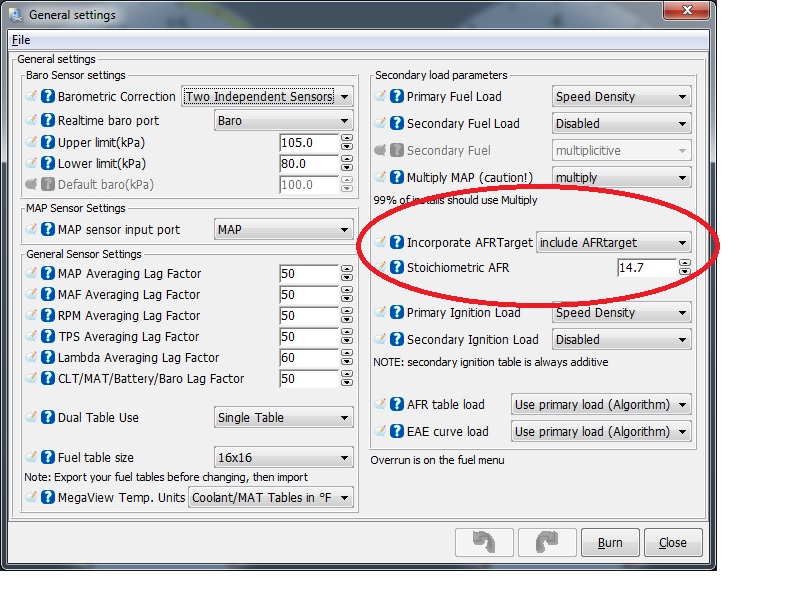

Basic/Load Settings
General Settings.
Attached Thumbnails
Air fuel ratio target table enable?-incorporate%2520afr.jpg
SchmoozerJoe is offline   Reply With Quote
Old 01-20-2015, 05:37 PM   #5
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Quote:
Originally Posted by SchmoozerJoe View Post

Yes.
Basic/Load Settings
General Settings.
^This
konmo is offline   Reply With Quote
Old 01-20-2015, 05:37 PM   #6
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default

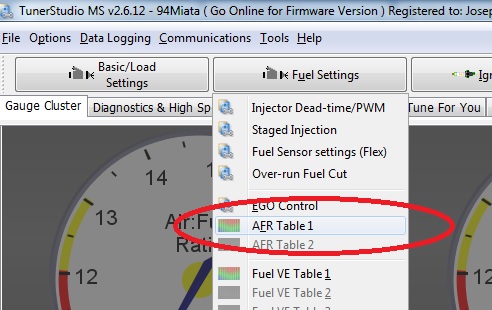

Also, here's the link to the AFR tables.
Pretty sure you're looking for where to enter values into this table?



Which will bring you to this:


Good luck, and have fun!
Attached Thumbnails
Air fuel ratio target table enable?-afr%2520target%2520table.jpg
SchmoozerJoe is offline   Reply With Quote
Old 01-20-2015, 07:32 PM   #7
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

I don't have anything like that.

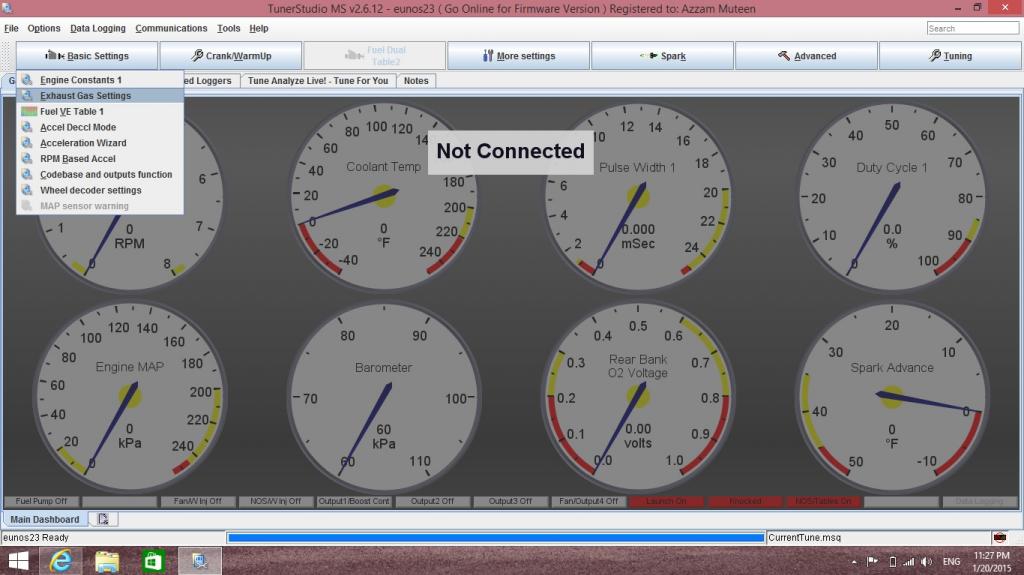

I have this..
Attached Thumbnails
Air fuel ratio target table enable?-mikrmgfegfpd_zpsac0faf49.jpg
zammish is offline   Reply With Quote
Old 01-20-2015, 07:37 PM   #8
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Are you using a DIY MSPNP2? Thats what I'm using. Also mine is on firmware 3.3.1 which I think matters. You might see other options if your not on this.
konmo is offline   Reply With Quote
Old 01-20-2015, 07:47 PM   #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Pretty sure he is on MSPNP1. I recently changed that setting on the other car I'm tuning right now, I can put up a screenshot later. I thought it was under the advanced menu though.
aidandj is offline   Reply With Quote
Old 01-20-2015, 07:49 PM   #10
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default

All I can say is... poke around. Fairly certain you'll find an icon for AFR Table 1 just like you have the VE Table 1 in your screenshot.

And yes, looks like you're on a different firmware/etc. then I am, but as far as I know, you should be able to find the AFR Table icon in one of your lists.
SchmoozerJoe is offline   Reply With Quote
Old 01-20-2015, 07:57 PM   #11
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,705
Total Cats: 269
Default

Incorporating AFR is another, additional feature that is separate from setting the AFR table and having EGO and VEAL target those values.
DNMakinson is offline   Reply With Quote
Old 01-20-2015, 08:03 PM   #12
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

You can always just type in what your looking for into the search bar on the top right of tunerstudio. It works pretty good, just use key words.
konmo is offline   Reply With Quote
Old 01-20-2015, 08:04 PM   #13
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

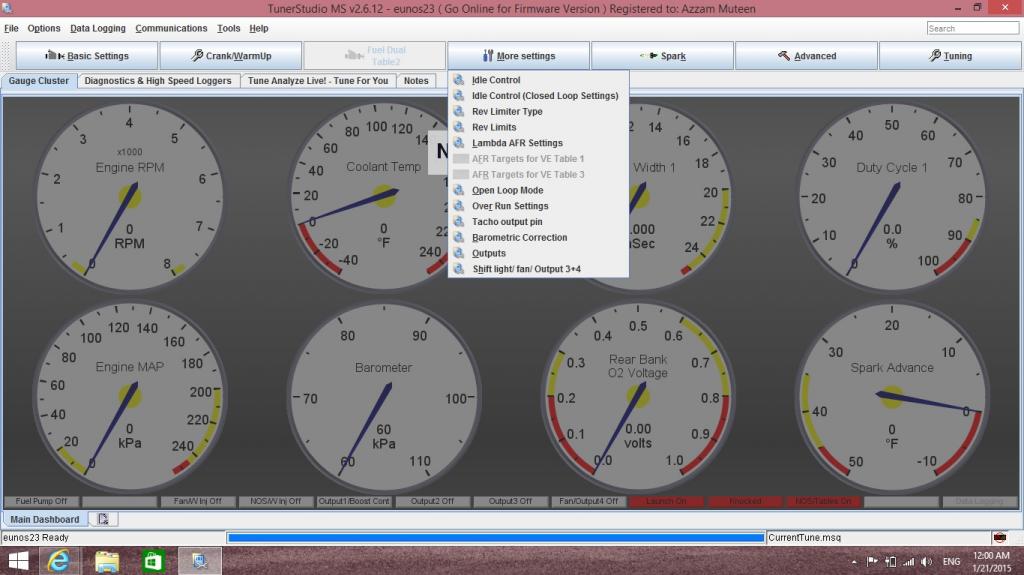

notice here how AFR targets are greyed out...... I cant select it....

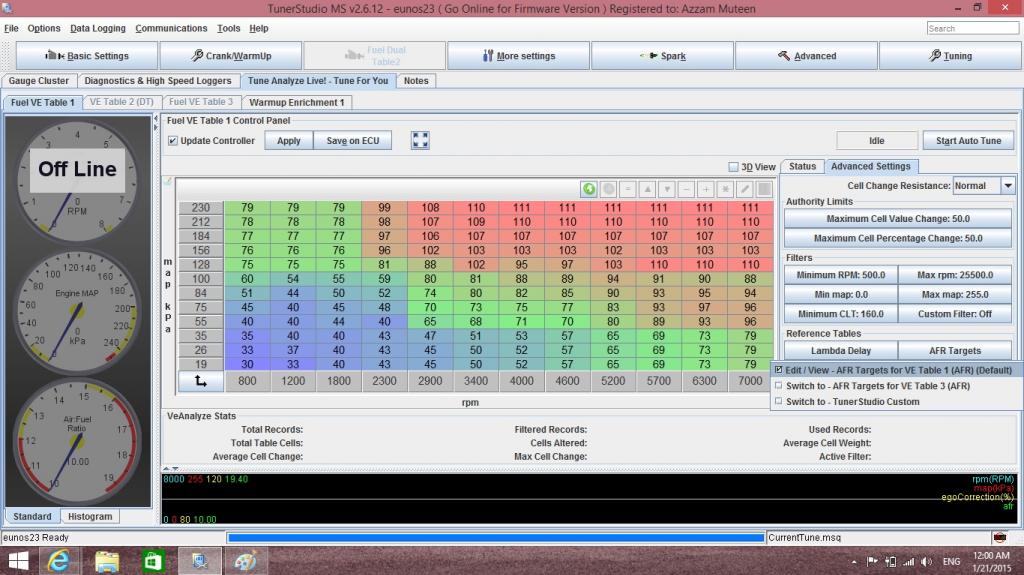

but if I go into the autotune side of it I can access the table, does this look correct? (I mean ok to adjust for autotune)
Attached Thumbnails
Air fuel ratio target table enable?-jsn_zps18cf6e6e.jpg   Air fuel ratio target table enable?-afr_zpsdb66a0a5.jpg
zammish is offline   Reply With Quote
Old 01-20-2015, 08:06 PM   #14
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Quote:
Originally Posted by zammish View Post
notice here how AFR targets are greyed out...... I cant select it....


but if I go into the autotune side of it I can access the table, does this look correct? (I mean ok to adjust for autotune)
Opening the AFR table through VEAL should do the same thing and take you to your AFR table.
konmo is offline   Reply With Quote
Old 01-20-2015, 08:12 PM   #15
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

yeah it takes me to the table thank you everybody!
zammish is offline   Reply With Quote
