I recently purchased a DIYPNP MS-II from Braineack; I also got a free LC-1 hand-me-down from my dads EVO 8 project. Does anyone have the proper wiring schematics for plethora of wires coming out of this thing? Or any advice on where to splice in what wires? Also, where in the exhaust system did you guys install it--Is the bottom of my downpipe near cat to close to turbo? Opinions welcome!
Attached Thumbnails

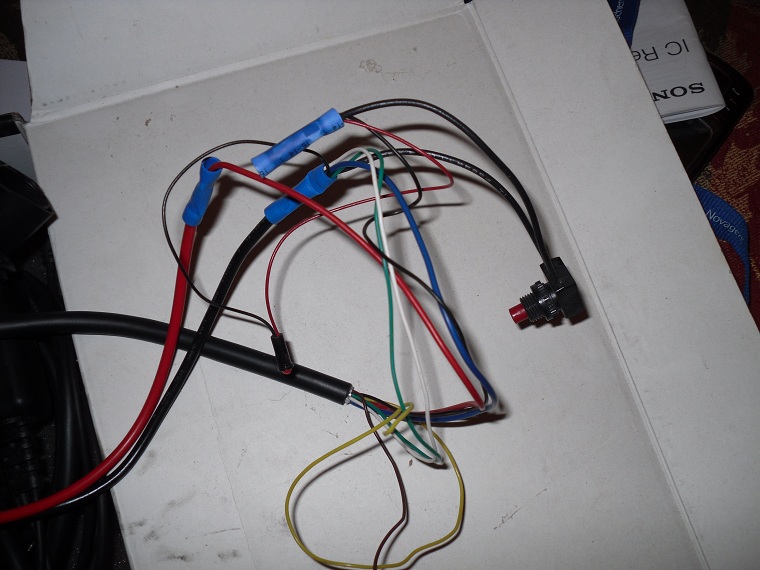

Another LC-1 Thread-sam_0858.jpg
JEMERY is offline   Reply With Quote
Old 11-05-2010, 09:14 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The user manual with wiring guide and software package can both be downloaded directly from the Innovate Motorsports website. I highly suggest that you take the time to download and study the user manual. The LC-1 is a great piece, but will not work correctly unless installed 100% by the manual.

http://www.innovatemotorsports.com/support.php
Ben is offline   Reply With Quote
Old 11-06-2010, 12:15 AM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2008
Location: Marietta, Ga
Posts: 224
Total Cats: -1
Default

Awesome, thanks for the link.
JEMERY is offline   Reply With Quote
Old 11-06-2010, 12:27 AM   #4
Junior Member

Join Date: Nov 2005
Location: Middletown, DE
Posts: 221
Total Cats: 1
Default

Is the DB-15 of your unit configured for power and ground for an LC1? If so, you can wire it right into the ECU.
Joseph B is offline   Reply With Quote
Old 11-13-2010, 11:12 PM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2008
Location: Marietta, Ga
Posts: 224
Total Cats: -1
Default

Yes set me up great. I just need to send signal wire from lc-1 to db-15 and I figured out where to pull all the other wire sources from thanks to the lc-1 manual.
