Default any good AFR datalogs?

I'm probably going to install MS tomorrow and would like to see a a good example AFR "curve" for a naturally aspirated car. It would be nice to see the same for a FI car too. I don't know where to start the gradual progression from lean to fat.

Thanks.
hustler is offline   Reply With Quote
Old 08-24-2007, 03:12 PM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Here's an interesting pull (2nd-3rd-4th-5th) in my N/A 1.8:



Jim
Reverant is online now   Reply With Quote
Old 08-24-2007, 05:00 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

jim's is good. if you can get the AFR to remain constant during shifts, that's good too. Allegedly it keeps shifts smoother and prevents subtle bogging.

the trick is that you DONT want to keep it rich when you lift off-power. I dunno how to accomplish both.
y8s is offline   Reply With Quote
Old 08-24-2007, 05:41 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by y8s View Post
If you can get the AFR to remain constant during shifts, that's good too. You DONT want to keep it rich when you lift off-power. I dunno how to accomplish both.
TPSdot instead of MAPdot. I never managed to get MAPdot to work well enough for me. "Well enough" being what you see in that datalog.

Jim
Reverant is online now   Reply With Quote
Old 08-24-2007, 05:48 PM   #5
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Reverant View Post
TPSdot instead of MAPdot. I never managed to get MAPdot to work well enough for me. "Well enough" being what you see in that datalog.

Jim
Think you could post a screen shot of your acceleration wizard tuning window, and maybe the accel decel trigger dot window? I'd love to play with TPSdot now that I have a variable TPS, but it might be better to have a starting point. Thanks!
Atlanta93LE is offline   Reply With Quote
Old 08-24-2007, 05:51 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
if you can get the AFR to remain constant during shifts, that's good too. Allegedly it keeps shifts smoother and prevents subtle bogging.

the trick is that you DONT want to keep it rich when you lift off-power. I dunno how to accomplish both.
Yeah, we can do that pretty easy. There is a user adjustable time delay for the decel fuel cut.
Mine's a second or something like that. So between shifts, the MS doesn't cut off fuel, but take your foot off the throttle for 1s, and fuel is cut off.

+1 on the tps dot stuff.
Ben is offline   Reply With Quote
Old 08-24-2007, 06:59 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by Atlanta93LE View Post
I'd love to play with TPSdot now that I have a variable TPS
Don't! You have a turbo and TPSdot is NOT meant for boosted applications! Never the less, here's the deal:



Jim
Reverant is online now   Reply With Quote
Old 08-24-2007, 07:22 PM   #8
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Reverant View Post
Don't! You have a turbo and TPSdot is NOT meant for boosted applications!
Hmm, thanks for the advice. I was under the impression that the problem with TPSdot in a boosted application was that a small change in TPS might make decel cut in, making you run lean in boost, and that you can just turn decel enrich off when in boost on the accel/decel dot page; just set the "Turn decel enrich off when:" to the "boost" range. Something else bad with TPSdot in boosted applications that I'm missing?
Atlanta93LE is offline   Reply With Quote
Old 08-24-2007, 09:24 PM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

hmm i dunno mine looks pretty good
Name:  gears.jpg
Views: 4
Size:  167.5 KB this is my last good DL

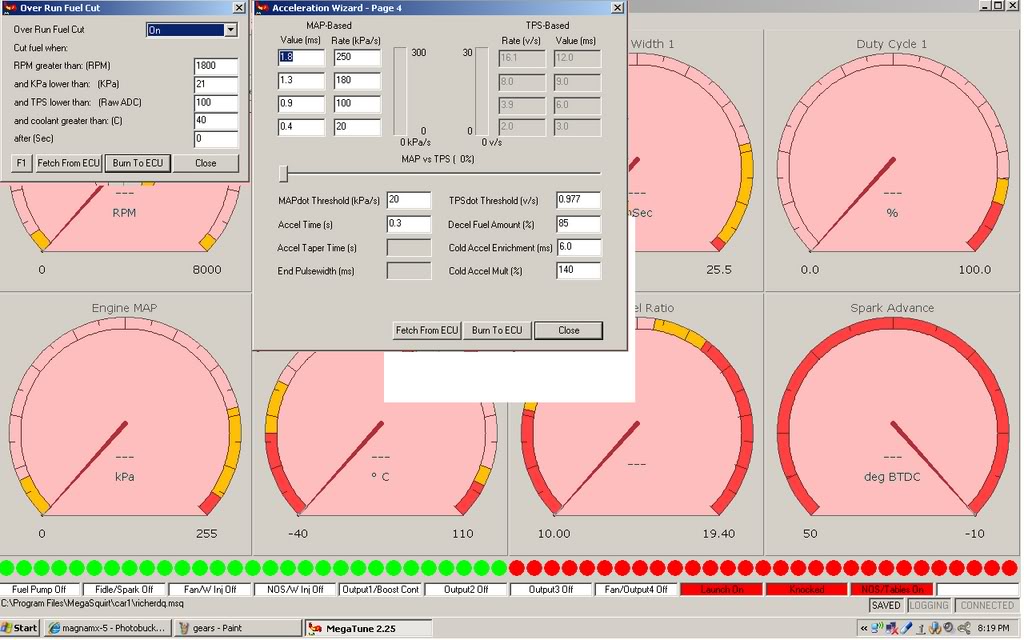

and my accel decel settings
Name:  ovrrun.jpg
Views: 4
Size:  113.8 KB
magnamx-5 is offline   Reply With Quote
Old 08-24-2007, 09:30 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Your temp sensor data is innacurate.
weather.com says its 94F right now in Kentucky. Your DL shows minimum IAT in the 60s.
Plus your CLT is way low.
Ben is offline   Reply With Quote
Old 08-24-2007, 09:53 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by Ben View Post
Your temp sensor data is innacurate.
weather.com says its 94F right now in Kentucky. Your DL shows minimum IAT in the 60s.
Plus your CLT is way low.
Uh that was around 5AM about a month ago. And my CLT's are just right far as i can tell + i think that is after a restart as well. Notice the voltage spike's that should have been my first clue of the harmonic balancer being ready to fall off :( + you do know i just run ambient underhood temps as Pre TB AIT is useless for me with WI
magnamx-5 is offline   Reply With Quote
Old 08-24-2007, 11:35 PM   #12
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

you should drill and tap your intake manifold magna, that is what I did for my setup. Just right in the middle of the damn thing
akaryrye is offline   Reply With Quote
Old 08-25-2007, 12:01 AM   #13
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
Here's an interesting pull (2nd-3rd-4th-5th) in my N/A 1.8:

[img]http://users.forthnet.gr/ath/twikicore/keratea_large.png[img]

Jim
This is an NA amp?

So 12:1afr at 100 kpa is the magic # huh (isn't that fat for NA, perfect for FI)? What afr at part throttle...15:1?
hustler is offline   Reply With Quote
Old 08-25-2007, 10:17 AM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i would er toward 13-1 or less part throttle jsut set the idle row to stoich or a little more and the bottom row to 15-1. But the overrun fuel cut will take out 90% of your unwanted fuel anyway 20-19-1 the trick is getting it with baro correction or picking a vac low enough that you dont get lean surging on hills etc.
magnamx-5 is offline   Reply With Quote
