Default Anyone want to take a look at my tune?

Hey guys. Got my 6psi MP62 supercharged VVT Miata up and running. Drove it around a bit everything seems fine. Can't push it as I'm still breaking in the clutch. Been running around doing some autotuning and such. Anyways, I thought I'd post my tune and see if anyone here had any comments. Timing is the issue I'm most concerned about because of the higher compression of the VVT engine. I'm just trying to get something conservative on there until I do my boost upgrade to 10 psi and do some real dyno tuning. Thanks in adavance.
Attached Files
File Type: msq 14 tune.msq (108.2 KB, 64 views)
ReplaceDisplace is offline   Reply With Quote
Old 01-26-2014, 10:07 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,637
Total Cats: 1,559
Default

Take a screenshot of the timing map. I'll take a look at it but don't want to open your msq.
sixshooter is online now   Reply With Quote
Old 01-27-2014, 06:43 PM   #3
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

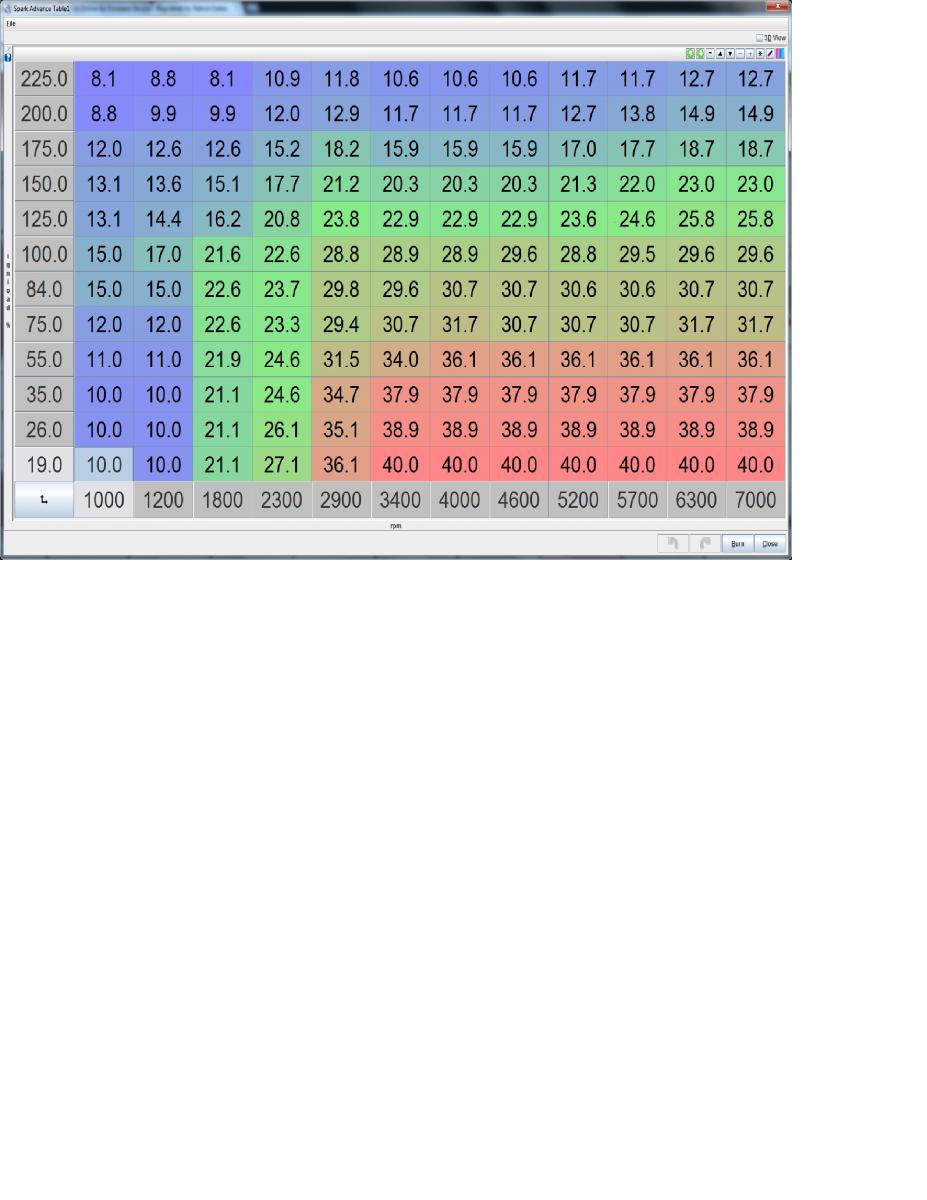

Here's a screenshot of the table.

Anyone want to take a look at my tune?-timing.jpg
ReplaceDisplace is offline   Reply With Quote
Old 01-27-2014, 11:17 PM   #4
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,637
Total Cats: 1,559
Default

It looks pretty good. It's a bit lower than mine at idle by a couple of degrees.

It's got a couple of extra degrees above mine up in the higher boost ranges but mine is possibly too conservative.
sixshooter is online now   Reply With Quote
Old 01-28-2014, 02:14 AM   #5
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

I've been meaning to fix the idle timing lol. Thanks for looking at it. I probably will bump it down a few degrees in the boost ranges just for safety. Till I get it on a dyno I'm just guessing. I appreciate you taking the time to look at it.
ReplaceDisplace is offline   Reply With Quote
Old 01-28-2014, 02:22 AM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Full_Tilt_Boogie is offline   Reply With Quote
Old 01-28-2014, 03:23 AM   #7
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I think i'm running only 12 degrees at idle to allow few extra on demand to help it idle better, that way the ecu has room to compensate with timing advance if it needs to when the alternator adds random load to it such as when the fans kick on...seems to help
triple88a is offline   Reply With Quote
Old 01-29-2014, 12:38 AM   #8
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Your timing looks good to me too. You may want to bump it up a little at idle and down a couple in boost just to play it safe for now. I run 13 at idle and also be sure to adjust your fuel cells in the idle area to the same amount of fuel. It help me a ton with engine loads.
ScottyP3821 is offline   Reply With Quote
Old 01-29-2014, 01:20 AM   #9
Junior Member
Thread Starter

Join Date: Sep 2011
Posts: 134
Total Cats: -19
Default

Will do Scotty. Thanks for the advice!
