Default Bouncing AFRs

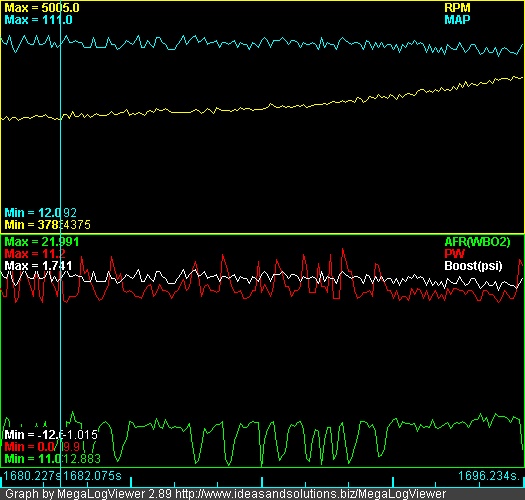

You can see on the graph here the AFRs bouncing from 11 to 13.

Any idea what could be causing this?
Attached Thumbnails
Bouncing AFRs-graph.jpg
Attached Files
File Type: zip megasquirt200802110137.zip (201.7 KB, 33 views)
richard_ha is offline   Reply With Quote
Old 02-10-2008, 11:34 PM   #2
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

looks like you have your O2 turned on in boost too
bryantaylor is offline   Reply With Quote
Old 02-11-2008, 08:29 AM   #3
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

O2 turned on in boost?
richard_ha is offline   Reply With Quote
Old 02-11-2008, 09:37 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by richard_ha View Post
O2 turned on in boost?
running closed loop when in boost.

generally not a great idea as the response time of a WB sensor isn't as quick as a NB.

can be compensated for in the software iirc, but it still won't be perfect.
richyvrlimited is offline   Reply With Quote
Old 02-11-2008, 10:07 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

change your open-loop switch point to whatever (60-90kpa) or you have o2 sensor noise.
hustler is offline   Reply With Quote
Old 02-11-2008, 10:20 AM   #6
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

It is set to 90kPa already, isnt it?
richard_ha is offline   Reply With Quote
Old 02-11-2008, 10:29 AM   #7
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

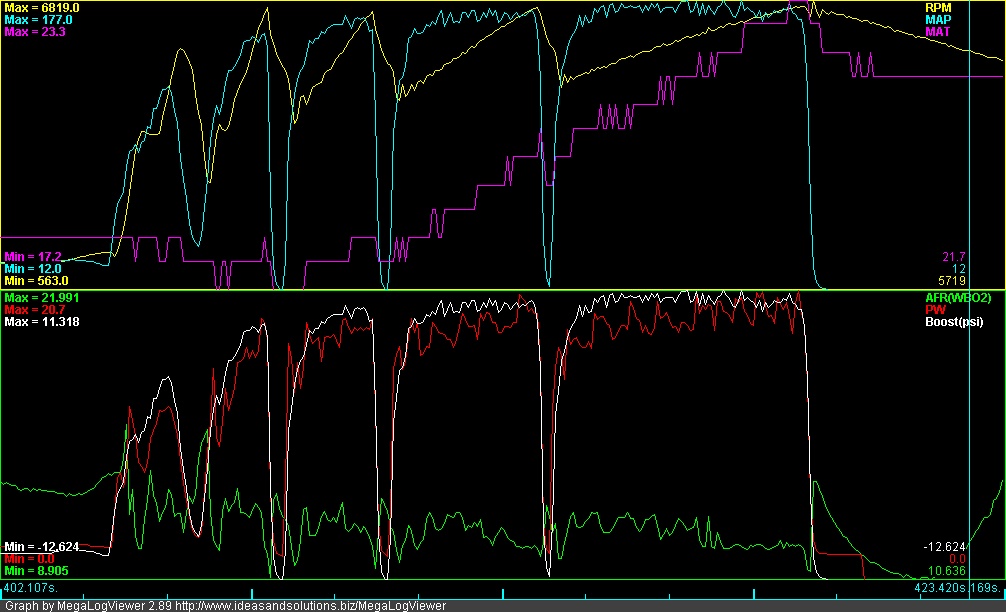

I'm wondering if I've got a sticky injector or something. Look how rich this went (right to 8.9) after I did a 1/4 mile, even though the PW was 0
Attached Thumbnails
Bouncing AFRs-santapod14.555.jpg
richard_ha is offline   Reply With Quote
Old 02-11-2008, 12:28 PM   #8
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

OK, think I've figured it. The noise on the MAP is causing the acceleration and deceleration flags to get lit so it must be dumping fuel in for the acceleration enrichment. Looks like I'll need a TPS.
richard_ha is offline   Reply With Quote
Old 02-11-2008, 12:30 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Where is your MAP line connected?
If you have it on the nipple by the throttle body you should try Ting it off the FPR line instead.
cjernigan is offline   Reply With Quote
Old 02-11-2008, 12:36 PM   #10
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

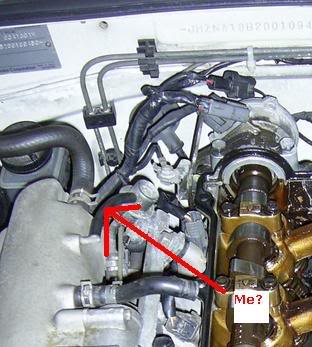

Name:  boostfitting.jpg
Views: 2
Size:  27.4 KB
richard_ha is offline   Reply With Quote
Old 02-11-2008, 12:40 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

yes
The port near the throttlebody is known to be noisy. It causes issues like you're seeing sometimes. Ting off the FPR port is supposed to cure that.
cjernigan is offline   Reply With Quote
Old 02-11-2008, 01:30 PM   #12
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Cool, I also had a "no buzz" t piece so I've used that.
richard_ha is offline   Reply With Quote
Old 02-12-2008, 12:52 PM   #13
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

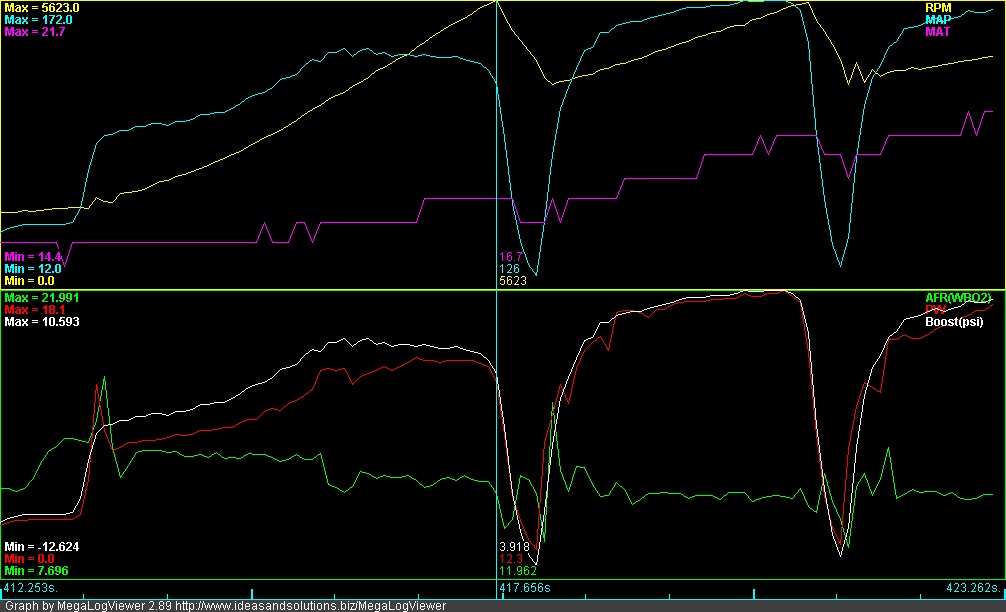

What a difference T'ing in there and using a no buzz T piece has made, look how smooth this MAP is now...
Attached Thumbnails
Bouncing AFRs-smooth.jpg
richard_ha is offline   Reply With Quote
Old 02-12-2008, 01:07 PM   #14
Junior Member

Join Date: Jan 2008
Posts: 272
Total Cats: 0
Default

Quote:
Originally Posted by richard_ha View Post
Cool, I also had a "no buzz" t piece so I've used that.
just wondering what is a no buzz?
Sleeper_MX5 is offline   Reply With Quote
Old 02-12-2008, 01:13 PM   #15
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Its like a normal t piece but the spout that comes off only has a small hole in it to prevent too much fluctuation.
richard_ha is offline   Reply With Quote
Old 02-12-2008, 01:58 PM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You can buy a restrictor for the map line at any advanced autoparts store. AKA No buzz.

Glad that fixed it.
cjernigan is offline   Reply With Quote
Old 02-12-2008, 08:59 PM   #17
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Quote:
Originally Posted by bryantaylor View Post
looks like you have your O2 turned on in boost too
Are you sure? Looks like its set to 90kPa to me, unless I'm missing something.
richard_ha is offline   Reply With Quote
Old 03-13-2008, 06:12 PM   #18
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by cjernigan View Post
You can buy a restrictor for the map line at any advanced autoparts store. AKA No buzz.

Glad that fixed it.
What does this restrictor look like?

Also.. is the vaccuum source next to the throttle body you guys talk about the one on the 1.8 manifold on the top by the fuel rail?
240_to_miata is offline   Reply With Quote
Old 03-13-2008, 06:30 PM   #19
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The restrictor looks like a little plastic tube with a tiny hole in it.
Do not use the one near the throttle body by the fuel rail.
Tee off of the line going to the fuel pressure regulator, it is a much better signal location.
cjernigan is offline   Reply With Quote
Old 03-13-2008, 06:45 PM   #20
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

yeah i was gunna make a thread about my jumpy MAP values. It always fluctuates about 5-10 kpa real fast no matter how steady i hold my foot. Ill try it out and hopefully get a better reading
