Default Can I use 99-00 diy base timing map for a 01-05 vvt engine

Ok so I have been searching for a timing map that is pretty conservative for my swapped in 04 engine. What do you guys think of just using the 99-00 base timing map diy provides for the diypnp 99-00. Would it be safe?
Any one have a safe map they could post.
Thanks
Brian
90 Turbo is offline   Reply With Quote
Old 08-31-2012, 04:24 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Yes, pull some spark.
hustler is offline   Reply With Quote
Old 08-31-2012, 12:25 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Start with this on 93-octane.

If the car is ready, I might be able to get your car on the dyno this weekend for a small contribution to my swap-fund.
Attached Files
File Type: table 10-1StarterSparkTable.table (2.0 KB, 205 views)
hustler is offline   Reply With Quote
Old 08-31-2012, 12:28 PM   #4
Senior Member
Thread Starter
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Thanks for the map Hustler.
It will not be ready this weekend but will be next. I can help with swap fund and swap if ya need a hand.
90 Turbo is offline   Reply With Quote
Old 08-31-2012, 12:38 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 90 Turbo View Post
Thanks for the map Hustler.
It will not be ready this weekend but will be next. I can help with swap fund and swap if ya need a hand.
MAP is pressure, this is a table.

I'd love to come help you today, but I'm so tired from swapping engines in a one-car garage; I'm sure you understand. I have a small water leak somewhere that I have to chase today.
hustler is offline   Reply With Quote
Old 09-02-2012, 11:30 AM   #6
Senior Member
Thread Starter
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

OK i must be slow in the head. I cant get the base 99-00 map to download off diy's site and hustler your map looks more agressive than the one I run on the 9.5-1 1.6. Can some one please post a picture of there map and I will just fill in the blanks in my map.
or please post a msq with a conservative 99-05 timing map. I just want something i can take 3 degrees out of and know I will not have knock till I get detcan/knocklite hooked up.
Please help she is almost back together and I will be starting her for the first time this afternoon.
HELP.
90 Turbo is offline   Reply With Quote
Old 09-02-2012, 11:47 AM   #7
Senior Member
Thread Starter
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Lightbulb

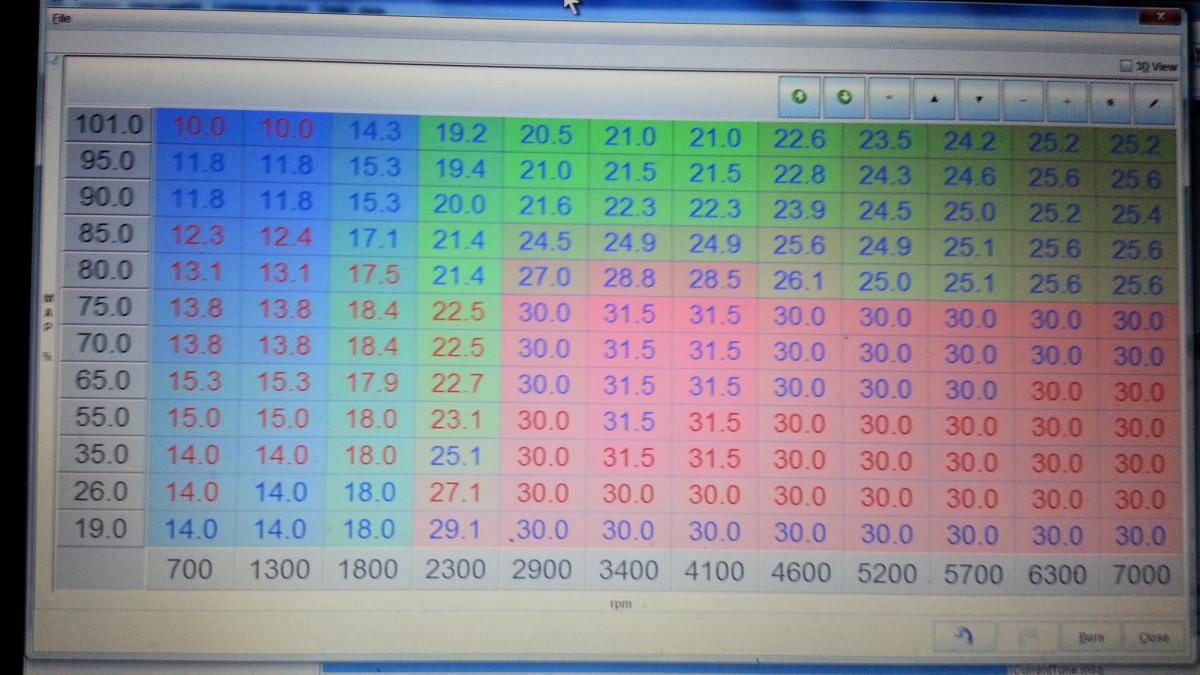

Does this seem right. I think it is the table hustler sent me?
Attached Thumbnails
Can I use 99-00 diy base timing map for a 01-05 vvt engine-table-hustler.jpg
90 Turbo is offline   Reply With Quote
Old 09-02-2012, 12:07 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 90 Turbo View Post
OK i must be slow in the head. I cant get the base 99-00 map to download off diy's site and hustler your map looks more agressive than the one I run on the 9.5-1 1.6. Can some one please post a picture of there map and I will just fill in the blanks in my map.
or please post a msq with a conservative 99-05 timing map. I just want something i can take 3 degrees out of and know I will not have knock till I get detcan/knocklite hooked up.
Please help she is almost back together and I will be starting her for the first time this afternoon.
HELP.
If you want to take out more spark do it. I run that spark table on 91-octane in a 99 engine, +3 degrees up top. That spark table is probably fine.
hustler is offline   Reply With Quote
Old 09-02-2012, 07:27 PM   #9
Senior Member
Thread Starter
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Cool thank hustler. On the left side the pressure/map side your only goes to 100 or atmospher.
Is this a NA map?
I have a 2560. How do I adapt it to 10-12psi?

Also some one with 01-05 vvt engine and a turbo please please please post up a map or just the base map from diy or begi. I cant get them to down load or find them. This thing is about ready to be started (still got to but the radiator in and wire VVT tunner but other than that shes ready) and I dont have a conservative timing map to use.
90 Turbo is offline   Reply With Quote
Old 09-04-2012, 01:03 AM   #10
Senior Member
Thread Starter
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Well she runs. Its a little rans its rought and back fire on decel. Its pretty load.
the aem wide band is not synced with the tunerstudio. It reads .2 to .4 to high.
It ran with out any miss at all with out the intercooler piping hooked up but now with 1.TB it is running a little rough and really rich the autotune just cant get it back in line
90 Turbo is offline   Reply With Quote
Old 09-06-2012, 10:11 AM   #11
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Good to know you did it!

I hope I'll be able to make mine start this week end :-)

Can you show me what map you used for spark and what injector are you running on this Z3?
absRTP is offline   Reply With Quote
Old 09-07-2012, 01:06 AM   #12
Senior Member
Thread Starter
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

here is my msq from a couple days ago. I will load another one soon.
Attached Files
File Type: msq 9 4 12 late idle fixed.msq (84.0 KB, 148 views)
90 Turbo is offline   Reply With Quote
Old 09-07-2012, 08:09 AM   #13
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Thanks buddy!
absRTP is offline   Reply With Quote
Old 09-17-2012, 06:29 PM   #14
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

what about the other one, does it end up being better?
