Default Cant figure out where the rest of these go

So I'm trying to build my own megasquirt harness I just cant figure out where the rest of these wires go I have the 3.57v megasquirt and Im trying to install it in 90 1.6. I bought the wire loom off of diyautotune. Im not sure where exactly to run the fuel pump wire, IAC 1b, all the can wires, pwm idle wire, one random black and white wire, and finally the shielded tac wire. Any help would be greatly appreciated.
Attached Thumbnails

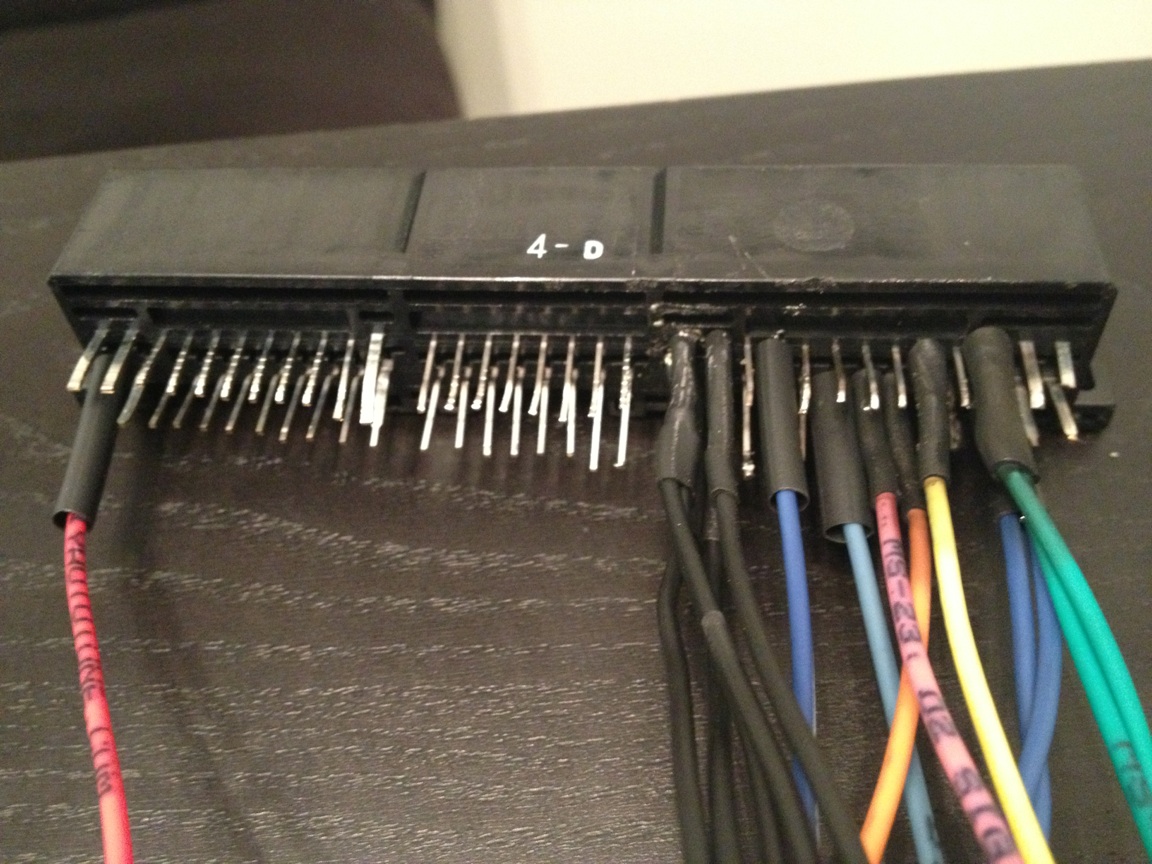

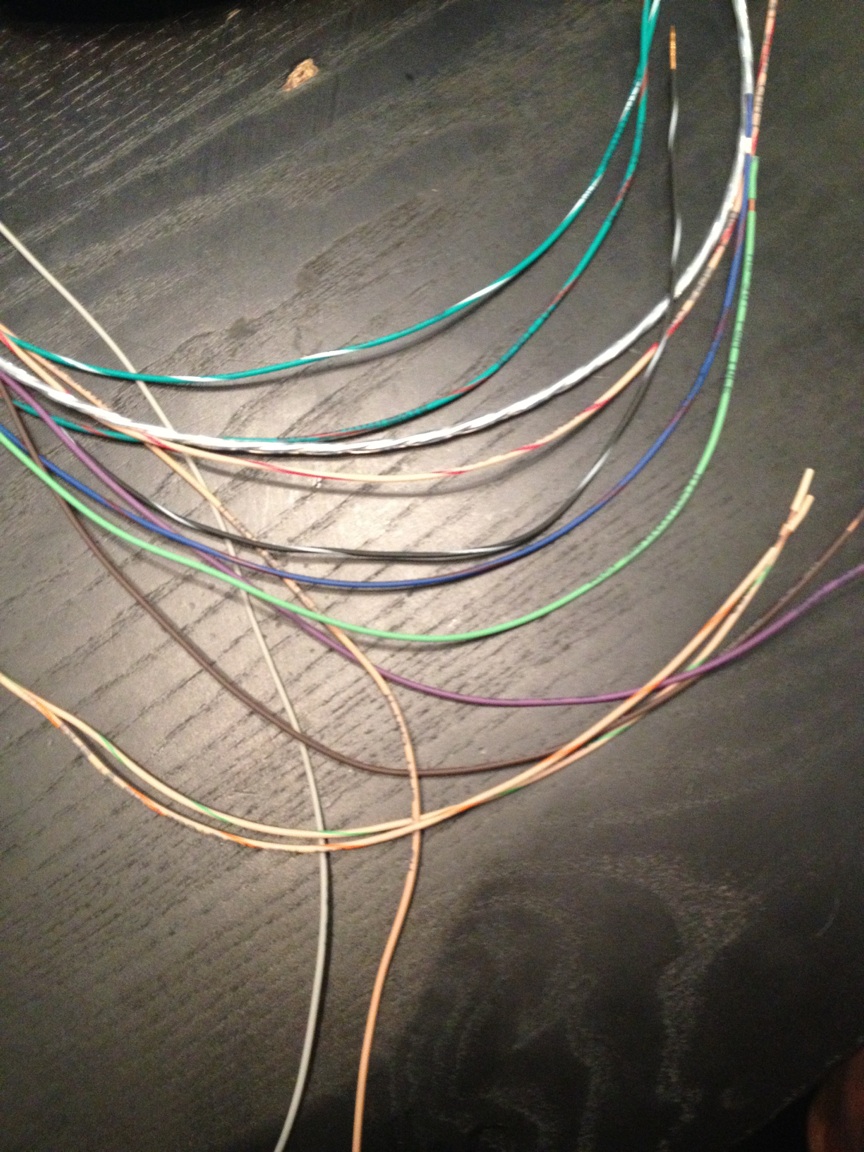

Cant figure out where the rest of these go-img_4966-1-.jpg   Cant figure out where the rest of these go-img_0549.jpg
svazquez104 is offline   Reply With Quote
Old 05-12-2013, 05:28 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

There are Mazda OEM FSM's as stickies. They have detailed wiring diagrams including the pinout of the OEM ECU. That's where you should go.
hornetball is offline   Reply With Quote
Old 05-13-2013, 11:54 AM   #3
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by svazquez104 View Post
So I'm trying to build my own megasquirt harness I just cant figure out where the rest of these wires go I have the 3.57v megasquirt and Im trying to install it in 90 1.6. I bought the wire loom off of diyautotune. Im not sure where exactly to run the fuel pump wire, IAC 1b, all the can wires, pwm idle wire, one random black and white wire, and finally the shielded tac wire. Any help would be greatly appreciated.
FSM is your friend, or any 90 specific wiring diagram. BTW your car doesn't have a CAN, and is a PWM IAC, so you won't use all the IAC wires either.
tpwalsh is offline   Reply With Quote
