Default Critique my tune please :)

Hey everyone,

Finished my turbo build, had a few hiccups but mostly all is good i would say. I've been driving her around for about 2 weeks now trying to smooth things out and have a nice solid tune. Mind you i'm new to tuning and normally just take my cars somewhere after i build them, but i wanted to try something new and exciting.

With that being said, here is my latest tune and i would like for some criticism on how to smooth it out some more, how my timing map looks and improve throttle response even more. I've used other members maps as a general guideline to help with mine.

Areas i think i need the most help with are the idle, idle droop, accel enrichments and cold start enrichments.

My setup;

1991 w/ 1.8 swap
27x9x3 Intercooler
GT2554R
Tial 38mm EWG
Artech manifold w/ 3" downpipe, 2.5" testpipe, 2.3" RB midpipe to a 3" axleback
MSPNP 1
FC RX-7 oil cooler
Rx-7 460cc injectors

Future plans include full 3" exhaust and i'm already tired of the GT2554, looking into a GT28RS in the future and a built engine with 6 speed.

I've attached my most recent MSQ and datalog file.

Thanks again!

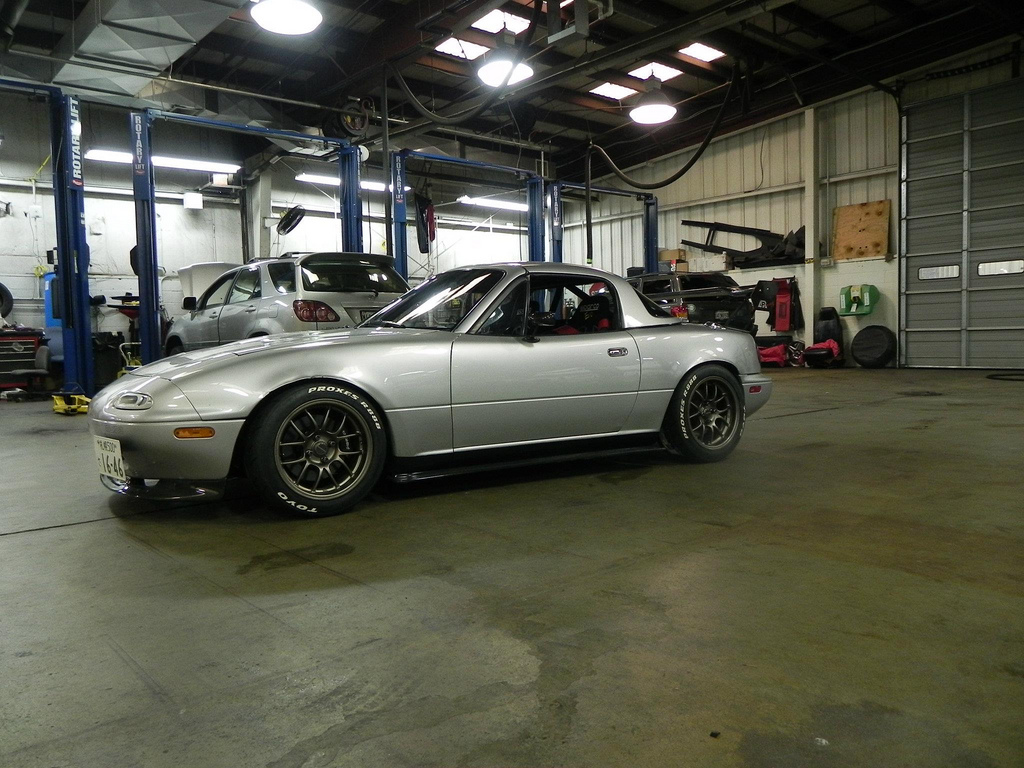

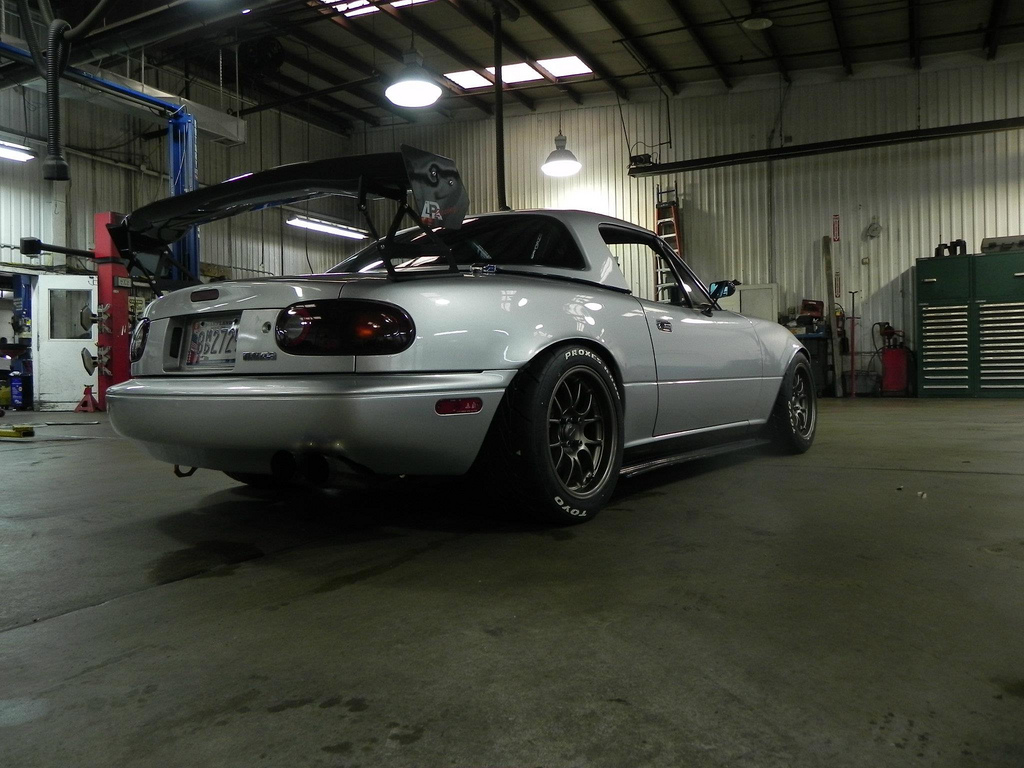

Picture of my car at work;


Attached Thumbnails
Critique my tune please :)-7280286908_6919ce3402_b.jpg   Critique my tune please :)-7121526919_674e0249bd_b.jpg
Attached Files
File Type: msl run1.msl (1.10 MB, 82 views)
File Type: msq 2012-05-27_12.23.01.msq (36.2 KB, 76 views)
Kaldar142 is offline   Reply With Quote
Old 05-27-2012, 04:17 PM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OK I looked.

for your fuel map, at 90kpa @ 5500? why is this cell higher?

also your spark table is jacked up. why.
Faeflora is offline   Reply With Quote
Old 05-27-2012, 05:32 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2010
Location: Silver Spring, MD
Posts: 60
Total Cats: 0
Default

Thanks for looking.

Well, that is why i'm still working on it

Care to elaborate on the spark table?
Kaldar142 is offline   Reply With Quote
Old 05-27-2012, 05:42 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Spark should smoothly ramp to redline.

If your tune is on the edge of detonation then you may need to have flat timing at MBT
Faeflora is offline   Reply With Quote
Old 05-27-2012, 05:44 PM   #5
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

wrong dead time for the 460cc injectors.
Techsalvager is offline   Reply With Quote
Old 05-27-2012, 06:05 PM   #6
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

I looked...apparently that mad tyte hella flush wing is causing your brain to not comprehend proper tuning capabilities. In all seriousness. I'm on my iPhone. If I looked at your map I'm sure I'd have a wildly different opinion:
Insert clip from 80's movie "back to the beach" starring Annette funachello and Frankie Avalon now: and also Lori Louglin when she was young and hot.
It's the part where the son says: "I have a wildly different opinion".
thirdgen is offline   Reply With Quote
Old 05-27-2012, 06:07 PM   #7
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

Oh yeah, I'm also all hopped up at the bar and just did a shot of bird dog. If you're not familiar, then get familiar.
thirdgen is offline   Reply With Quote
Old 05-27-2012, 06:08 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2010
Location: Silver Spring, MD
Posts: 60
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post
Spark should smoothly ramp to redline.

If your tune is on the edge of detonation then you may need to have flat timing at MBT

Thanks, i'll work on smoothing it out

Quote:
Originally Posted by Techsalvager View Post
wrong dead time for the 460cc injectors.
Ok, i'll have to tweak that as well. Isn't it 1.2ms?
Kaldar142 is offline   Reply With Quote
Old 05-27-2012, 06:09 PM   #9
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

.75ms~
Techsalvager is offline   Reply With Quote
Old 05-27-2012, 07:17 PM   #10
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Kaldar142 View Post
Thanks, i'll work on smoothing it out



Ok, i'll have to tweak that as well. Isn't it 1.2ms?
It seems like you dont know what youre doing. Being ignorant is ok but you are gonna blow the welds.

What octane gas r u running
Faeflora is offline   Reply With Quote
Old 05-27-2012, 07:48 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2010
Location: Silver Spring, MD
Posts: 60
Total Cats: 0
Default

Lmao hey gotta start somewhere that's why I figured I'd ask for help. It's a learning process just like with anything...

93 octane
Kaldar142 is offline   Reply With Quote
Old 05-27-2012, 09:10 PM   #12
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

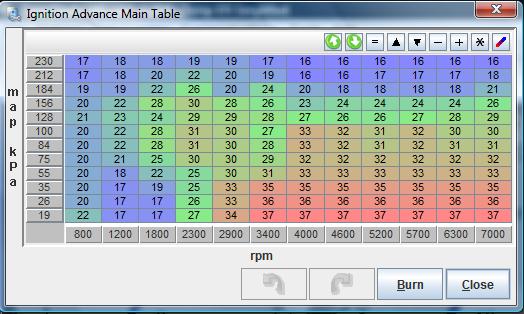

Uploaded a pic of your timing so others can take a look without having to open it.



You may have already looked through, this: https://www.miataturbo.net/megasquirt-18/dyno-tuning-take-look-fm-we-want-your-timingz-18648/ your timing map looks very familiar to one posted there. It's a great thread to come up with a basic timing map, just remember to be conservative with it and try to take input from as many similar setups as possible. A few of your low rpm high load cells seem pretty far advanced to me. The high RPMs looks fine to me.

I love the car, it looks great.
Attached Thumbnails
Critique my tune please :)-1.6time.jpg
pdexta is offline   Reply With Quote
Old 05-27-2012, 09:24 PM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Your map sucks.

Also at 93 oct you can prob run more
Timing.
Faeflora is offline   Reply With Quote
