Default EBC data log and duty target tune help

Anybody mind letting me send them my last short data log and a copy of my boost duty target page to help me figure out why I am only making 8 psi with my EBC...

I am trying to get up into the 12-14 psi range.
oconnor is offline   Reply With Quote
Old 09-08-2008, 10:44 PM   #2
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

BTW, thanks and here's my email so I can send you the files...

buell914 AT yahoo.com
oconnor is offline   Reply With Quote
Old 09-08-2008, 10:54 PM   #3
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Without looking at the logs/files, did you notice any difference with the ebc? As in, is it working at all to produce boost over wastegate pressure?

My BEGi kit wouldn't make the boost I wanted until I adjusted the wastegate actuator arm tighter. It was just blowing open.

Post the boost duty targets here.
paul is offline   Reply With Quote
Old 09-08-2008, 10:58 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

I was using brains for 10 psi. I have not used the turbo without the EBC.

how to post a pic here, I have no idea. I tried copying a screen shot to a word file then attaching it, but it would not let me.
oconnor is offline   Reply With Quote
Old 09-08-2008, 11:55 PM   #5
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

copy a screenshot to ms paint and post that file here. Are you sure the EBC is working?
johndoe is offline   Reply With Quote
Old 09-09-2008, 01:18 AM   #6
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

I think its working..well ****, I don't know. I have it wired and plumbed correctly. Short of sticking my head in the engine compartment while doing test runs, how would i find out...

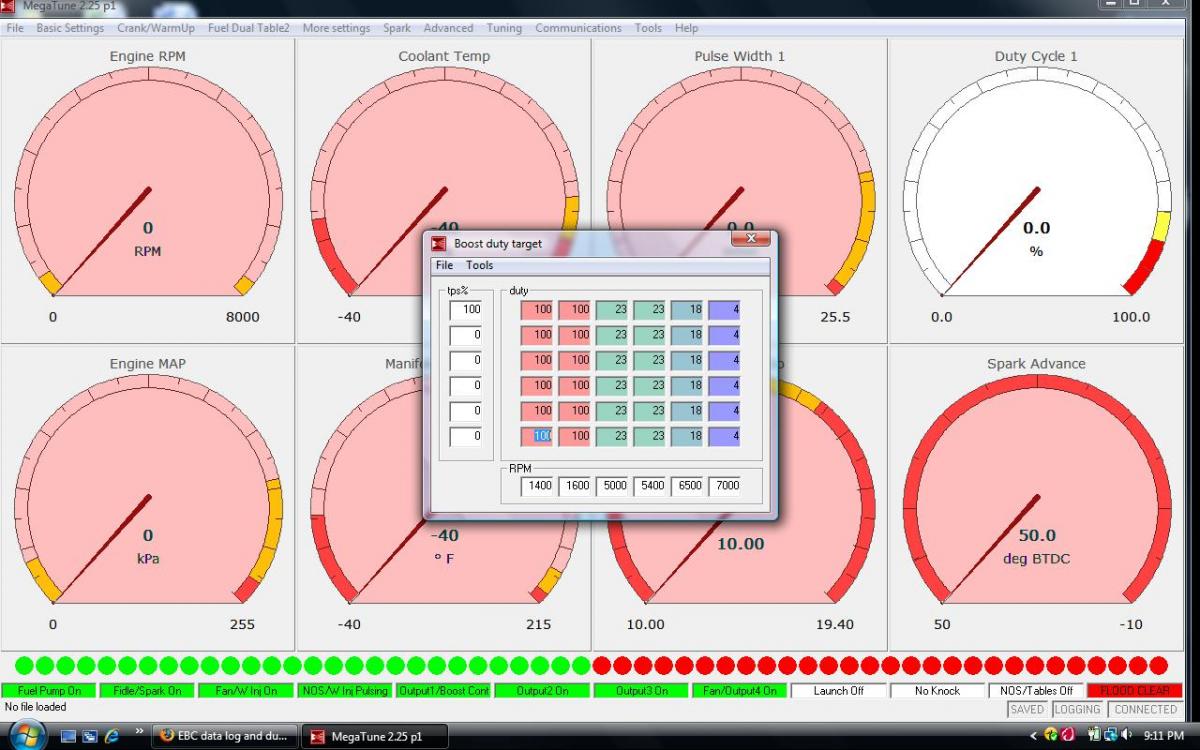

oh and here is a test at the posting....
Attached Thumbnails
EBC data log and duty target tune help-boost-duty-target.jpg
oconnor is offline   Reply With Quote
Old 09-09-2008, 01:31 AM   #7
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Quote:
Originally Posted by oconnor View Post
I think its working..well ****, I don't know. I have it wired and plumbed correctly. Short of sticking my head in the engine compartment while doing test runs, how would i find out...
oh and here is a test at the posting....

well you could set them all to zero and see if it just runs wastegate pressure or turn them up and make sure you set overboost protection???
turbobluemiata is offline   Reply With Quote
Old 09-09-2008, 01:35 AM   #8
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

what other settings do I need to set to make sure that the MSpnp is running the EBC?
oconnor is offline   Reply With Quote
Old 09-09-2008, 01:38 AM   #9
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

instructions are in the mspnp manual
johndoe is offline   Reply With Quote
Old 09-09-2008, 01:53 AM   #10
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

cool, pretty sure i followed it correctly...so it should just be more adjustment on the duty target settings....or I spaced and overlooked something on the instructions...
oconnor is offline   Reply With Quote
Old 09-09-2008, 01:43 PM   #11
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 227
Total Cats: 0
Default

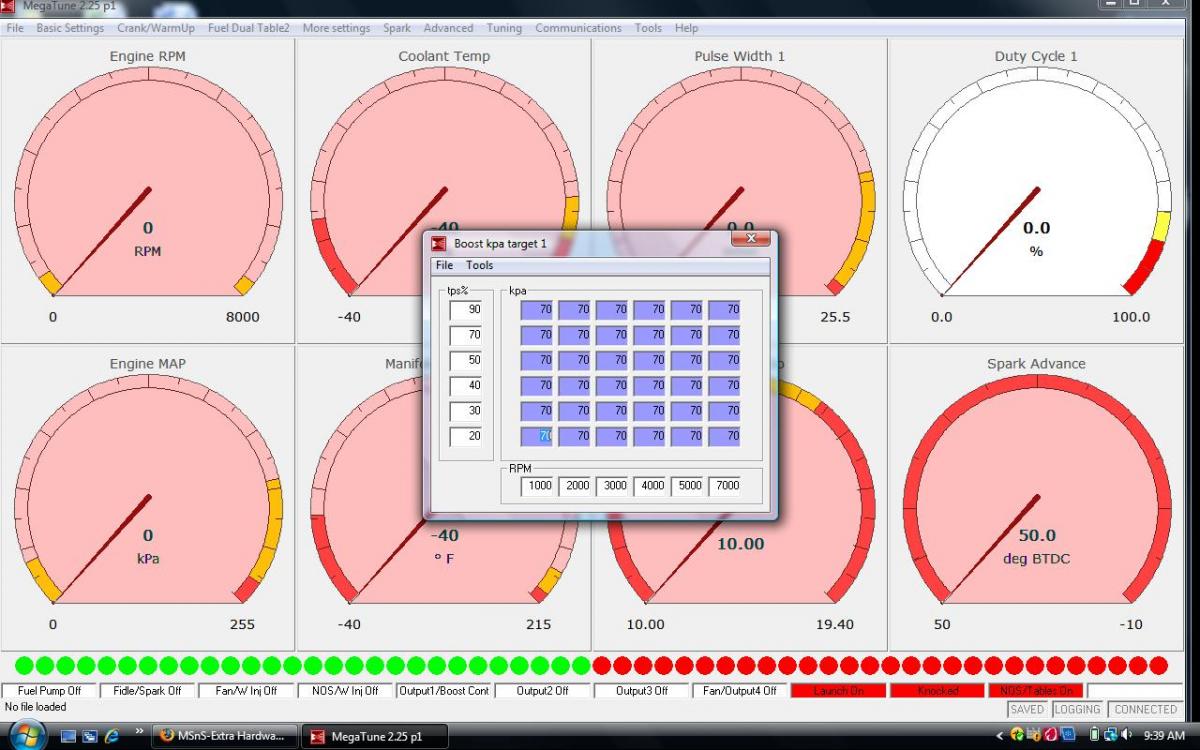

Allrighty then, I just re-reread the MS1 extra manual...my problem may be here in this screen. But now I need to figure out the how's and whys of adjusting before I go ***** nilly...
Attached Thumbnails
EBC data log and duty target tune help-boost-kpa-target-needs-adjust.jpg
oconnor is offline   Reply With Quote
Old 09-09-2008, 01:54 PM   #12
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

don't bother with that page. leave it at 70 across the board. if ebc is working the duty cycle table is what you should use.

1. make sure you don't have any boost leaks
2. make sure the boost control solenoid is wired properly. with car off but key on you should be able to hear the solenoid working when you press the gas.
3. make sure the boost control solenoid is plumbed correctly. the silver fitting goes to the boost source. the other goes to the actuator.
4. make sure your boost controller parameters are correct. 19.5 Hz, 20, 49.8, 9.8, Increase boost
paul is offline   Reply With Quote
