Default EBC duty cycle never changes

So I'm trying to get the EBC going. I have it in open loop. I have tried normal and inverted polarities, with both 100% open AND closed, and 0% open AND closed. Yet, no change in boost, boost duty cycle stays at 35% at full tilt, which is what the initial value table is set to. But I have it in open loop, and that table is greyed out. So I'm kind of lost....

Any helps? ms3x running the DIY solenoid.
whinin is offline   Reply With Quote
Old 11-28-2015, 12:30 PM   #2
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

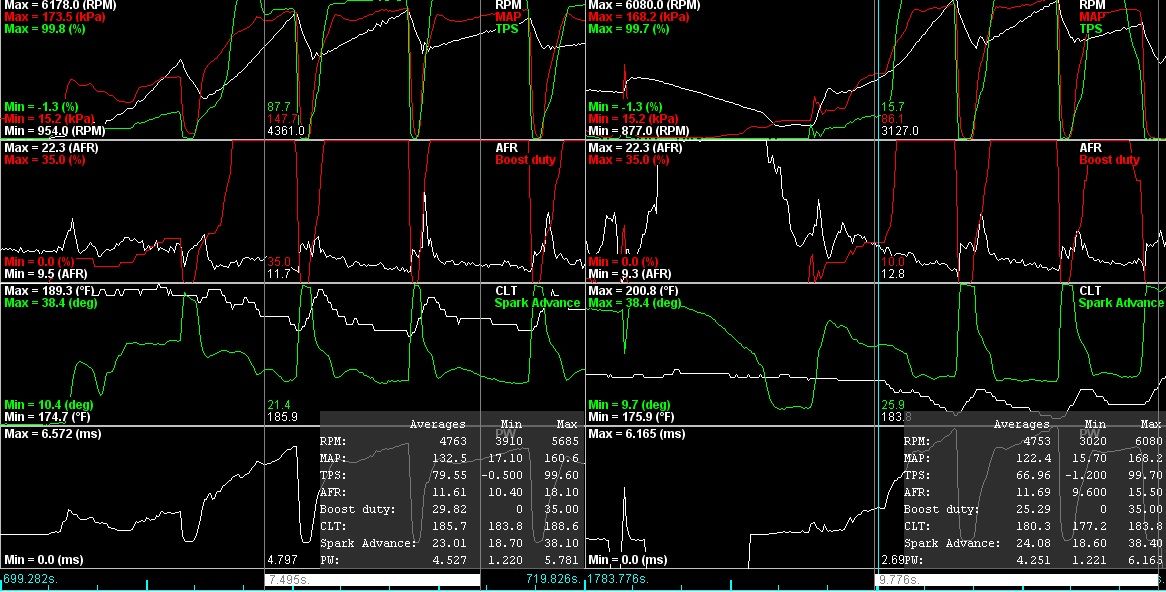

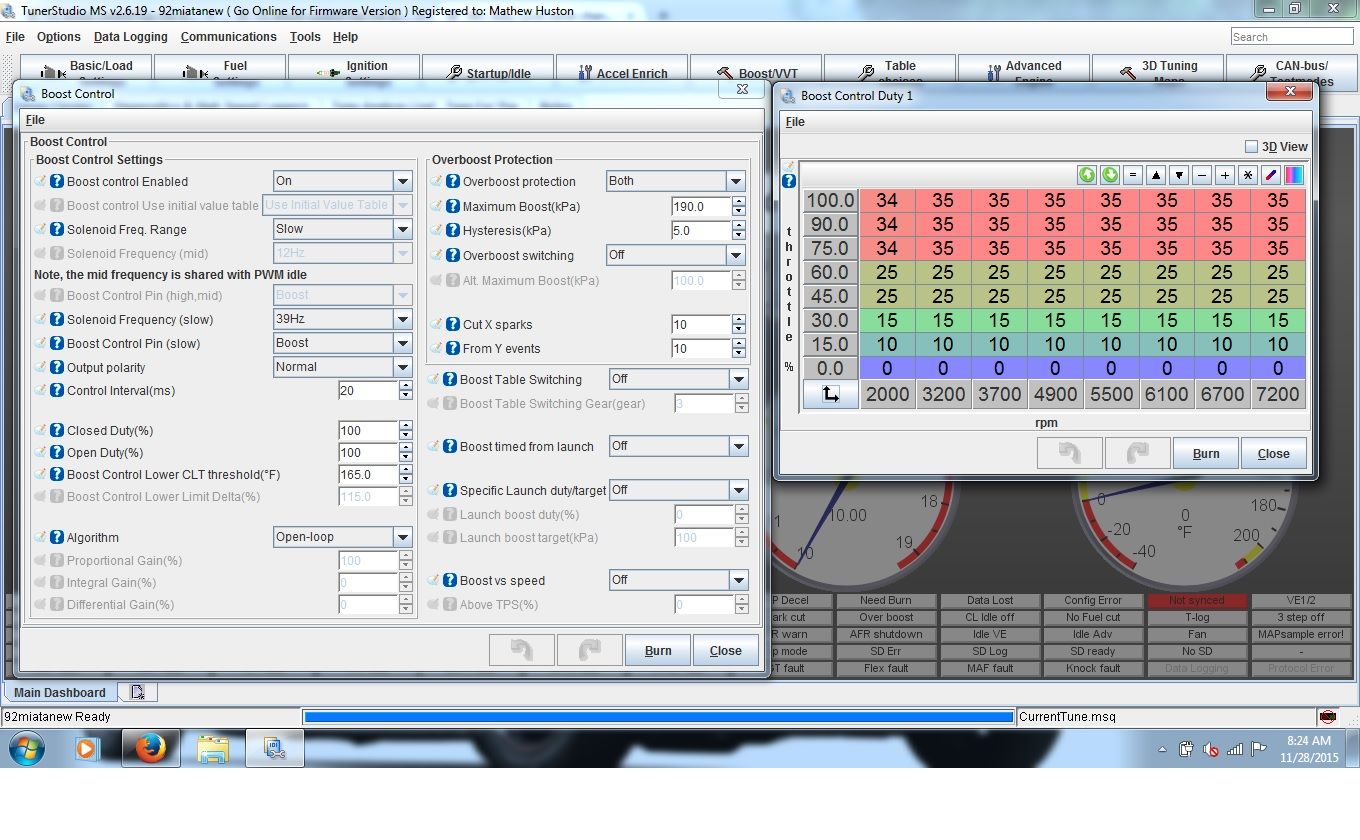

Left is settings at normal, 100% and 100%. Right is inverted, 40% and 40%
Attached Thumbnails
EBC duty cycle never changes-80-tsbcs_89d2c76e6c1e5544e38b82dd8093e4d5c02fc748.jpg   EBC duty cycle never changes-80-mlvbcs_eb790c9f57b3791a918bfaee34643c96047bbe53.jpg
whinin is offline   Reply With Quote
Old 11-28-2015, 02:10 PM   #3
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

It's doing exactly what you're telling it to do. 35% duty cycle as per your settings.
Are you possibly confusing open and closed-loop? Because it sounds like your complaining about closed loop not working while you have it set to open loop.
stefanst is offline   Reply With Quote
Old 11-28-2015, 03:49 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

I thought open loop doesn't use initial duty tables? I'm trying to get my ebc duty values. I haven't touched closed duty yet


Quote:
Originally Posted by stefanst View Post
It's doing exactly what you're telling it to do. 35% duty cycle as per your settings.
Are you possibly confusing open and closed-loop? Because it sounds like your complaining about closed loop not working while you have it set to open loop.
whinin is offline   Reply With Quote
Old 11-28-2015, 04:20 PM   #5
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 878
Total Cats: 93
Default

Not sure where the misunderstanding is, but look at the table you have there. Boost Control Duty 1. This is the ONLY factor in open loop control. If you're at full throttle, you're at full load, and your boost duty is in the top row. That row is all 35.
acedeuce802 is offline   Reply With Quote
Old 11-28-2015, 04:41 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Ok. I thought under open loop it doesn't use the initial duty table. I will make the changes! Thanks for the help. Should be able to get it from here.

Quote:
Originally Posted by acedeuce802 View Post
Not sure where the misunderstanding is, but look at the table you have there. Boost Control Duty 1. This is the ONLY factor in open loop control. If you're at full throttle, you're at full load, and your boost duty is in the top row. That row is all 35.
whinin is offline   Reply With Quote
Old 11-28-2015, 05:12 PM   #7
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 878
Total Cats: 93
Default

They are two different tables.

Open loop means: Megasquirt see's you're at 5500 RPM and 100% throttle, so it looks at the Boost Control Duty 1 table and sets your EBC DC at 35 because that's in the cell.

Closed loop means: Megasquirt see's you're at 5500 RPM and 100% throttle, so it looks at the initial value table and sets your EBC DC at 35 because that's in the cell. It then looks at your desired boost level table, and see's that 5500 RPM and 100% throttle desires 180 kpa. Then it looks at your map sensor and realizes that the 35% that it commanded only nets you 178 kpa, so it bumps the DC up slightly to achieve that.

Cliffs: closed loop uses feedback, open loop doesn't.
acedeuce802 is offline   Reply With Quote
Old 11-28-2015, 05:22 PM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

What firmware are you on? If not running 1.4 then you need to update to it before continuing to tune EBC.
shuiend is offline   Reply With Quote
Old 11-28-2015, 05:56 PM   #9
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

You guys are awesome. I understand completely now.

I updated it around a year ago. Not sure, don't have my laptop with me right now. Will check when I get home.
whinin is offline   Reply With Quote
Old 11-28-2015, 06:30 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

1.4.0 was released a few months ago. Update before continuing to tune.
Savington is offline   Reply With Quote
Old 11-28-2015, 06:40 PM   #11
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

ty!

Quote:
Originally Posted by Savington View Post
1.4.0 was released a few months ago. Update before continuing to tune.
whinin is offline   Reply With Quote
Old 11-28-2015, 10:38 PM   #12
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

OK. Updated to 1.4v firmware. Most of the settings migrated over, just had to re-enable closed loop idle control. So question, in open loop, to find my duty cycle values where the EBC starts to affect psi, I need to 0 out the initial duty table right? Then increase by 5-10% until I see a change? Then do so at 100% going down 5-10%? Kind of like how you would find the duty cycle for the IAC?
whinin is offline   Reply With Quote
Old 11-29-2015, 01:05 AM   #13
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 878
Total Cats: 93
Default

The easiest way is to tune open loop first. Start with 0 DC, then increase by 5-10 until you're close to your target. Then dial it in by increments of 1. Your initial value table isn't a range like the IACV is. Then once the open loop runs fine, then use those values for the initial value table, and tune closed loop.
acedeuce802 is offline   Reply With Quote
Old 11-29-2015, 11:40 AM   #14
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yes you are correct on how to find the min and max values for EBC. But you have a lot more reading to do. Go read the instructions on tuning boost control. And search for EBC on this forum. Then come ask again.
aidandj is offline   Reply With Quote
Old 11-29-2015, 12:27 PM   #15
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

I did plenty of reading a link you posted in another thread. link

I got my target psi in open loop, faded the tables down, copied them over to the bias tables, and changed to closed loop setup mode. It hits 170kpa and stays within 5kpa the whole time. It oscillates a bit, but I can tune that out with either the slider or PID. I have developed sync issues, I have red vertical lines in MLV where it didn't capture the log. I will be deleting the driver for my serial to usb and re installing hoping that fixes it. Then I will be able to get a good log on it.
whinin is offline   Reply With Quote
Old 11-29-2015, 12:37 PM   #16
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

You're on the right track.
aidandj is offline   Reply With Quote
Old 11-29-2015, 02:43 PM   #17
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

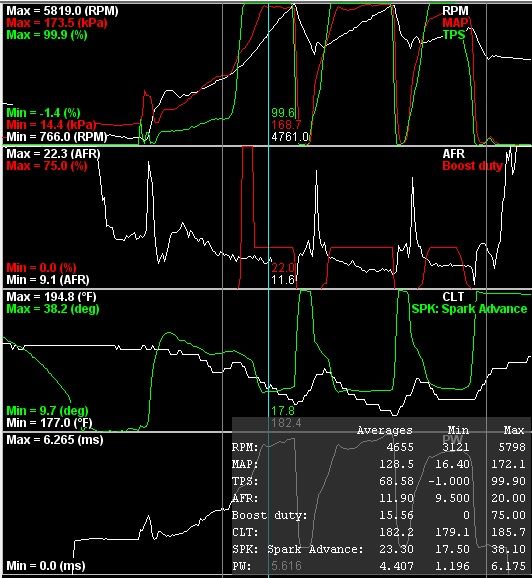

Think I got setup mode pretty dang close. Target is 170kpa. Now onto basic mode.
Attached Thumbnails
EBC duty cycle never changes-80-mlvbcs2_d5f4d4ab0d1be971024117da77b6ef9a5d6e5d5a.jpg
