Is anyone aware of a ready-made extension harness that can be plugged between the MegaSquirt and stock '99-00 wiring loom? My car's connectors are beginning to fall apart due to periodic switching between stock ECU and Megasquirt. If I can get an extension that would help tremendously.

I assume I can make my own if I can source the right connectors but want to see if one is already our there and cheap enough to make sense to buy.
nile13 is offline   Reply With Quote
Old 08-11-2013, 02:58 PM   #2
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

I advise the use of the search function next time, but here:

Boomslang Fabrication | ECU Engine Management Wire Harnesses
karter74 is offline   Reply With Quote
Old 08-11-2013, 03:30 PM   #3
Junior Member
Thread Starter

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

Thank you, Patrick. I am aware of Boomslang (should have mentioned it).

That's why I've put "cheap enough" in the post. I hope to find something a little more reasonable than $100. Possibly someone with time on their hands to make one and make some money. Otherwise I would probably have to put one together myself.
nile13 is offline   Reply With Quote
Old 08-11-2013, 04:53 PM   #4
Junior Member
Thread Starter

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

And just so I can contribute something for the future, here are the parts needed for this harness (Mouser catalog and others carry them). These are preliminary I've ordered samples, will report back:

174516-6 Product Details - TE (26 pin connector)
174515-6 Product Details - TE (22 pin connector)
174514-6 Product Details - TE (16 pin connector)

175094-2 Product Details - TE (040 pins for above connecttors)

http://www.te.com/catalog/products/en?q=178764-1 (64 pin receptacle)

So far the issue I see is that most/all 64 pin receptacles are board-mountable, not wire-to-wire which would make it easier to make the extension harness. not a big deal but I'll try and see if I can find one.

Last edited by nile13; 08-11-2013 at 05:06 PM.
nile13 is offline   Reply With Quote
Old 08-14-2013, 04:06 PM   #5
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

diyautotune has the connector for mazda in their clearance section. pretty cheap, especially if you're ordering other stuff there anyway, like wires

64 pin Miata - Honda - Toyota - etc ECU connector DIYAutoTune.com
bmxfuel007 is offline   Reply With Quote
Old 08-14-2013, 05:15 PM   #6
Junior Member
Thread Starter

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

I saw that, thanks!

Ordered a sample of the conector from TE for now, will see how it goes. I wish that there was a regular pin type connector instead of the board mounted one to which the wires must be soldered. But, according to TE, a mating pin (so called wire-to-wire) male receptacle does not exist for 16, 22 and 26 pin females on the car's harness.
nile13 is offline   Reply With Quote
Old 08-19-2013, 10:31 PM   #7
Junior Member
Thread Starter

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

I've been looking at the connectors that show up from TE. The female connectors look good. The male, however, is a circuit board type instead of push-pin type. The latter would be easier to use.

So... does anyone know of either a single proper 64-pin connector or discrete 16, 22 and 26-pin connectors that would take push pins instead of being board-mount type?
nile13 is offline   Reply With Quote
Old 08-20-2013, 03:52 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

There isn't one.
Reverant is offline   Reply With Quote
Old 08-20-2013, 05:25 AM   #9
Junior Member
Thread Starter

Join Date: May 2012
Location: Boston
Posts: 293
Total Cats: -7
Default

Damn, that was definitive
Thanks, Reverant!
nile13 is offline   Reply With Quote
Old 05-30-2015, 02:23 PM   #10
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default



I'm looking to relocate my ms3 basic to the glove box/passenger airbag area. I've got the part numbers in this post in an onlinecomponents shopping cart, they have a 50 dollar minimum and of course don't sell TXL or GXL wiring so I'm pissing money away buying from them.

So here are the current options for extending the harness as I see them:
-Full DIY - Onlinecomponents for the connectors and pins ($50) and about ($70 in wires elsewhere) - $130 Total
-Buy AEM harness extension and splice extension wires in using solder grip connectors - $129 for patch harness (
Amazon.com: AEM 30-2983C Amazon.com: AEM 30-2983C
) - $50 dollars for wire, $20 connectors - $200 total
-Buy Boomslang Custom Patch Harness 40" - $450 total
-Relocate ecu using factory harness. It seems that the engine harness will fit but one of the 3 connectors doesn't have wiring that's long enough. So you'd have to splice in extensions for the one connector.

Any splicing I do to any patch or oem harness will be done with soldergrip connectors.
Soldergrip Connectors Soldergrip Connectors


So dafuq do i do??? Assume I have the dash fully stripped already, cause i do.
-Boomslang - easiest but holy ***** expensive
-DIY - PITA but cheapest
-Buy AEM and splice - pretty easy even though middle of the road expensive - Does splicing in extension wires into a patch harness like this add significant enough impedance to matter?
-Splice extensions into factory harness - easiest in terms money but splicing into harness meh. Impedance issues again?

suggestions? opinions?

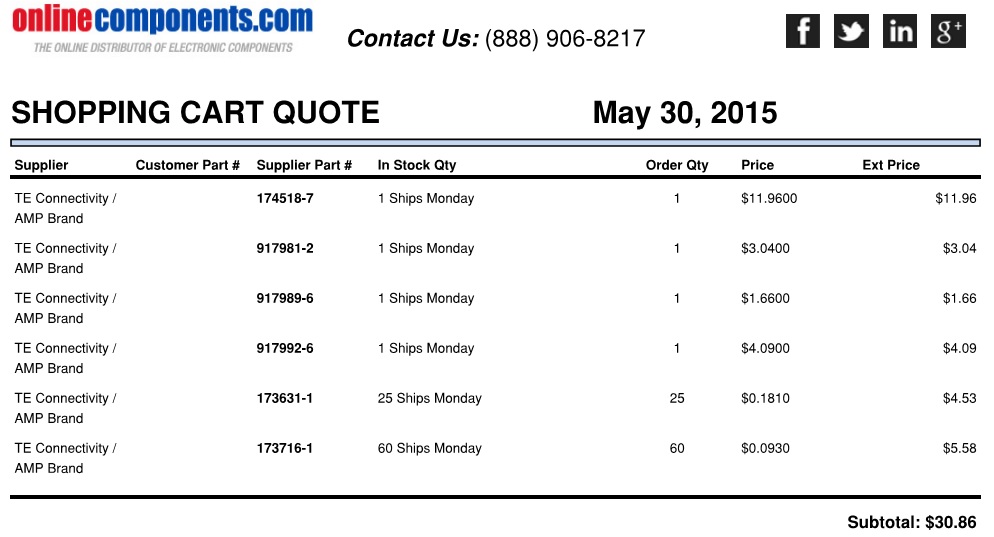

online components cart for reference.
Attached Thumbnails
Extension harness?-threadnecro.gif   Extension harness?-threadnecro.gif   Extension harness?-oc-cart.jpg
EErockMiata is offline   Reply With Quote
Old 05-30-2015, 03:07 PM   #11
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Check at Mouser and digikey, they sell the same parts and don't have a minimum order size.

I did a full DIY, but IIRC the wire only cost about half that. I bought it from ebay -- 18 gauge teflon coated.

--Ian
codrus is offline   Reply With Quote
Old 05-30-2015, 03:56 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

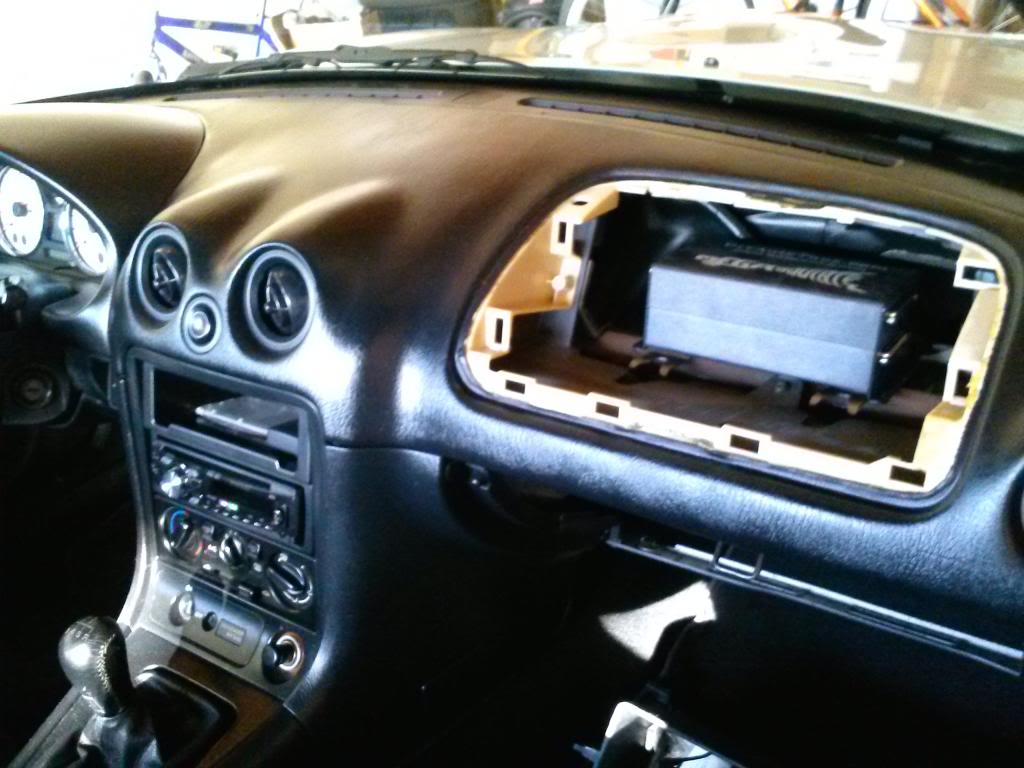

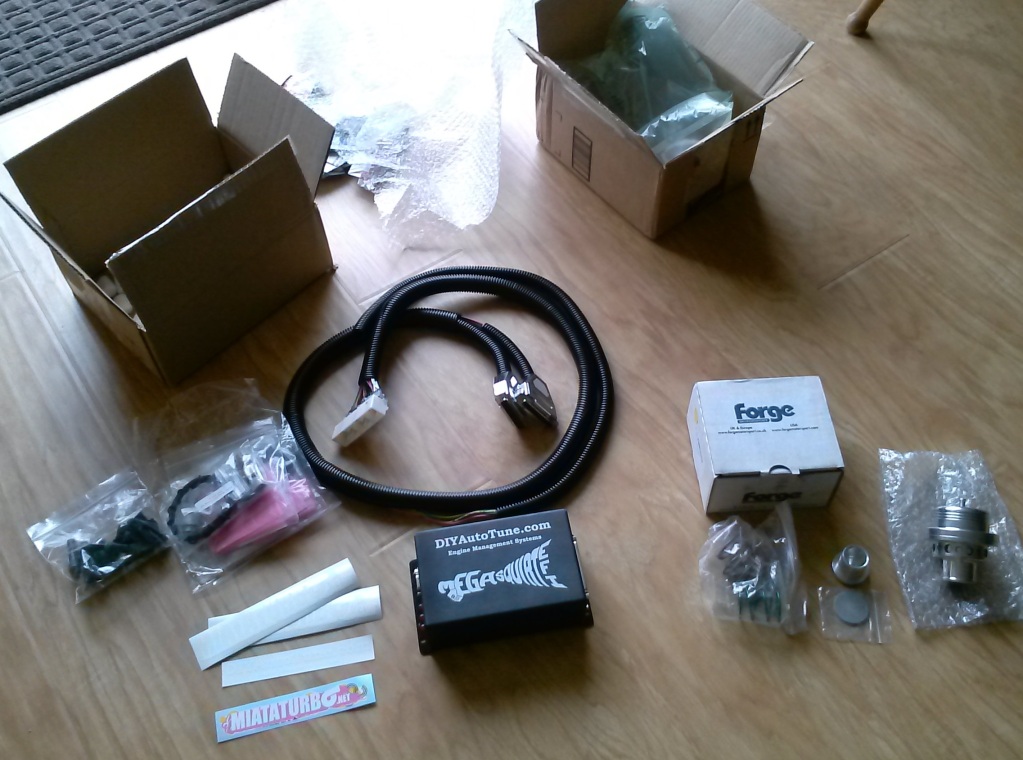

I've no idea how to do this but maybe these pics from my 01 will help someone? lol

Attached Thumbnails
Extension harness?-cam00034.jpg   Extension harness?-cam00122.jpg
18psi is offline   Reply With Quote
Old 06-02-2015, 12:01 AM   #13
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

little update. I priced everything out at mouser and online components to see what the cheapest I could put this together for.

There is no way around spending 50 dollars for the connectors and pins. If you're going to stick to TXL or GXL (a mixture of 18 and 20 gauge) wiring you're into the wiring for about 60 dollars shipped. Basically you're into this for 110 before labor at current prices.

I reached out to autosportwiring.com and they quoted me a price of 177 for a 48" extension harness with white wire.

Long story short... I said fuggit and bought from autosport wiring. I paid it on sunday and Richard from autosportwiring.com had it shipped before the close of business day on Monday.

I should have it by the end of the week, I'll post some pictures.
EErockMiata is offline   Reply With Quote
