My fabricator gave me a good idea today .

Fix the wastegate @ the max boost you want, and install an external WG on the intake pipes, with a proper EBC you can control how much of the max boost your internal WG is making you actually want to gave the intake manifold...

I think you will go that route, I want 0-16psi.
elior77 is offline   Reply With Quote
Old 10-30-2014, 04:37 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

That sounds like a great way to over speed the turbo while throwing efficiency out the window.

With a max desired boost of 16psi you dont even need to do anything fancy to get pretty much linear torque with throttle position. A 6-7psi waste gate can and a normal 3 port boost controller is all you need. Now for the people who want to run 25+psi and have that sweet throttle to torque relationship the 4 port setup is where its at.
Leafy is offline   Reply With Quote
Old 10-30-2014, 04:38 PM   #23
Senior Member

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

If you fix the wg at a specific max boost, how would that over speed the turbo ? because it does not start the spool with closed wg ?

I would like to get 0-16psi, all the range, 0 psi while the wg is open and with no boost for cruising and fuel economy. (I use a small turbo)

Last edited by elior77; 10-31-2014 at 02:37 AM.
elior77 is offline   Reply With Quote
Old 10-31-2014, 09:42 AM   #24
Junior Member
iTrader: (1)

Join Date: Jul 2011
Location: Trondheim, Norway
Posts: 56
Total Cats: 3
Default

Quote:
Originally Posted by elior77 View Post
My fabricator gave me a good idea today .

Fix the wastegate @ the max boost you want, and install an external WG on the intake pipes, with a proper EBC you can control how much of the max boost your internal WG is making you actually want to gave the intake manifold...

I think you will go that route, I want 0-16psi.
What you have donere is rediscover the dumpvalve regulated boostpressure. A system noticeable use sine the 70's due to its horrible inefficiency.
PiazzaT is offline   Reply With Quote
Old 11-04-2014, 05:26 AM   #25
Senior Member

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Let me correct my self please.

- Install on the actuator the spring that would give you max boost you want.
- Install blow off valve on the intake plumping.
- Connect boost control to the blow off valve.

BLV closed = max boost
BLV open = 0psi boost
BLV regulated = regulated boost up to spring.

You can now achieve 0 to spring boost levels.

Better ?
elior77 is offline   Reply With Quote
Old 11-04-2014, 08:22 AM   #26
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

No. It still doesnt work. Because you'll end up commanding lower than spring pressure boost at some point which will push the turbo past its redline and spin the bearing. Your method generates more heat for the same boost pressures as just doing it normally and typically puts the turbo in a lower efficiency range because it make it operate more to the right on the compressor map.
Leafy is offline   Reply With Quote
Old 11-04-2014, 08:52 AM   #27
Senior Member

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Ok then, I can understand what you're saying.

What would be a good way to get 0-16psi range ?

Thanks
elior77 is offline   Reply With Quote
Old 11-04-2014, 09:33 AM   #28
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Run a 6-7ish psi actuator and a 3 or 4 port boost controller and use boost vs tps. 7psi would end up being the minimum full throttle boost you could get but zero psi would be around 30% throttle depending on rpm and turbo choice.

But if you actually want to get a setup that can do 0-16 psi at full throttle then you're going to need a large external wastegate and a co2 system.
Leafy is offline   Reply With Quote
Old 11-04-2014, 09:35 AM   #29
Senior Member

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

I got AMS500 with co2, I need external WG ? How would I set it up ?
elior77 is offline   Reply With Quote
Old 11-04-2014, 09:38 AM   #30
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by elior77 View Post
I got AMS500 with co2, I need external WG ? How would I set it up ?
Depending on your turbo size even fully open an IWG can still create boost. IE on my car I cant generate less than 10psi at peak torque with the efr6758 even with the gate open as far as the actuator goes.
Leafy is offline   Reply With Quote
Old 11-04-2014, 09:43 AM   #31
Senior Member

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

I got a small TD04-13C, when the actuator is removed I get little to no boost (0-3psi)
elior77 is offline   Reply With Quote
Old 11-04-2014, 10:39 AM   #32
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by Leafy View Post

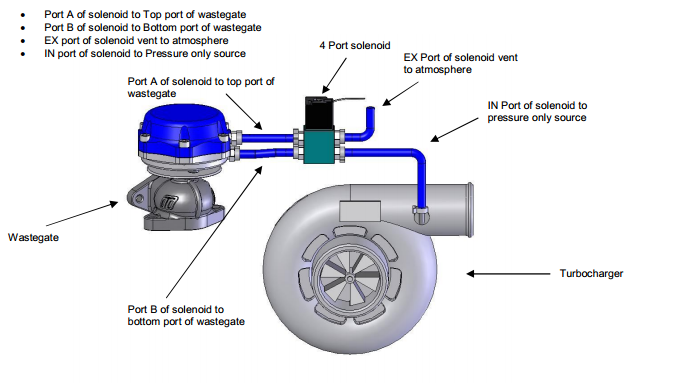

no no, thats just the solenoid you want with the 2 port waste gate. You want like a 7psi spring in the waste gate. The normal waste gate just pushes against the spring to open the gate, but exhaust gases eventually push the gate open against the spring even if you leave the wastegate open to the air if the spring is that soft. But with the 2nd port on the wastegate and the 4 port soleniod you can use the boost air to push on the same side as the spring holding the wastegate closed.

This helped my understanding greatly.
Attached Thumbnails
Fully Electronic Wastegate Control?-mac4porthoserouting_zpsd81bffa5.png
stoves is offline   Reply With Quote
Old 12-29-2014, 02:08 PM   #33
Newb

Join Date: Dec 2014
Location: Stevenage, UK
Posts: 9
Total Cats: 2
Default

There are electronic actuators on many modern turbos. I believe they are PWM controlled.



I'm sure they could be made to work with an MS.

There were/are many 2 stroke bikes that use a power valve system or an EXUP valve servo. They use a push pull cable system and could also likely be used.

Cheers
Stot
Stot is offline   Reply With Quote
Old 06-26-2016, 05:28 PM   #34
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Er, you've guys seen these, right?

Official Turbo Wastegates | WG, 40mm, 50 turbo wastegate

They make them right in town. Their BOV's are ridiculously fast. I'm sure I can find out more if anyone cares. But it's an easy way to get a few levels of boost mechanically.

-Abe.
AbeFM is offline   Reply With Quote
