Default Gen 2 MSPNPs are ready to ship!



We've just released the Gen 2 MSPNP for '90-'95 Miatas! This one replaces the stock ECU with our own tunable MegaSquirt ECU, and gives you full control over your fuel map, timing tables, and more. Other features include support for low impedance injectors, boost control, 2 step rev limiter, a headphone jack for listening to a knock sensor, and more! Price is $799.

(OK, you guys probably already knew half of that. This is something of a boilerplate sales pitch.)

The full list of Gen 2 models includes 5 ECUs, covering 20 different models:

BMW: Part Number MSPNP2-B8793
'87-'92 E30 325 M20
'89-'90 525 M20
'89-'93 535 M30
'91-'93 M5 S38
'88-'92 735 M30


Mazda/Ford: Part number MSPNP2-MM9093
90-93 Miata 1.6
'90-94 Protege / 323 (1.6 and 1.8)
'91-'95 Escort GT 1.8
'90-'93 Festiva 1.3
'92-'93 Mazda MX3 1.6L I4


Mazda: Part number MSPNP2-MM9495
94-95 Miata 1.8


Nissan: Part Number MSPNP2-NS8994
'89-'90 SOHC 240SX KA24E
'91-'94 DOHC 240SX KA24DE
91-94 Sentra / NX1600 GA16DE
91-94 Sentra / NX2000 SR20DE
91-93 G20 SR20DE
90-95 Hardbody KA24DE


Toyota: Part Number MSPNP2-T8590
'85-'90 Pickups / 4Runners (22RE and 22RTE)
'85-'89 MR2 4AGE
'85-'87 AE86 Corolla 4AGE

Order yours now at this link:

http://www.diyautotune.com/catalog/m...tpnp-c-40.html

Or check this out for more info:

http://www.megasquirtpnp.com/

Yes, we've got more Miata applications in the works.

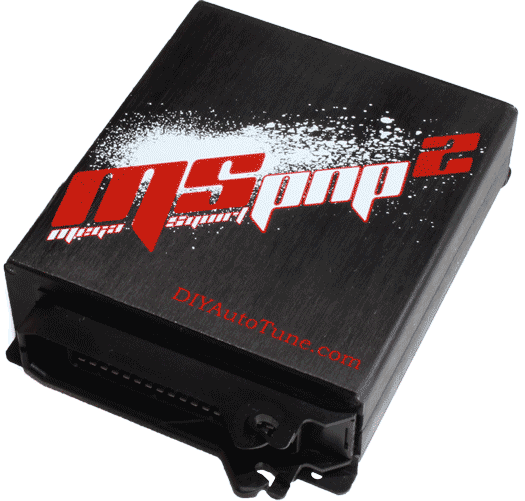

Attached Thumbnails Gen 2 MSPNPs are ready to ship!-mspnp2.gif
__________________
Matt Cramer
www.diyautotune.com
Matt Cramer is offline
Old 01-26-2012, 08:52 PM
  #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,188
Total Cats: 656
Default

Put your sales hat on. Why should I upgrade my MSPNP9093?
hornetball is offline
Old 01-27-2012, 01:45 AM
  #3
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Is the AC idle up feature implemented in hardware?
Greg G is offline
Old 01-27-2012, 10:10 AM
  #4
Supporting Vendor
Thread Starter

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,329
Total Cats: 62
Default

Originally Posted by hornetball View Post
Put your sales hat on. Why should I upgrade my MSPNP9093?
Here are some of the biggest advantages.

1. It has about 100 times more pulse width resolution, making precise injector control at idle a snap even with monster injectors.
2. Peak and hold injector drivers let you drop in low impedance injectors without worrying about electrical noise issues.
3. The headphone jack lets you listen for knock while you tune.
4. You can rewire your car for sequential injection, which will give a smoother idle and better response at light throttle.
__________________
Matt Cramer
www.diyautotune.com
Matt Cramer is offline
Old 01-27-2012, 10:18 AM
  #5
Supporting Vendor
Thread Starter

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,329
Total Cats: 62
Default

Originally Posted by Greg G View Post
Is the AC idle up feature implemented in hardware?
Yes, we have our own hardware A/C idle up device on it. Doesn't talk to the processor at all.
__________________
Matt Cramer
www.diyautotune.com
Matt Cramer is offline
Old 01-28-2012, 08:44 AM
  #6
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Originally Posted by Matt Cramer View Post
Yes, we have our own hardware A/C idle up device on it. Doesn't talk to the processor at all.
Is is adjustable? Does it have an on/off delay?

Thanks!
Greg G is offline
Old 01-28-2012, 08:30 PM
  #7
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: -1
Default

Are the msq's compatible with diypnp. How about the idle up for a/c can it be added to the diypnp?
90 Turbo is offline
Old 01-28-2012, 09:37 PM
  #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 6,017
Total Cats: 289
Default

Any word on 99-00 release?
thirdgen is offline
Old 01-29-2012, 03:24 PM
  #9
Newb

Join Date: Dec 2011
Posts: 2
Total Cats: 0
Default

will it tuen with TPS base? I have ITB set up, and I need it to tune with TPS/RPM
projectrosy is offline
Old 01-29-2012, 03:41 PM
  #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

Originally Posted by Greg G View Post
Is is adjustable? Does it have an on/off delay?

Thanks!
Adjustable yes, delay no. The idle up is instant and works well.

Originally Posted by 90 Turbo View Post
Are the msq's compatible with diypnp. How about the idle up for a/c can it be added to the diypnp?
The MSPNP maps are close enough for use as DIYPNP basemaps--assuming that the user assigns I/O in the same manner we did, or they re-assign outputs to match their pinout. By why not just start with a DIYPNP basemap? You can use a software idle up with DIYPNP if you use the special firmware.

Originally Posted by thirdgen View Post
Any word on 99-00 release?
No timeline set as of now, but I would guess 2-3 months.

Originally Posted by projectrosy View Post
will it tuen with TPS base? I have ITB set up, and I need it to tune with TPS/RPM
Yes, it has a specifically coded ITB load algorithm, as well as multiple other ways of blending strategies.
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 01-29-2012, 05:13 PM
  #11
Newb

Join Date: Dec 2011
Posts: 2
Total Cats: 0
Default

thank you for the info, just placed the order =)
projectrosy is offline
Old 01-29-2012, 06:38 PM
  #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

Sweet, thanks.

Try out the "ITB" mode, I think you'll really like it. It uses speed density under 80kPa (idle and very light cruise), then transitions to alphaN over 80kPa for better response.

Good luck with it, and let us know if you need anything.
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 01-31-2012, 05:31 PM
  #13
Junior Member
iTrader: (2)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 204
Total Cats: 44
Default

How easy is it to add an external MAP sensor? I saw a huge improvement in my G35 w/Haltech when I switched from the internal MAP to and external (vacuum line went from ~4 feet to 3"). I won't ever run an internal MAP sensor ever again!
mx592 is offline
Old 01-31-2012, 06:38 PM
  #14
Junior Member

Join Date: May 2007
Posts: 46
Total Cats: 0
Default

Does A/C idle control still work when ITB's are used?
SideDraft is offline
Old 01-31-2012, 06:44 PM
  #15
Newb

Join Date: Oct 2011
Posts: 20
Total Cats: 0
Default

Is the ITB mode available on the DIYPNP and what are the benefits of the MSPNP2 over the DIYPNP?
mrpham is offline
Old 02-01-2012, 09:49 AM
  #16
Supporting Vendor
Thread Starter

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,329
Total Cats: 62
Default

Originally Posted by mrpham View Post
Is the ITB mode available on the DIYPNP
Yes, if running an MS2/Extra code variant that has it.

and what are the benefits of the MSPNP2 over the DIYPNP?
The biggest one is, of course, that MSPNP2s are fully assembled and ready to rock. We also slipped in a few add-ons, such as:

1. Real peak and hold injector outputs to drive low impedance injectors with minimal noise.
2. The A/C idle up feature.
3. A better knock circuit - you can set separate high and low RPM knock thresholds, and listen to the knock sensor with a built in headphone jack.

Originally Posted by SideDraft View Post
Does A/C idle control still work when ITB's are used?
Only if your ITBs are fitted with an IAC valve.

Originally Posted by mx592 View Post
How easy is it to add an external MAP sensor? I saw a huge improvement in my G35 w/Haltech when I switched from the internal MAP to and external (vacuum line went from ~4 feet to 3"). I won't ever run an internal MAP sensor ever again!
It's doable if a bit less plug and play. You'd have to set an internal jumper for the external MAP mode and wire the MAP sensor to the stock MAF wiring, then calibrate it for your new MAP sensor.
__________________
Matt Cramer
www.diyautotune.com
Matt Cramer is offline
Old 03-20-2012, 07:58 AM
  #17
Newb

Join Date: Jan 2011
Posts: 28
Total Cats: 1
Default

I bought one! waiting on delivery
