Help getting VVT swap running
I need some help getting my vvt motor running, I've gone over my wiring 2-3 times now and it all seems correct. So far all I can tell is I'm not getting spark and don't think I'm getting any signal from the crank sensor. I'm terrible at diagnosing electrical stuff, so if anyone is able to chime in and help out I'd appreciate it. Car is a '90 chassis with brain-built ms3x, engine is '02 vvt, the megasquirt worked fine with the previous 1.6 in the car.

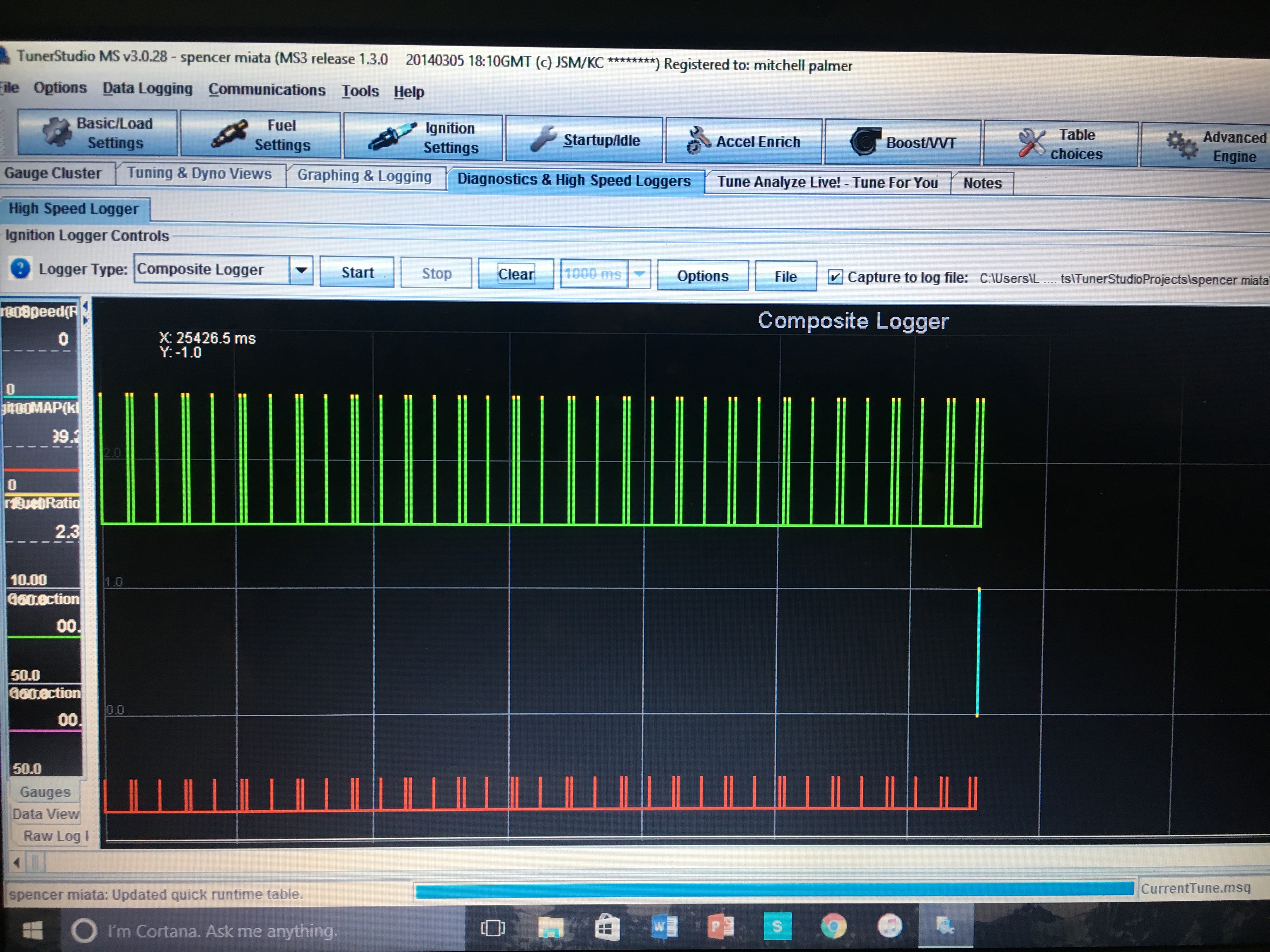

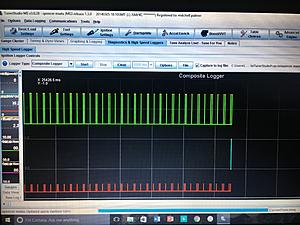

Reply
0
0
09-12-2017, 02:05 PM
#5
Junior Member
Thread Starter
iTrader: (1)
Join Date: May 2012
Location: Little Elm, TX
Posts: 94
Total Cats: 7
So, I checked wiring again, all voltages appear to be correct, went ahead and replaced the sensor just to see if that would do anything and still don't have crank signal.
Reply
0
0
09-12-2017, 03:31 PM
#6
You say voltages are correct, your red/white wire on the harness going to the crank sensor has 12 volts when the key is on run?
The black/light green ground wire has a hard 0 for voltage when compared to the block? I would also check for resistance, should be very low.
Check the resistance of the white wire all the way back to the MS. it should be very low. If it is then your wiring is correct and the problem is in the MS or the sensor.
(these colors are guesses based on the VVT swap thread sorry if I made a mistake)
Sounds like a new sensor did not replace your problem, maybe look again at the megasquirt. perhaps adjusting the trim pots?
Did you try Y8's suggestion? might be hard to set up if you do not have the right equipment. You might need an analog voltmeter to see the needle move.
The black/light green ground wire has a hard 0 for voltage when compared to the block? I would also check for resistance, should be very low.
Check the resistance of the white wire all the way back to the MS. it should be very low. If it is then your wiring is correct and the problem is in the MS or the sensor.
(these colors are guesses based on the VVT swap thread sorry if I made a mistake)
Sounds like a new sensor did not replace your problem, maybe look again at the megasquirt. perhaps adjusting the trim pots?
Did you try Y8's suggestion? might be hard to set up if you do not have the right equipment. You might need an analog voltmeter to see the needle move.
Reply
0
0
09-12-2017, 05:12 PM
#7
Junior Member
Thread Starter
iTrader: (1)
Join Date: May 2012
Location: Little Elm, TX
Posts: 94
Total Cats: 7
Sensor has 12v, testing the sensor by waving a screwdriver in front of it goes from 4.9v to .9v. I have not checked resistance, but I'm gonna have a look inside the ms to make sure all the correct jumpers are installed. Should anything be different for it to use the nb sensors? It previously worked fine on my 1.6 with cas.
