Default How might one go re scaling the kpa table in MLV

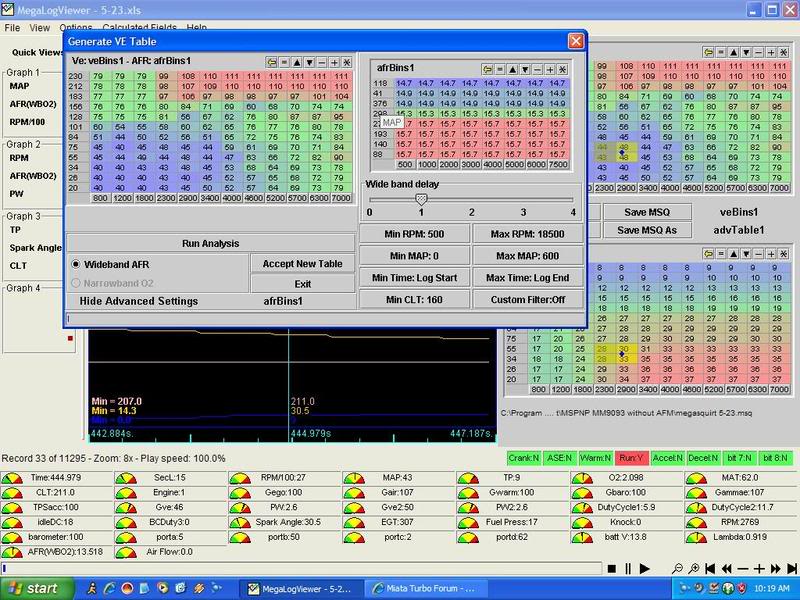

Im trying to get my MLV all figured out and tuning in my fuel map however i cannot figure out how to change the scaling limits on the VE Analysis
Name:  VEtablerescale.jpg
Views: 3
Size:  118.0 KB

Any idea's?
thesnowboarder is offline   Reply With Quote
Old 05-25-2008, 03:57 PM   #2
Junior Member
iTrader: (2)

Join Date: Jan 2008
Location: Chicago
Posts: 219
Total Cats: 0
Default

I'm not an expert when it comes to tuning, but if your car is turbo then the afr targets looks way off and lean. Why is your map kpa all over the place?
zarish is offline   Reply With Quote
Old 05-25-2008, 04:56 PM   #3
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Open your MSQ in MegaTune and sort that target table out, its a mess!
richard_ha is offline   Reply With Quote
Old 05-25-2008, 05:08 PM   #4
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Guys, I'm sure that's not the target table he is actually looking for, he just wants to be able to re-scale the kpa part of the table.... notice how it doesnt even go in order from highest to lowest, its all over the place.

Nick, I did it to mine because that is how mine originally came up as well, I don't remember off the top of my head how to do it and dont have my tuning laptop/logs with me to check out how. I'll let you know Monday night if noone else responds by that time.
crashnscar is offline   Reply With Quote
Old 05-25-2008, 05:17 PM   #5
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Actually, IIRC, go into megatune and open your msq. I think it is under More Settings but there will be AFR Targets. You should be able to change it in there.
crashnscar is offline   Reply With Quote
Old 05-25-2008, 07:00 PM   #6
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by crashnscar View Post
Actually, IIRC, go into megatune and open your msq. I think it is under More Settings but there will be AFR Targets. You should be able to change it in there.
Correct. However, you have to enable Lambda ARR Target tables first before you can access the table:

More Settings > Lambda AFR Settings > For VE Table 1 > ON.

Then you can go access the 8x8 AFR table, and set correct MAP.

I used Pauls N/A AFR target table as a starting point..

After I adjust any settings in there, I go back in and turn off AFR Targets because I don't have a solid tune yet and the targets make my **** all crazy..
elesjuan is offline   Reply With Quote
Old 05-28-2008, 03:01 PM   #7
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by elesjuan View Post
Correct. However, you have to enable Lambda ARR Target tables first before you can access the table:

More Settings > Lambda AFR Settings > For VE Table 1 > ON.

Then you can go access the 8x8 AFR table, and set correct MAP.

I used Pauls N/A AFR target table as a starting point..

After I adjust any settings in there, I go back in and turn off AFR Targets because I don't have a solid tune yet and the targets make my **** all crazy..
For anyone that goes searching this is exactly what needed to be done, thanks
