Default How are you guys holding your IAT sensor wires onto your MAF/AFM?

High temp electric tape, soldered into place?

Mine tend to fall out quite often and im looking for a more permanent solution. Something that can be easily reverse able and stand up to the high temps under the hood.

Lets hear what you guys have done.
thesnowboarder is offline   Reply With Quote
Old 01-01-2009, 10:34 PM   #2
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

I'm pretty sure I just have mine taped similarly to the pics in the MSPnP manual and it's tucked under my cool air box to protect it from radiant heat. No issues so far.
johndoe is offline   Reply With Quote
Old 01-01-2009, 11:02 PM   #3
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

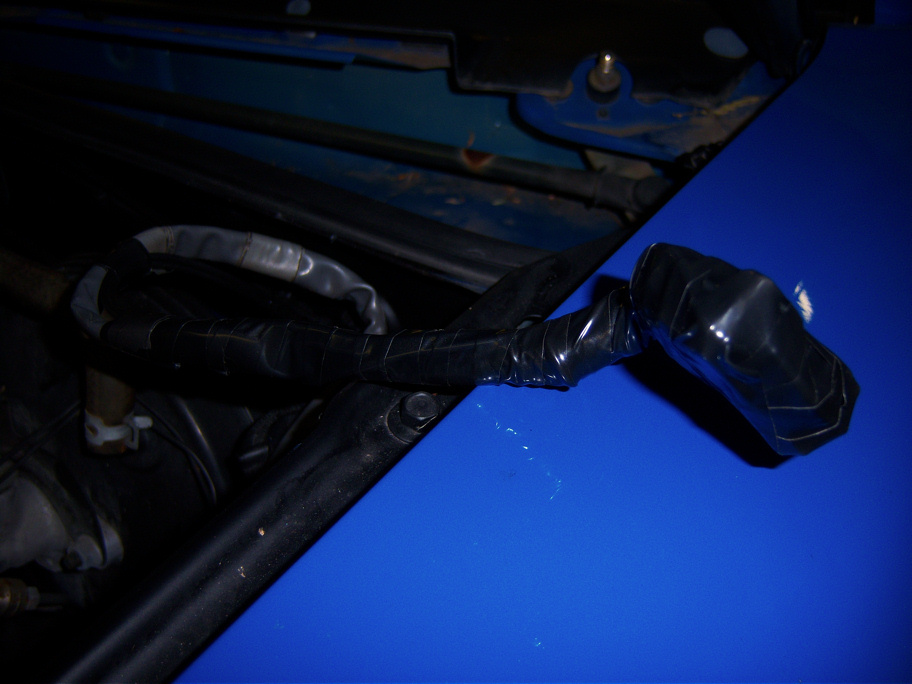

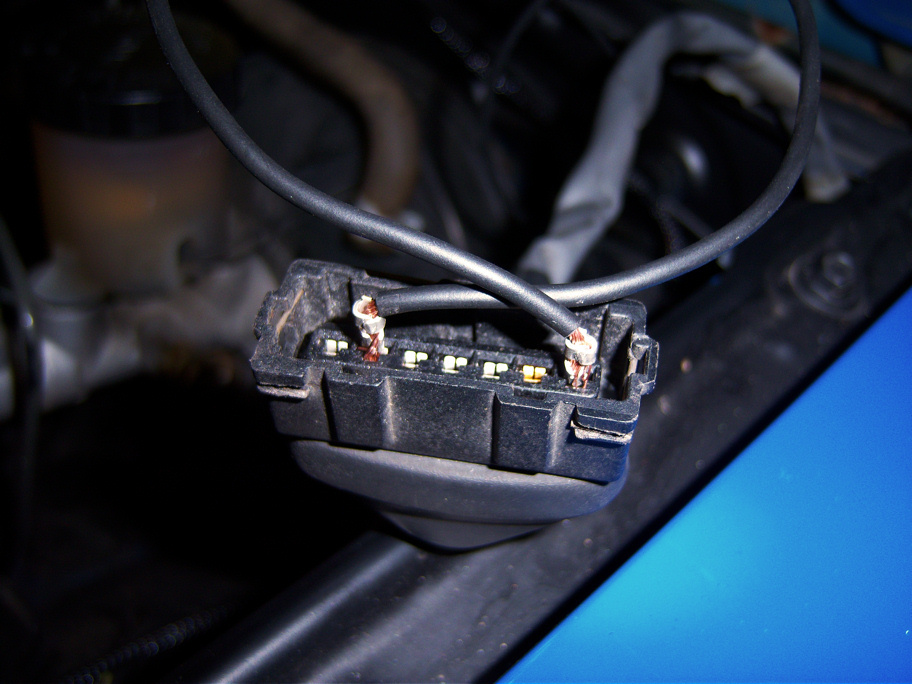

I pushed the tabs in and then wrapped the **** out of the plug with electrical tape. Its tucked away and you cant even see it.

Vash-
Attached Thumbnails
How are you guys holding your IAT sensor wires onto your MAF/AFM?-maf01.jpg   How are you guys holding your IAT sensor wires onto your MAF/AFM?-maf02.jpg
Vashthestampede is offline   Reply With Quote
Old 01-01-2009, 11:15 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Frak the AFM harness. Run the IAT sensor wire into the passenger compartment, put a vampire tap in the appropriate wire at the ECU connector, and plug into that.
Joe Perez is offline   Reply With Quote
Old 01-02-2009, 01:08 AM   #5
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Joe Perez View Post
Frak the AFM harness. Run the IAT sensor wire into the passenger compartment, put a vampire tap in the appropriate wire at the ECU connector, and plug into that.
Thats what i'm saying. Just got done doing this myself. You're already running a vac hose through there, why not a wire?

I've just about run out of existing holes to fit things through the firewall. Someday once I have a trusting relationship with the MS i'm likely going to do a complete re-wire on the engine harness and tidy things up.
wayne_curr is offline   Reply With Quote
Old 01-02-2009, 01:12 AM   #6
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

I would like it to be reversible, so hacking up the harness isnt really an option for me. Im thinking, possibly find a used/broken afm and use the male end that plugs into the harness and just solder the wires to that, and have it plug right in.
thesnowboarder is offline   Reply With Quote
Old 01-02-2009, 04:19 AM   #7
Junior Member

Join Date: May 2007
Posts: 46
Total Cats: 0
Default

thats how mine are.
Name:  IMG_0472.jpg
Views: 6
Size:  84.9 KB
SideDraft is offline   Reply With Quote
Old 01-02-2009, 10:49 AM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by thesnowboarder View Post
I would like it to be reversible, so hacking up the harness isnt really an option for me.
I don't consider a vampire tap to constitute "hacking up" the harness.

But your idea about the spare AFM connector will work too. That's how I got F/P IAT working back when I had an EMU, after removing the AFM. Specifically:



Joe Perez is offline   Reply With Quote
Old 01-02-2009, 10:57 AM   #9
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by Joe Perez View Post
Frak the AFM harness. Run the IAT sensor wire into the passenger compartment, put a vampire tap in the appropriate wire at the ECU connector, and plug into that.
+1 with a twist.

When I was running MS in parallel with the stock ECU, I had the IAT wire run into the cabin and attached directly to the IAT input on MS by passing the stock wiring/harness altogether.
brgracer is offline   Reply With Quote
