Default I'm ready for a knock sensor

After about two weeks worth of fiddling, I have most of my fuel-related settings fairly well dialed-in. Feedback from the wideband made this a really, really easy process.

I'm ready to jump in and try optimizing the spark table (running MSPNP table right now), but I'm afraid to do so without being able to hear for knock. So my options right now are:

1) Buy knocksense MS.

2) Build knocksensing circuit from MS/Extra website.

I searched but couldnt find useful info. Apparently no one here has built the knocksensing circuit?

I'd like your opinions on both options. How well did it work out for you? Were you able to tune the sensor to actually hear for real knock?

Additionally, once my turbo goes in I'll be having an EGT input to the MS as well, so I hope to tune on-boost spark table using that.
The_Pipefather is offline   Reply With Quote
Old 04-20-2008, 02:06 PM   #2
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

one of our australian members with a megasquirted NB built the knock circuit. can't remember his name for the life of me.
Arkmage is offline   Reply With Quote
Old 04-20-2008, 04:35 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

I love my KnocksenseMS. I have it wired in with a second potentiometer to filter out noise and it works great.

Also, remember that the best way to tune spark is dyno time.
Savington is offline   Reply With Quote
Old 04-20-2008, 05:38 PM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

That's true, but I'd like to have atleast a "90% there" tune before wasting dyno time. I believe the PNP settings are ultra-conservative?
The_Pipefather is offline   Reply With Quote
Old 04-20-2008, 06:38 PM   #5
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
I love my KnocksenseMS. I have it wired in with a second potentiometer to filter out noise and it works great.

Also, remember that the best way to tune spark is dyno time.
After the ping I started hearing last week I'm strongly considering getting one as well. The price is right.
Arkmage is offline   Reply With Quote
Old 04-20-2008, 07:43 PM   #6
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Quote:
Originally Posted by Arkmage View Post
one of our australian members with a megasquirted NB built the knock circuit. can't remember his name for the life of me.
Maybe you are thinking of Reverant, but he's not from Australia. I've built the knock circuit but never bothered to test it.
timk is offline   Reply With Quote
Old 04-20-2008, 08:13 PM   #7
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by saboteur View Post
Maybe you are thinking of Reverant, but he's not from Australia. I've built the knock circuit but never bothered to test it.
I think reverant did do this, but there was another guy... almost positive he was an aussie.
Arkmage is offline   Reply With Quote
Old 04-20-2008, 08:17 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by The_Pipefather View Post
That's true, but I'd like to have atleast a "90% there" tune before wasting dyno time. I believe the PNP settings are ultra-conservative?
Not ultra-conservative, but there is a bunch to be had, especially in adding timing post-torque peak.
Savington is offline   Reply With Quote
Old 04-20-2008, 08:45 PM   #9
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

I've been doing some reading over the afternoon and really, knock sensing seems like a sub-optimal setup unless we copy the OEM implementation of it, which was found in the post-99 engines.

The other thing I have come to know is the B6T engine came with some kind of knock sensing setup. I'm sure that will give better results for us 1.6 guys provided the output signal from the knock amplifier module is something that MS can use.

Anyone who has made Knocksense work perfectly please tell me I'm wrong about this whole thing.
The_Pipefather is offline   Reply With Quote
Old 04-20-2008, 11:04 PM   #10
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Arkmage View Post
I think reverant did do this, but there was another guy... almost positive he was an aussie.
AussieDriver?
kotomile is offline   Reply With Quote
Old 04-21-2008, 02:11 PM   #11
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by The_Pipefather View Post
and really, knock sensing seems like a sub-optimal setup unless we copy the OEM implementation of it, which was found in the post-99 engines.

Anyone care to comment on this? It shouldn't be hard for someone who has a 99 ECU and a DMM to trace the circuit. I could do it if someone lends me their 99 ECU.....

This is of course, assuming, no one has been able to get good performance from the Knocksense.

The other option, of course, is to build something wacky like this:

http://forums.neons.org/viewtopic.php?t=295450

Its a little caveman-like but it could work while tuning the spark maps, atleast.
The_Pipefather is offline   Reply With Quote
Old 04-21-2008, 02:37 PM   #12
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

As Savington said, we have his working well. We used to tune and listed for knock, but its kind of hard with the turbo and exhaust noise, doesn't help that he usually has an exhaust leak as well.

Now, when we are tuning I never hear knock, but every once and a while the sensor goes off and pulls timing real quick, it's really a good idea just for added safety. I am about to install a MS in my miata, and will be purchasing a KnocksenseMS for it since it's worked well on Savington's.
crashnscar is offline   Reply With Quote
Old 04-21-2008, 08:33 PM   #13
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I (don't think) I've had any issue with false positives on my knocksense. I ran the regular one for a while, and upgraded to the KSMS when I got my MS-II.

for the most part, when I expect it to go off, it does. When I ran a front lisence plate (covering the intercooler), I got knock. I get 'knock' when I rev higher than I tuned the KS to ignore. I get knock on messy, grinding shifts.

The downside is I've never 'heard' knock, so I don't know if I'm missing some, or if this is all false. Pulling timing makes it go away so it seems real enough.


My only comment on the stock knocksensor is that the miata hardly uses it. They ignore it above some fairly low rpm (4 or 5k) because the motor is just too noisey.

The problem is the miata can have bad knock which is quieter than normal engine opperation at the top end. You want two things, one should be easy, one is just plain hard:

1) A knock threshold dependent on RPM. The MS-II extra supports this, MS-I might. But you still need a detector circuit which puts out a signal proportional in volume to what the actual sensor sees.
2) A knock 'window', so you only listen for knock ~10-20 degrees around the ignition event. Then you ignore other noises, and maybe 90% of the noise is ignored.

High priced knock sensing solutions use the later methods. In the mean time, there are a variety of <$5 chips that put out a proportional signal, but no one has yet spearheaded the movement to come up with a part, make it work, and lay out a board. If I ever do this, you'll be the first to know, and likely Jean from JBPerf will put together something nice out of the design.
AbeFM is offline   Reply With Quote
Old 04-21-2008, 10:26 PM   #14
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by AbeFM View Post
I (don't think) I've had any issue with false positives on my knocksense. I ran the regular one for a while, and upgraded to the KSMS when I got my MS-II.

for the most part, when I expect it to go off, it does. When I ran a front lisence plate (covering the intercooler), I got knock. I get 'knock' when I rev higher than I tuned the KS to ignore. I get knock on messy, grinding shifts.

The downside is I've never 'heard' knock, so I don't know if I'm missing some, or if this is all false.
This is precisely the reason why I think many OEMs have switched to ion sensing instead of a piezoelectric knock sensor. Its head-and-shoulders more accurate. I'm looking into the possibility of rigging up a cheap ion sensing solution for datalogging purposes only. Writing the algorithm for closed loop control is beyond my present capabilities.


Quote:
Originally Posted by AbeFM View Post
1) A knock threshold dependent on RPM. The MS-II extra supports this, MS-I might. But you still need a detector circuit which puts out a signal proportional in volume to what the actual sensor sees.
2) A knock 'window', so you only listen for knock ~10-20 degrees around the ignition event. Then you ignore other noises, and maybe 90% of the noise is ignored.

High priced knock sensing solutions use the later methods. In the mean time, there are a variety of <$5 chips that put out a proportional signal, but no one has yet spearheaded the movement to come up with a part, make it work, and lay out a board. If I ever do this, you'll be the first to know, and likely Jean from JBPerf will put together something nice out of the design.

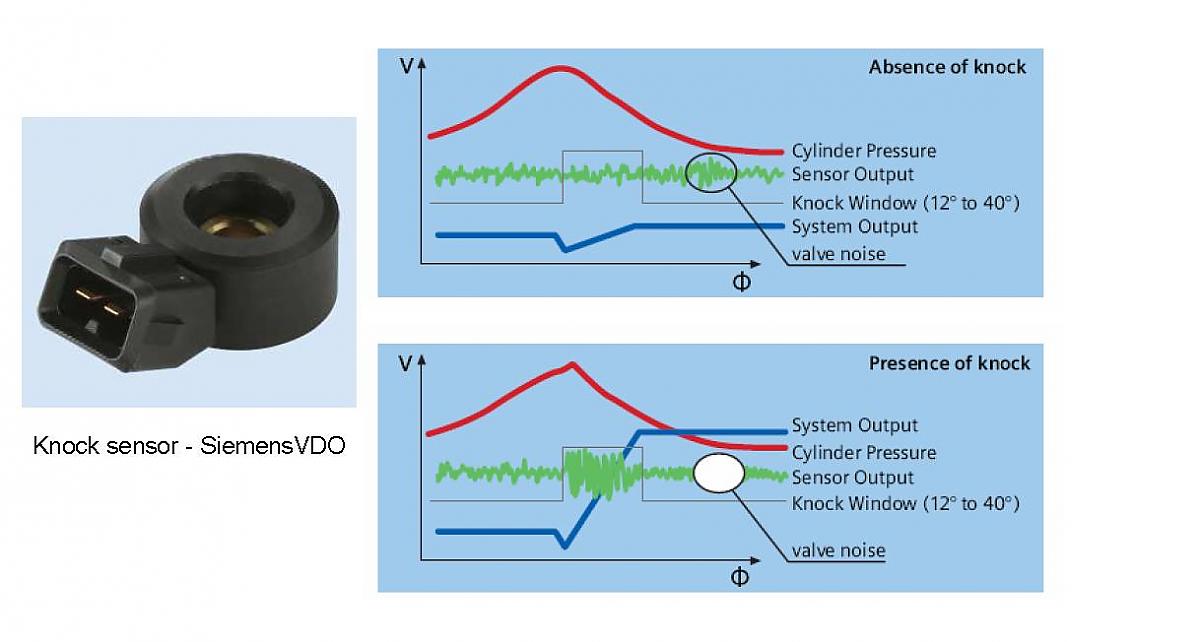

I was looking at a lecture from automotive sensors class and found this (att). It seems to match what you're talking about in (2).

The chip you're talking about. Does it happen to be this one by any chance:

http://www.chipcatalog.com/Datasheet...DC9E458B54.htm
Attached Thumbnails
I'm ready for a knock sensor-untitled.jpg
The_Pipefather is offline   Reply With Quote
Old 04-22-2008, 03:32 AM   #15
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I don't think it's the exact chip, but it's certainly of the type, there are many of them.

Remember, you don't need to do a closed loop control, it's enough to build something with a signal the MS can see, even if it's simplified.
AbeFM is offline   Reply With Quote
Old 04-22-2008, 07:51 AM   #16
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

NASIOC probably has the routines so you can see how the stock knock sensors work as Subaru ECU software is opensource. And the Suby ECU is quite advanced. I'm sure it's been discussed quite a bit in the tuning forum there.

Or if you can find the schematics for the TurboXS knocklite. It doesn't have a signal output, but it does allow a run to redline to determine engine noise when you set it up and sensitivity is controlled via a button on the top. Plus it uses the common Bosch knock sensor.

Frank
fmowry is offline   Reply With Quote
Old 04-22-2008, 09:16 AM   #17
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I've built the knocksensing circuit and it does what it's supposed to do: basic knock protection. With proper tuning, you shouldn't be knocking anyway. I'm getting false positives between 3400 and 3800rpm, even on decel, but on the bright side, I've never heard knock during tuning that wasn't logged. For $5 in parts, you just can't beat it.

Jim
Attached Thumbnails
I'm ready for a knock sensor-knock_circuit.jpg
Reverant is offline   Reply With Quote
Old 04-22-2008, 12:17 PM   #18
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by Reverant View Post
With proper tuning, you shouldn't be knocking anyway.
Well that's the whole point. How to get the proper tuning without spending hours worth of dyno time?

Quote:
Originally Posted by Reverant View Post
I'm getting false positives between 3400 and 3800rpm, even on decel, but on the bright side, I've never heard knock during tuning that wasn't logged. For $5 in parts, you just can't beat it.
In that case, I think I'm gonna try this. The false positives dont bother me as much as the non-reported negatives do.
The_Pipefather is offline   Reply With Quote
Old 04-22-2008, 02:57 PM   #19
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by The_Pipefather View Post
Well that's the whole point. How to get the proper tuning without spending hours worth of dyno time?
Agreed. Plus if you inadvertently get a tank of bad gas (low octane) the knock sensor will let you know.
ZX-Tex is offline   Reply With Quote
Old 04-22-2008, 03:27 PM   #20
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by fmowry View Post
NASIOC probably has the routines so you can see how the stock knock sensors work as Subaru ECU software is opensource. And the Suby ECU is quite advanced. I'm sure it's been discussed quite a bit in the tuning forum there.

Or if you can find the schematics for the TurboXS knocklite. It doesn't have a signal output, but it does allow a run to redline to determine engine noise when you set it up and sensitivity is controlled via a button on the top. Plus it uses the common Bosch knock sensor.

Frank
A link would be really helpful. NASIOC is like the freakin' manhattan of car forums. Too crowded.
