Old 12-25-2011, 03:37 PM   #1
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default Installing wideband questions

I have a 99 and am using a brain built ms2. I have it all wired up but as i got an aem wideband i'm not positive how to wire it up. Should i use the stock o2 4 wire o2 and just cut and splice to replace it with the wbo2? I tried searching with not much luck.. Wiring isn't my best suit.. Thank you!
cowboys647 is offline   Reply With Quote
Old 12-25-2011, 04:12 PM   #2
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Removed o2 sensor from car, install wideband sensor. Run sensor wires to wideband controller, connect wideband signal wire from controller inside to the o2 input wire. Probably best to put a splice into the stock o2 wire coming into the harness with and easy to remove connector. That way if you want to go back to the stock sensor you can just disconnect the wideband signal wire.
Techsalvager is offline   Reply With Quote
Old 12-25-2011, 06:48 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

I connected it to where the stock o2 sensor was and splicedit in and it was getting power but wasn't giving me a reading. I wrote it the the megasquirt but the gauge went crazy..
cowboys647 is offline   Reply With Quote
Old 12-25-2011, 07:00 PM   #4
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

******* ADS

Pictures of what you did?
Techsalvager is offline   Reply With Quote
Old 12-25-2011, 08:10 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

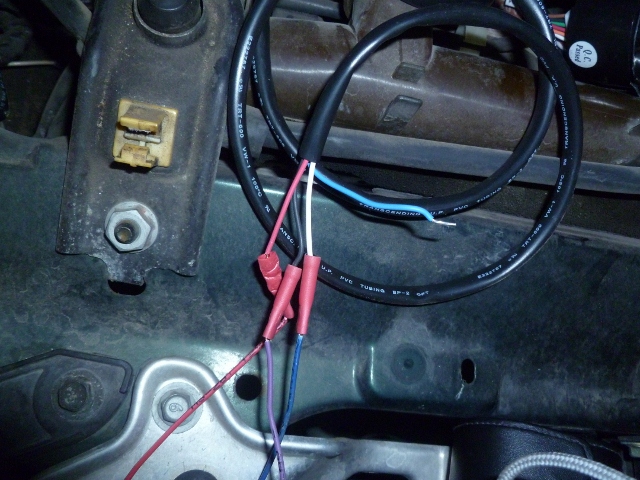

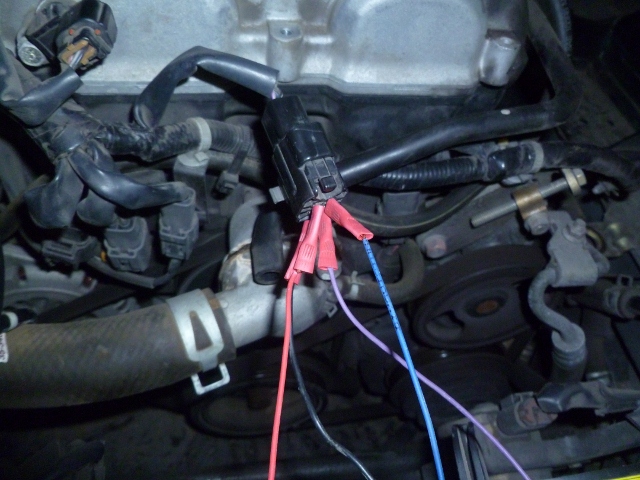

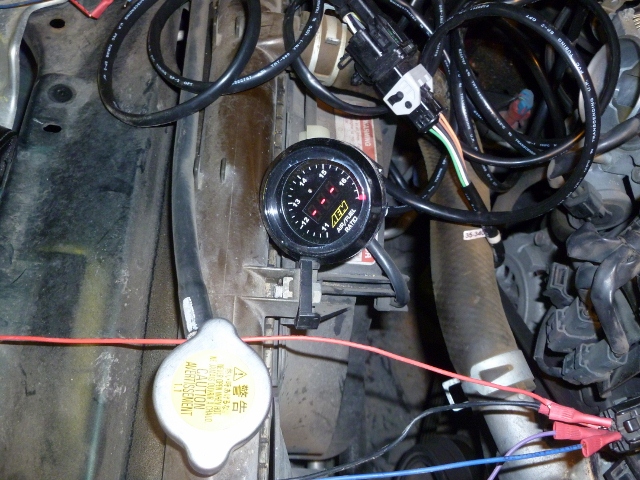

Pictures of how i have it wired up.

Off topic: Wiring the gm iat sensor, Do i just cut off the stock air temp sensor and use those two wires and then mount it in the same place? If so can i remove the maf at the same time?
Attached Thumbnails
Installing wideband questions-p1010480-640x480-.jpg   Installing wideband questions-p1010481-640x480-.jpg   Installing wideband questions-p1010485-640x480-.jpg
cowboys647 is offline   Reply With Quote
Old 12-25-2011, 08:20 PM   #6
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

or you could just pull the stock iat sensor out and use it.

What in the world is going on there. Move your AEM wideband Gauge into the car. From the Gauge the 6 wires go to the wideband sensor though the firewall, There is a rubber grommet that can be dripped into and you can run the wires though it to the sensor from the gauge. The last 4 wires are power, ground, o2 output, serial output.

I don't know what you have going to the stock o2 sensor but you need to remove it and don't hook up anything to the stock connector, just leave it alone. Oh I see, yeah remove that, put the gauge inside and tap a 12v switched source for the power ( not the radio ) and just run the ground to the chassis, and do what I said before and splice into the stock o2 wire in the harness.
Techsalvager is offline   Reply With Quote
Old 12-25-2011, 08:26 PM   #7
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by cowboys647 View Post
Pictures of how i have it wired up.

Off topic: Wiring the gm iat sensor, Do i just cut off the stock air temp sensor and use those two wires and then mount it in the same place? If so can i remove the maf at the same time?
Just unplug the MAF and follow the instructions for wiring the GM IAT sensor that are on DIY's Web site.
pusha is offline   Reply With Quote
Old 12-25-2011, 08:28 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Now that you said that it makes perfect sense.... Going right now to do that!
cowboys647 is offline   Reply With Quote
Old 12-25-2011, 08:31 PM   #9
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Hand holding is fine but don't ask anyone here to hold onto your *****.
pusha is offline   Reply With Quote
Old 12-26-2011, 01:37 AM   #10
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

haha ill remember that. Anyways got everything wired up and started the car. Wideband works, used stock iat sensor, and everything seems to be working. Car was pretty rough upon startup. First time with tuning so it definitely is a learning experience.
cowboys647 is offline   Reply With Quote
Old 12-26-2011, 01:51 AM   #11
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

make sure you check that timing is correct with whats in the megasquirt and whats on the crank pulley
Techsalvager is offline   Reply With Quote
Old 12-26-2011, 02:44 AM   #12
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

I'm not trying to be a dick, but seriously, that wiring job looks ghetto as hell. I hope that was a test fit and not how you actually wire things up. If you honestly don't see what's wrong with your pics, we can talk over how you can learn and do better, I'm just saying something because I want to help and not to come off as harsh.
tasty danish is offline   Reply With Quote
Old 12-26-2011, 02:54 AM   #13
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Another question.. My car is running at %100 fuel load constantly. I know i probably have something set wrong.. Any insights?
cowboys647 is offline   Reply With Quote
Old 12-26-2011, 02:58 AM   #14
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Quote:
Originally Posted by cowboys647 View Post
Another question.. My car is running at %100 fuel load constantly. I know i probably have something set wrong.. Any insights?
If you are running speed density (MAP sensor) fuel load is basically manifold pressure. You don't have a hose hooked up to your map sensor if it's reading 100%
tasty danish is offline   Reply With Quote
Old 12-28-2011, 12:35 AM   #15
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Ah right you are Danish. Still pretty new at this so thanks!
cowboys647 is offline   Reply With Quote
Old 12-28-2011, 05:45 PM   #16
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Alright i'm back with another question. I had my car running the other night and was tuning but this morning i powered it on and my wideband settings were set back to narrowband and my gauge was blank. I wrote it to the controller again but after turning off the car it doesn't seem to save it. It is a aem wideband..
cowboys647 is offline   Reply With Quote
Old 12-28-2011, 05:59 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You need to hook up with a local so they can save you from yourself.
hustler is offline   Reply With Quote
Old 12-28-2011, 06:00 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cowboys647 View Post
Alright i'm back with another question. I had my car running the other night and was tuning but this morning i powered it on and my wideband settings were set back to narrowband and my gauge was blank. I wrote it to the controller again but after turning off the car it doesn't seem to save it. It is a aem wideband..
Usually this means the controller reset...but I doubt that happened. Are you closing DLL or whatever configures the LC-1 prior to powering the controller down?
hustler is offline   Reply With Quote
Old 12-28-2011, 06:19 PM   #19
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

I'm using tunerstudio if that is what you were asking and Sometimes i close it before and sometimes after. I didn't think that was an issue as long as i burned all my changes and already wrote the type of wideband to the ecu.
cowboys647 is offline   Reply With Quote
Old 12-28-2011, 06:22 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cowboys647 View Post
I'm using tunerstudio if that is what you were asking and Sometimes i close it before and sometimes after. I didn't think that was an issue as long as i burned all my changes and already wrote the type of wideband to the ecu.
Logworks, sorry. That program is seriously buggy. Make your changes, burn, close, unplug, and then you can say the WB is configured.
hustler is offline   Reply With Quote
