Default MAP never reach 100

I am going to switch to ITB load from Alpha-N.
I found I can never reach 100 KPA.
Any Idea?

I am using 4bar map sensor

Thanks
Attached Thumbnails

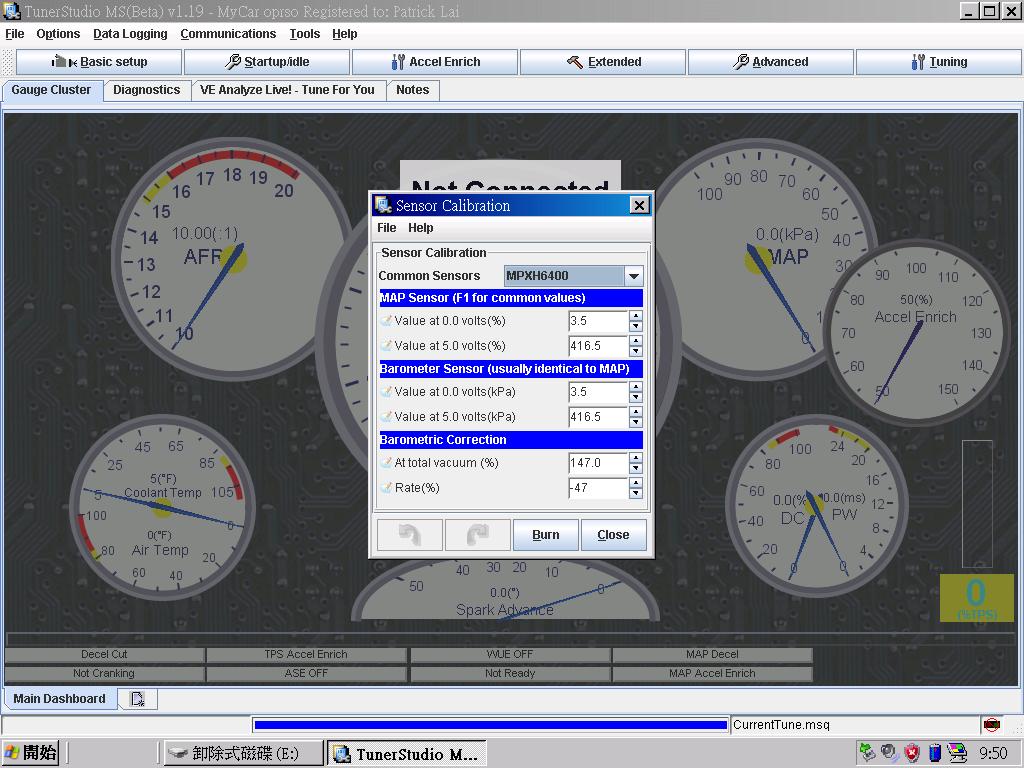

MAP never reach 100-sen-cal.jpg
Attached Files
File Type: msl 2011-12-16_17.52.44.msl (312.6 KB, 65 views)
File Type: msq TS tune.msq (84.1 KB, 72 views)
oprso is offline   Reply With Quote
Old 12-19-2011, 12:29 AM   #2
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

What is the map reading when the engine is off?
hochkis is offline   Reply With Quote
Old 12-19-2011, 01:13 AM   #3
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 257
Default

And where is the MAP sensor connected to on the intake manifold?
soviet is offline   Reply With Quote
Old 12-19-2011, 01:33 AM   #4
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Whats barometric pressure in your local area?
Techsalvager is offline   Reply With Quote
Old 12-19-2011, 03:50 AM   #5
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

map reading is 90kpa when engine is off.
It was about 60 before i change to ms2.

My itb has 5 plug for me to connect to the vacume hose. 4 for each individual cyclinder and the pther one for the sum.
I connected my Vacume hose to the sum.

Barometric presure is 99 to 100 shown on the 2nd map output.
And i am locate in hong kong.
oprso is offline   Reply With Quote
Old 12-19-2011, 04:24 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

What altitude are you at?
Savington is online now   Reply With Quote
Old 12-19-2011, 04:35 AM   #7
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

The log was taken beside the sea.
oprso is offline   Reply With Quote
Old 12-19-2011, 07:07 AM   #8
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

picture of your 4 bar map sensor, also why are you using a 4 bar map sensor instead of a map sensor that reads just above 1 bar?
Techsalvager is offline   Reply With Quote
Old 12-19-2011, 07:30 AM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by techsalvager View Post
also why are you using a 4 bar map sensor instead of a map sensor that reads just above 1 bar?
mspnp9497?
Reverant is offline   Reply With Quote
Old 12-19-2011, 11:22 AM   #10
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Techsalvager View Post
picture of your 4 bar map sensor, also why are you using a 4 bar map sensor instead of a map sensor that reads just above 1 bar?
the reason i changed to 4 bar sensor because my car went very lean when i go on the hill, which was the way i go to work. then i changed to 4 bar sensor and fixed this problem.




and my MS was a piggy tail MS2 just got upgraded from MS1.
oprso is offline   Reply With Quote
Old 12-19-2011, 02:23 PM   #11
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

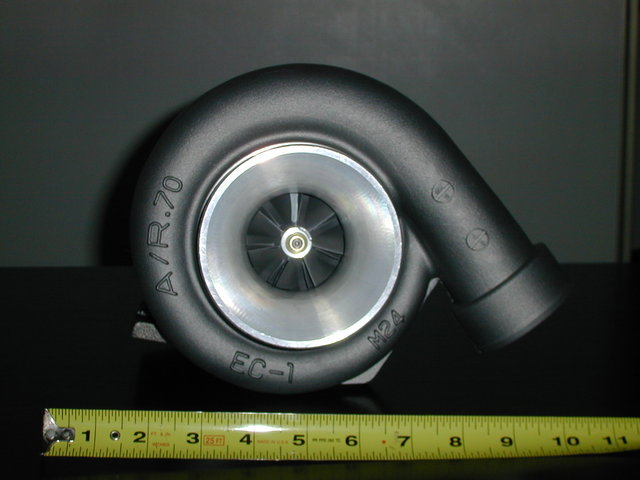

plug your intake with this:



should push you up over 100kpa.
Attached Thumbnails
MAP never reach 100-gt25_86ar_02.jpg
y8s is online now   Reply With Quote
Old 12-19-2011, 03:04 PM   #12
IHI
Junior Member

Join Date: Oct 2009
Location: The Netherlands
Posts: 200
Total Cats: 1
Default

Just calibrate it with "tools --> senor calibration".
IHI is offline   Reply With Quote
Old 12-19-2011, 06:30 PM   #13
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by oprso View Post
the reason i changed to 4 bar sensor because my car went very lean when i go on the hill, which was the way i go to work. then i changed to 4 bar sensor and fixed this problem.
Something sounds wrong there.
Techsalvager is offline   Reply With Quote
Old 12-19-2011, 10:03 PM   #14
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Techsalvager View Post
Something sounds wrong there.
my car used to go lean when i hot start it before I changed to 4 bar sensor. And the problem gone since i changed the mapdaddy.
Also, since i am using alpha-N, the engine react badly with the engine load change.
oprso is offline   Reply With Quote
Old 12-19-2011, 10:42 PM   #15
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I don't see how a 4 bar sensor would fix either of those issues unless your calibration of the orginal sensor was incorrect and that would be for the load issue only.
The hot start issue could be few different things from the stupid ideal gas law crap, to other issues related to injectors.
Hell you shouldn't even need a MAP sensor if you are using Alpha N for Fuel and Spark load calculations.
Techsalvager is offline   Reply With Quote
Old 12-19-2011, 10:55 PM   #16
Junior Member
Thread Starter

Join Date: Sep 2009
Posts: 65
Total Cats: 0
Default

Quote:
Originally Posted by Techsalvager View Post
I don't see how a 4 bar sensor would fix either of those issues unless your calibration of the orginal sensor was incorrect and that would be for the load issue only.
The hot start issue could be few different things from the stupid ideal gas law crap, to other issues related to injectors.
Hell you shouldn't even need a MAP sensor if you are using Alpha N for Fuel and Spark load calculations.
yes you are right. because I got my MS before i changed to ITB.
And I recently upgraded to MS2 and found the ITB load which need the MAP sensor, otherwise i wouldn't notice my map reading is not correct.
