Default MAPdot tuning

OK I have read through the accel enrichment pages, tried MAPdot and TPSdot, tried several settings in both, and am still having some bucking and stalling problems when the throttle is pressed. Mostly it happens when I give it moderate to heavy throttle inputs. It also seems worse when the RPM is around 4000 at cruise. Moderate to heavy throttle inputs cause a quick stall followed by some bucking.

Light throttle input seems OK. Heavy throttle input causes a brief less than 1 sec stall, then it revs OK. When applying heavy throttle at idle I hear what sounds like some faint knocking from the engine, short duration. I've logged data and looked at it in Megatune, even looked at TPdot and MAPdot in the megatune display and made some adjustments. I'm still not getting it to work properly.

Bucking and stalling is worse when the engine is cool. It still happens when the engine is warmed up though. All of what is described above is with a warm engine.

The car is running great otherwise, WOT, cruise, all OK. Idle is OK, its a little rich but it is reasonably steady even with a/c compressor cycling.

So I am hoping that someone running a similar setup can post their accel enrich settings (accel decel mode and acceleration wizard) so I can try them as a base line. Pretty please with boost on top?

My setup is in my sig. RX7 550cc injectors. Req_fuel right now is set at 5.5. Motor is all stock except for the BEGi-S of course.

Last edited by ZX-Tex; 03-26-2008 at 12:06 AM.
ZX-Tex is offline   Reply With Quote
Old 03-26-2008, 12:08 AM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

hmm. i run a 99 motor with a megasquirt and 550s

req_fuel is 5.6 on a displacement of 1839cc
Attached Thumbnails

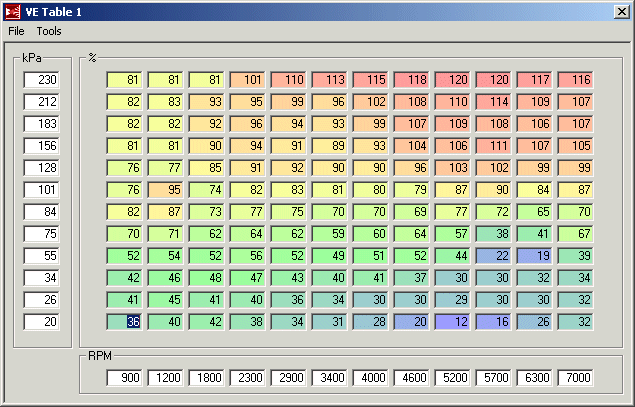

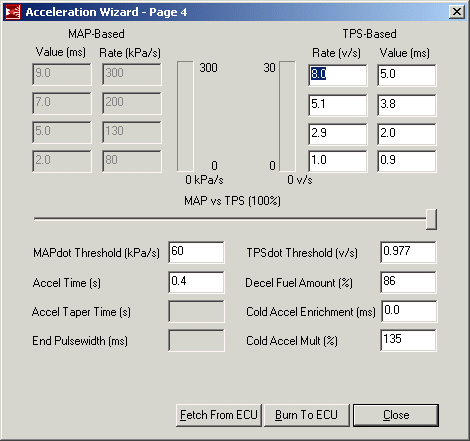

MAPdot tuning-accel_wiz.gif   MAPdot tuning-ve.gif
paul is offline   Reply With Quote
Old 03-26-2008, 12:10 AM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

This is what i'm using now. I had the threshold set to .576 or something, you can use more like .976 or w/e diyautotune uses though.
FWIW, i used to use 5.6 as my req fuel but switched to 6.0 and now for some reason the car runs better after i retuned the fuel map.
cjernigan is offline   Reply With Quote
Old 03-26-2008, 12:14 AM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

whats with that 30.078 v/s threshold?
paul is offline   Reply With Quote
Old 03-26-2008, 01:14 AM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I only set it to 30 vs because that is the max value you can enter in that box, it disable all AE when i'm tuning the VE table.
You're actually supposed to leave AE turned on when tuning with MLV, that way it can adjust some of the fuel table to accomodate the AE. Atleast that's what the MLV developer says. If tuning by hand or by other method leave it turned off.
cjernigan is offline   Reply With Quote
Old 03-26-2008, 01:56 AM   #6
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

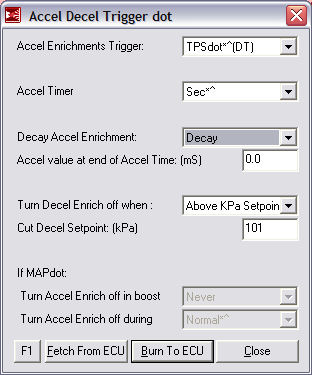

OK thanks for the information gents. I will try those settings in the morning for my work commute. Are you using the mspnp97 settings in the accel decel trigger dot window?
Attached Thumbnails
MAPdot tuning-image1.jpg
ZX-Tex is offline   Reply With Quote
Old 03-26-2008, 02:01 AM   #7
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

yup
paul is offline   Reply With Quote
Old 03-26-2008, 02:05 AM   #8
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Thanks for the quick answer
ZX-Tex is offline   Reply With Quote
Old 03-26-2008, 02:12 AM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by ZX-Tex View Post
Thanks for the quick answer
Let me know if they work.
cjernigan is offline   Reply With Quote
Old 03-26-2008, 11:14 AM   #10
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I changed the msq this morning to the settings above and drove to work on it. Seems much better. Thanks.
ZX-Tex is offline   Reply With Quote
Old 03-26-2008, 01:00 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Kind of funny, i was scrolling through the thread and realized both of us posted the same exact AE table. Then i realized that it wasn't mine and I had no idea where that one came from. For some reason I had a screenshot of it though.
This is the one i'm running right now, basically the same thing.
cjernigan is offline   Reply With Quote
Old 04-05-2008, 12:37 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Those values seem nearly identical to DIY's numbers for the '94-'97 PNP, which I believe is based on stock 230cc injectors. Since at this level we're dealing directly is ms rather than %, with the 550s, wouldn't it be necessary to cut those numbers down?

Here's my Accel table below. Since I'm running 440cc injectors, I divided the DIY base values more or less in half. Seems to be working:

Joe Perez is online now   Reply With Quote
Old 04-05-2008, 01:33 PM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Apparently I don't know how to post the actual AE table i'm using. Here is the one currently in use.


I have a little different question though. No matter how hard I "stab" the throttle the red bar that goes from 0 to 30 never goes up very far. Atleast it doesn't go up to what I would consider 8 v/s.
How are those values generated? If I sit in the car with the key on and stab the throttle with the engine not running is there some way to calculate what that curve should be?
cjernigan is offline   Reply With Quote
Old 04-05-2008, 02:07 PM   #14
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

You could try logging the throttle movements and use TPSdot in MLV.
ZX-Tex is offline   Reply With Quote
Old 04-05-2008, 06:20 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Still seems like those numbers are awful big.
Joe Perez is online now   Reply With Quote
Old 04-08-2008, 12:47 PM   #16
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Any final word/thoughts on this?

<-- doing his best to absorb months of MS threads he has neglected over the winter... and build up a new nice starting map for the Miotta.
Splitime is online now   Reply With Quote
Old 04-08-2008, 12:56 PM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yeah, tune the (ms) values until it feels right and offers the best throttle response.
cjernigan is offline   Reply With Quote
Old 04-08-2008, 03:02 PM   #18
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Good catch Joe, completely missed that fact myself. I cut my numbers in half, roughly to the same values as Joe posted above, and it seems to be working fine.
ZX-Tex is offline   Reply With Quote
Old 12-03-2008, 04:57 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

any 100% MAP values for us non-tps guys?
hustler is offline   Reply With Quote
Old 01-23-2012, 01:53 AM   #20
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

What should this look like in diypnp.
I has a few of these setting but
tpsdot is not v/s but %/s
90 Turbo is offline   Reply With Quote
