Old 09-10-2010, 03:34 PM   #21
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
Well I pulled the coils, plugs and unplugged the injectors and turned the car over.

You should have SEEN the amount of fuel that came shooting out of cyl 2 and 3. It covered my engine bay in fuel and half my driveway.

I'm letting it air out overnight. And will pick up new plugs tommorow.

I checked all the connections on the patch harness and they are all fine. No touching of one to another from twisting it.

So the only logical conclusion is a problem with the MS or two of the 4 of my coils happened to **** the bed at exactly the same time I did the re-location of the MS. I am trying to locate a local Stim and if I can't find one I'll head down to Bellingham and throw it on wayne_currs. Since 2 and 3 fire together (I think?) I'm guessing my spark output is messed up somehow.
Your spark outputs are wired as 1&3, 2&4. Your fuel outputs are wired as 1&4, 2&3. Something is locking your injectors open. Check your TPS circuit.
wayne_curr is offline   Reply With Quote
Old 09-10-2010, 04:40 PM   #22
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Hmm, unplugged injectors (as not connected to the MS) and fuel flowing?
Would that not mean 2 injectors are stuck open, and a problem unrelated to MS or wiring?
NiklasFalk is offline   Reply With Quote
Old 09-10-2010, 06:27 PM   #23
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Ok update. I let the car sit overnight and let the fuel evap. I put new plugs in and swapped a few coils around to see if they were the issue. I was wrong before. It's not cyl 2/3 it's cyl 1/3. I check the plugs after it had a hissy fit again. So it's running on cyls 2 and 4. I just pulled the MS out of the car... and am opening it up. Maybe I'll see something fried? Dunno...

I've ruled out that it's the coils... or the wiring (tested with a multimeter).

And Anton... it's not the TPS. It's well wrapped up and zip tied out of the way.
falcon is offline   Reply With Quote
Old 09-10-2010, 07:12 PM   #24
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Ok well its definitely related to spark and not fuel then. I guess its possible that something happened inside the megasquirt though I'm not so sure you'll be able to tell anything at all. I think I'm just going to have to take a look at it in person.

In the mean time, reflash the firmware, burn your MSQ again and see if that does anything. I've had my firmware corrupt for some reason after moving the megasquirt around, unplugging it and plugging it back in, etc. Never caused 2 cylinders, but who knows. Gotta try the simple stuff first.

Last edited by curly; 09-11-2010 at 02:12 PM.
wayne_curr is offline   Reply With Quote
Old 09-10-2010, 07:26 PM   #25
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Main problem here is my laptop **** the bed last week and I don't have a copy of my msq anymore.

When is the soonest I can come down?
falcon is offline   Reply With Quote
Old 09-10-2010, 07:32 PM   #26
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
Main problem here is my laptop **** the bed last week and I don't have a copy of my msq anymore.

When is the soonest I can come down?
****.

Sunday is the soonest.
wayne_curr is offline   Reply With Quote
Old 09-10-2010, 07:42 PM   #27
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

FML. I'm busy on Sunday. Guess I won't be AutoX'n this Sunday.
falcon is offline   Reply With Quote
Old 09-10-2010, 08:18 PM   #28
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
FML. I'm busy on Sunday. Guess I won't be AutoX'n this Sunday.
Well if you're busy Sunday then you dont have any time to autox anyway!
wayne_curr is offline   Reply With Quote
Old 09-10-2010, 08:34 PM   #29
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I meant I'm busy Sunday because I have to run the AutoX... just won't be able to drive.

How late on Sunday are you around? Are you not around at all tommorow during any part of the day? I'm off work.
falcon is offline   Reply With Quote
Old 09-11-2010, 02:49 AM   #30
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
I meant I'm busy Sunday because I have to run the AutoX... just won't be able to drive.

How late on Sunday are you around? Are you not around at all tommorow during any part of the day? I'm off work.
No I work from Noon to 8:30.
wayne_curr is offline   Reply With Quote
Old 09-11-2010, 03:11 AM   #31
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

How long is it supposed to take to hook up to the stim? Am I missing something here...
falcon is offline   Reply With Quote
Old 09-11-2010, 03:30 AM   #32
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
How long is it supposed to take to hook up to the stim? Am I missing something here...
Yes I think you're missing something. What are you expecting to happen with the stim?

Anyway, forget the stim. It wont solve anything. What we need to do is plug it into my car and make sure its working or broken. Thats the first troubleshooting step then we can go from there.
wayne_curr is offline   Reply With Quote
Old 09-11-2010, 01:57 PM   #33
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Oh...

I though we just hook it up to the stim and see if it's actually the MS that's broken. I don't even know that for sure yet.

Let me know when I can come down. Is the evening tommorow OK for you? I can't miss th AutoX. It ends at 4ish.
falcon is offline   Reply With Quote
Old 09-11-2010, 02:48 PM   #34
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Hey what ignition driver does my board have? VB921 IGBT or Bosch BIP373?

From some reading I've done it seems the VB921 has had problems before where it just gives up it's ghost randomly.
falcon is offline   Reply With Quote
Old 09-11-2010, 02:57 PM   #35
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

driving the cops directly from ms or do you still have them wired into the miata ignitor?
Techsalvager is offline   Reply With Quote
Old 09-11-2010, 03:03 PM   #36
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

direct. and they haven't cause me any issues before...
falcon is offline   Reply With Quote
Old 09-11-2010, 03:10 PM   #37
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I think I figured it out. A while ago Joe Perez posted the thread on dwell. He found 3ms worked better for him and that it is in fact actually 2.5ms because of a wierd calculation in the code. So what did I do? Changed my dwell to 3.0ms. And now this. And I found this thread to confirm my conclusion. Time to order a new Bosch ignition driver and set my dwell back to 2.5ms where it's been sitting happily for the last 8 mos.

http://www.msextra.com/forums/viewto...=36329&start=0
falcon is offline   Reply With Quote
Old 09-11-2010, 03:26 PM   #38
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

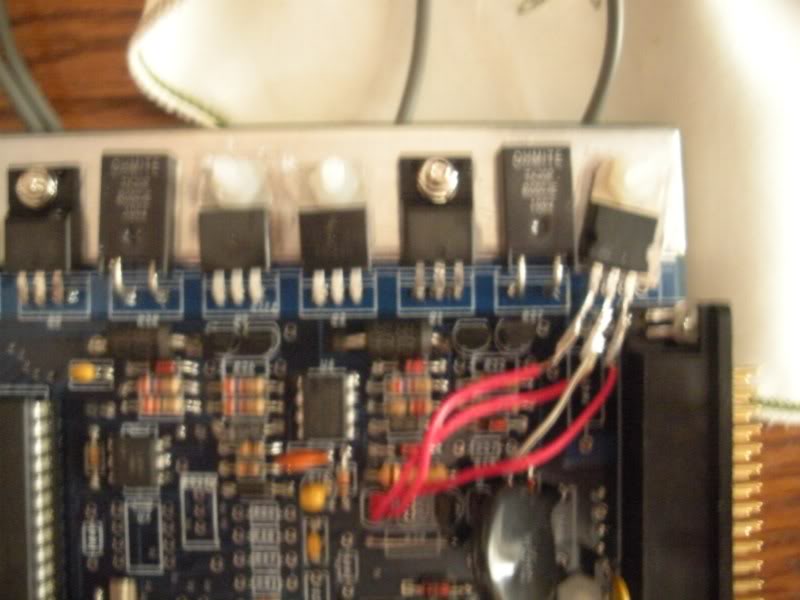

Name:  DSCN3093.jpg
Views: 0
Size:  49.6 KB

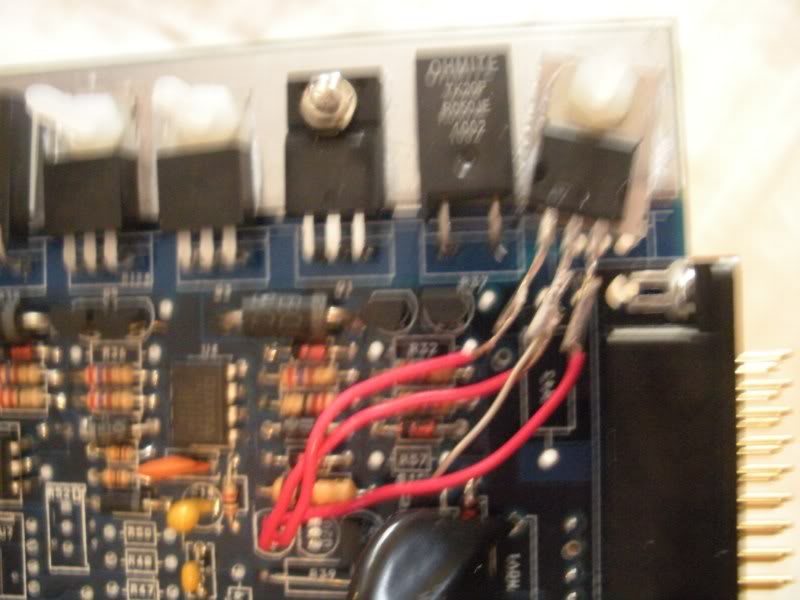

Name:  DSCN3091.jpg
Views: 0
Size:  53.9 KB

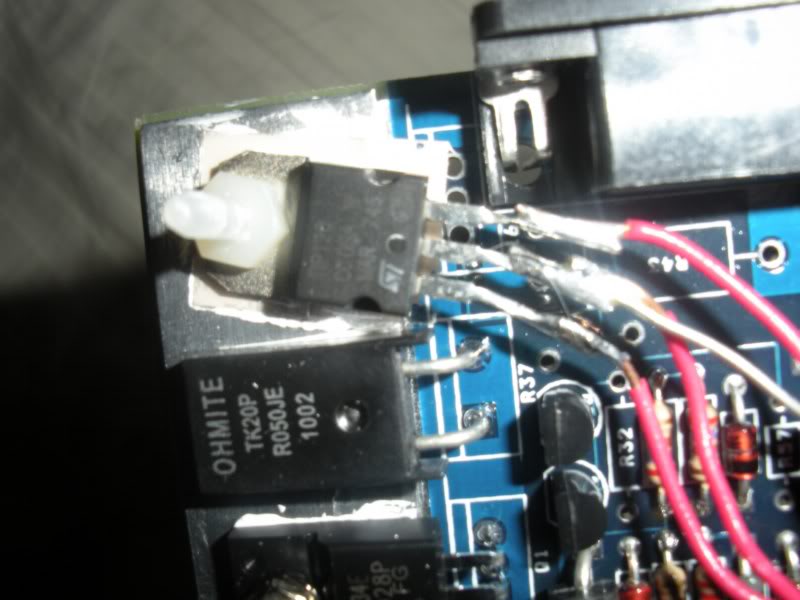

Name:  DSCN3088.jpg
Views: 0
Size:  54.4 KB

How does this look? It looks nothing like the thread I posted? Could it just be fried internally?
falcon is offline   Reply With Quote
Old 09-11-2010, 03:34 PM   #39
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

...........

Last edited by falcon; 09-11-2010 at 04:56 PM.
falcon is offline   Reply With Quote
Old 09-11-2010, 04:05 PM   #40
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

That TIP120 you're focusing on has nothing to do with your ignition drivers. That is your idle control circuit. I totally understand why you're confusing it though because on a standard build for most people that spot is used as an ignition driver.

The transistors I think you're looking for are in the proto area. Go find Joe's thread on the spark output mod and you can read all about them and how to build the circuit.
wayne_curr is offline   Reply With Quote
